ABOUT OCTAMESH

With the new OCTAmesh light frames, you can give light an exciting and spatial dimension. LEDs inside the frame are curved through the special fabric into a unique arc which, depending on the viewing angle and the viewing distance, have a very individual three-dimensional effect.

The new OCTAmesh is ideal for retail, exhibitions, events, and museums.

To the products


3D LIGHT STRUCTURES WITH DEEP VIEW EFFECT

OCTAmesh lux | miracle




YOUR ADDED VALUE

Innovative eye catcher.

The individual arcs of light are an impressive sight for your trade fairs, events and exhibitions. Attention is guaranteed with this world first.

Deep view effect.

The three-dimensional arc of light has a depth effect. Rooms, walls and ceilings are seem to be much larger than they actually are.

Plug-and-Play.

The lighting and current technology are already pre-assembled ready for plug-in. These only have to be connected during assembly. Real plug-and-play.

High quality.

Our high-quality anodised aluminum components are characterized by their stability, durability and contempory aesthetics.

Dimmable RGB LEDs.

All OCTAmesh lighting frames are also equipped with RGB dimmable LEDs on request.

System package.

Their frame profiles are optimally transported through a special system package and are protected against damage.

RAL colors.

On request, we can produce your frame profiles in any available RAL color. Suitable for your project.

EMC certificate.

Safety first. Therefore all OCTAmesh lighting products have an EMC certificate.

OCTAmesh LED Strip

AVAILABLE IN TWO LED VERSIONS

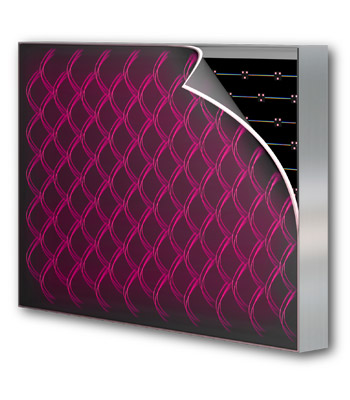

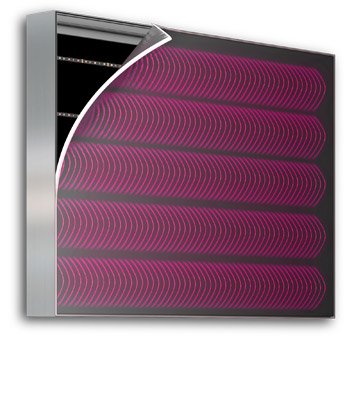

OCTAmesh is available as a standard in two LED versions, each providing a different light image. The LED module OM 110 "LED-Strip" produces uniform rows with narrow arcs. With the OM 103 LED module "3-point", however, 3 individual LED points are bundled into a braid, which are offset by line.

AVAILABLE IN TWO TYPES FABRIC

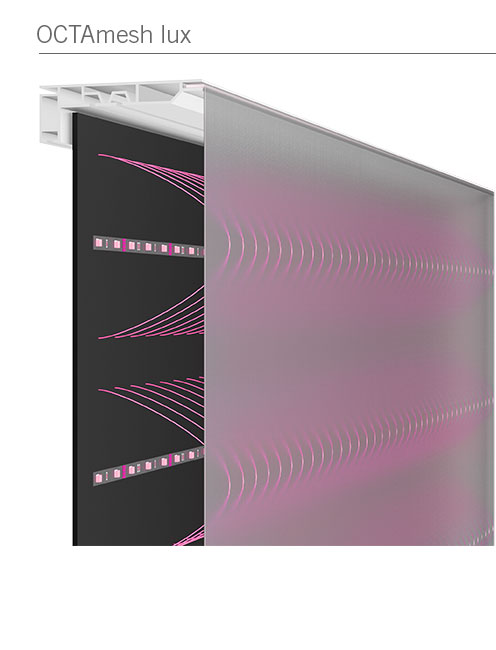

OCTAmesh is currently available in two variants: At OCTAmesh lux, the individual light points are still recognizable. The lux fabric creates a narrower arc. Available in white, black, anthracite and red.

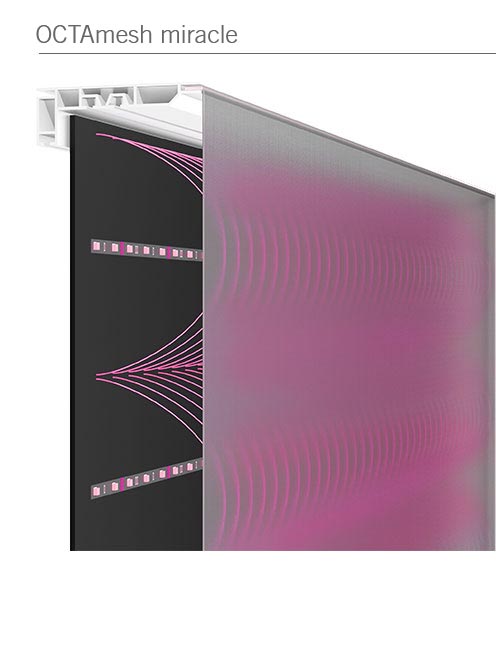

The variant OCTAmesh miracle transforms the light points completely into arc and creates a further arc as the lux tissue. Miracle is currently only available in anthracite.




Standard Effects FOR OCTAmesh

RGB colors individually adjustable

LED strip diagonal / lux

LED strip diagonal / miracle

LED 3-point offset / lux

LED 3-point offset / miracle

More INDIVIDUAL effects

RGB colors individually adjustable

X form

Two double lines diagonal

Horizontal lines offset

Double coaxial circles

Interrupted horizontal lines
Diagonal interrupted lines



Technical specifications

General

  • High quality aluminum frame made from M 1905 (Standard color silver anodised, other RAL colors on request)
  • Integrated light and current technology (input: 100-240 V AC, 50/60 Hz, output: 12 V DC, 3.00 A, 36 W)
  • 16.7 million RGB colors trough dimmable LEDs, remote controllable
  • Acoustics module available on request

OCTAMESH LUX

  • Light active fabric with decorative surface
  • Long, structured light line
  • UV-stable, for protection against contamination when used for outdoor purposes
  • Slight shortening of the light line by extraneous light
  • High shielding of the background
  • High color and light fastness
  • Max. width of fabric: 1900 mm
  • Material: PET / PVDF
  • B1 "flame-retardant" according to DIN 4102, part 1
  • Surface weight: 186-187 g/m²
  • Thickness: 0.40-0.43 mm
  • Maximum tensile force in effect direction: 381-385 N/5cm
  • Maximum tensile force against effect direction: 2172-2360 N/5cm
  • Light transmission: ≈ ​​24 % (anthracite, black, red), ≈ 60 % (white)

OCTAMESH MIRACLE

  • Very long, clear lines
  • Continuous line without light point
  • Silver, shiny surface
  • Slight shortening of the light line by extraneous light
  • Very high shielding of the background
  • indoor application
  • Max. width of fabric: 1900 mm
  • Material: PET / PVDF
  • B1 "flame-retardant" according to DIN 4102, part 1
  • Weight: 214 g/m²
  • Thickness: 0.40 mm
  • Maximum tensile force in effect direction: 400 N/5cm
  • Maximum tensile force against effect direction: 2450 N/5cm
  • Light transmission: ≈ ​​45 %

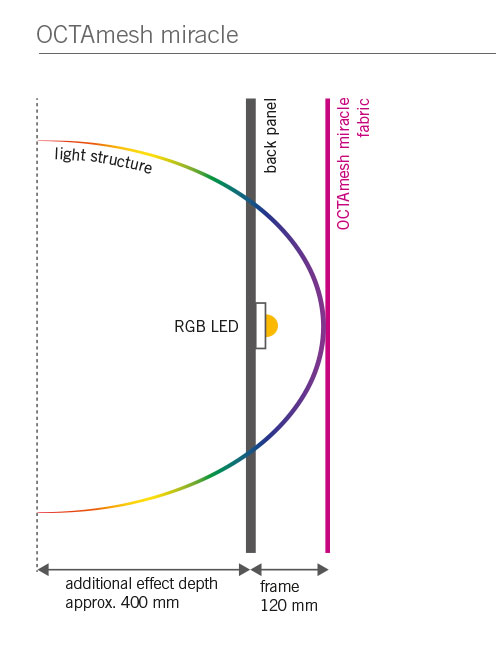

  • Effective length (distance LED fabric 4 cm):> 40 cm

INDIVIDUALLY. INNOVATIVE. APPEALING.

For your project at POS, exhibitions or event




Products​

ARTICLE DIMENSIONS FABRIC LED MODULE FOOTPLATES
OM 201 W 841 × H 1189 mm OCTAmesh lux 3-point LED Module no
OM 206 W 841 × H 1189 mm OCTAmesh lux LED strip no
OM 221 W 950 × H 2480 mm OCTAmesh lux 3-point LED Module yes
OM 226 W 950 × H 2480 mm OCTAmesh lux LED strip yes
OM 241 W 1900 × H 2480 mm OCTAmesh lux 3-point LED Module yes
OM 246 W 1900 × H 2480 mm OCTAmesh lux LED strip yes
OM 281 Custom size OCTAmesh lux 3-point LED Module no
OM 285 Custom size OCTAmesh lux LED strip no
OM 200 W 841 × H 1189 mm OCTAmesh miracle 3-point LED Module no
OM 205 W 841 × H 1189 mm OCTAmesh miracle LED strip no
OM 220 W 950 × H 2480 mm OCTAmesh miracle 3-point LED Module yes
OM 225 W 950 × H 2480 mm OCTAmesh miracle LED strip yes
OM 240 B 1900 × H 2480 mm OCTAmesh miracle 3-point LED Module yes
OM 245 B 1900 × H 2480 mm OCTAmesh miracle LED strip yes
OM 280 Custom size OCTAmesh miracle 3-point LED Module on request
OM 284 Custom size OCTAmesh miracle LED-Strip on request
OM 270 800 mm OCTAmesh miracle 3-point LED Module no
