M 1602

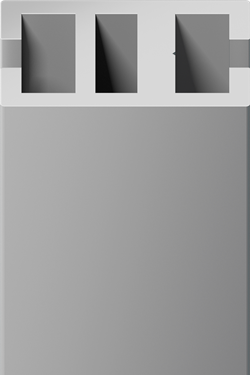

Beam extrusion, 2 system grooves, L 5000 × W 25 × H 16 mm

aluminium
2 system grooves
L 5000 × W 25 × H 16 mm

Available finishes
M 1602.01 matt anodized, silver (E6/EV1)
Technical data
Length:
5000 mm
Weight:
2.715 kg
Width:
16 mm
Pack unit:
1
Height:
25 mm
Technical Drawings / CAD files
The following files are available as download for logged in users only!
 M 1602.pdf
 XM 1602.pdf
 M 1602.dxf
 M 1602.dwg
Accessories
Product Brochures
Catalogue extrusions
AW 8810
Technical Information
Beam fabrication: M 1602 / M 1603
Mounting of beam M 1602 / M 1603 to the upright extrusion
Practical examples: M 1602 / M 1603 / M 1610
Practical examples: M 1602 / M 1603 / M 1610
Practical examples: M 1602 / M 1603 / M 1610
