S 233

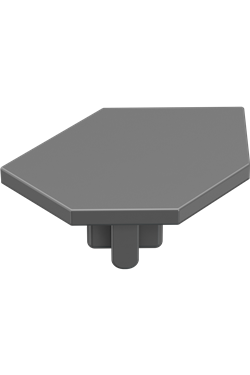

End plate, for S 203, L 40 × W 28 × H 12 mm

zinc die cast
for upright extrusion S 203
L 40 × W 28 × H 12 mm

Available finishes
S 233.39 matt chrome-plated
Deprecated
S 233.20 white powder-coated (RAL 9010/IG-94750-54 or TI-1910061)
Technical data
Length:
12 mm
Weight:
0.02 kg
Width:
40 mm
Pack unit:
20
Height:
28 mm
Technical Drawings / CAD files
The following files are available as download for logged in users only!
 S 233.pdf
