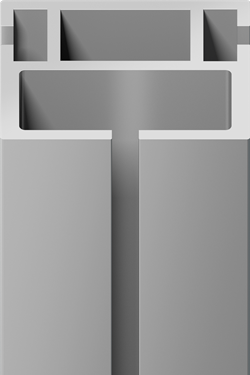

Z 2105
Beam extrusion, 3 system grooves, L 5000 × W 40 × H 32 mm

aluminium
3 system grooves, tension lock Z 961/13 can be mounted
L 5000 × W 40 × H 32 mm

Available finishes
Z 2105.01 matt anodized, silver (E6/EV1)
Technical data
Length:
5000 mm
Weight:
5.56 kg
Width:
32 mm
Pack unit:
1
Height:
40 mm
Technical Drawings / CAD files
The following files are available as download for logged in users only!
 Z 2105.pdf
 Z 2105.dxf
 Z 2105.dwg
Accessories
Product Brochures
Catalogue extrusions
AW 8810
Technical Information
Instructions for use of beam extrusions: Punching for tension lock mounting
