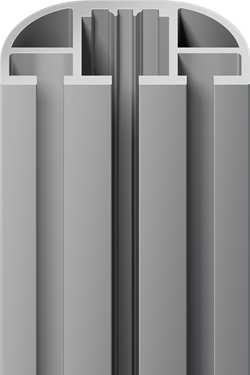

M 1606
Semi-circular extr., 2 system grooves, L 5000 × W 40 × H 20 mm

aluminium
L 5000 × W 40 × H 20 mm

Available finishes
M 1606.01 matt anodized, silver (E6/EV1)
Technical data
Length:
5000 mm
Weight:
3,042 kg
Width:
20 mm
Pack unit:
1
Height:
40 mm
Technical Drawings / CAD files
The following files are available as download for logged in users only!
 M 1606.pdf
 M 1606.dxf
 M 1606.dwg
Accessories
Product Brochures
Catalogue extrusions
AW 8810
