M 1692

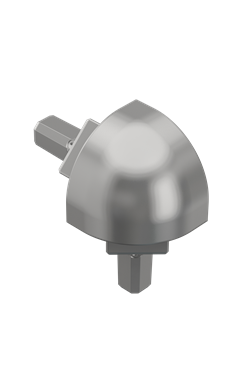

Knuckle joint, for 2 × M 1620, L 48 × W 48 × H 22 mm

zinc die cast
90°, for mounting 2 × quarter-round extrusion M 1620, incl. 2 × set screw M 1431/20 (M4)
L 48 × W 48 × H 22 mm

Available finishes
M 1692.39 matt chrome-plated
Technical data
Length:
48 mm
Weight:
0,059 kg
Width:
48 mm
Pack unit:
24
Height:
22 mm
Technical Drawings / CAD files
The following files are available as download for logged in users only!
 M 1692.pdf
Technical Information
Design example: Knuckle joint - length of the leg
