S 1171

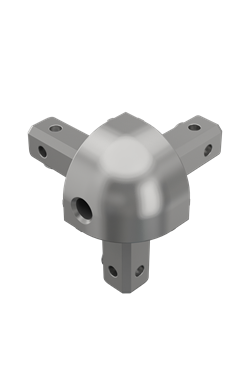

Knuckle joint, for 3 × S 1100/S 1105, L 72 × W 72 × H 72 mm

zinc die cast
90°, for mounting 2 × quarter-round extrusion S 1100 / S 1105, incl. 3 × countersunk screw E 111/m (M6) and 3 × set screw E 111/g (M6), with thread M10 (20 mm deep)
L 72 × W 72 × H 72 mm

Deprecated
S 1171.39 matt chrome-plated
Technical data
Length:
72 mm
Weight:
0,244 kg
Width:
72 mm
Pack unit:
8
Height:
72 mm
Technical Drawings / CAD files
The following files are available as download for logged in users only!
 S 1171.pdf
 XS 1171.pdf
Technical Information
Mounting instructions for knuckle joints
Design example: Knuckle joint - length of the legs
