S 1173

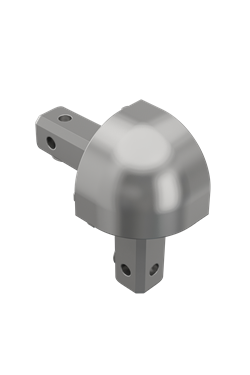

Knuckle joint, for 2 × S 1100/S 1105, L 72 × W 72 × H 32 mm

zinc die cast
90°, for mounting 2 × quarter-round extrusion S 1100 / S 1105 / S 1106, incl. 2 × countersunk screw E 111/m (M6) and 2 × set screw E 111/g (M6)
L 72 × W 72 × H 32 mm

Available finishes
S 1173.39 matt chrome-plated
Technical data
Length:
72 mm
Weight:
0,209 kg
Width:
72 mm
Pack unit:
4
Height:
32 mm
Technical Drawings / CAD files
The following files are available as download for logged in users only!
 S 1173.pdf
Technical Information
Mounting instructions for knuckle joints
Design example: Knuckle joint - length of the legs
