E 290

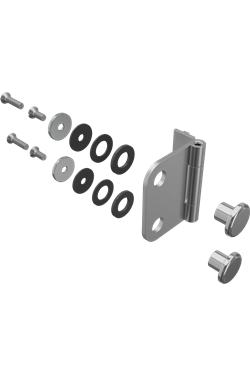

Hinge plate, for hinged doors, L 60 × W 50 × H 4 mm

aluminium
for hinged glass and wooden doors 5, 6, 8, 16, 19 mm, incl. mounting parts and distance washers
L 60 × W 50 × H 4 mm

Available finishes
E 290.01 matt anodized, silver (E6/EV1)
Technical data
Length:
60 mm
Weight:
0,08 kg
Width:
50 mm
Pack unit:
1
Height:
4 mm
Technical Drawings / CAD files
The following files are available as download for logged in users only!
 E 290.pdf
 XE 290.pdf
related products
Technical Information
Instructions for use of hinge plate E 290
Basic standard dimensions for hinge E 290
Mounting instructions for hinge E 290
Mounting instructions for hinge E 290
Design examples: Hinged door, single-leaf with hinged bolt lock
Glass door dimensions
