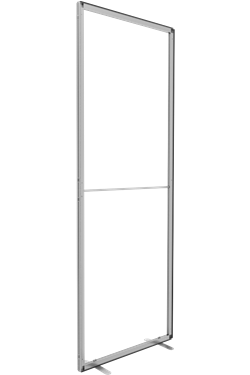

W 401M
Frame element, toolless, 800 x 2000 mm

1 × frame of W 906, for double-sided fabric, with plugable connection, incl. 2 × rotatable foot plates M 1956 and 1 × bracing, incl. 1 × shoulder bag W 494, 4 × corner connector W 916M, 2 × connector OL 240M, 3 × mounting-set M 1496, Drillings for cable management available on request, fabric dimension = outer frame dimension
W 800 × H 2000 × D 40 mm
Attention: freestanding only for double-sided fabric!

Available finishes
W 401M.01 matt anodized, silver (E6/EV1)
Technical data
40 mm
7,59 kg
800 mm
Pack unit:
2000 mm
Technical Drawings / CAD files
The following files are available as download for logged in users only!
 W 401M.pdf
Assembly Instructions / User Manuals
