W 402M

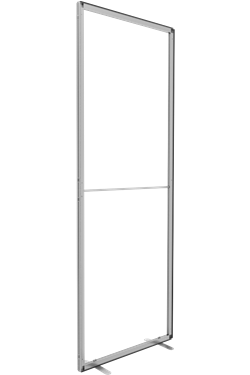

Frame element, toolless, with foot plates, 950 x 2480 mm

1 × frame of W 906, for double-sided fabric, with plugable connection, incl. 2 × rotatable foot plates M 1956 and 1 × bracing, incl. 1 × shoulder bag W 494, 4 × corner connector W 916M, 2 × connector OL 240M, 3 × mounting-set M 1496, Drillings for cable management available on request, fabric dimension = outer frame dimension
W 950 × H 2480 × D 40 mm
Attention: freestanding only for double-sided fabric!

Available finishes
W 402M.01 matt anodized, silver (E6/EV1)
Technical data
40 mm
8,93 kg
950 mm
Pack unit:
2480 mm
Technical Drawings / CAD files
The following files are available as download for logged in users only!
 W 402M.pdf
