Z 961/13

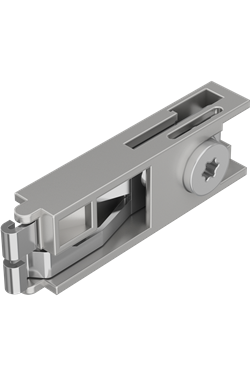

Tension lock, 13 mm, L 70 × W 21 × H 13 mm

zinc die cast/steel
13 mm, for all beam extrusions with lock chamber 21 × 12 mm as well as in conjunction with adaptor Z 161/A, for beam extrusions with lock chamber 39 × 12 mm
L 70 × W 21 × H 13 mm

Available finishes
Z 961/13.00 raw / unfinished
Technical data
Length:
70 mm
Weight:
0.052 kg
Width:
21 mm
Pack unit:
100
Height:
13 mm
Technical Drawings / CAD files
The following files are available as download for logged in users only!
 Z 961/13.pdf
 XZ 961/13.pdf
Mounting Examples
OCTAwall 40
door W 970 Set-up
ANI-OW-04
Setup OCTAwall custom
ANI-OWC-01
Application Examples
Tension lock
basic function
ANI-MB-01
Technical Information
M 1905 Construction examples for illuminated boxes
OCTAwall 40 / OCTAwall 60 - Connection of customized frames - milling sizes
OCTAwall 40 + 60, Double Skin Wall
Slot hole cutout in extrusions with 2mm wall thickness, ”Tension Lock Adaption Groove”
OCTAmax 350 - Solution for ceiling system
Smallest dimension of beam cuttings
Smallest dimension of beam cuttings
Mounting instructions for tension lock adapter in extrusion M 1052 UPDATE
Instructions for use of beam extrusions: Punching for tension lock mounting
