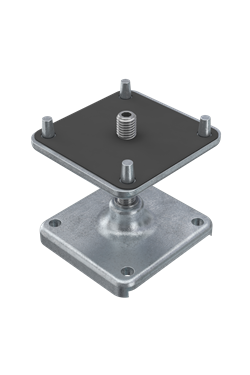

HF 1SP
Adjustable foot, 55-105 mm, L 90 × W 85 × H 105 mm

zinc die cast
height adjustable 55-105 mm, adjustable from top with hexagon wrench W 2, with upper retainer pins and anti rattle pad U 3
L 90 × W 85 × H 105 mm
load capacity max. 2000 kg

Available finishes
HF 1SP.00 raw / unfinished
Technical data
Length:
90 mm
Weight:
0.815 kg
Width:
85 mm
Pack unit:
1
Height:
105 mm
Technical Drawings / CAD files
The following files are available as download for logged in users only!
 HF 1SP.pdf
 XHF 1SP.pdf
 HF 1SP.dxf
 HF 1SP.dwg
Accessories
also available as
Product Brochures
OCTAfloor - Floor Systems
AW 883
Mounting Examples
OCTAclassic floor
Installation
ANI-DB-CF-01
Technical Information
OCTAclassic floor adaption of EPL 2 to sandwich panel SP 30 [SP 13]
OCTAclassic floor calculation of adjustable feet
OCTAclassic floor Positioning of adjustable feet
