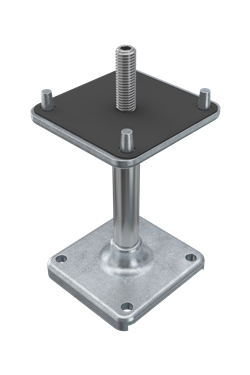

HF 3SP
Adjustable foot, 135-185 mm, L 90 × W 85 × H 185 mm

zinc die cast
stepless height adjustment from 135 to 185 mm, adjustable from above with hexagon wrench SW 6, with upper retainer pins and anti rattle pad U 3
L 90 × W 85 × H 185 mm
load capacity max. 2000 kg

Available finishes
HF 3SP.00 raw / unfinished
Technical data
Length:
90 mm
Weight:
0.965 kg
Width:
85 mm
Pack unit:
1
Height:
185 mm
Technical Drawings / CAD files
The following files are available as download for logged in users only!
 HF 3SP.pdf
 XHF 3SP.pdf
 HF 3SP.dxf
 HF 3SP.dwg
Accessories
also available as
Product Brochures
OCTAfloor - Floor Systems
AW 883
Technical Information
OCTAclassic floor calculation of adjustable feet
OCTAclassic floor Positioning of adjustable feet
