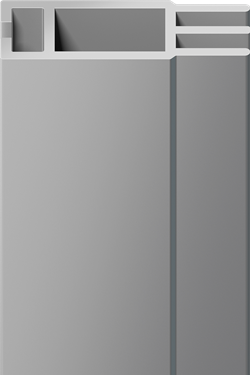

M 1504
Fabric tension extrusion

aluminium
for corner solution, for illumination, for graphics with silicone edge M 1313, suspendable
47 × 16 mm, 6000 mm long
Attention: maximum size of cube 2500 × 2500 × 2500 mm

Available finishes
M 1504.01 matt anodized, silver (E6/EV1)
Technical data
Length:
6000 mm
Weight:
4.57 kg
Width:
47 mm
Pack unit:
1
Height:
16 mm
Technical Drawings / CAD files
The following files are available as download for logged in users only!
 M 1504.pdf
 XM 1504.pdf
 M 1504.dxf
 M 1504.dwg
Accessories
Product Brochures
Tension Fabric Profile
AW 601
Catalogue extrusions
AW 8810UPDATE
Assembly Instructions / User Manuals
OCTAlumina 120 assembly instruction corner solution
M-OL-1.3
Technical Information
OCTAlumina cube cutting lenghts extrusions
