M 1915

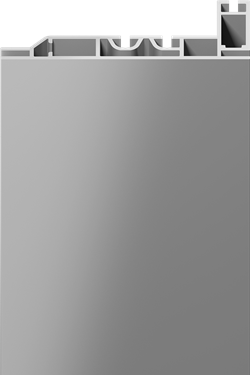

Tension fabric extr., for light frames, L 6000 × B 120 × H 40 mm

aluminium
for single-sided illumination, without system groove, graphics with silicone edge M 1313
L 6000 × W 120 × H 40 mm

Available finishes

M 1915.01 matt anodized, silver (E6/EV1)

Technical data

Length:

6000 mm

Weight:

11.904 kg

Width:

120 mm

Pack unit:

1

Height:

40 mm

Technical Drawings / CAD files

The following files are available as download for logged in users only!

M 1915.pdf

XM 1915.pdf

M 1915.dxf

M 1915.dwg

Accessories

Silicone edge, for fabric, 100 meter roll, W 14 × H 3 mm

Base plate, for free standing walls, L 600 × W 100 × H 20 mm

Screw eye, for ceiling suspension, L 36 × W 36 × H 25 mm

Universal retainer, for M 1915 / M 1935, L 95 × W 35 × H 35 mm

Foam inlay, for M 1915, L 250 × W 95 × H 100 mm

Adjustable foot, M10, L 60 × W 60 × H 75 mm

Fixing-set, for OCTAlumina frames, L 57 × W 30 × H 30 mm

Corner connector, lock chamber 21 × 12 mm, L 55 × W 21 × H 12 mm

Corner connector, lock chamber 21 × 12 mm, L 96 × W 96 × H 12 mm

Product Brochures

Tension Fabric Profile

Catalogue extrusions

Technical Information

TI-U-BS-A001

OCTAuniversal Example cross section L-wall M 1915 depth 120 mm
