W 442/E

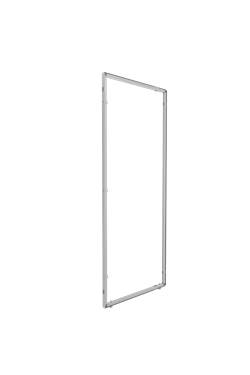

Frame element, fabric and panel, 950 × 2480 mm, straight

aluminium
1 × frame of W 906 for double sided fabric/panel, for
installation between 2 extrusions, incl. 2 × C 440/F
adjustable foot and mounting-set M 1477, incl. hook tape W 840,
with W 916 internal corner connector (no mitre needed),
with drillings for M 1951 and M 1953, Drillings for cable
management possible on request,
fabric dimension = outer frame dimension

Available finishes
W 442/E.01 matt anodized, silver (E6/EV1)
Technical data
Length:
40 mm
Weight:
7.76 kg
Width:
950 mm
Pack unit:
1
Height:
2480 mm
Technical Drawings / CAD files
The following files are available as download for logged in users only!
 W 442/E.pdf
