W 449/E

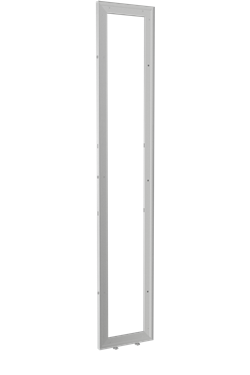

Frame element, fabric and panel, 455 × 2480 mm, straight

aluminium
sided fabric/panel, for installation between 2 extrusions,
incl. 2 × C 440/F adjustable foot and 6 × mounting-set
M 1477, incl. hook tape W 840, with W 916 internal corner
connector (no mitre needed), with drillings for M 1951 and M 1953,
Drillings for cable management possible on request,
fabric dimension = outer frame dimension

Available finishes
W 449/E.01 matt anodized, silver (E6/EV1)
Technical data
Length:
40 mm
Weight:
6.73 kg
Width:
455 mm
Pack unit:
1
Height:
2480 mm
Technical Drawings / CAD files
The following files are available as download for logged in users only!
 W 449/E.pdf
