M 1662

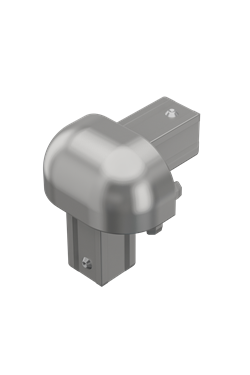

Knuckle joint, for 2 × M 1606, L 46 × W 46 × H 40 mm

zinc die cast
90°, for mounting 2 × semi-circular extrusion M 1606, incl. 2 × set screw E 111/4*8
L 46 × W 46 × H 40 mm

Available finishes
M 1662.39 matt chrome-plated
M 1662.41 polished chrome-plated
Technical data
Length:
46 mm
Weight:
0,092 kg
Width:
46 mm
Pack unit:
4
Height:
40 mm
Technical Drawings / CAD files
The following files are available as download for logged in users only!
 M 1662.pdf
 XM 1662.pdf
Technical Information
Design example: Knuckle joint - length of the leg
