octalux 40.
Show contact persons.Basic parts.
L 4022-1000B.01
with illumination
1 illuminated side
L 1000 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)
L 4022-1000B.03
with illumination
1 illuminated side
L 1000 × W 40 × H 40 mm
matt anodized, black (E6/3180)
L 4022-1500B.01
with illumination
1 illuminated side
L 1500 × W 40 × H 40mm
matt anodized, silver (E6/EV1)
L 4022-1500B.03
with illumination
1 illuminated side
L 1500 × W 40 × H 40mm
matt anodized, black (E6/3180)
L 4022-1920B.01
with illumination
1 illuminated side
L 1920 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)
L 4022-1920B.03
with illumination
1 illuminated side
L 1920 × W 40 × H 40 mm
matt anodized, black (E6/3180)
L 4022-2000B.01
with illumination
1 illuminated side
L 2000 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)

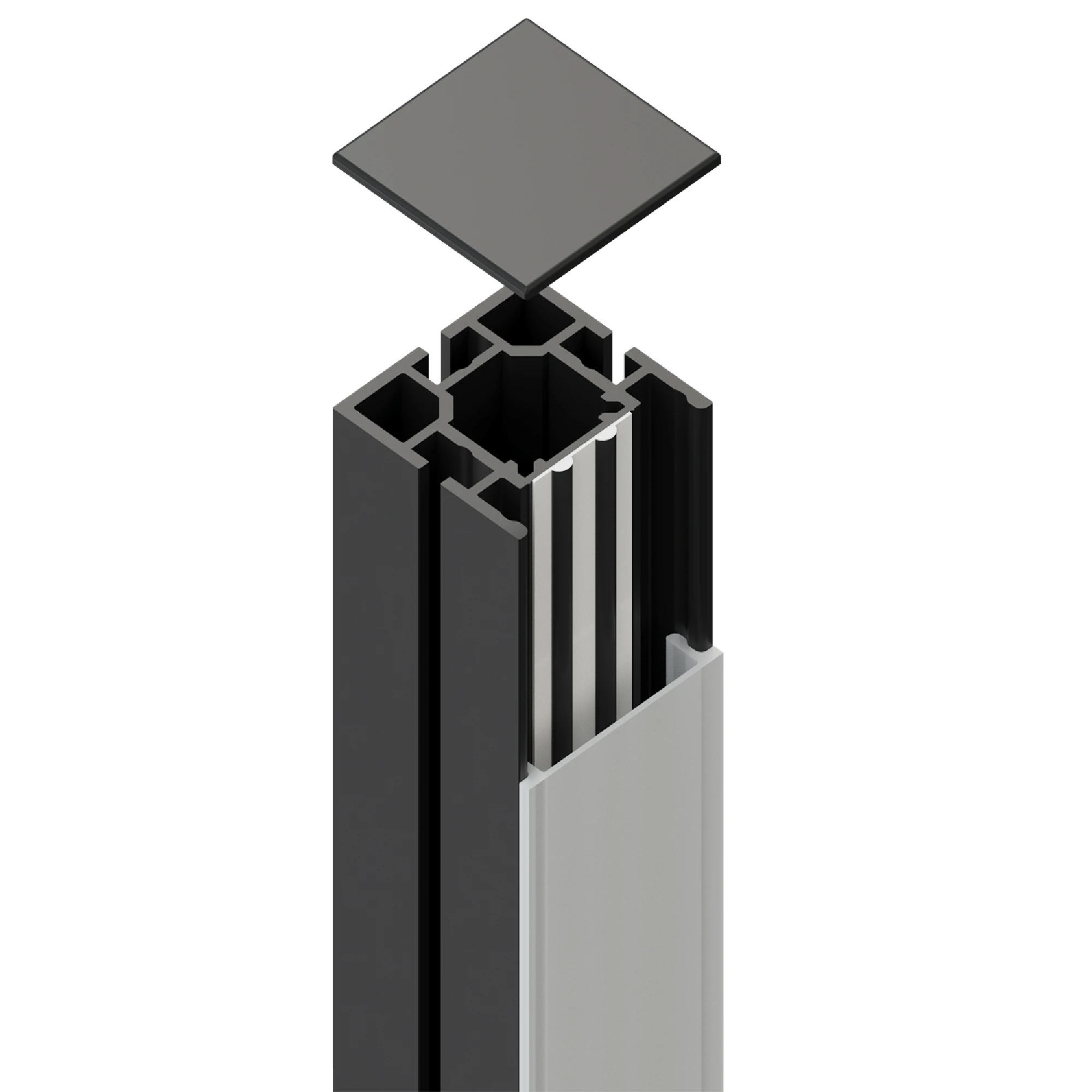

L 4022-2000B.03
with illumination
1 illuminated side
L 2000 × W 40 × H 40 mm
matt anodized, black (E6/3180)
L 4022-2500B.01
with illumination
1 illuminated side
L 2500 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)
L 4022-2500B.03
with illumination
1 illuminated side
L 2500 × W 40 × H 40 mm
matt anodized, black (E6/3180)

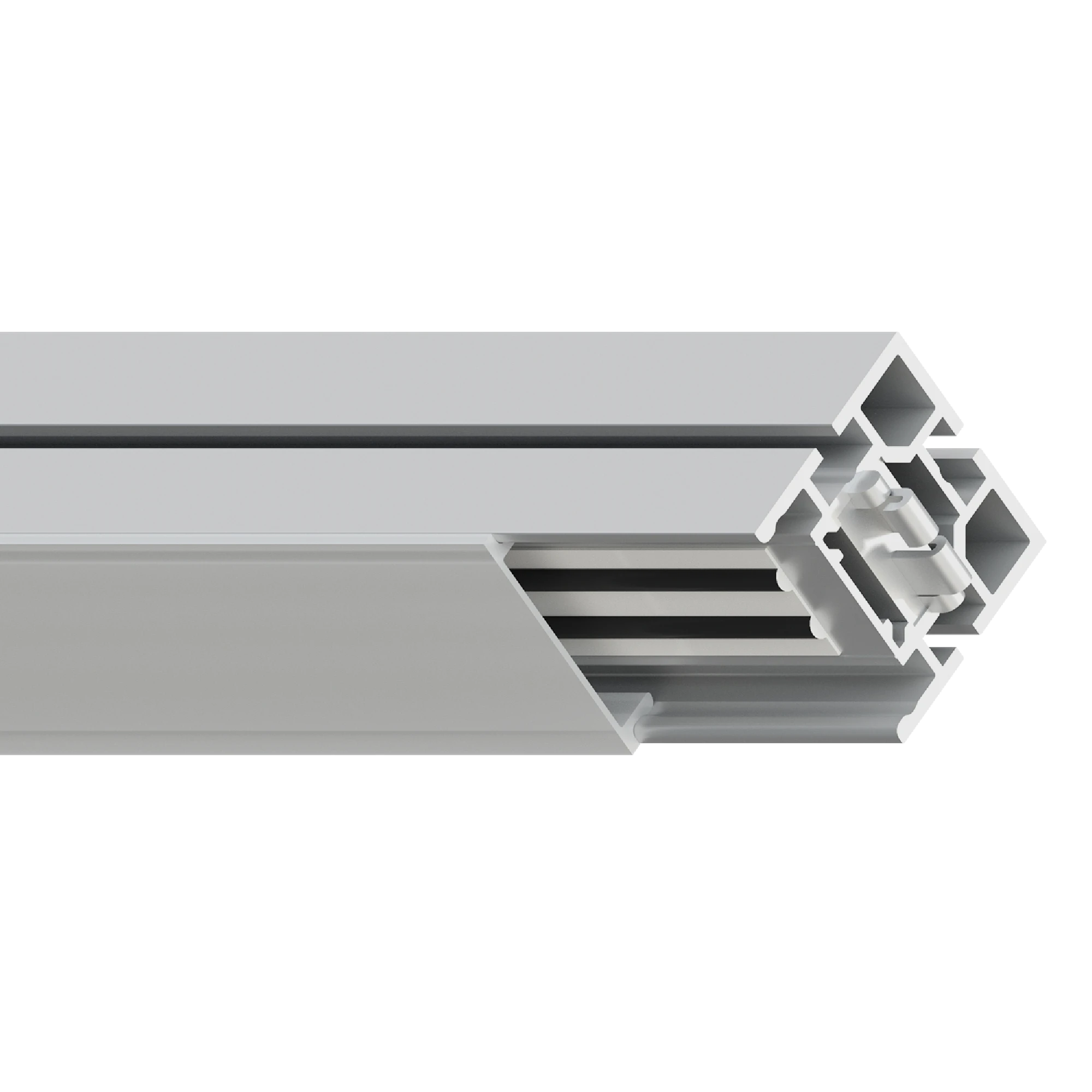

L 4022-2920B.01
with illumination
1 illuminated side
L 2920 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)
L 4022-2920B.03
with illumination
1 illuminated side
L 2920 × W 40 × H 40 mm
matt anodized, black (E6/3180)
L 4022-3000B.01
with illumination
1 illuminated side
L 3000 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)
L 4022-3000B.03
with illumination
1 illuminated side
L 3000 × W 40 × H 40 mm
matt anodized, black (E6/3180)
L 4022-3500B.01
with illumination
1 illuminated side
L 3500 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)
L 4022-3500B.03
with illumination
1 illuminated side
L 3500 × W 40 × H 40 mm
matt anodized, black (E6/3180)
L 4022-3920B.01
with illumination
1 illuminated side
L 3920 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)
L 4022-3920B.03
with illumination
1 illuminated side
L 3920 × W 40 × H 40 mm
matt anodized, black (E6/3180)
L 4022-4000B.01
with illumination
1 illuminated side
L 4000 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)
L 4022-4000B.03
with illumination
1 illuminated side
L 4000 × W 40 × H 40 mm
matt anodized, black (E6/3180)
L 4022-4500B.01
with illumination
1 illuminated side
L 4500 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)
L 4022-4500B.03
with illumination
1 illuminated side
L 4500 × W 40 × H 40 mm
matt anodized, black (E6/3180)
L 4022-4920B.01
with illumination
1 illuminated side
L 4920 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)

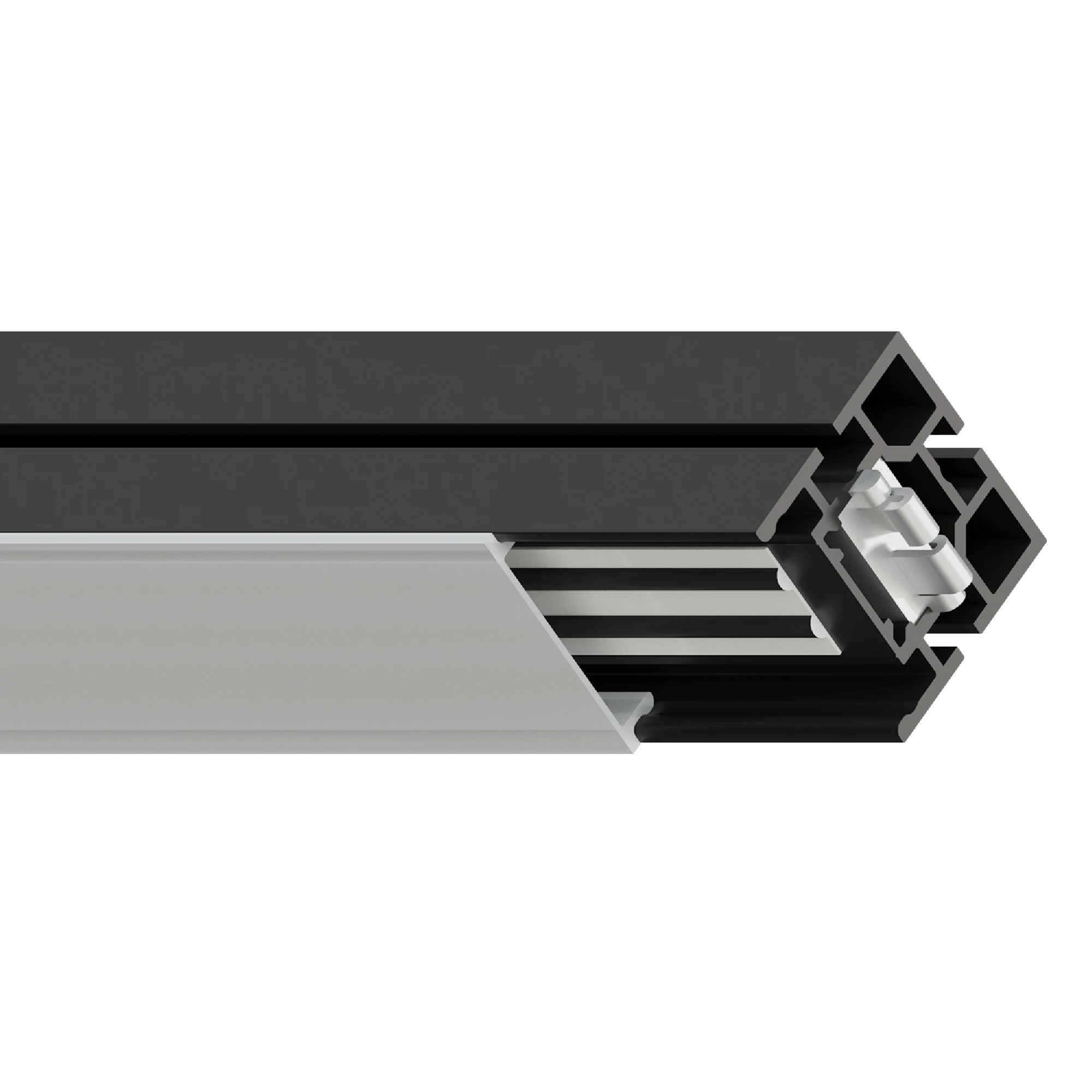

L 4022-4920B.03
with illumination
1 illuminated side
L 4920 × W 40 × H 40 mm
matt anodized, black (E6/3180)
L 4022-5000B.01
with illumination
1 illuminated side
L 5000 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)
L 4022-5000B.03
with illumination
1 illuminated side
L 5000 × W 40 × H 40 mm
matt anodized, black (E6/3180)
L 4022-920B.01
with illumination
1 illuminated side
L 920 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)
L 4022-920B.03
with illumination
1 illuminated side
L 920 × W 40 × H 40 mm
matt anodized, black (E6/3180)

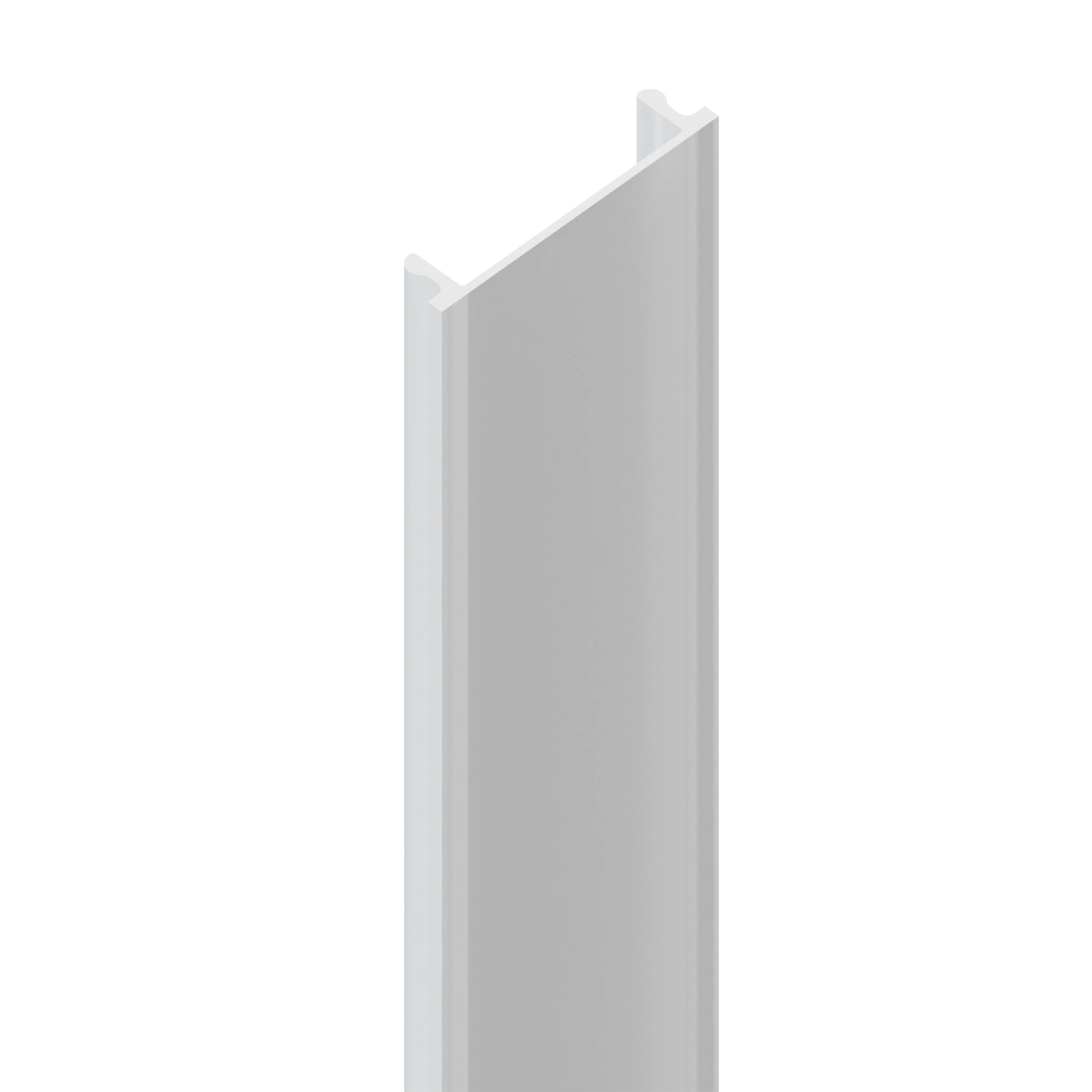

L 4023.50
for L 4022
for 1 illuminated side
L 6000 × W 40 × H 8.5 mm
translucent
Z 961/8.00
8 mm
L 70 × W 20 × H 12 mm
raw / unfinished
Accessories.
E 245.30
for cables
L 16 × W 12 × H 4 mm
white
L 11.21
for 8 mm shelves
L 70 × W 22 × H 50 mm
silver powder-coated (RAL 9006/IG-54.9006-54)
L 11.23
for 8 mm shelves
L 70 × W 22 × H 50 mm
black powder-coated (RAL 9005/IG-9005-56)
L 240.00
straight
L 180 × W 21 × H 12 mm
raw / unfinished
M 1014.33
for extrusions 40 × 40 mm
L 40 × W 40 × H 12 mm
black
M 1014.35
for extrusions 40 × 40 mm
L 40 × W 40 × H 12 mm
light grey
M 1016.37
M8
for extrusions 40 × 40 mm
L 43 × W 43 × H 94 mm
zinc-plated
M 1408.21
for upright extrusions
L 320 × W 120 × H 212 mm
silver powder-coated (RAL 9006/IG-54.9006-54)
M 1941.21
side
L 495 × W 170 × H 301 mm
silver powder-coated (RAL 9006/IG-54.9006-54)
S 137/K.00
M10
L 35 × W 21 × H 12 mm
raw / unfinished
Safety parts.
L 222.39
for suspension
L 56 × W 24 × H 24 mm
matt chrome-plated
M 1129.37
with 3 × M 1435/70
L 102.6 × W 8 × H 102.6 mm
zinc-plated
M 1139.37
with 4 × M 1435/70
L 300 × W 8 × H 300 mm
zinc-plated
M 1150.37
with 2 × M 1435/70
L 67.6 × W 8 × H 67.6 mm
zinc-plated
M 1174.37
max. 100 kg
for rope suspension
L 76 × W 66 × H 8 mm
zinc-plated
M 1233.37
max. 35 kg
Opening 20 mm dia.
L 36 × W 20 × H 36 mm
zinc-plated
M 1435.00
incl. 2 × M 1435/70
L 50 × W 56 × H 40 mm
raw / unfinished
Electrical parts.
L 115.33
230 V, 2-wire
Socket-Socket
200 mm long
black
L 185-1.90
for octalux
L 110 × W 30 × H 17 mm
as catalogue desciption
L 185-2.90
for L 185-1
L 107 × W 59 × H 9.5 mm
as catalogue desciption
L 202.33
2000 mm long
black
L 204.33
4000 mm long
black
OL 182B.90
CR 2032
for L 185-2
L 20 × W 20 × H 3,2 mm
as catalogue desciption
