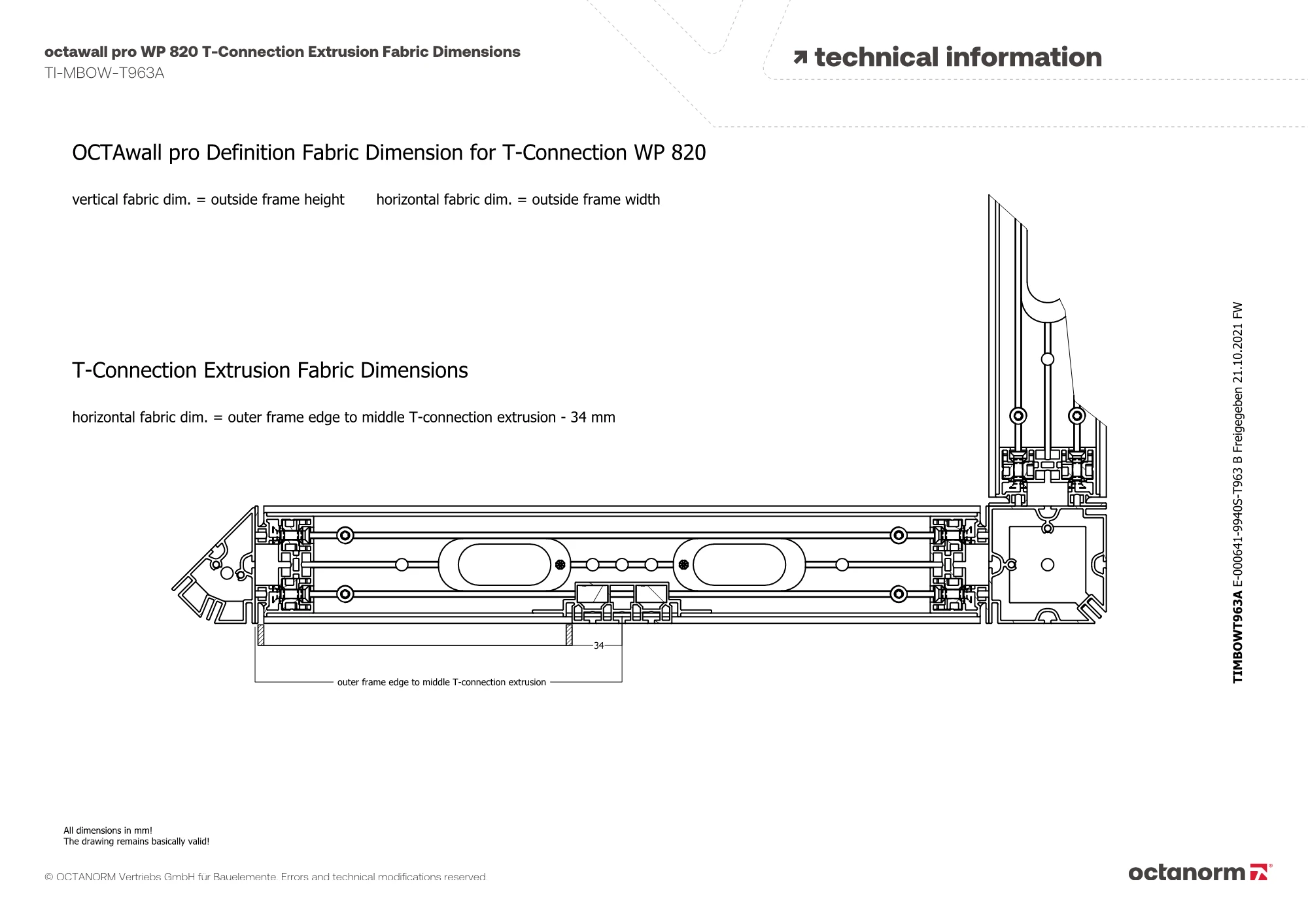

Contact Person.T-extrusion | WP 820.01
for double sided fabric / panel
aluminium
mounting frames at 90° at any position, for mounting either fabric (with silicone edge M 1313) or panels, installation of 4 × tension lock Z 951/8 possible
L 6000 × W 122 × H 28 mm
Available Material
matt anodized, silver (E6/EV1)
Technical Data.
Length:
6000 mm
Weight:
11.7 kg
Width:
122 mm
Height:
28 mm
Accessories.
Technical Informations.
