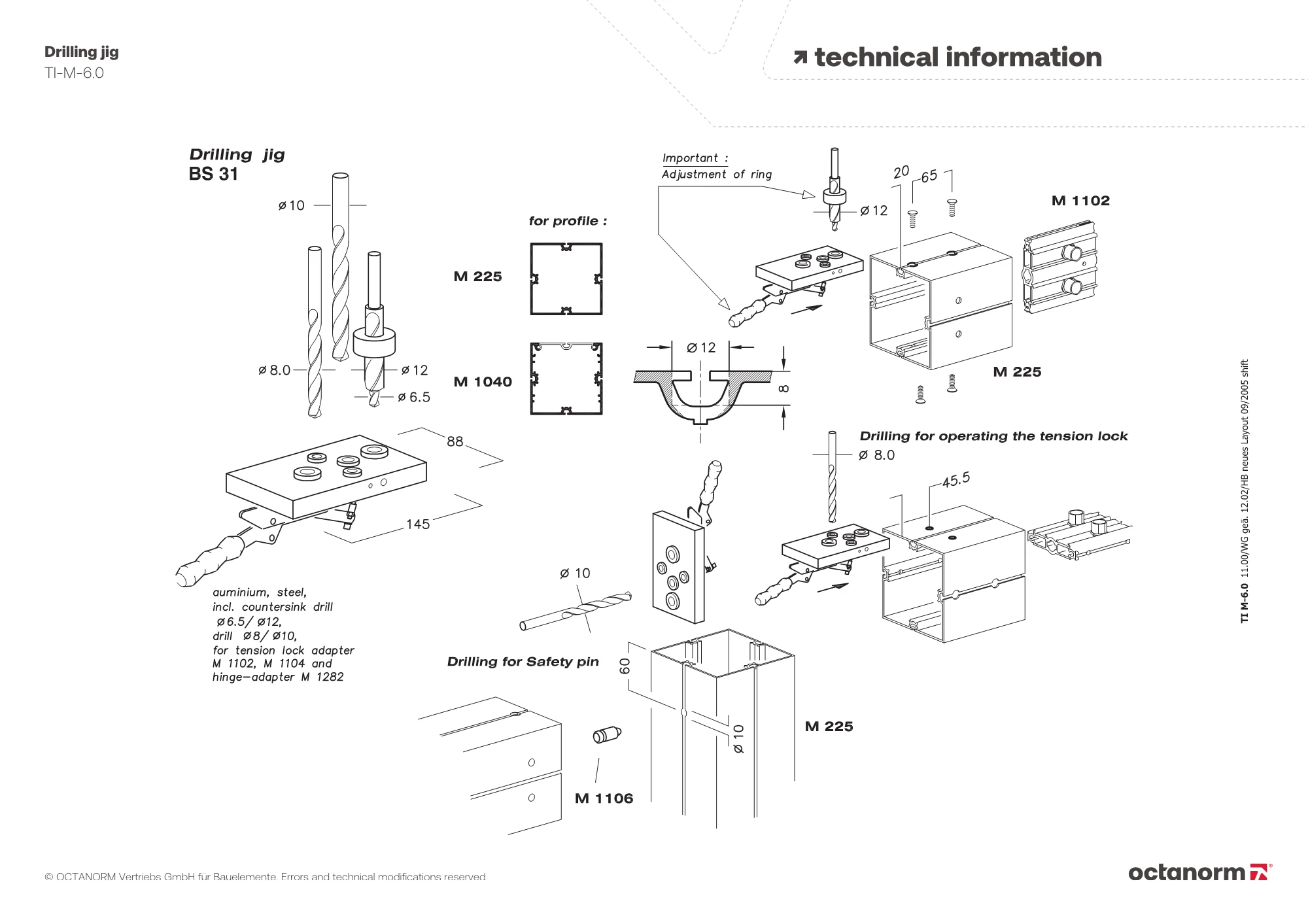

Contact Person.Drilling | BS 31.90
8/10/12 mm drilling
steel/aluminium body
with pressed-in drill bushes for 12/10/8 mm system hole, for installation of adaptor with tension lock M 1102, M 1104 in 120 mm square extrusions, included in delivery: twist drill ZBS 112, Ø 8 mm, step drill ZBS 115, Ø 12 mm/6.5 mm/90°, twist drill ZBS 151, Ø 10 mm for pin lock 10 mm
W 105 × H 85 mm
Available Material
as catalogue desciption
!
Attention: drilling tools have to be ordered separately: step drill ZBS 115B, Ø 12/6.5 mm, 90° depth stop ZBS 115A for step drill ZBS 115BTechnical Data.
Length:
105 mm
Weight:
1.137 kg
Width:
85 mm
Height:
0 mm
