Panel retainer | W 109.00

aluminium

for concealed joint, to be fixed to system groove of the upright from outside (90°), in conjunction with connecting spline W 105

L 30 × W 24 × H 24 mm

Available Material

raw / unfinished

Length:

30 mm

Weight:

0.009 kg

Width:

24 mm

Height:

24 mm

Accessories.

Internal connector

W 105.01

L 5000 × B 3.9 × H 24 mm

5000 mm long

Technical Informations.

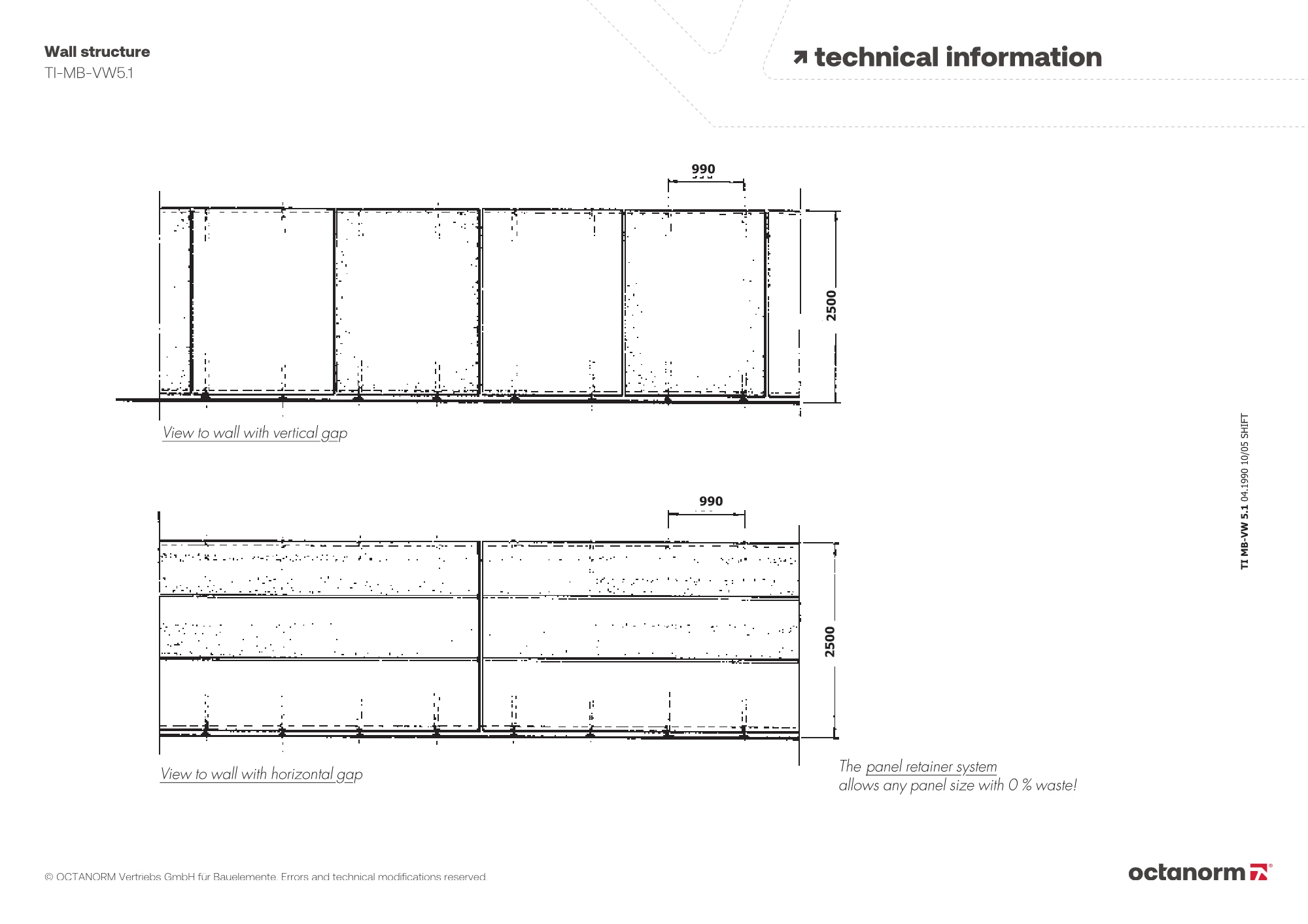

Wall structure

TI-MB-VW5.1 TI-MB-VW5.1

Gaps running vertically and horizontally

TI-MB-VW5.3 TI-MB-VW5.3

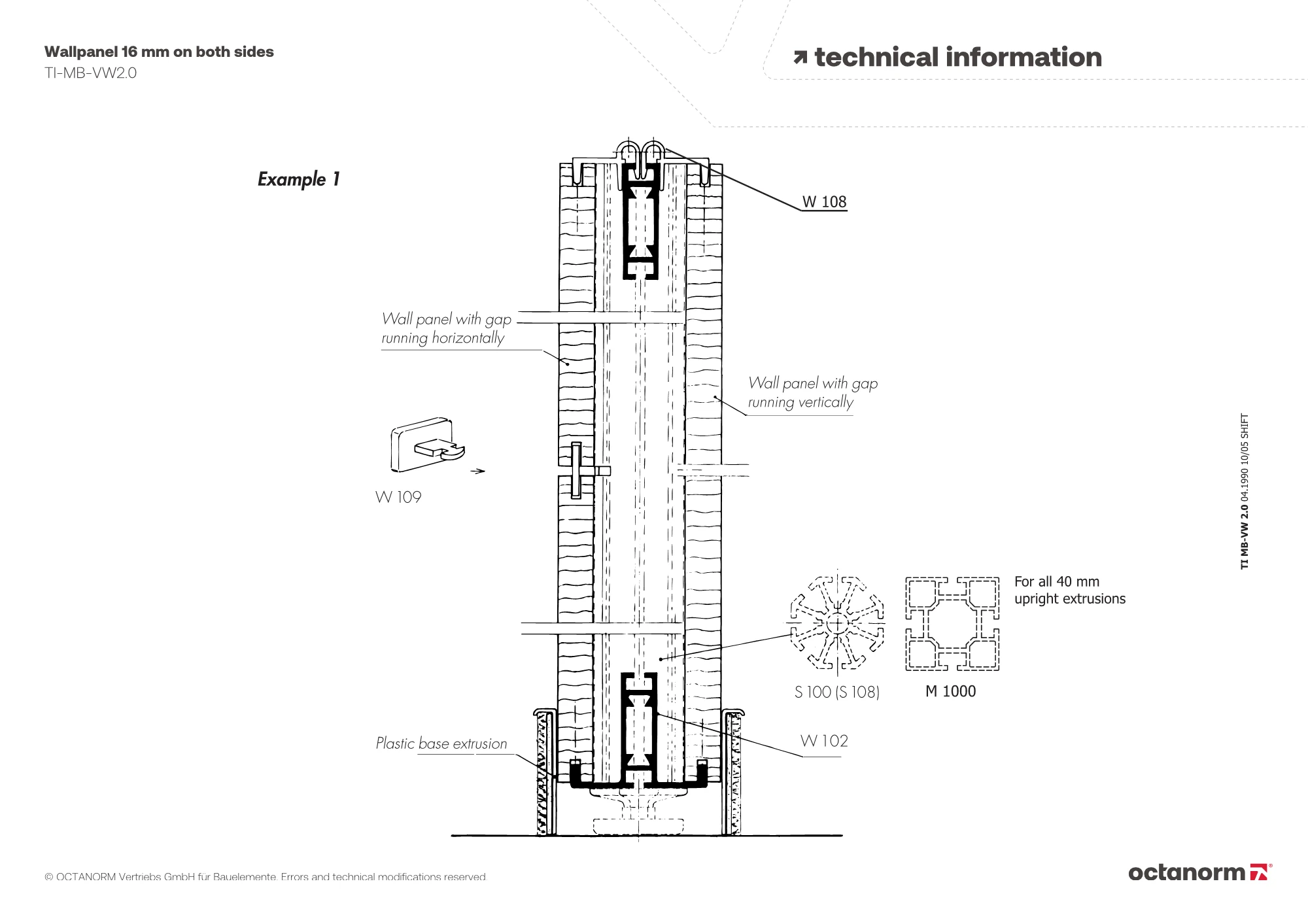

Wallpanel 16 mm on both sides

TI-MB-VW2.0 TI-MB-VW2.0

Gaps running horizontally

TI-MB-VW5.4 TI-MB-VW5.4

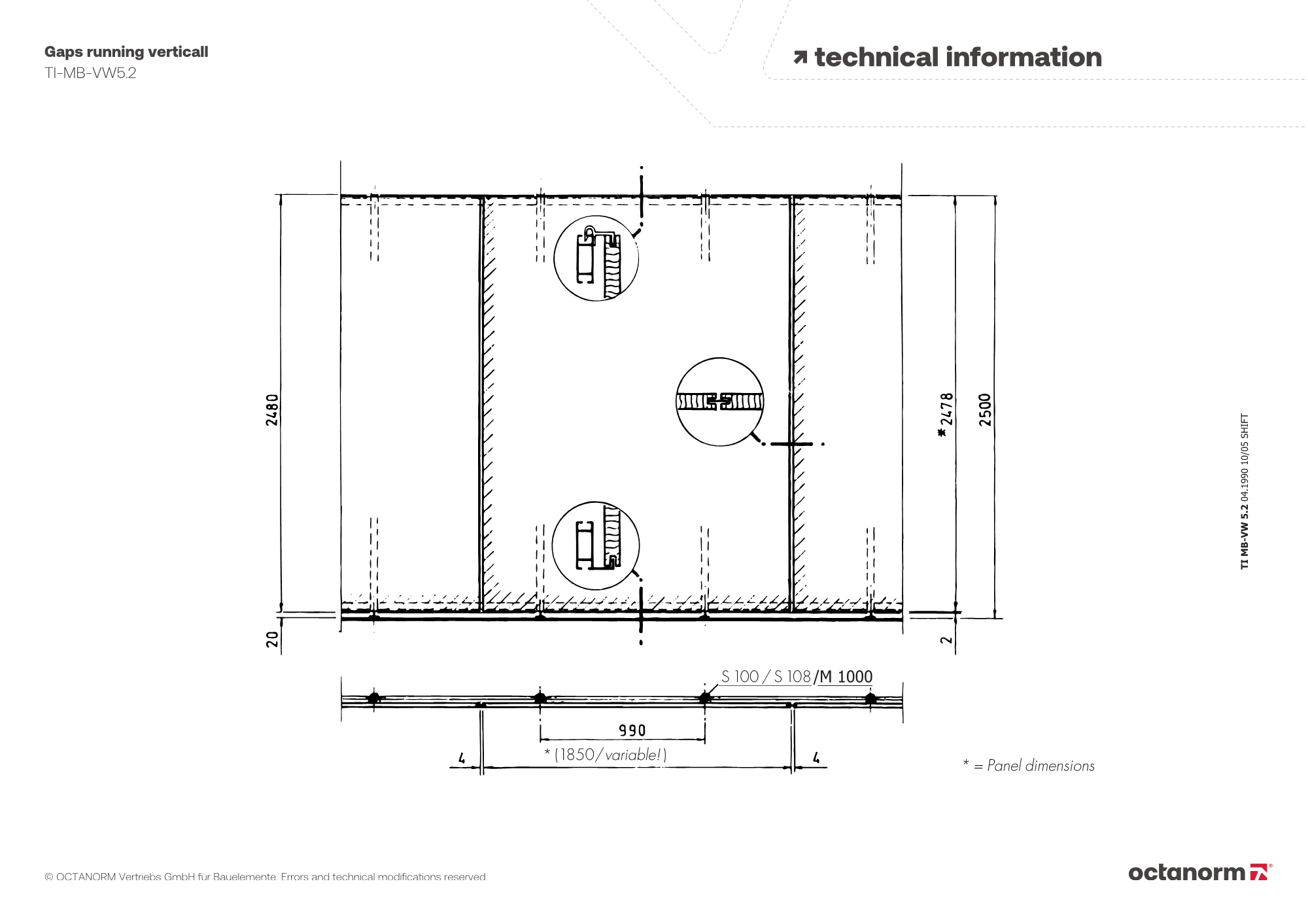

Gaps running verticall

TI-MB-VW5.2 TI-MB-VW5.2
