Internal connector | W 105.01

aluminium

with 6 × hole (2 mm dia.) on one edge

L 5000 × B 3.9 × H 24 mm

Available Material

matt anodized, silver (E6/EV1)

Length:

5000 mm

Weight:

1.203 kg

Width:

4 mm

Height:

24 mm

Accessories.

Panel retainer

W 109.00

for concealed joint

L 30 × W 24 × H 24 mm

Product Brochures

AW 887 / General Catalog / July 2026

AW 630 / octaclassic / April 2023

Technical Information

TI-MB-VW6.0 / Ceiling beam connection / April 2014

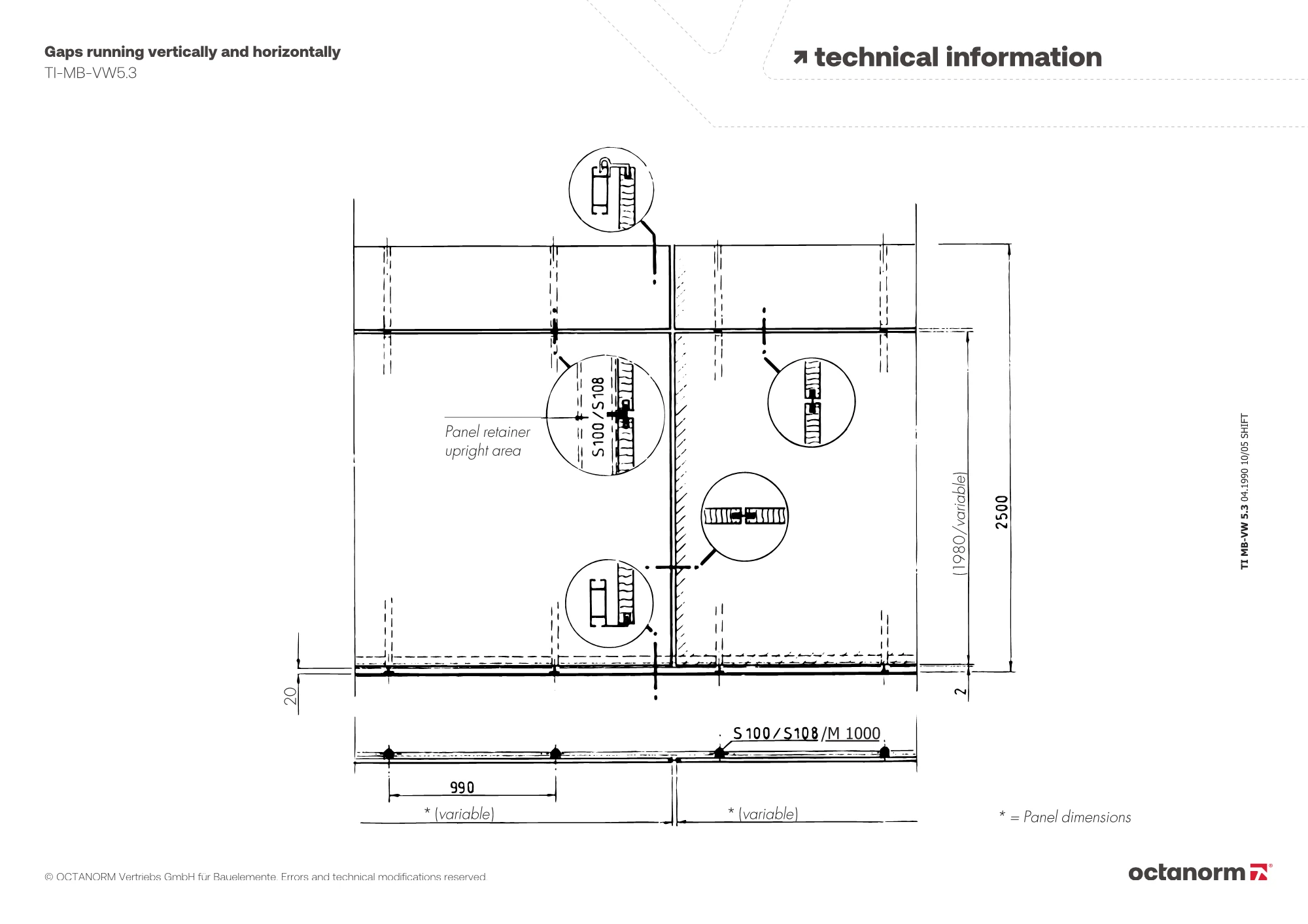

TI-MB-VW5.3 / Gaps running vertically and horizontally / April 2014

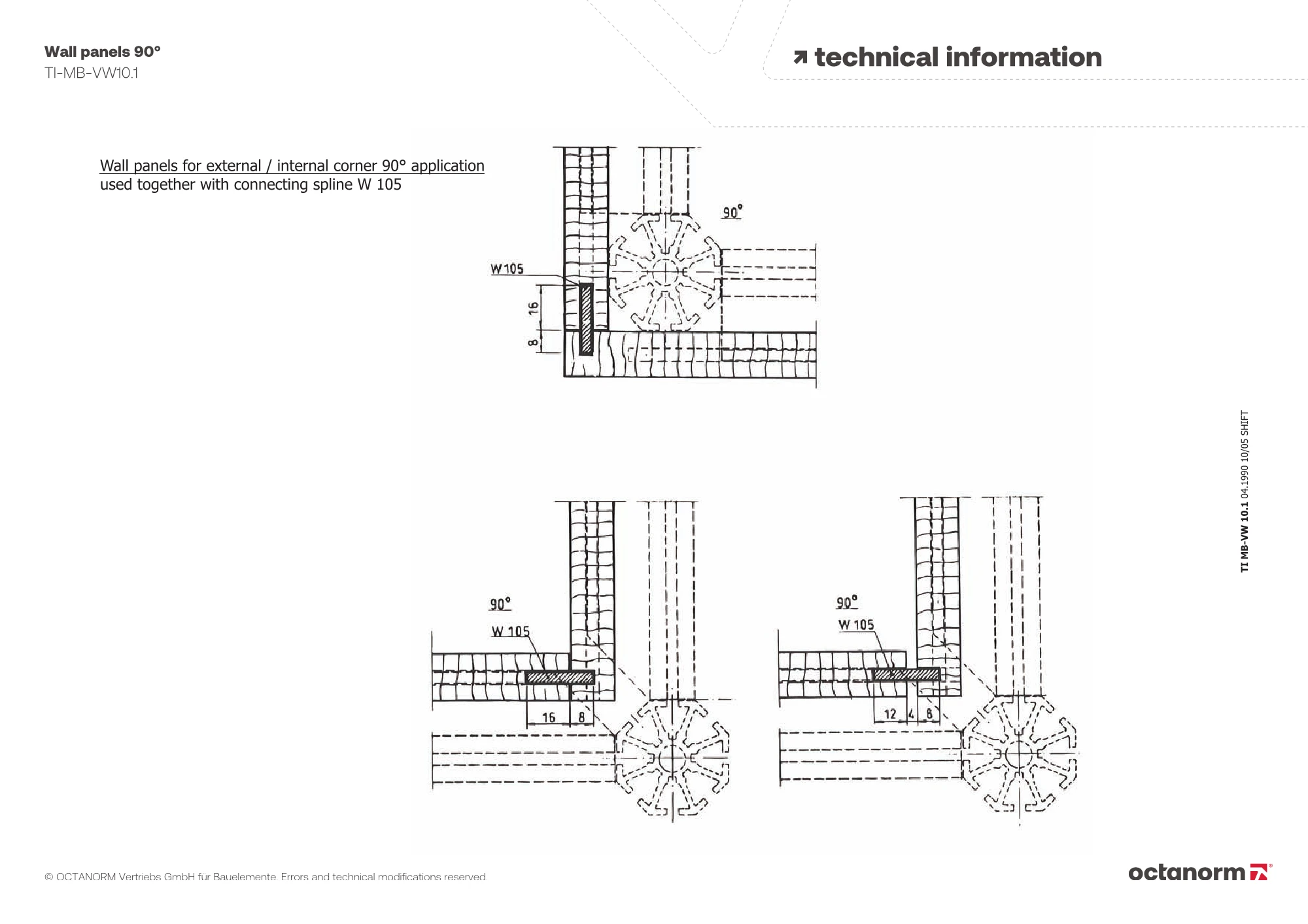

TI-MB-VW10.1 / Wall panels 90° / April 2014

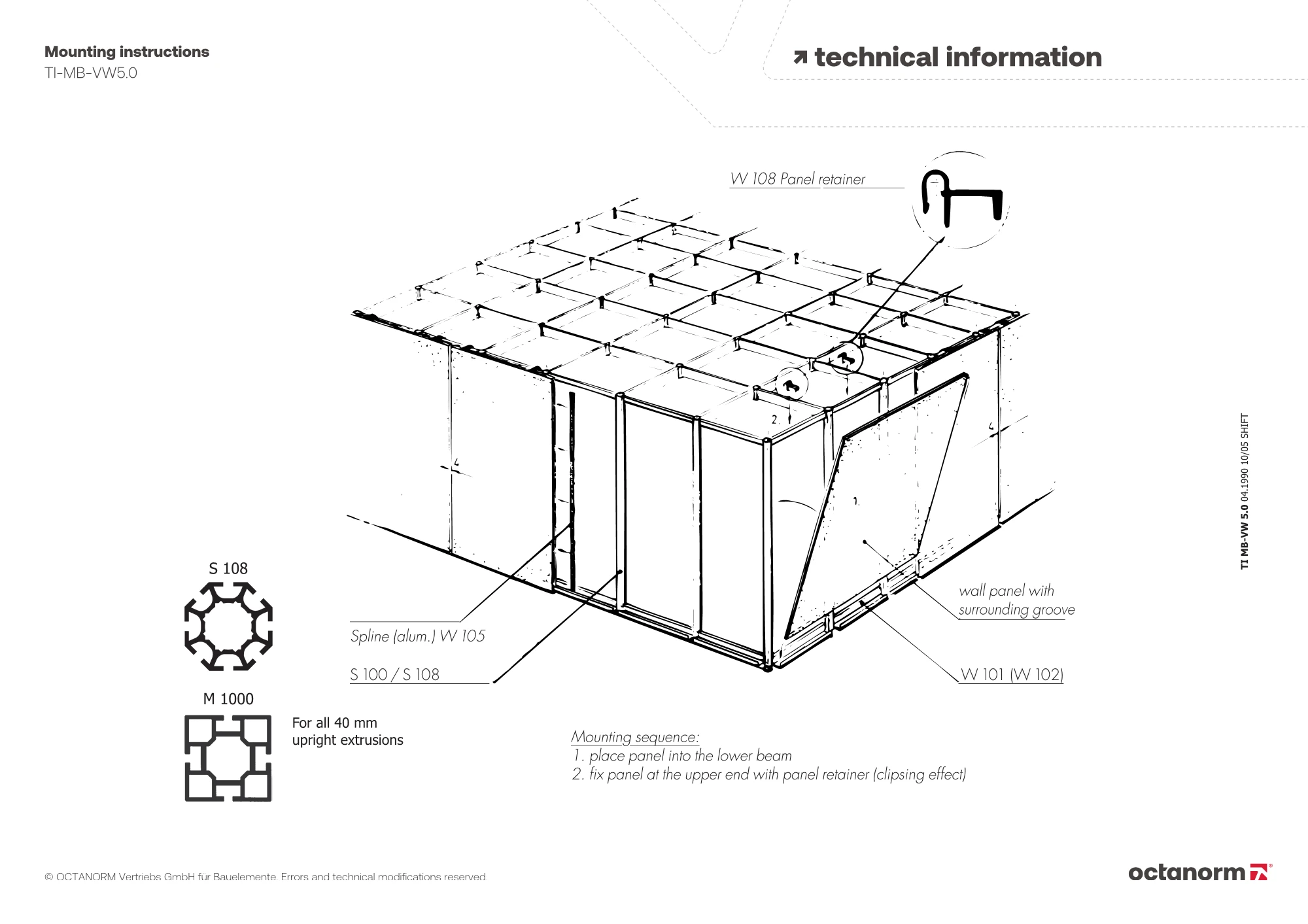

TI-MB-VW5.0 / Mounting instructions / April 2014

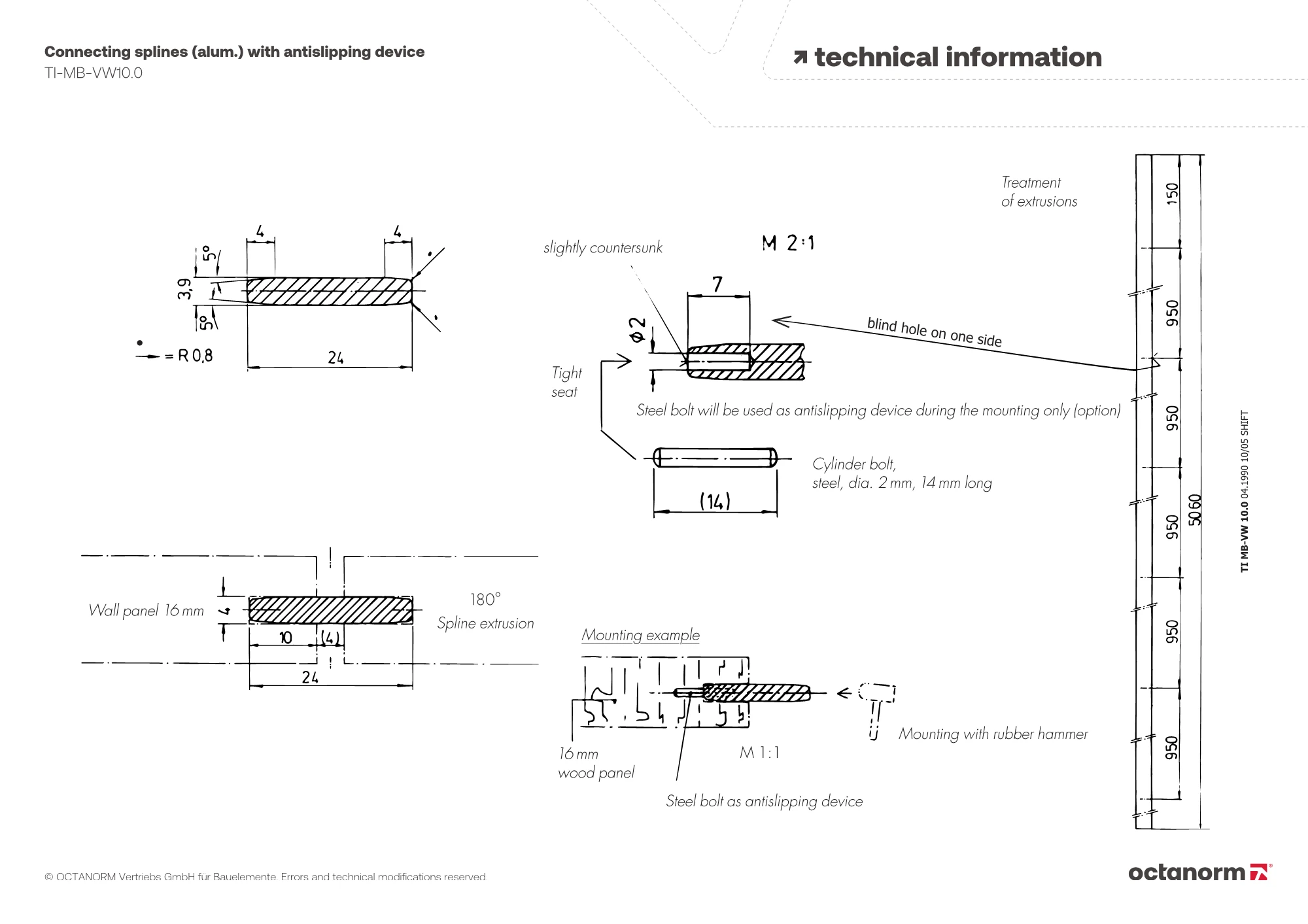

TI-MB-VW10.0 / Connecting splines (alum.) with antislipping device / April 2014

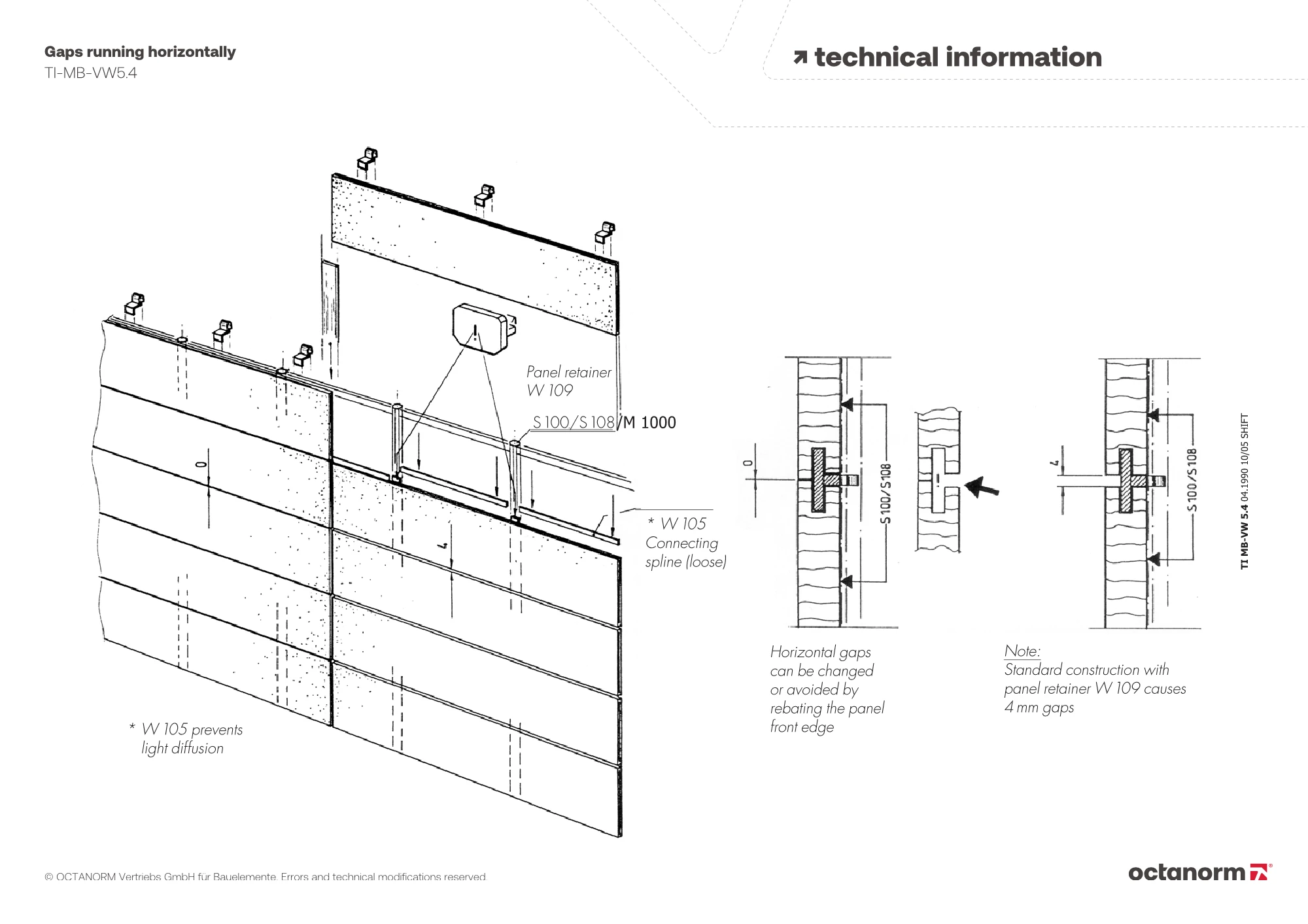

TI-MB-VW5.4 / Gaps running horizontally / April 2014

TI-MB-VW7.0 / Ceiling beam connection / April 2014

Technical Info Brochures

AW 630 T / octaclassic Technical Info / March 2026
