Main  → maxima 80  → maxima 80 Products  → maxima 80 Product Detail

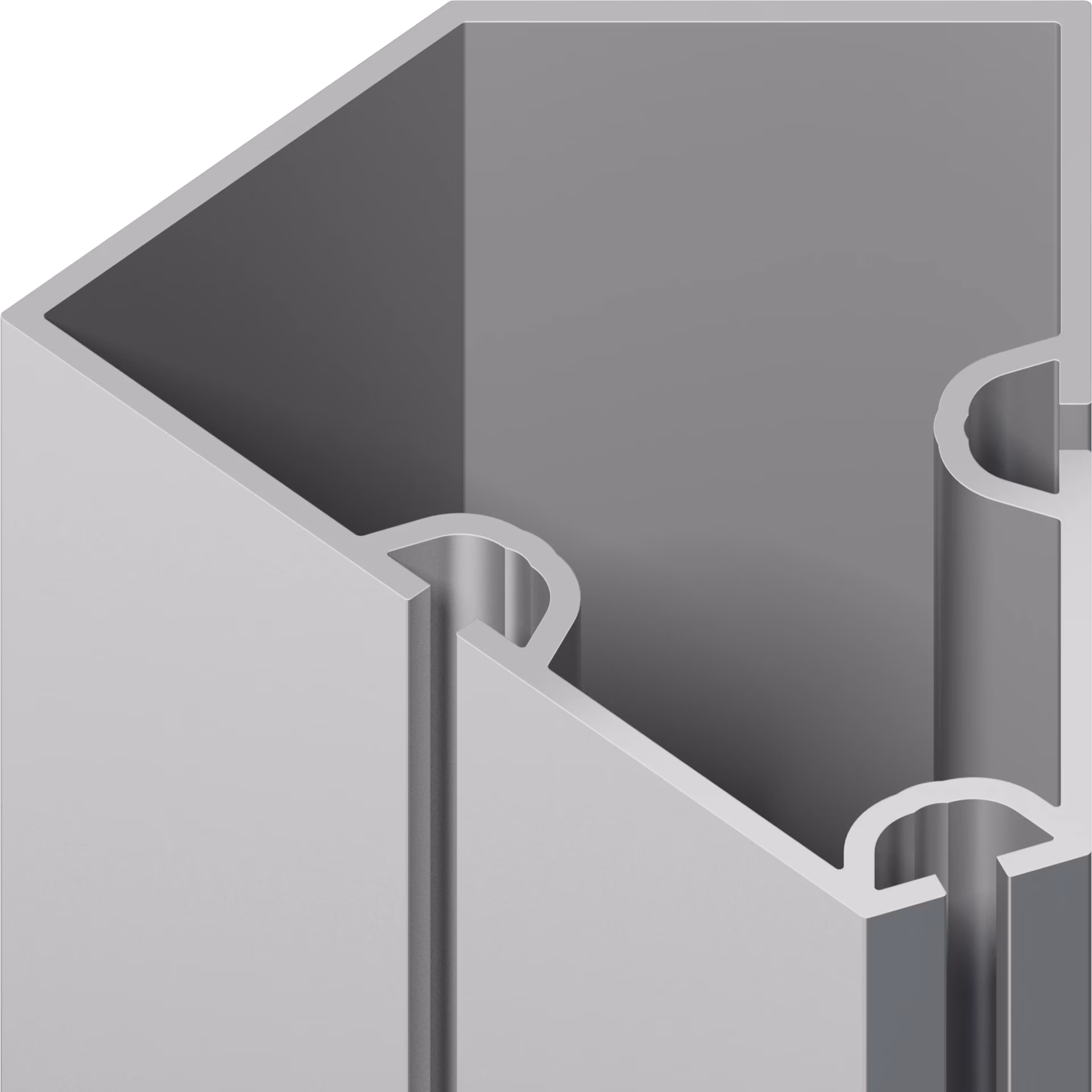

M 1070.01

aluminium
135°, 3 system grooves
L 5000 × W 77 × H 80 mm

Available Material

matt anodized, silver (E6/EV1)
Order now.

Technical Data.

Length:

5000 mm

Weight:

8.375 kg

Width:

77 mm

Height:

80 mm

M_1070.pdf
M_1070.dwg
M_1070.dxf
XM_1070.pdf

Accessories.

M 1095.21

135°

for corner extrusion M 1070

L 90 × W 78 × H 3 mm

silver powder-coated (RAL 9006/IG-54.9006-54)

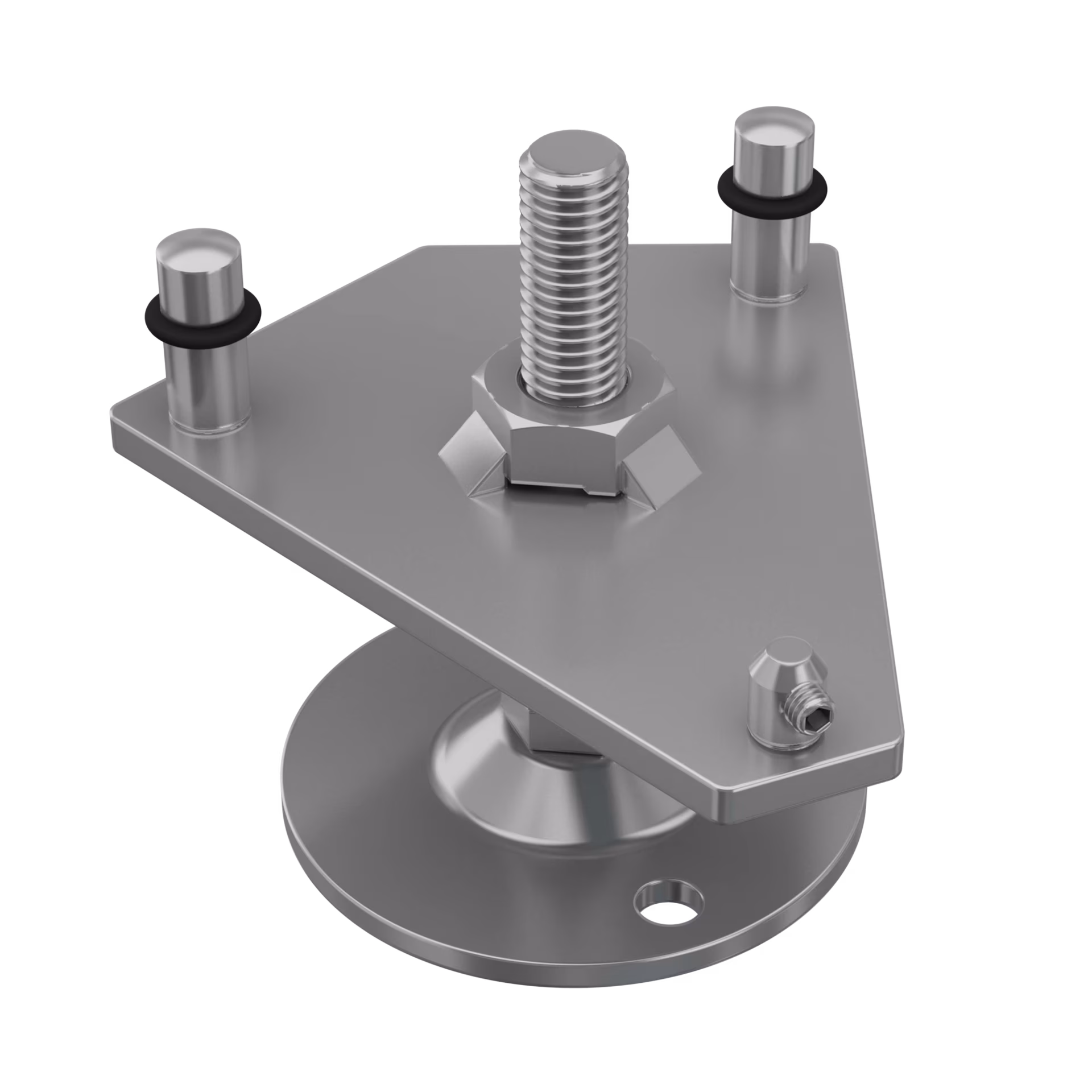

M 1096.37

135°

for angle extrusion M 1070

L 92 × W 78.6 × H 74 mm

zinc-plated

M 1164.21

with 6 × M 1473

L 240 × W 240 × H 6 mm

silver powder-coated (RAL 9006/IG-54.9006-54)
