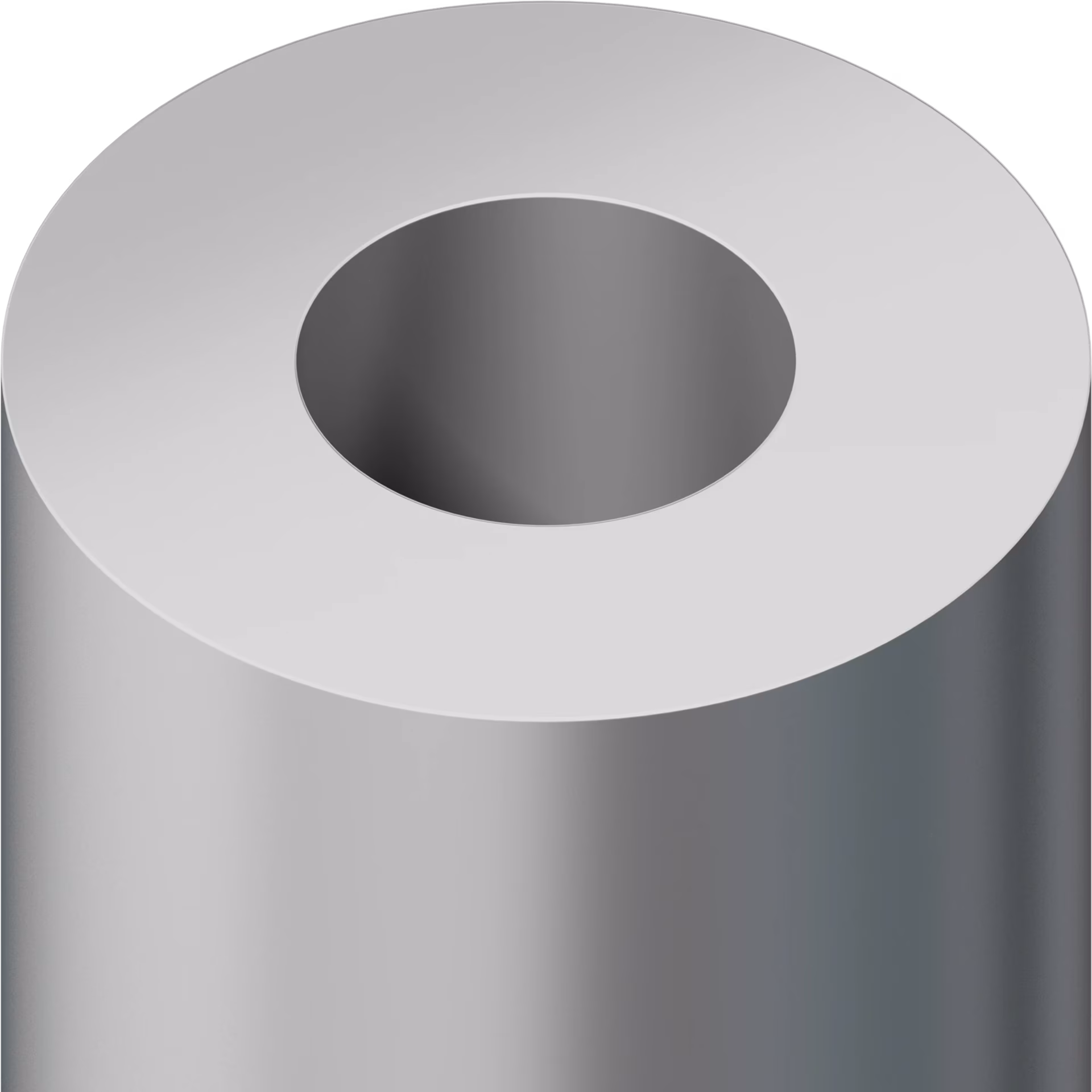

M 1140.01

aluminium
24 mm dia.
L 5000 × W 24 × H 24 mm

Available Material

matt anodized, silver (E6/EV1)
Order now.

Technical Data.

Length:

5000 mm

Weight:

4.69 kg

Width:

24 mm

Height:

24 mm

M_1140.pdf
M_1140.dwg
M_1140.dxf

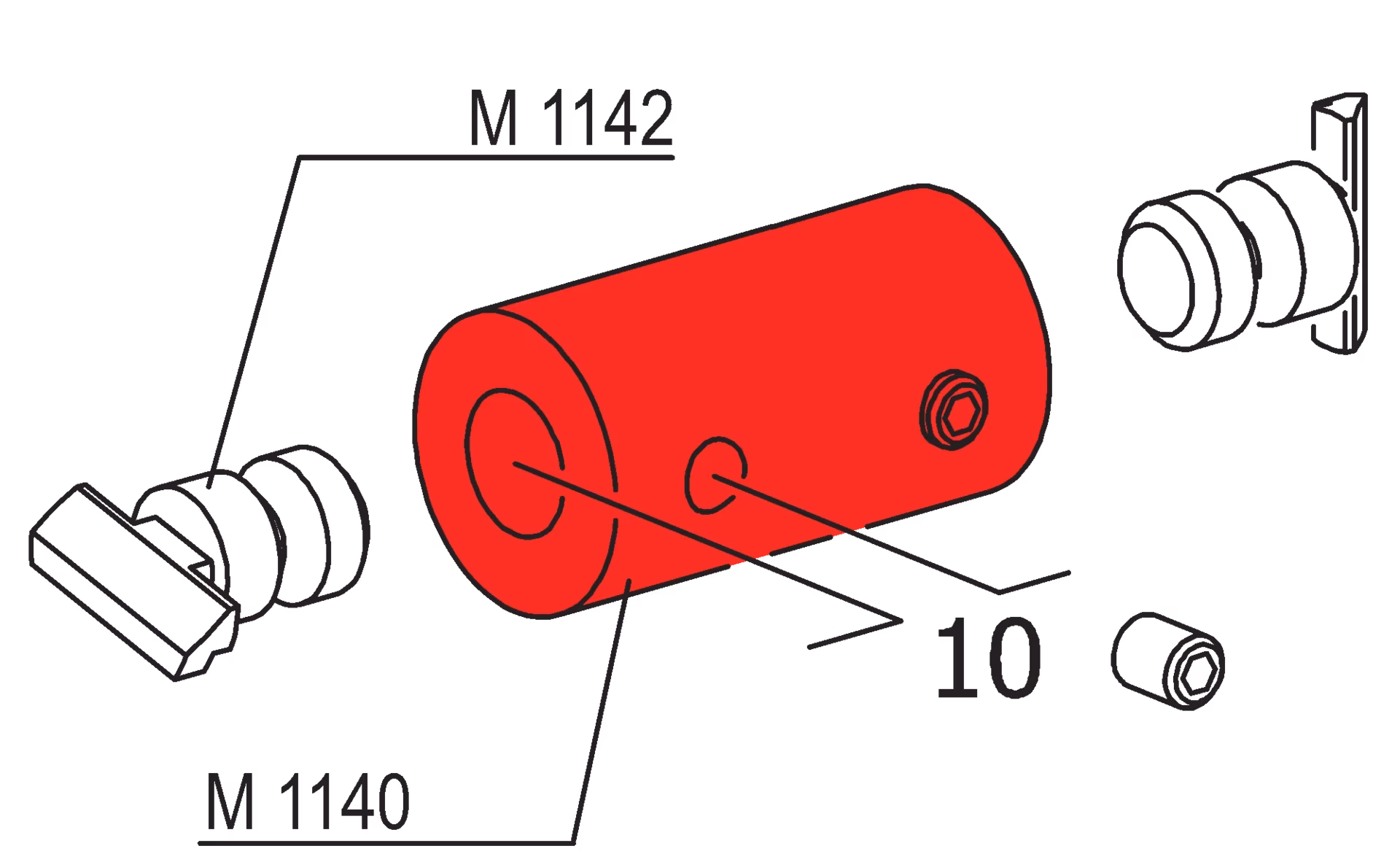

XM_1140.pdf

Accessories.

M 1142.37

for M 1140

L 24 × W 20 × H 11 mm

zinc-plated

M 1144.37

for M 1140 + M 1457

L 60 × W 11 × H 11 mm

zinc-plated

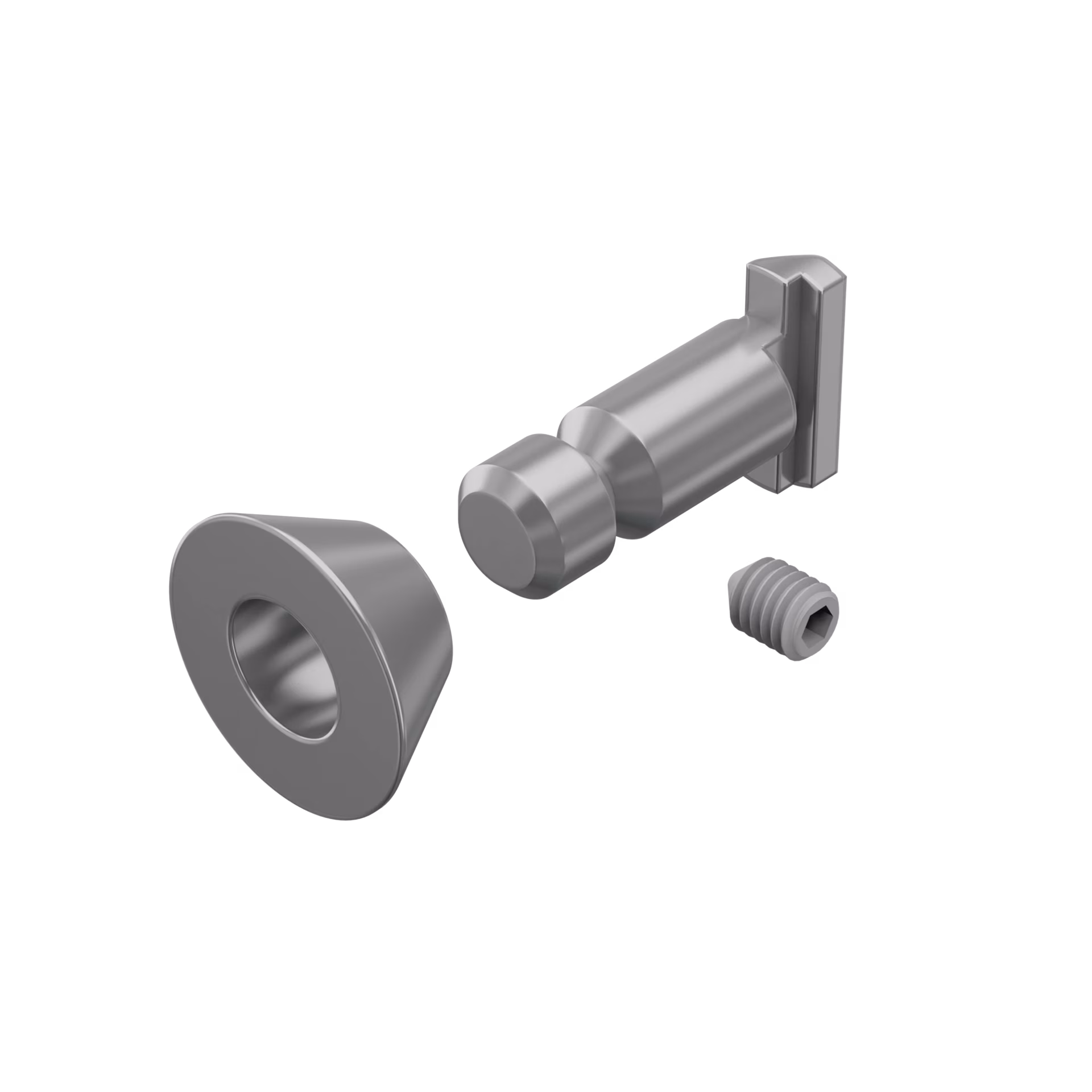

M 1147.37

for M 1140

L 31 × W 24 × H 10 mm

zinc-plated

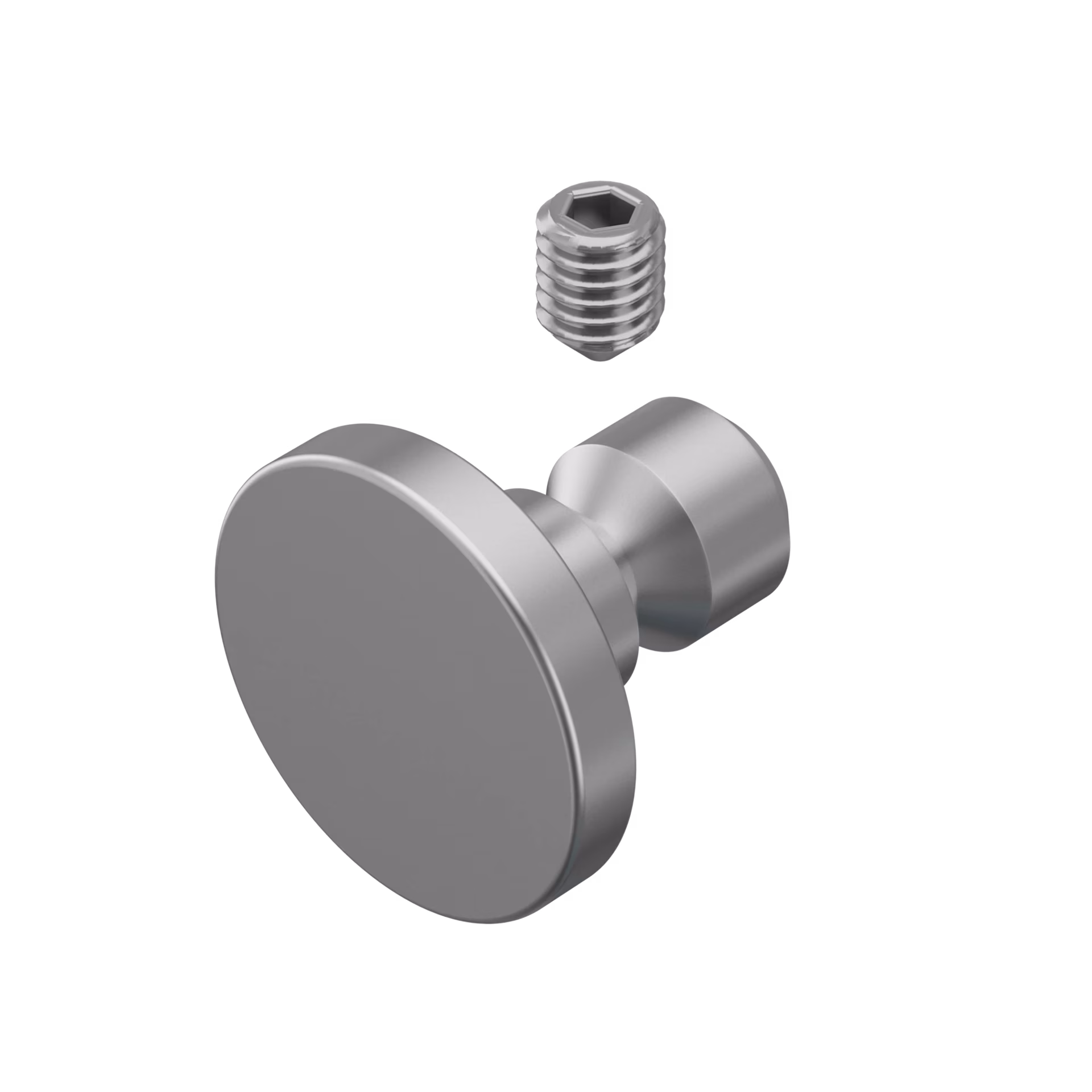

M 1149.39

L 24 × W 24 × H 23 mm

matt chrome-plated

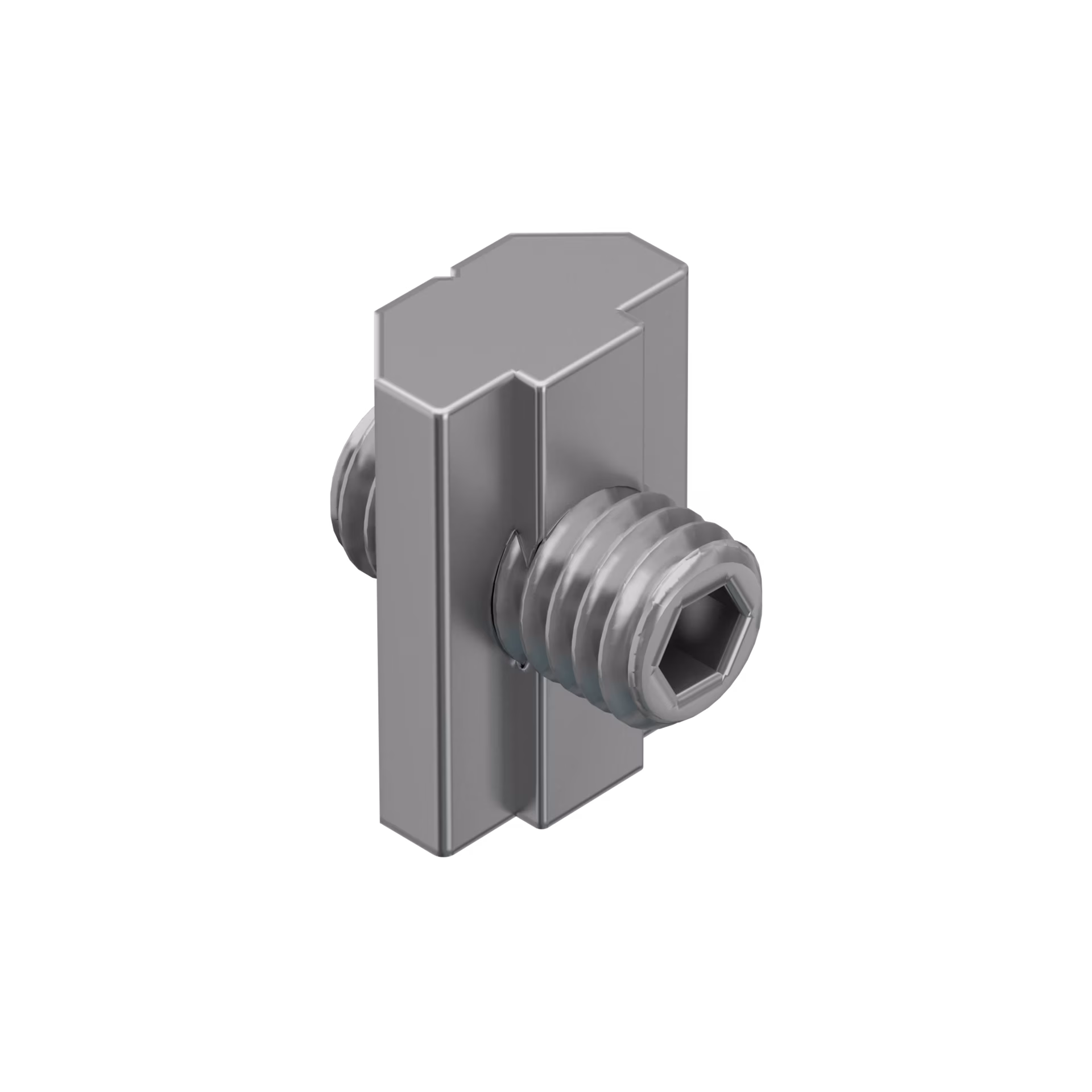

M 826.00

with set screw M 826/S

small

L 16 × W 10 × H 6 mm

raw / unfinished

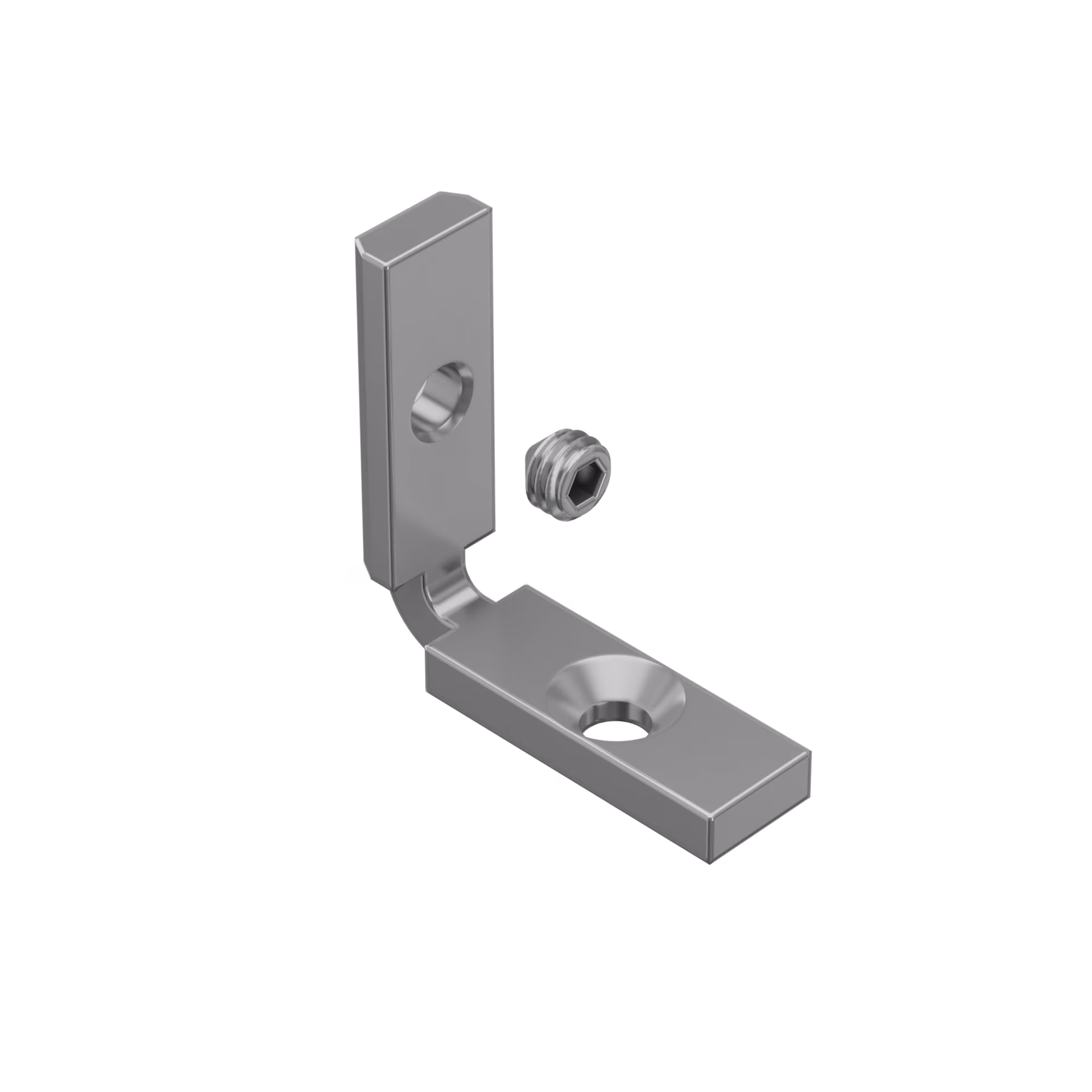

S 6035.37

incl. S 6025/20 (M6)

L 34 × W 34 × H 10 mm

zinc-plated
