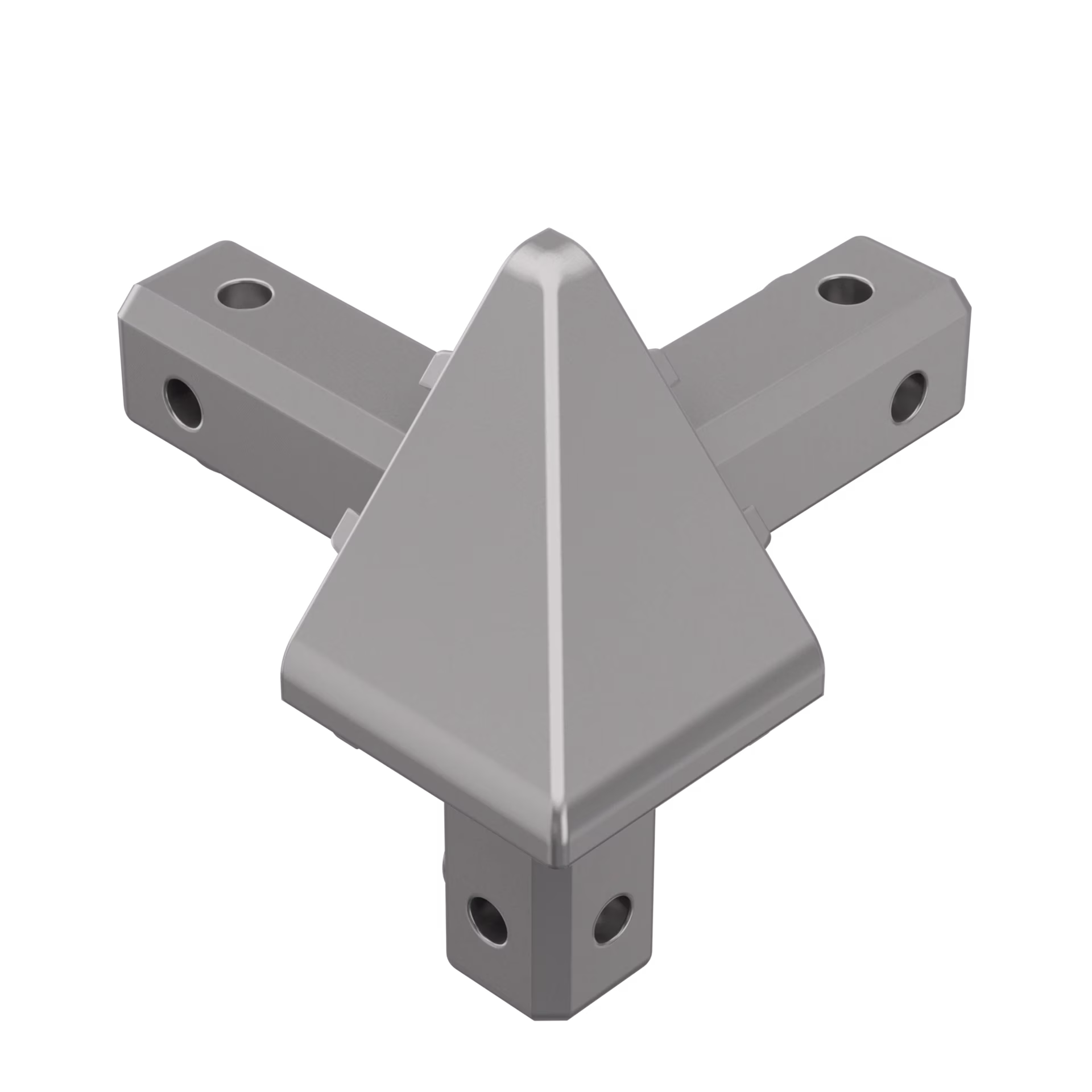

Contact Person.S 1340.41
for S 1303/S 1125
zinc die cast

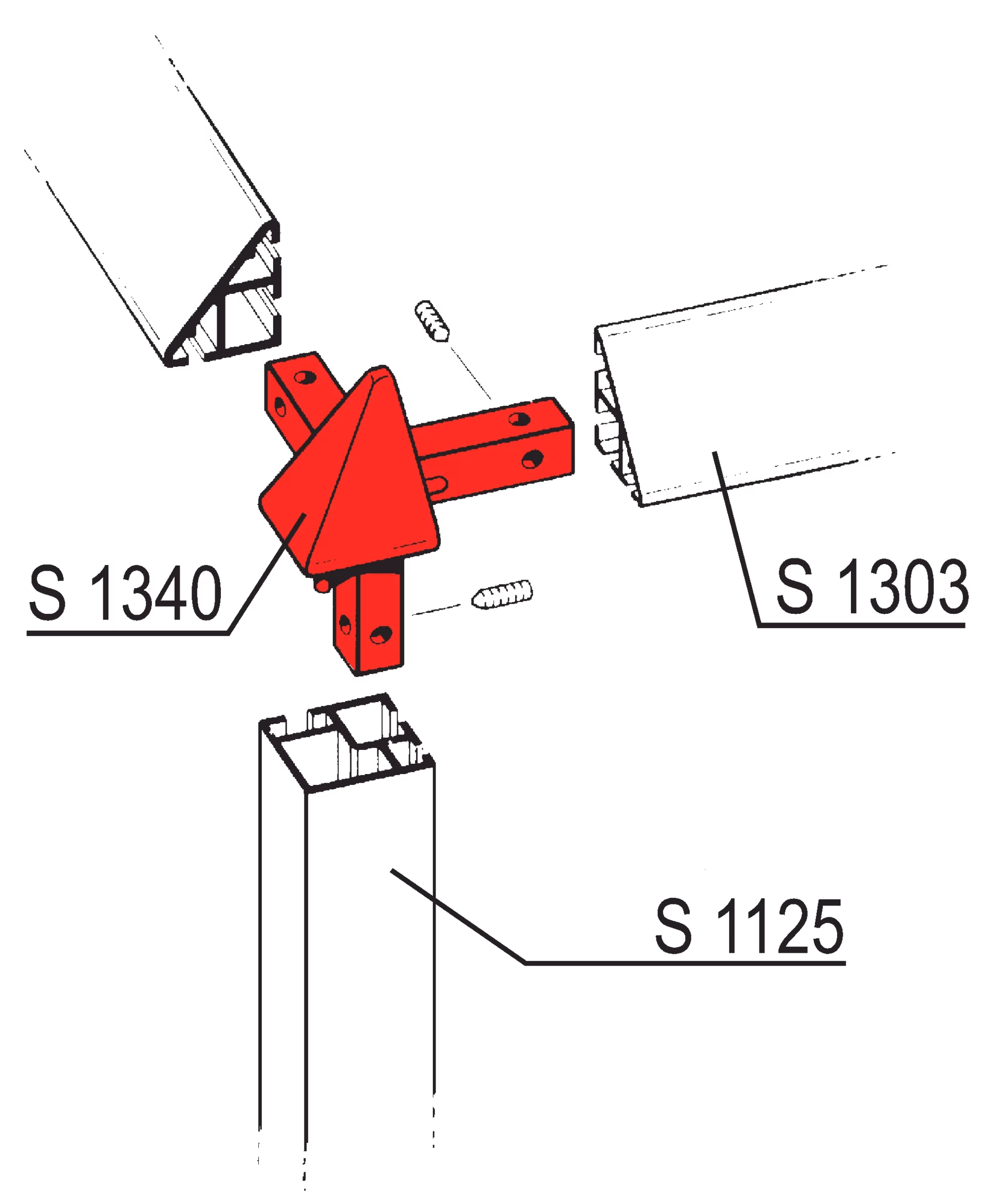

90°, for mounting 2 × triangular extrusion S 1303 and 1 × square extrusion S 1125, incl. 3 × countersunk screw E 111/m (M6) and 3 × set screw E 111/g (M6)
L 75 × W 75 × H 75 mm
Available Material
polished chrome-plated
Order now.
Technical Data.
Length:
75 mm
Weight:
0.229 kg
Width:
75 mm
Height:
75 mm
