Main  → maxima 120  → maxima 120 Products  → maxima 120 Product Detail

M 1102.00

for extrusions 120 mm
aluminium
for all closed square extrusions 120 mm, incl. 2 × tension lock Z 961/13, 1 × knurled-head screw M 1102/21 (M4) for beam retainer M 1106, 2 × collar guide M 1102/2 and 4 × countersunk screws M 1102/20 (M6)
L 108 × W 22.5 × H 95 mm

Available Material

raw / unfinished
Order now.

Technical Data.

Length:

108 mm

Weight:

0.339 kg

Width:

95 mm

Height:

23 mm

M_1102.pdf
XM_1102.pdf

Accessories.

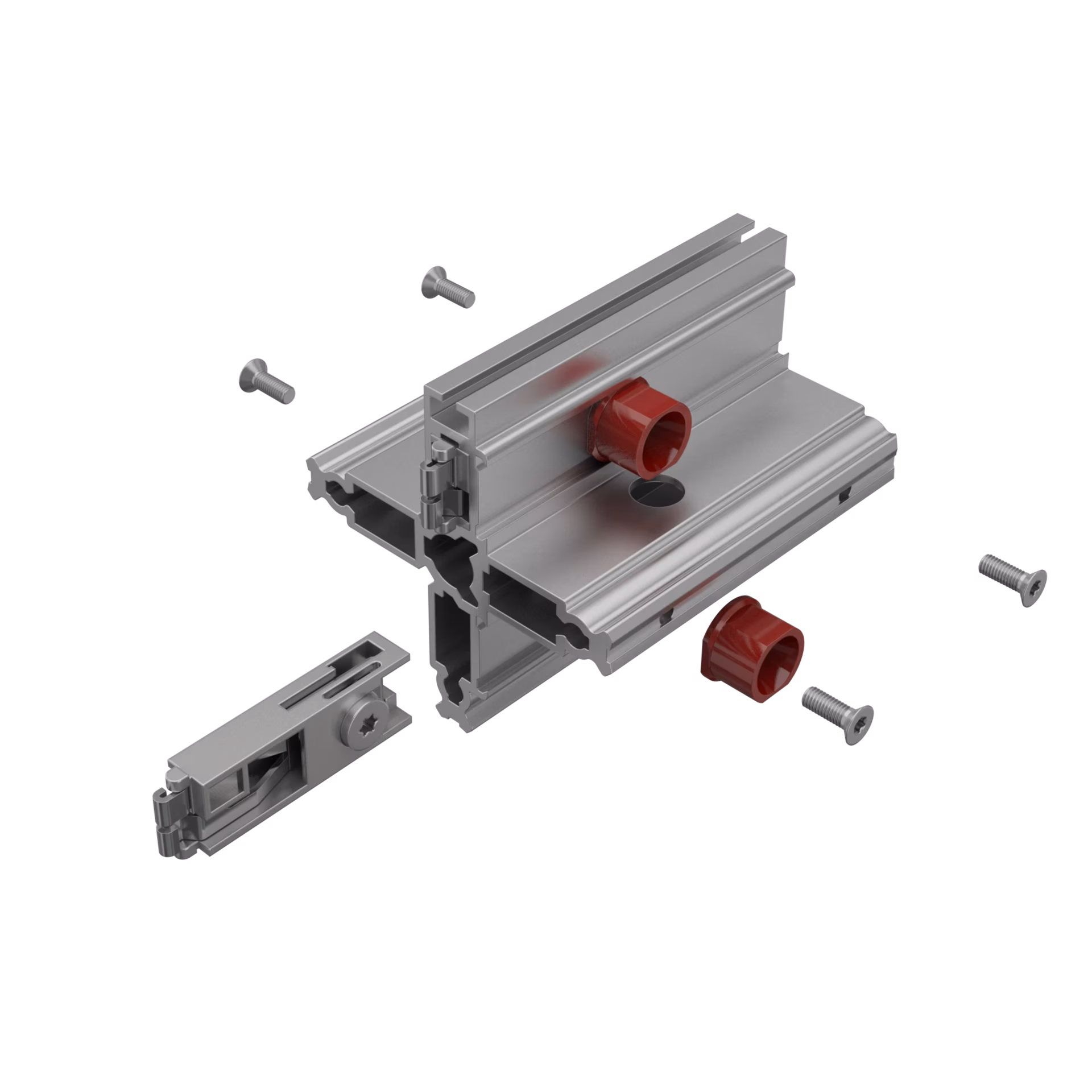

M 1104/L.00

with 2 × Z 961/13

for extrusions 120 mm

L 108 × W 95 × H 95 mm

raw / unfinished

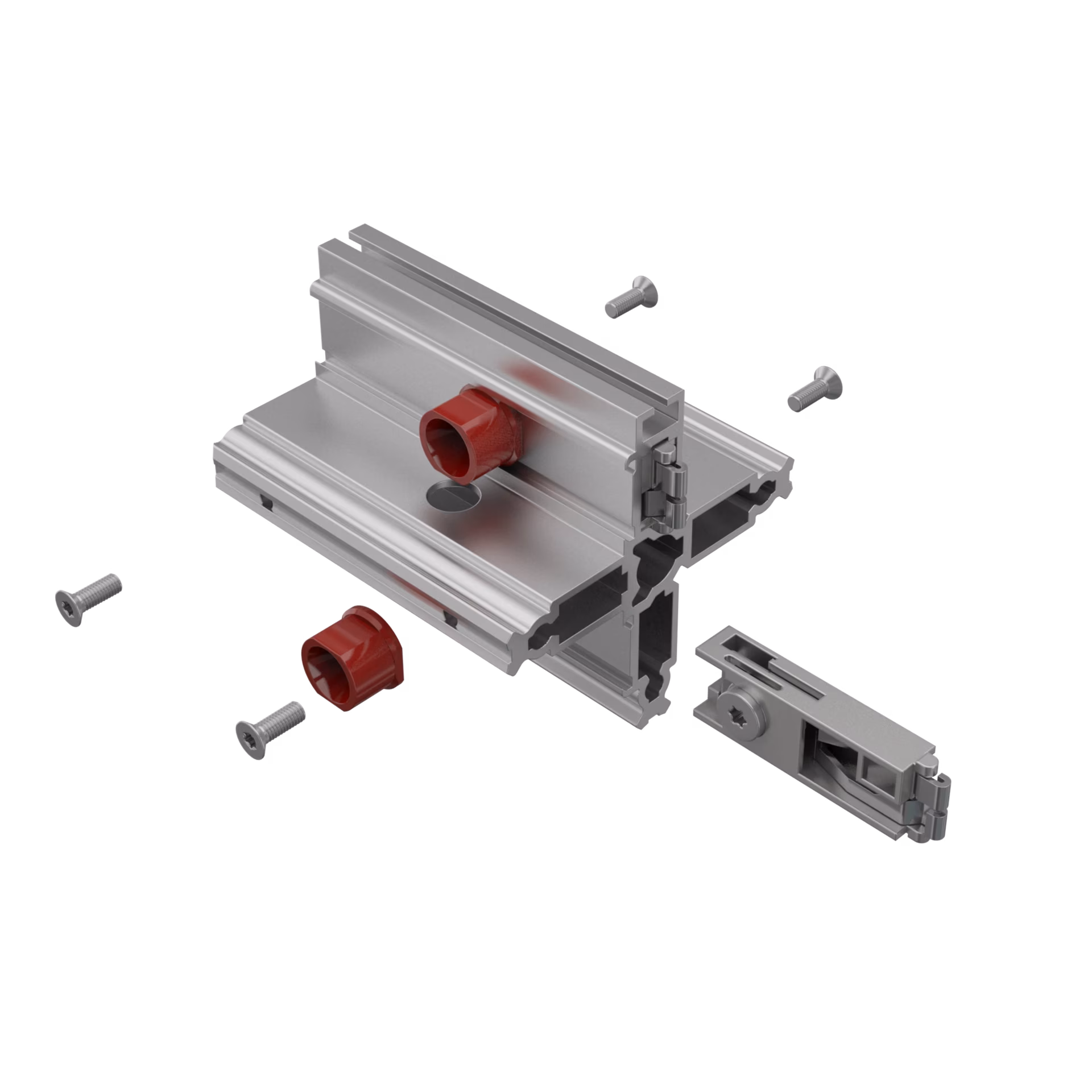

M 1104/R.00

with 2 × Z 961/13

for extrusions 120 mm

L 108 × W 95 × H 95 mm

raw / unfinished

M 1106.37

for M 1102 / M 1104/L/R

L 38 × W 14 × H 14 mm

38 mm long

zinc-plated
