octaclassic.
Show contact personsDoors.

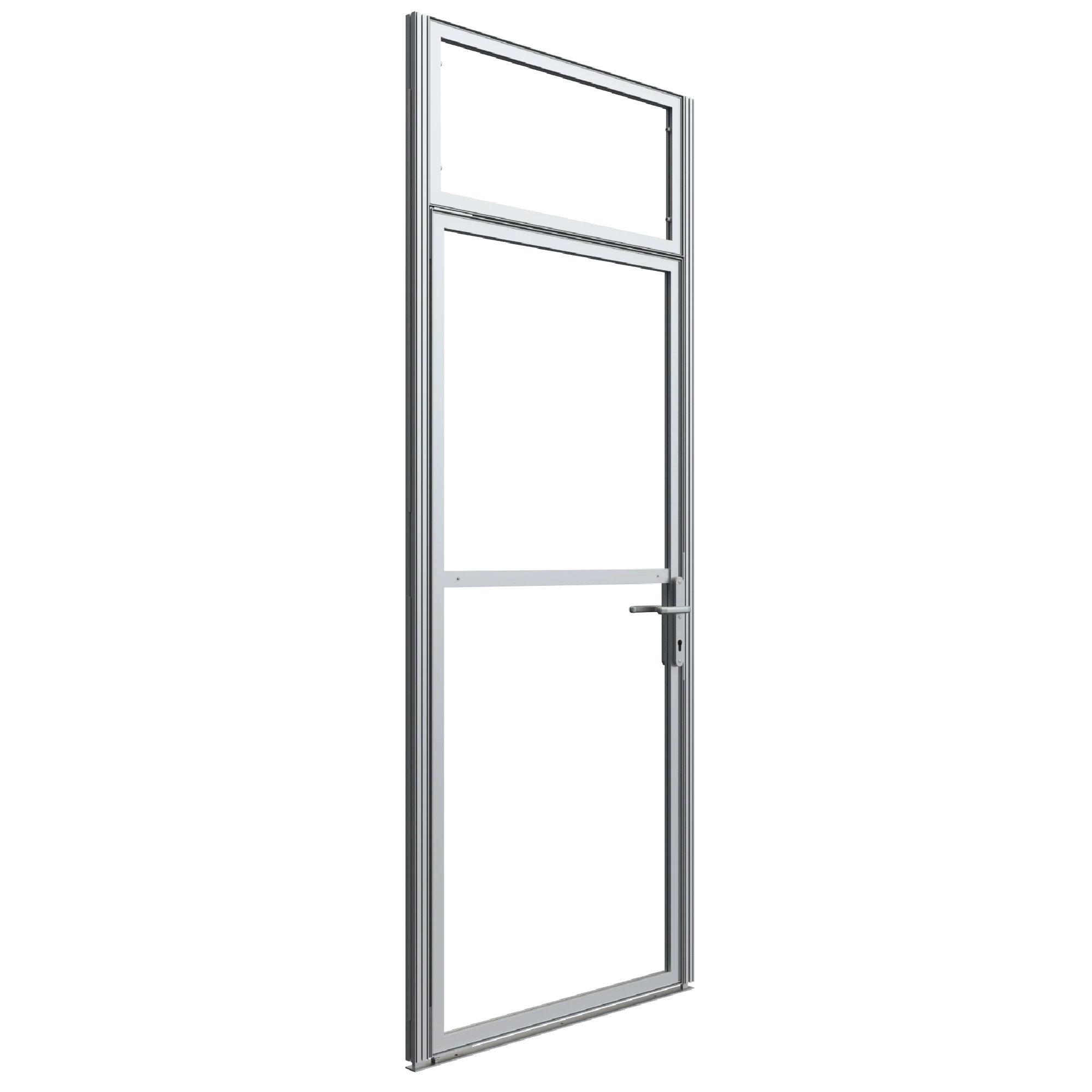

W 425-SET.01
Set
DIN left/right
W 950 × H 2500 × D 40 mm
matt anodized, silver (E6/EV1)

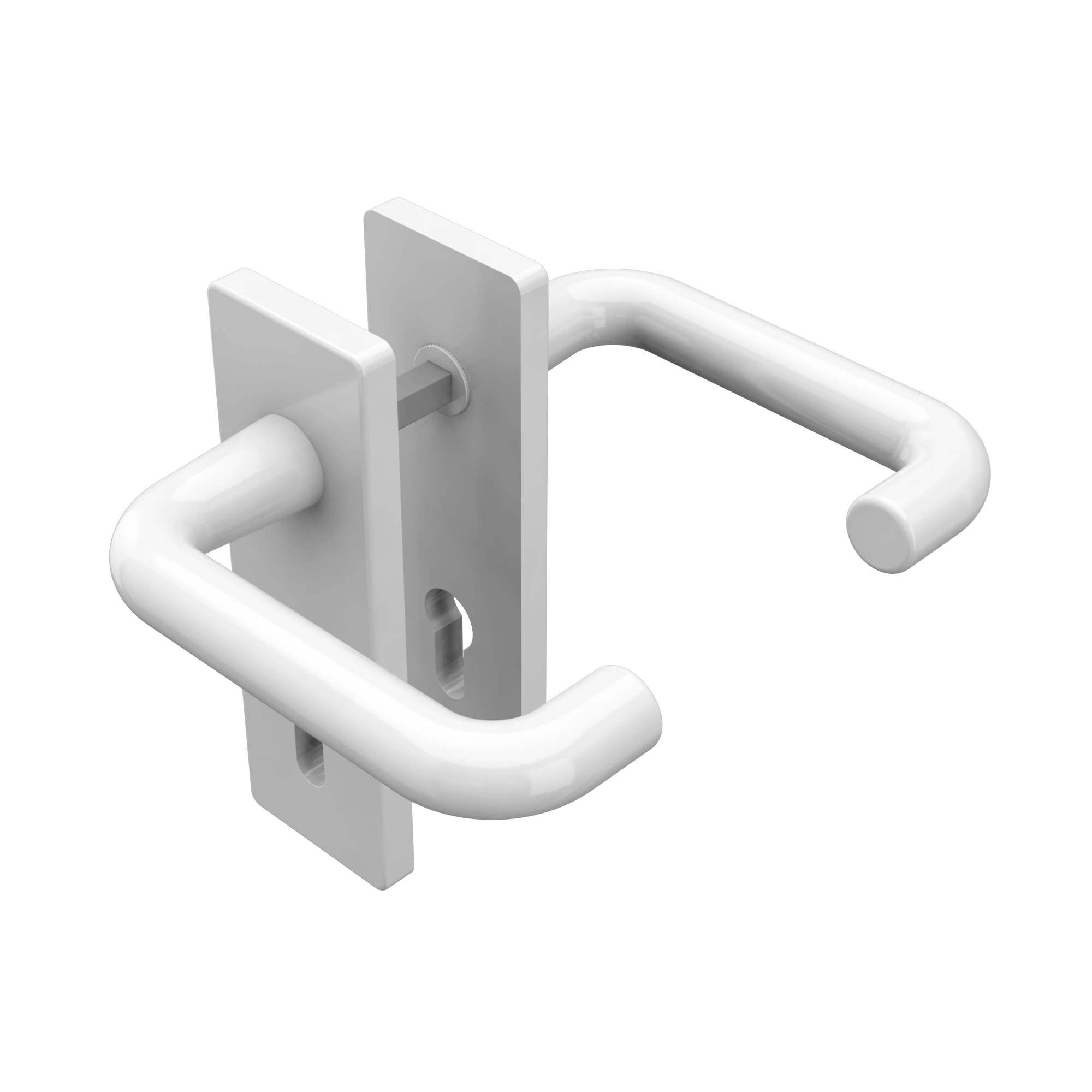

W 512.30
with plate
for W 510/T / W 511/T
L 177 × W 150 × H 156 mm
white
W 514.38
for W 425 / W 575 / W 805
L 61 × W 42 × H 28 mm
nickel-plated

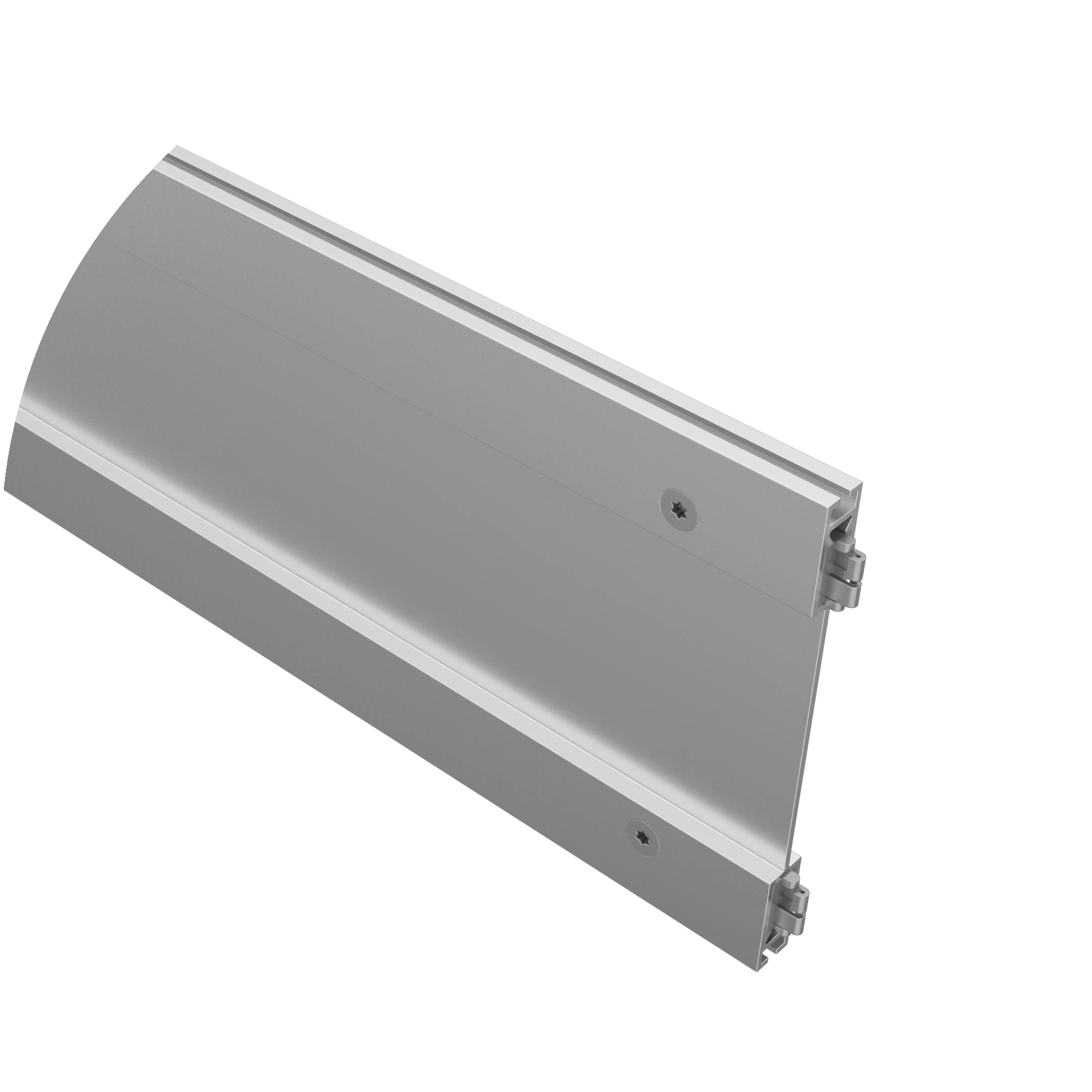

W 524.37
for axis measurement 990 mm
for W 510/Z / W 580/Z
L 1140 × W 50 × H 5 mm
zinc-plated

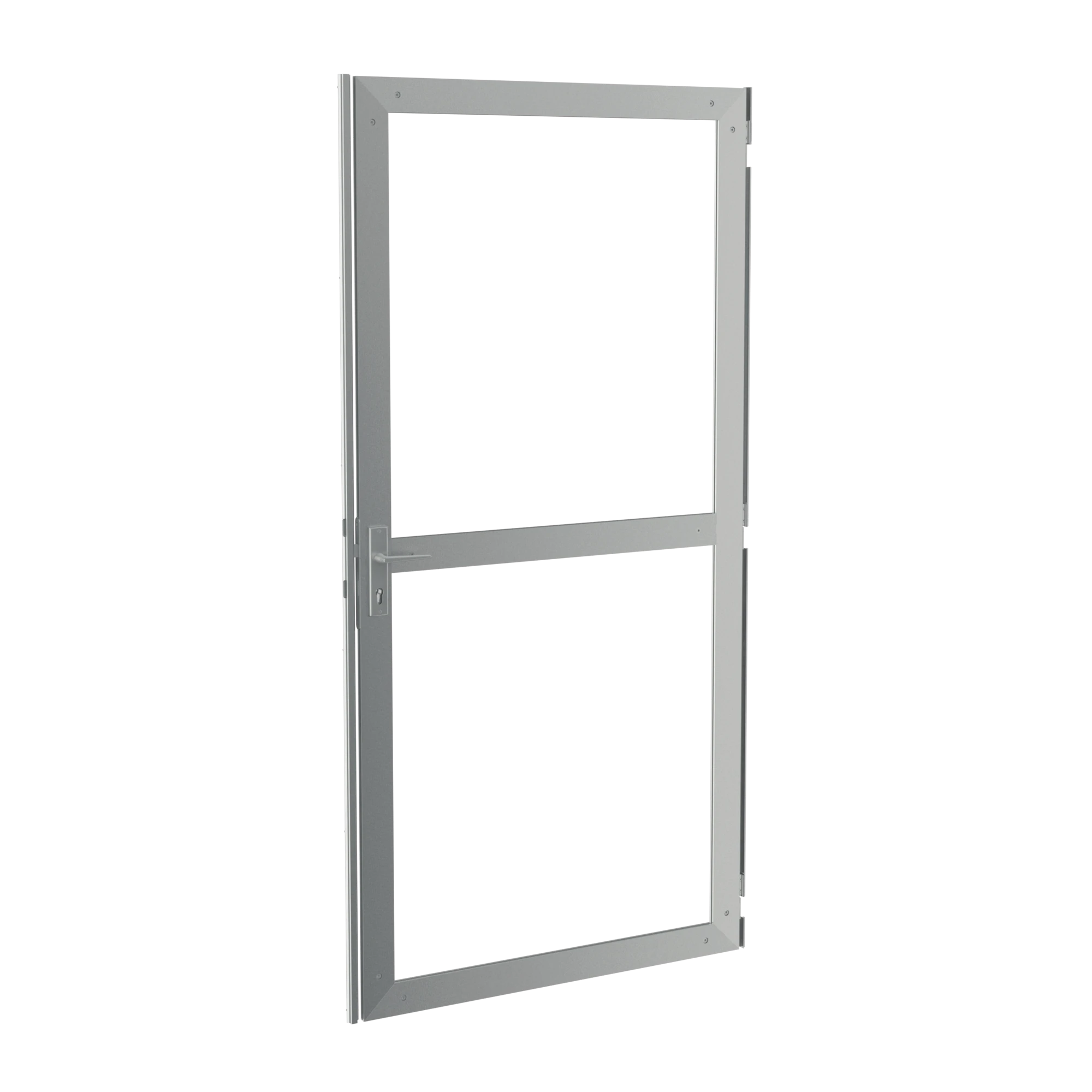

W 540-SET.01
Set
W 950 × H 1930 × D 16 mm
matt anodized, silver (E6/EV1)
W 540-SET.11
Set
W 950 × H 1930 × D 16 mm
polished, anodized, silver (E2/EV1, E4/EV1)

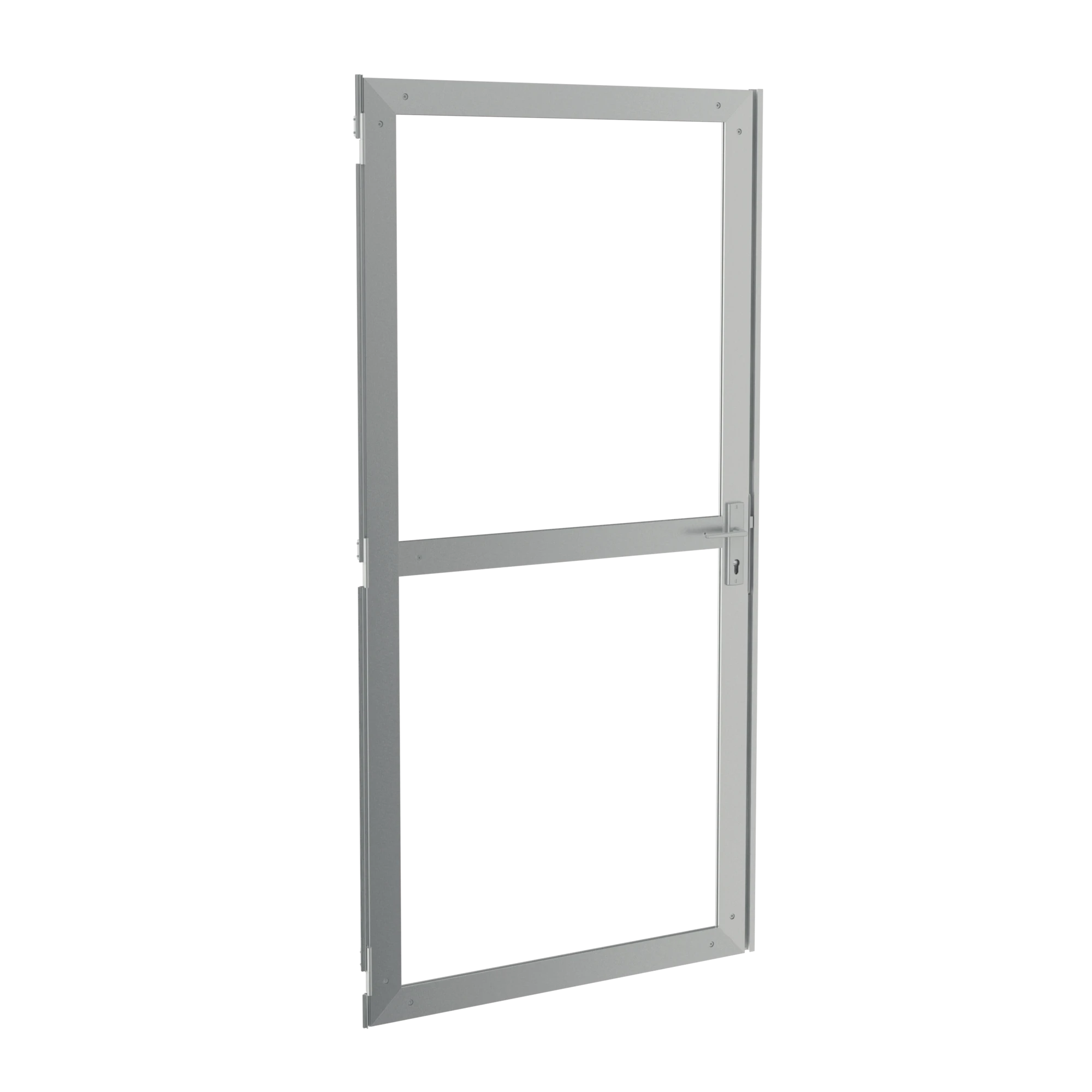

W 541-SET.01
Set
W 950 × H 1930 × D 16 mm
matt anodized, silver (E6/EV1)
W 541-SET.11
Set
W 950 × H 1930 × D 16 mm
polished, anodized, silver (E2/EV1, E4/EV1)
W 575-040.01
for door W 575
integration into 40 mm
L 20 × W 32 × H 60 mm
matt anodized, silver (E6/EV1)

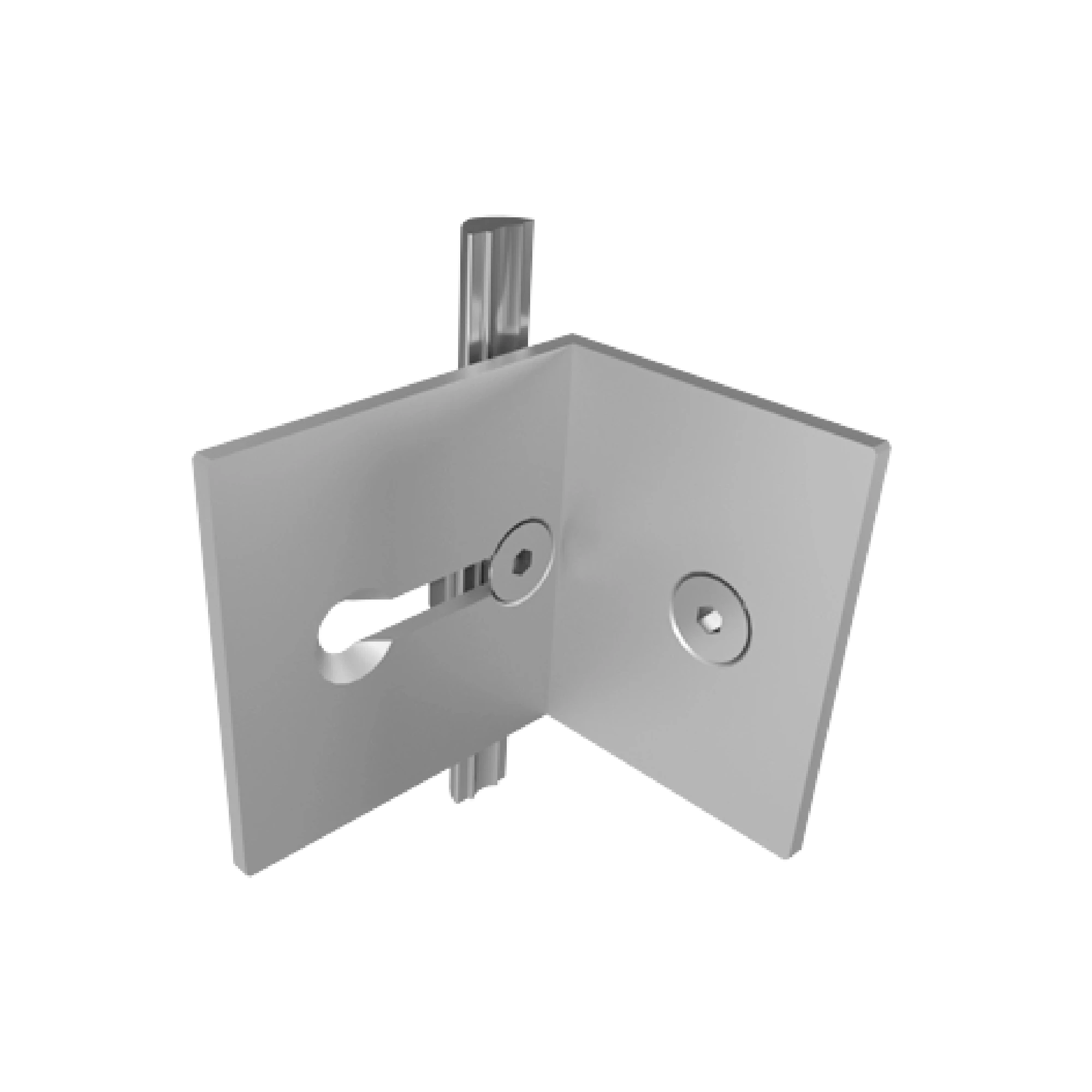

W 575-080.01
for door W 575
integration into 80 mm
L 40 × W 32 × H 60 mm
matt anodized, silver (E6/EV1)
W 575-120.01
for door W 575
integration into 120 mm
L 60 × W 32 × H 60 mm
matt anodized, silver (E6/EV1)
W 575-SET.01
for 40/80/120 mm
W 950 × H 2500 × D 40 mm
matt anodized, silver (E6/EV1)
W 580-Set.30
Set right
W 860 × H 1985 × D 39 mm
white
W 580/Z.01
for door panel W 580 / W 581
W 950 × H 2030 × D 16 mm
matt anodized, silver (E6/EV1)
W 581-Set.30
Set left
W 860 × H 1985 × D 39 mm
white

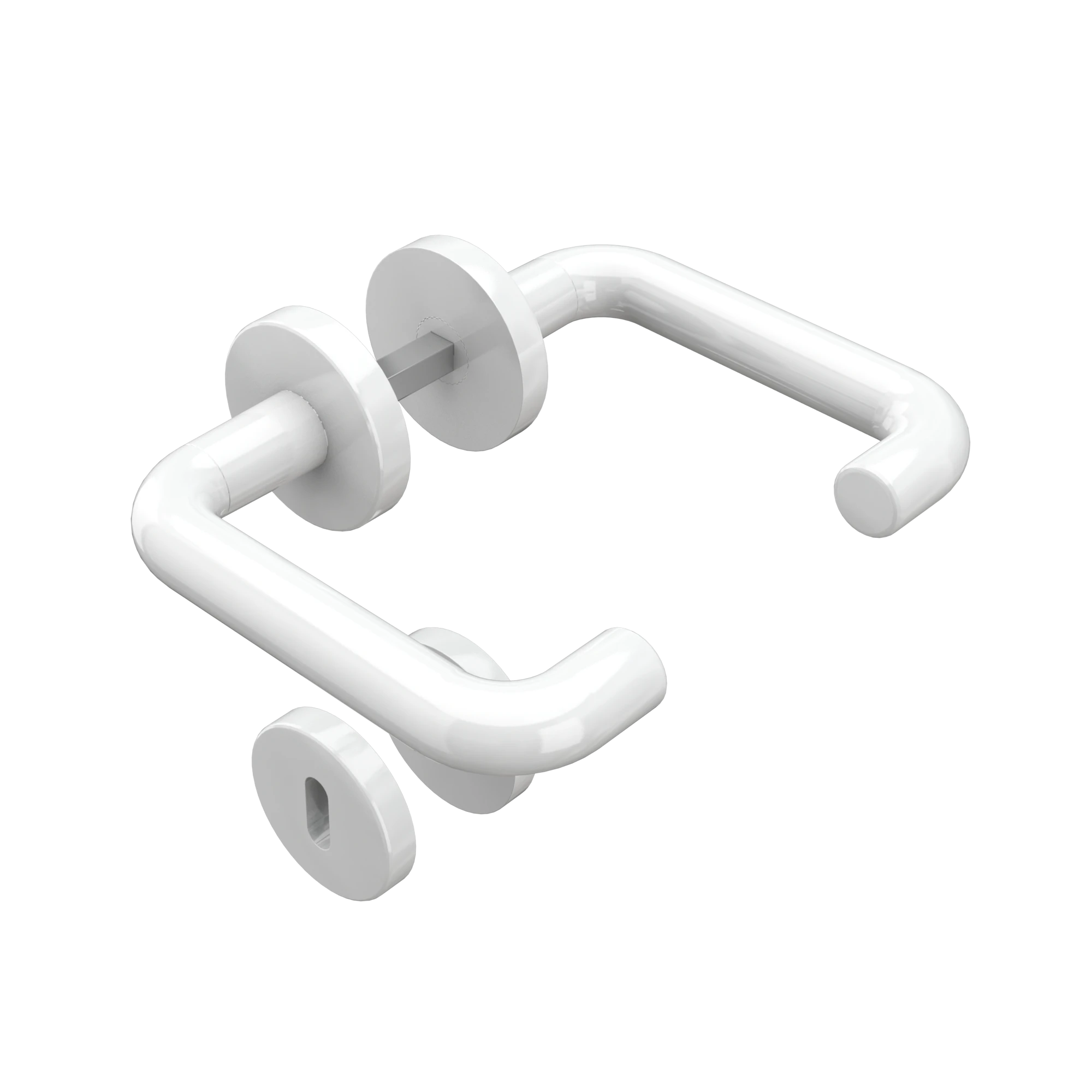

W 582.30
skeleton key mortise lock
for W 580/T / W 581/T
L 176 × W 151 × H 19 mm
white

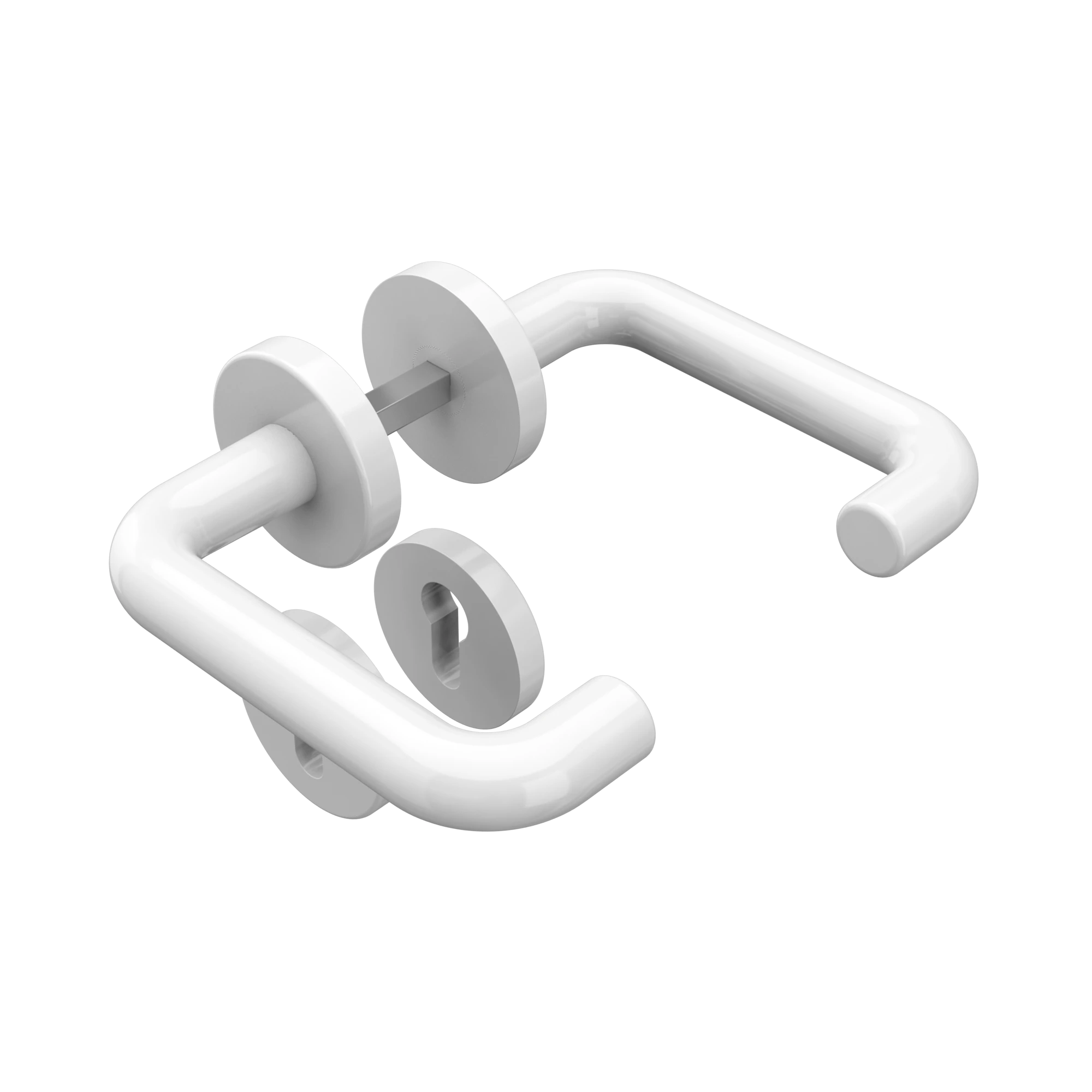

W 584PZ.30
profile cylinder lock
for W 580/T / W 581/T
L 176 × W 151 × H 19 mm
white
W 585.30
roll 5 m
L 5000 × W 8 mm
white

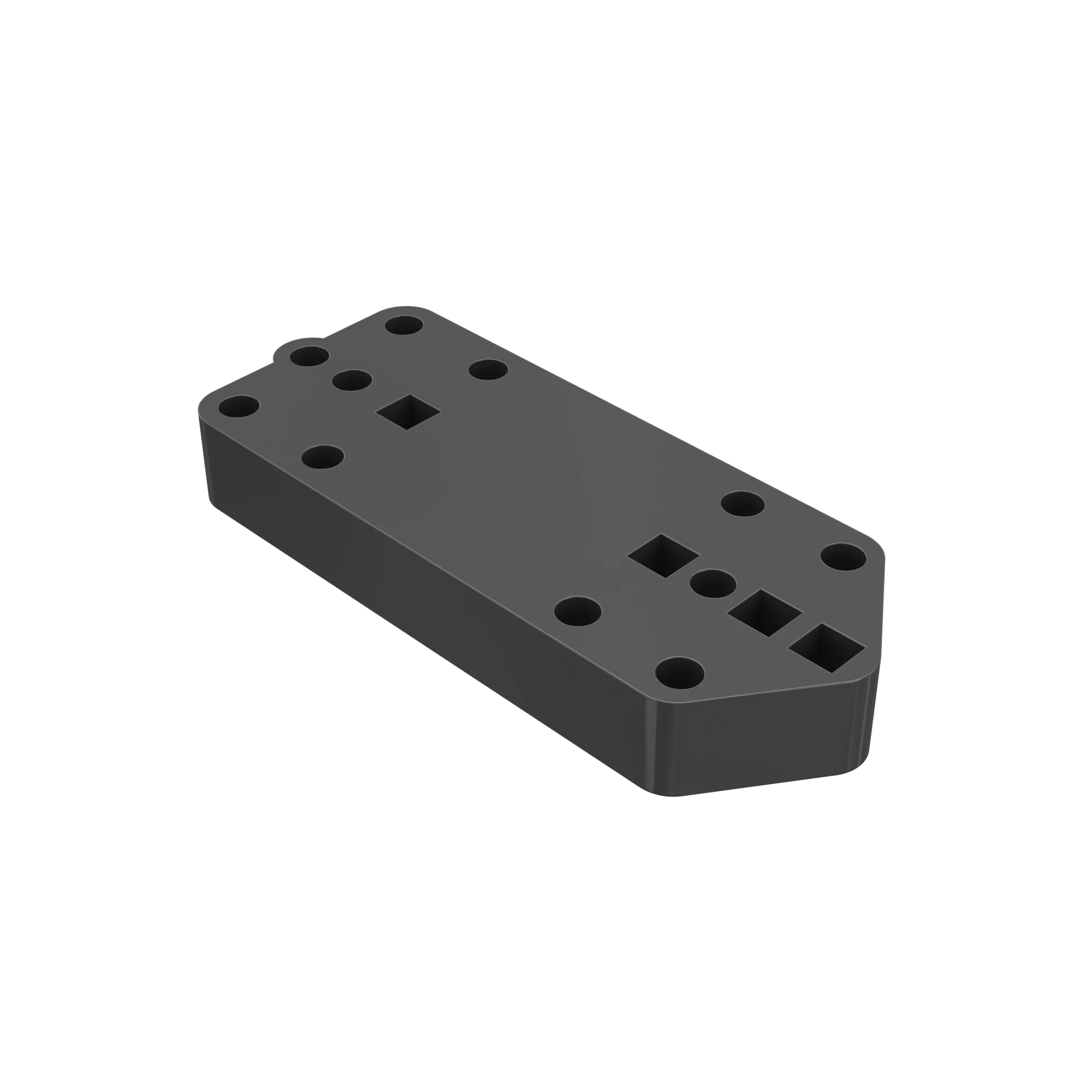

W 599.33
for W 582 / W 548PZ
L 52 × W 130 × H 18 mm
black
Fabric/Panel/Glass.

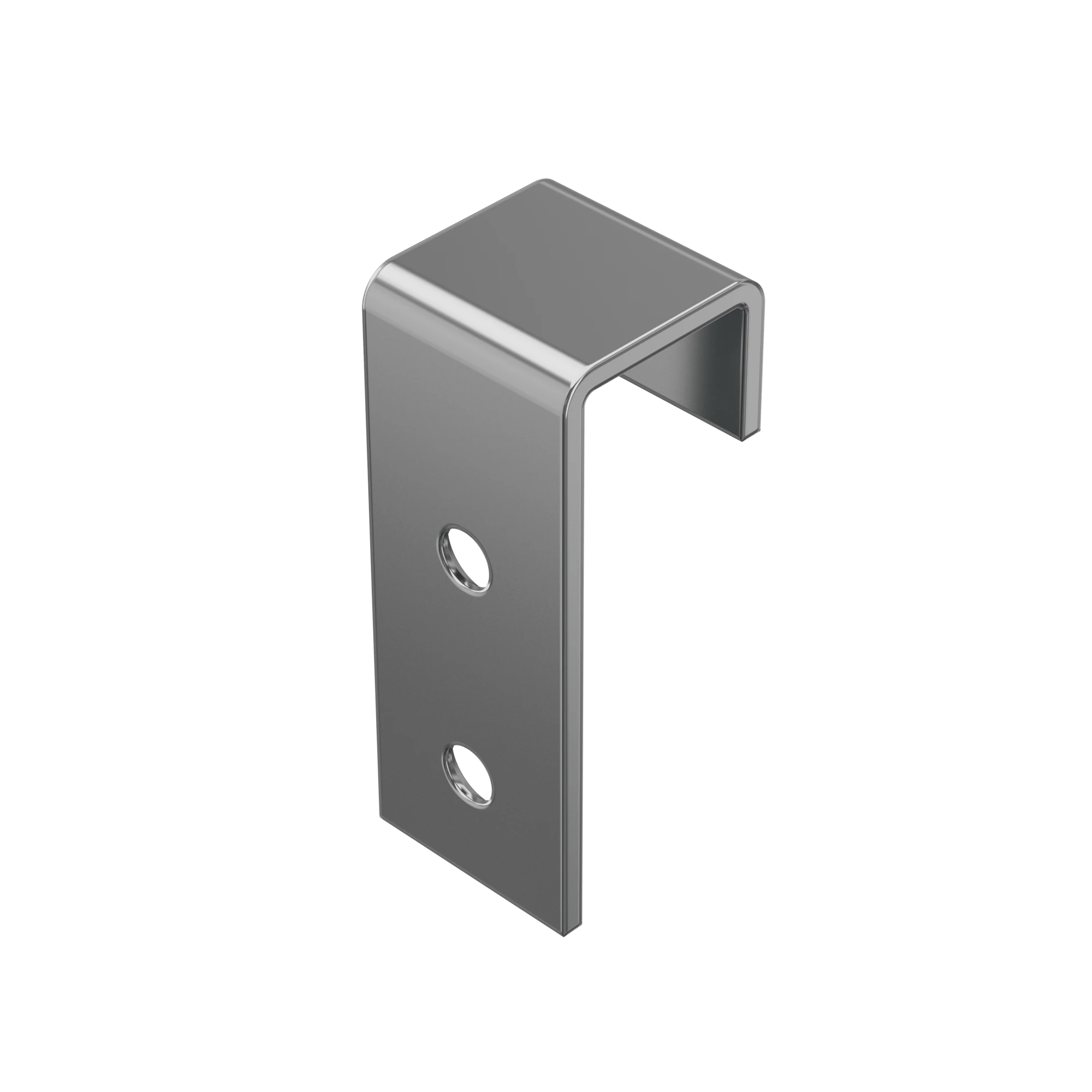

E 220.38
2 × drill hole Ø5 mm
L 20 × W 16.5 × H 50 mm
nickel-plated

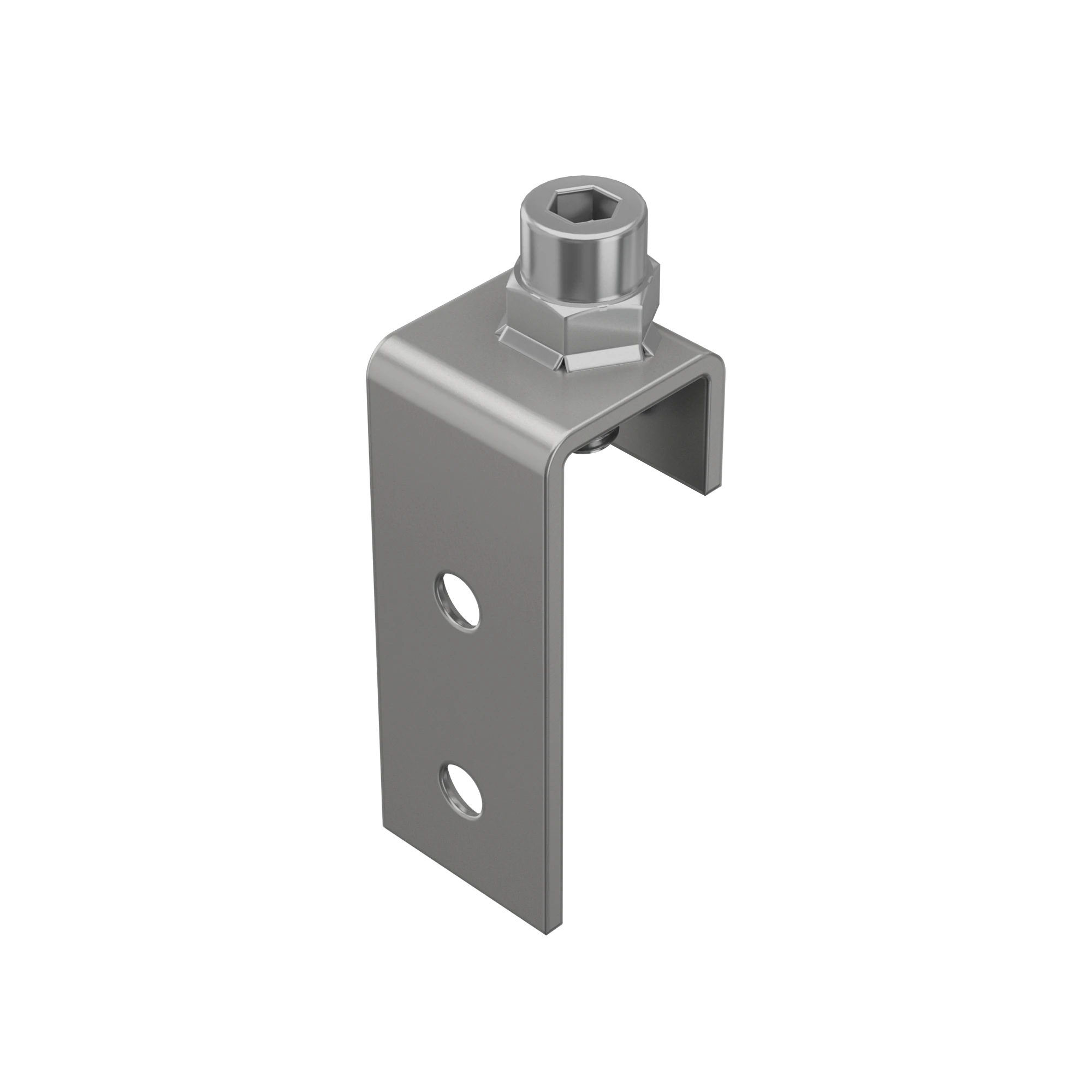

E 220/S.38
adjustable height 9 mm
2 × drill hole Ø5 mm
L 20 × W 16.5 × H 50 mm
nickel-plated
E 420.30
for glass 4-8 mm
L 5000 × W 16 × H 16.5 mm
5000 mm long
white
E 420.33
for glass 4-8 mm
L 5000 × W 16 × H 16.5 mm
5000 mm long
black
E 420.35
for glass 4-8 mm
L 5000 × W 16 × H 16.5 mm
5000 mm long
light grey

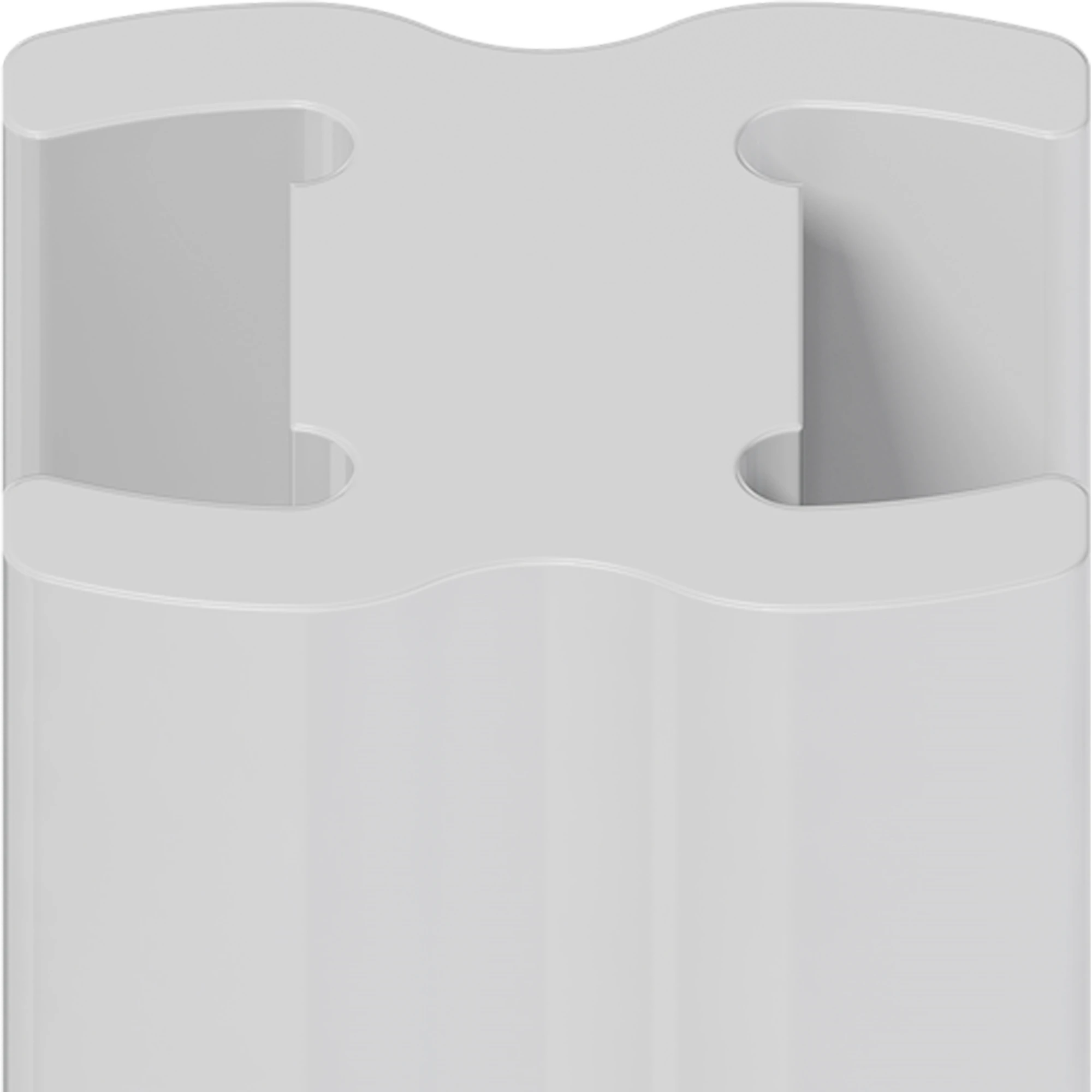

E 438.30
for system groove 4.3 mm
L 5000 × W 10 × H 10 mm
white

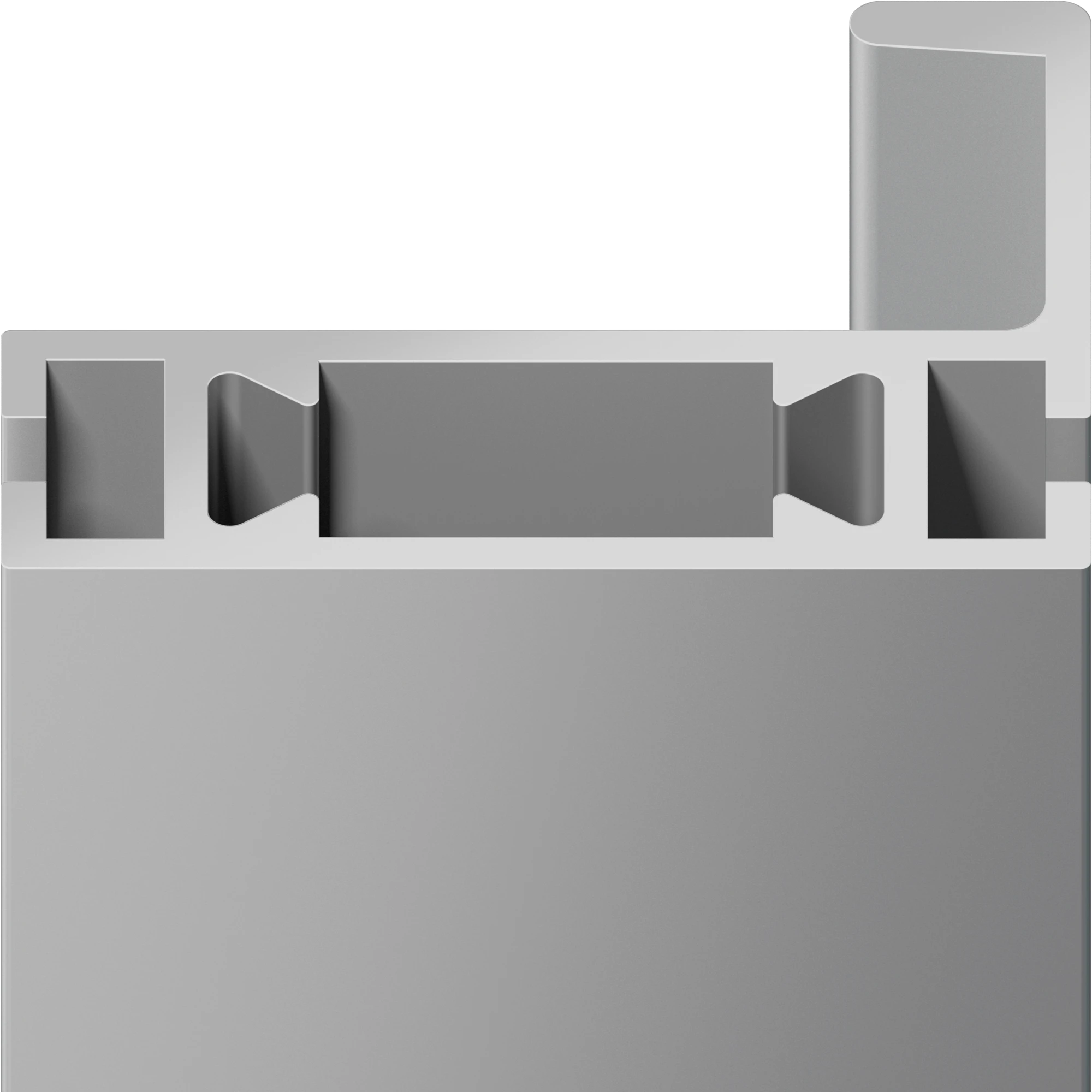

W 101.01
panel, single sided 16 mm
L 5000 × W 50 × H 16 mm
5000 mm long
matt anodized, silver (E6/EV1)
W 101.11
panel, single sided 16 mm
L 5000 × W 50 × H 16 mm
5000 mm long
polished, anodized, silver (E2/EV1, E4/EV1)

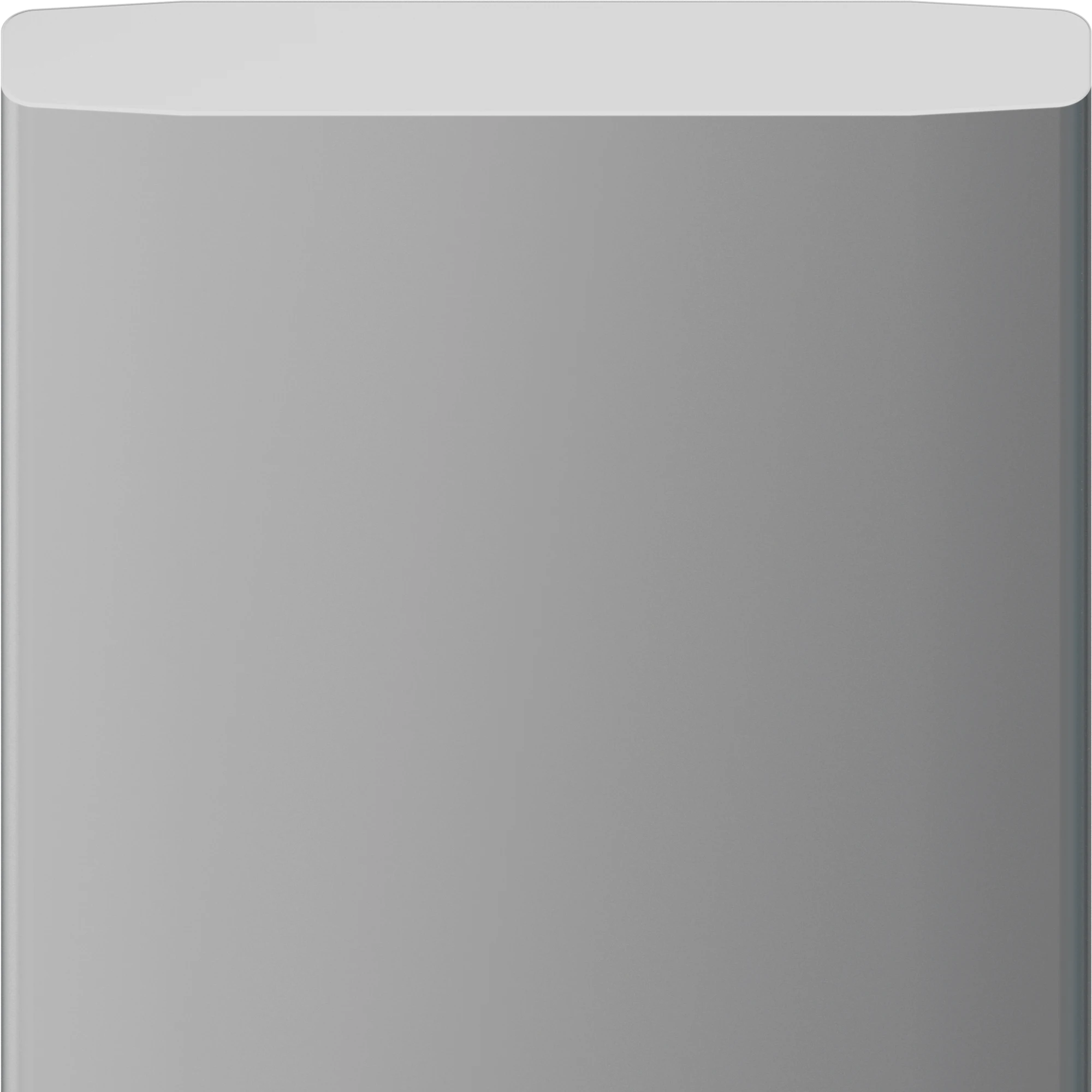

W 105.01
L 5000 × B 3.9 × H 24 mm
5000 mm long
matt anodized, silver (E6/EV1)

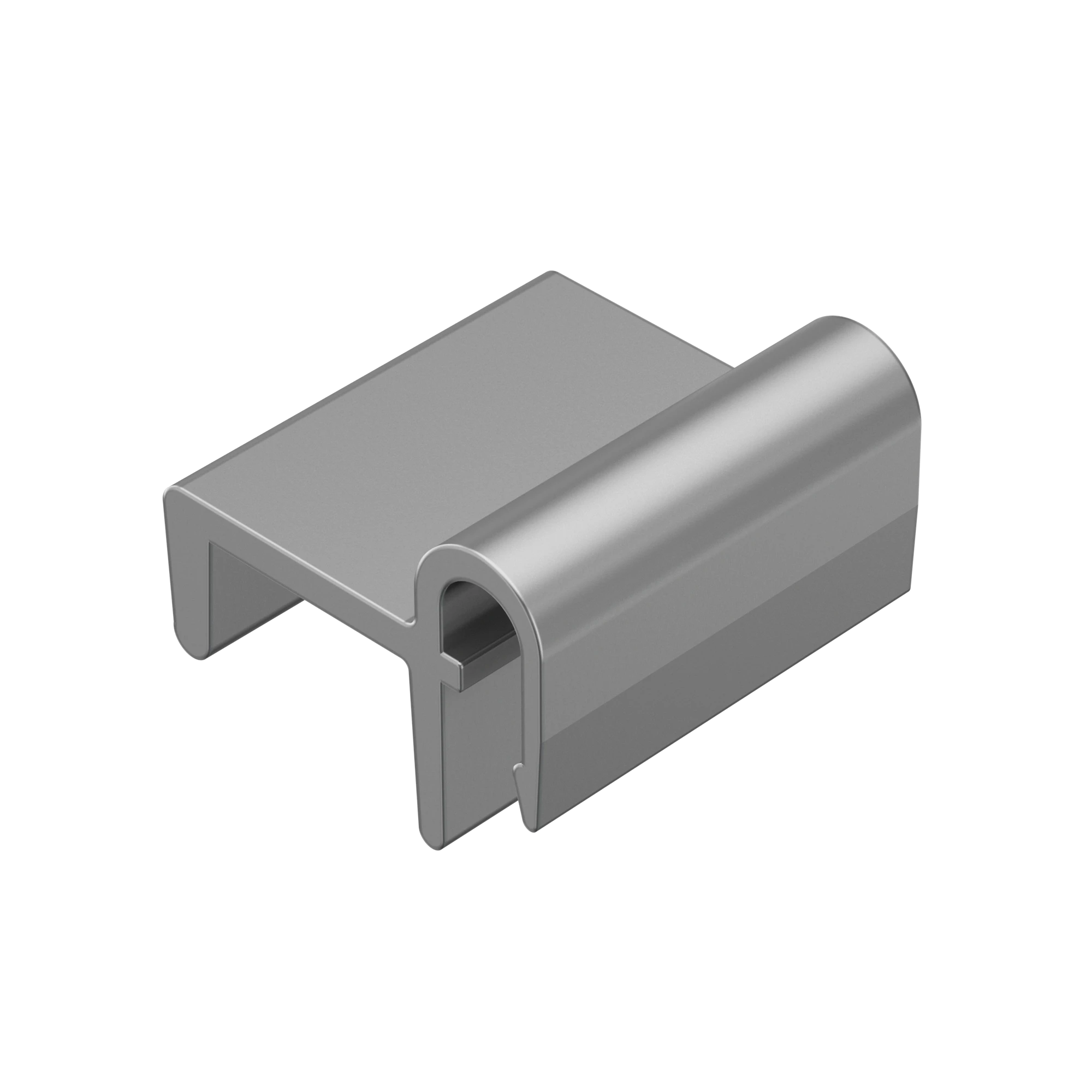

W 108.00
top
L 30 × W 30 × H 22 mm
raw / unfinished

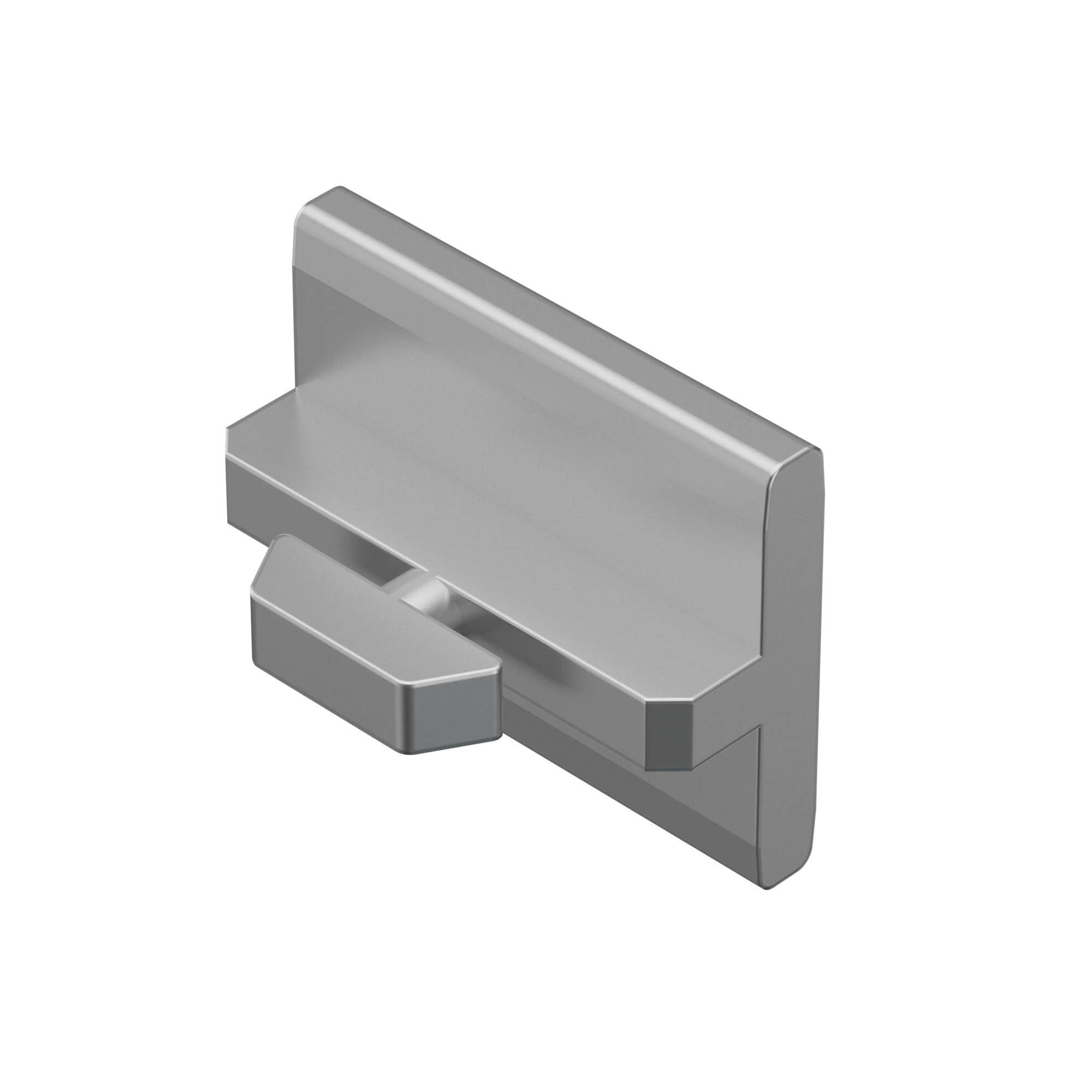

W 109.00
for concealed joint
L 30 × W 24 × H 24 mm
raw / unfinished
Hinges.

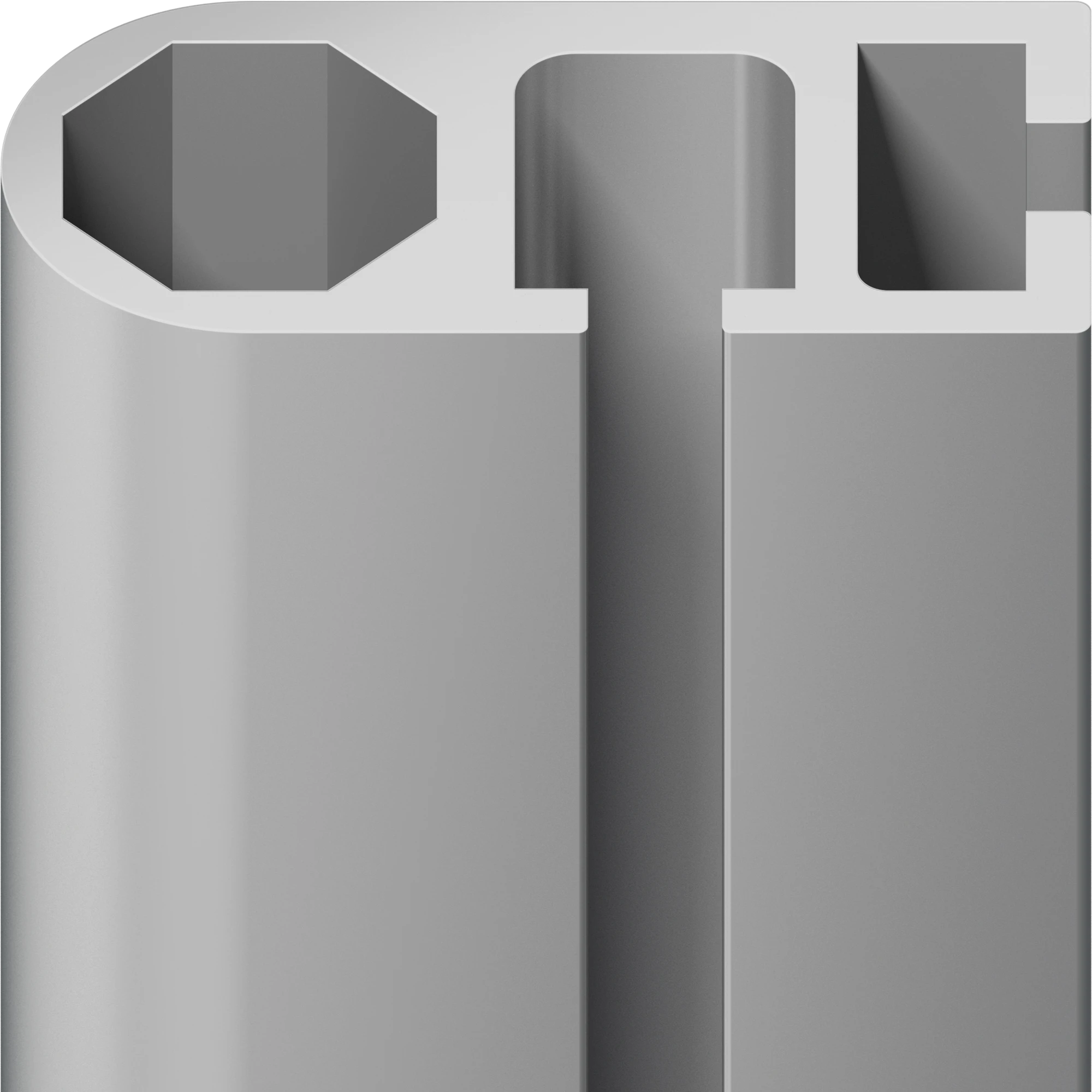

S 250.01
for S 260 - 266
L 5000 × W 35 × H 16 mm
matt anodized, silver (E6/EV1)
S 250.11
for S 260 - 266
L 5000 × W 35 × H 16 mm
polished, anodized, silver (E2/EV1, E4/EV1)

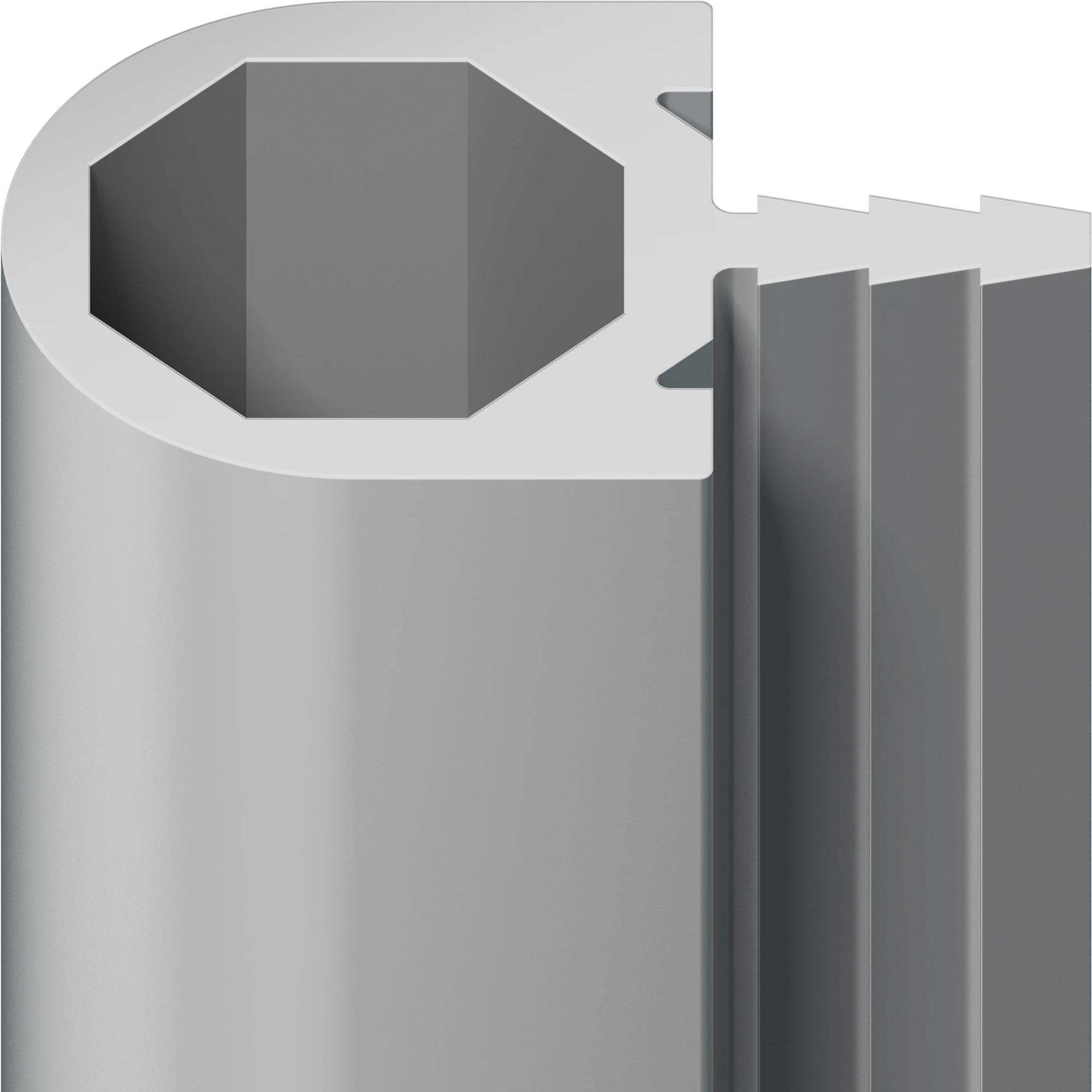

S 252.01
for S 260 - 266
L 5000 × W 16 × H 16 mm
matt anodized, silver (E6/EV1)
S 257.35
for hinged extrusion S 250
L 35 × W 16 × H 10 mm
light grey

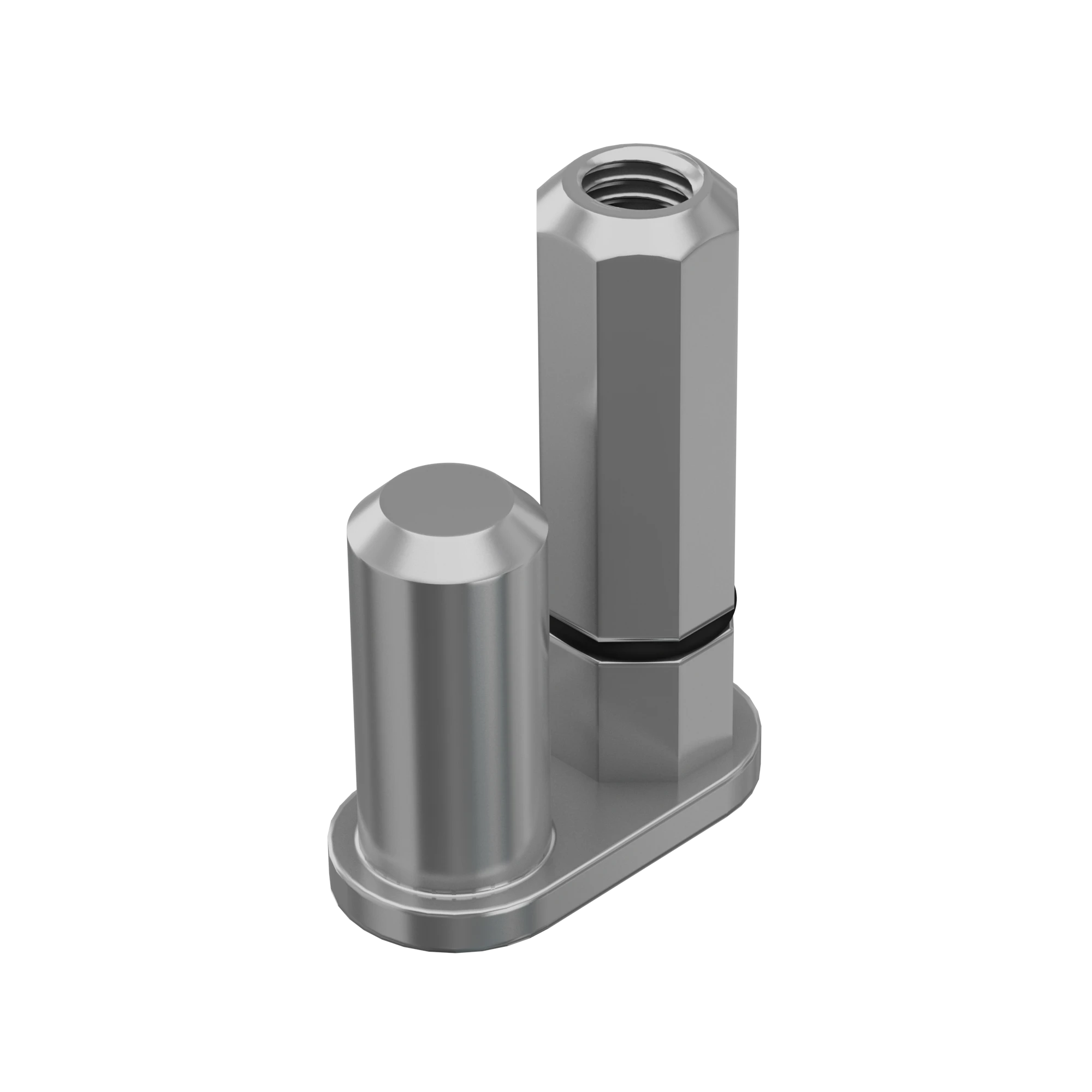

S 260.37
M8
for S 250 / S 252
L 33 × W 16 × H 43 mm
zinc-plated

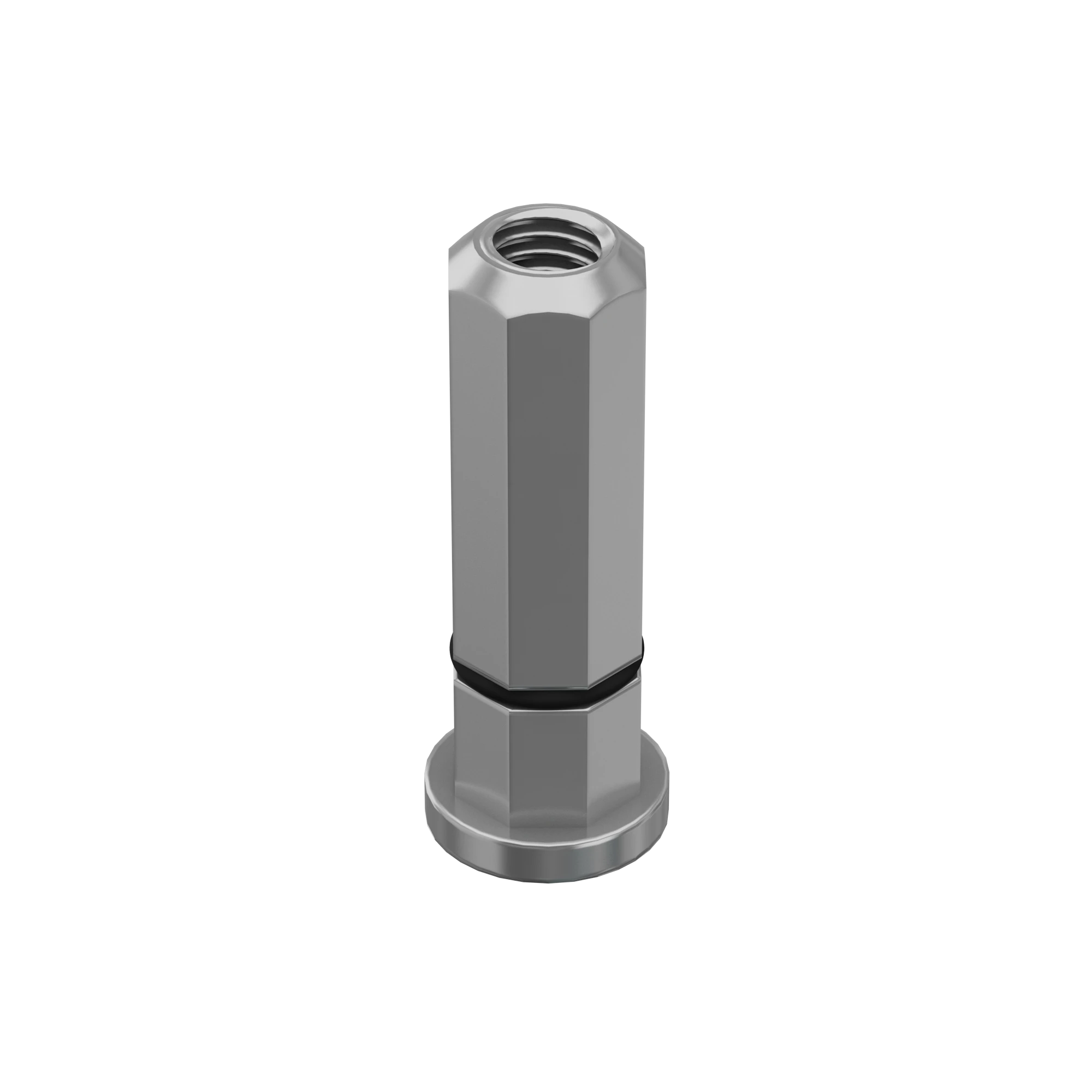

S 261.37
M8
for S 250 / S 252
L 16 × W 16 × H 43 mm
zinc-plated

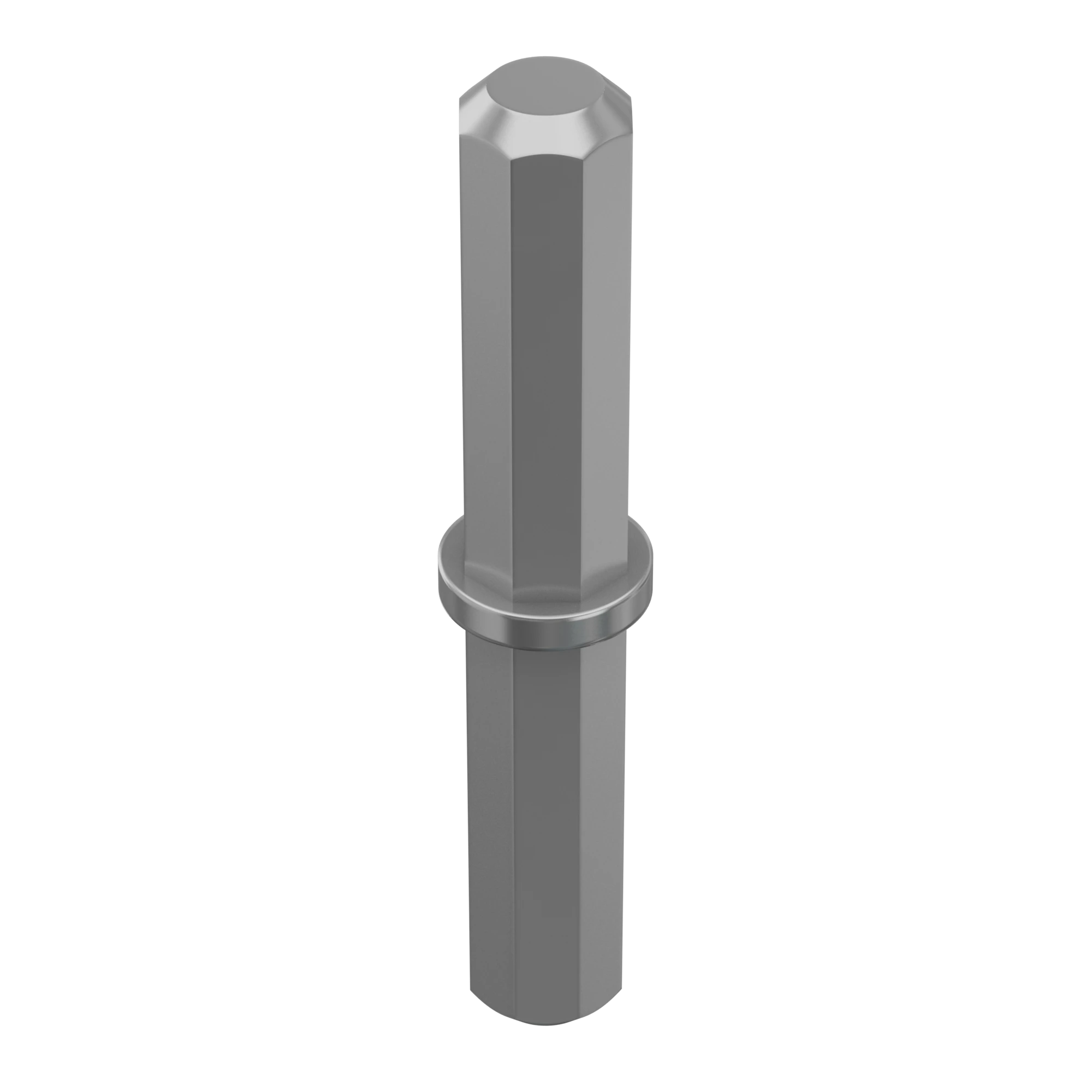

S 262.37
for 2 × S 250 / S 252
L 17 × W 17 × H 83 mm
zinc-plated

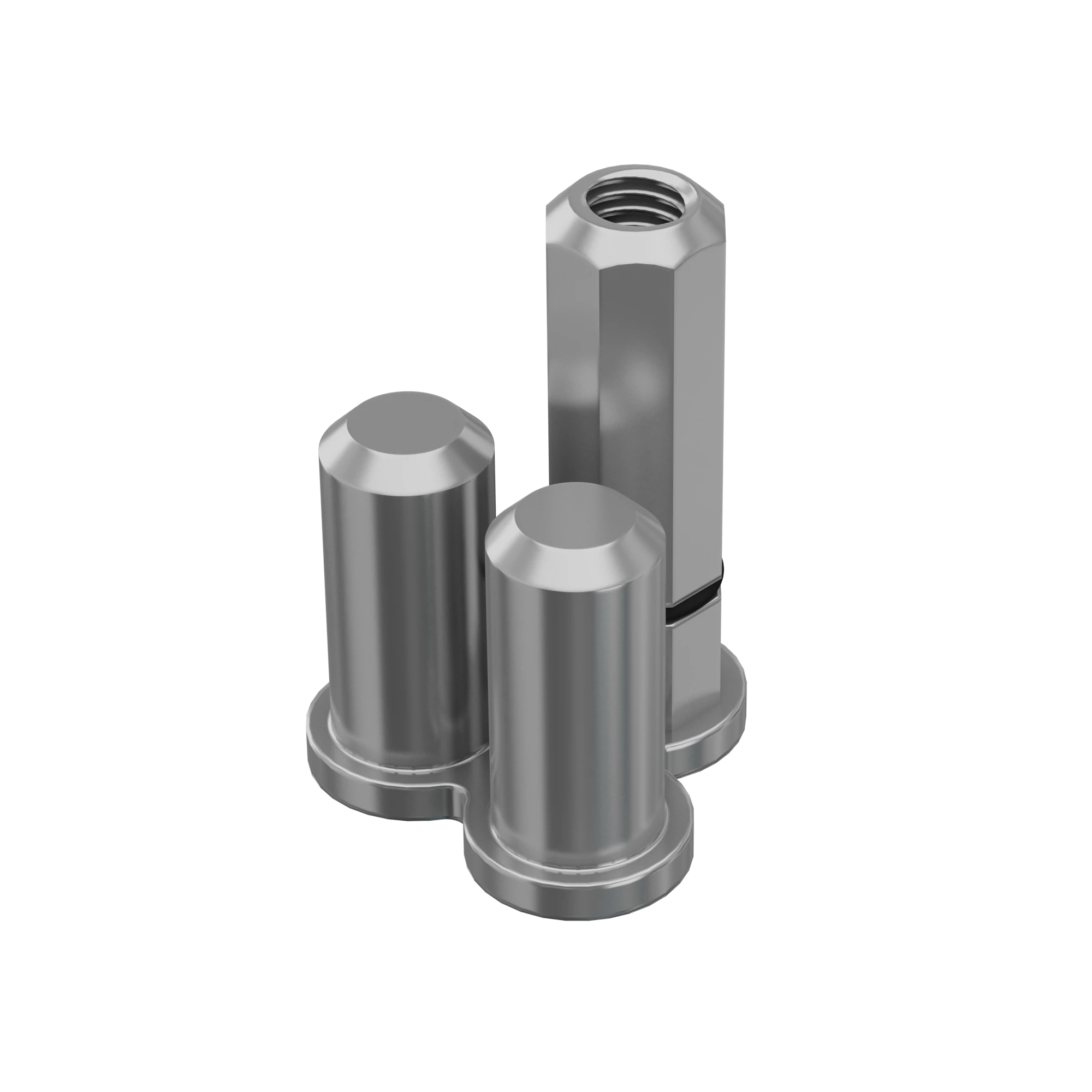

S 263.37
for 3 × S 250 / S 252
L 31 × W 33 × H 43 mm
zinc-plated

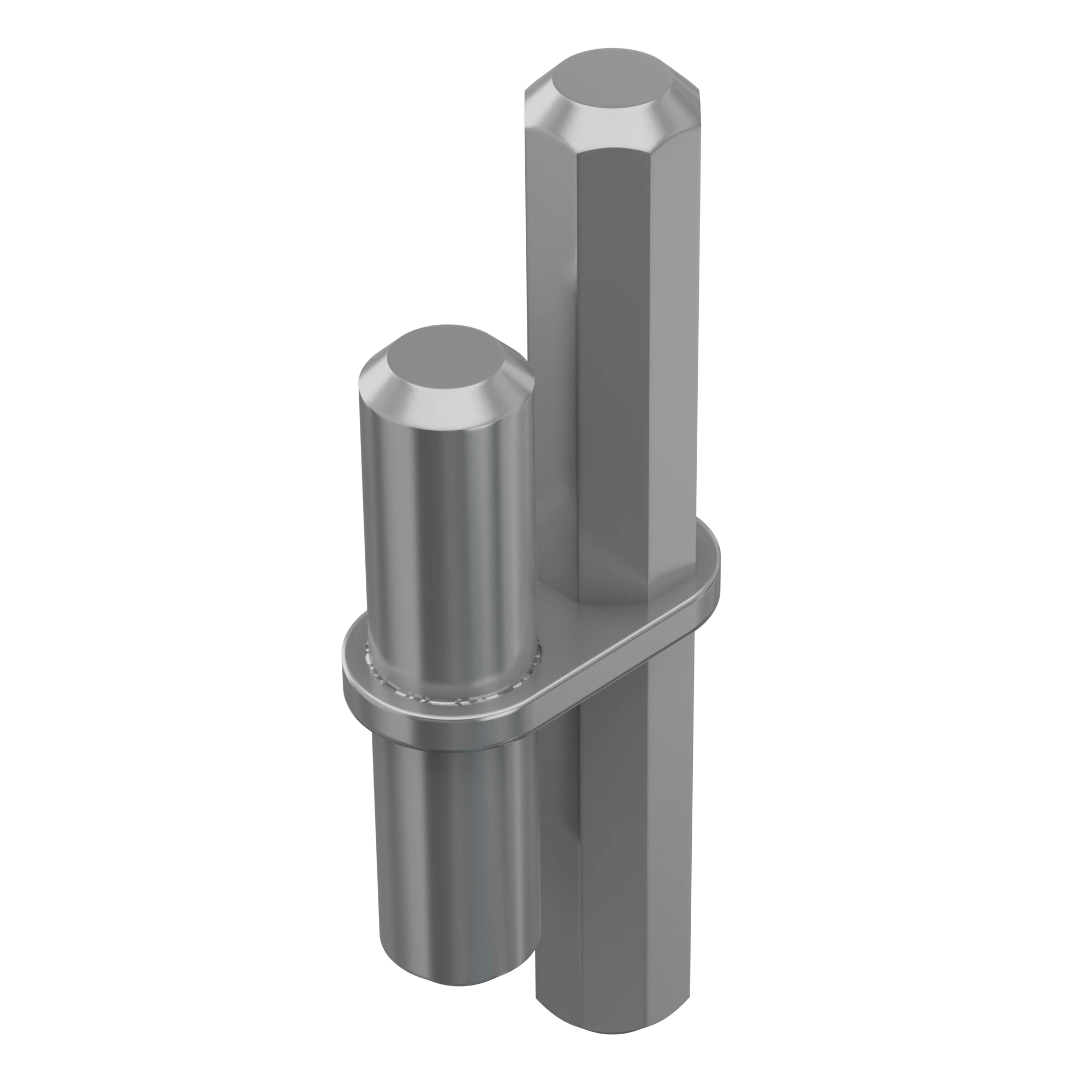

S 264.37
for 4 × S 250 / S 252
L 32 × W 16 × H 83 mm
zinc-plated

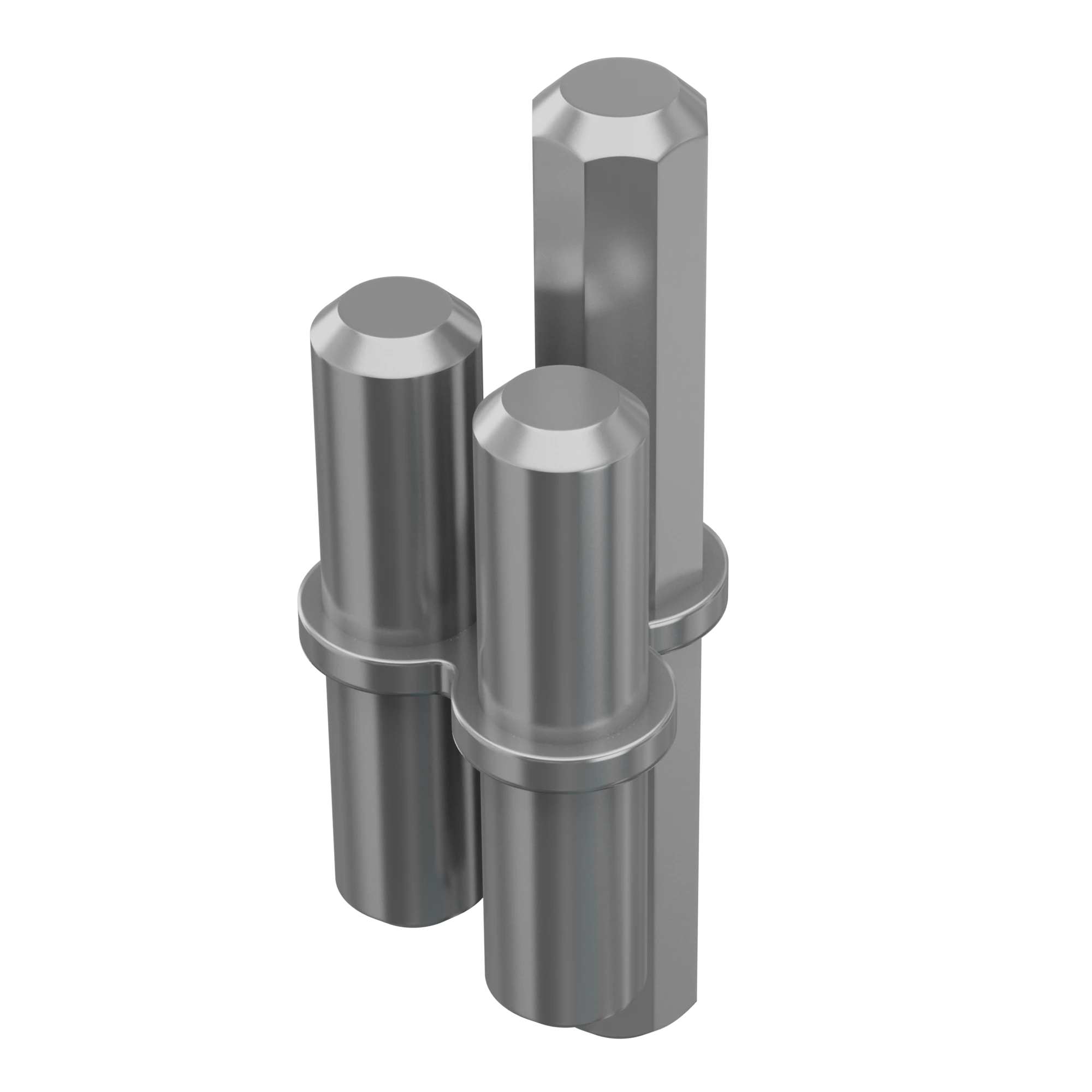

S 266.37
for 6 × S 250 / S 252
L 31 × B 33 × H 83 mm
zinc-plated

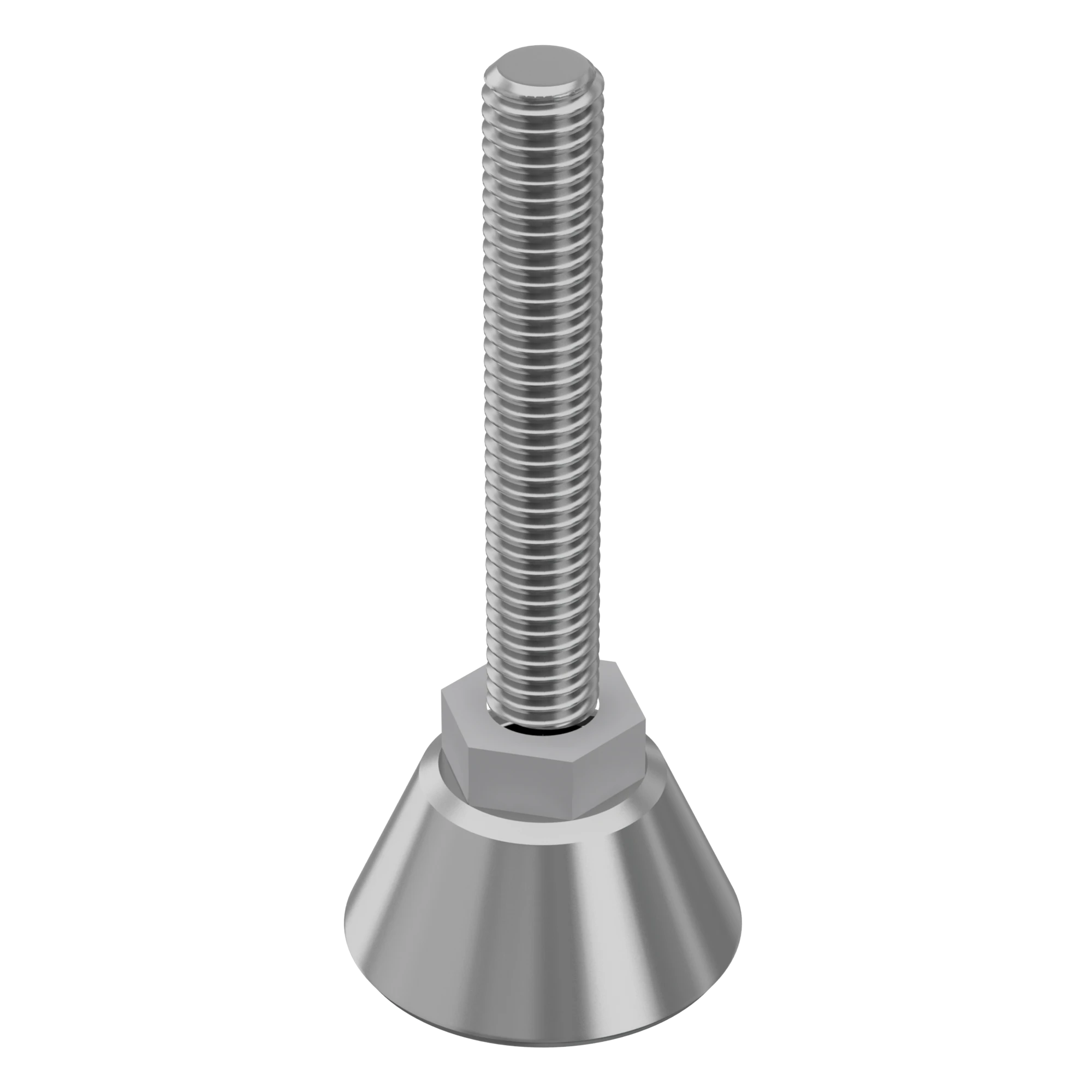

S 270.37
M8
28-68 mm
L 30 × W 30 × H 70 mm
zinc-plated

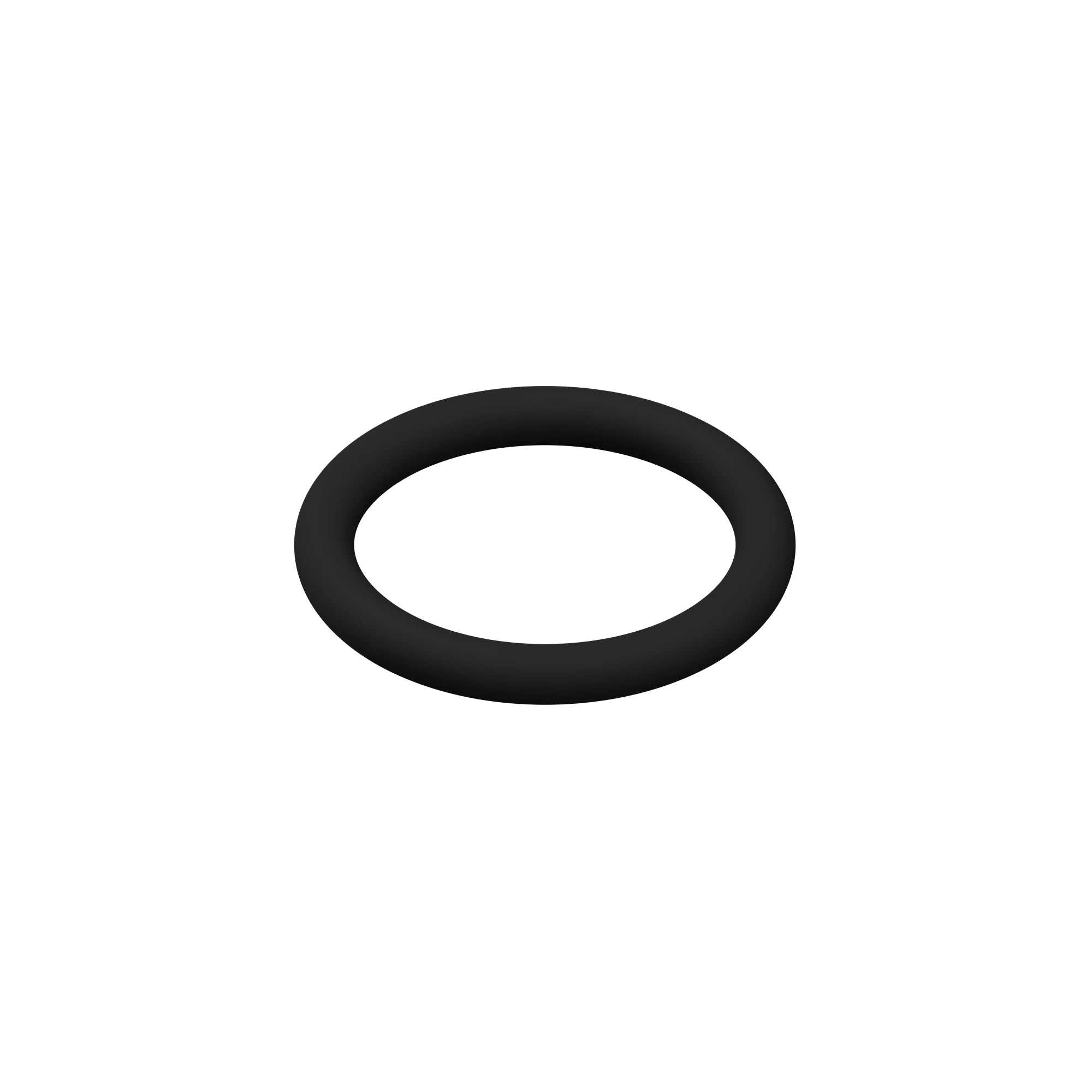

S 271.33
for S 260 / S 261 / S 263
L 12.5 × W 12.5 × H 1.5 mm
black
Electrical parts.
E 460.30
small
for system groove 4.3 mm
L 5000 × W 16 × H 20 mm
white
E 460.35
small
for system groove 4.3 mm
L 5000 × W 16 × H 20 mm
light grey
M 1481.01
for long-arm floodlight M 1498
L 26 × W 35 × H 16 mm
matt anodized, silver (E6/EV1)
M 1494-1000.33
for M 1494
1000 mm long
black
M 1494-2000.33
for M 1494
2000 mm long
black
M 1494-3000.33
for M 1494
3000 mm long
black
M 1494.31
25 W
L 490 × W 232 × H 40 mm
silver-grey
M 1494.33
25 W
L 490 × W 232 × H 40 mm
black
M 1497-1.33
for wallwasher M 1497
3000 mm long
black
M 1497-11.90
for wallwasher M 1497
L 1175 × W 72 × H 35 mm
as catalogue desciption
M 1497-12.90
for wallwasher M 1497
2500 mm long
black
M 1497-3.90
Y-Splitter
for wallwasher M 1497
300 mm long
black
M 1497-4.90
for wallwasher M 1497
L 150 × W 40 × H 20 mm
as catalogue desciption
M 1497-H.33
LED / 56W / 230V
L 818 × W 150 × H 35 mm
matt powder-coated
M 1497.31
LED / 28W / 230V
L 812 × W 166 × H 263 mm
silver-grey
M 1497.33
LED / 28W / 230V
L 812 × W 166 × H 263 mm
black
M 1498.31
LED / 12W / 230V
L 535 × W 119 × H 250 mm
silver-grey
OL 3100.01
1 illuminated side
L 1000 × W 80 × H 80 mm
matt anodized, silver (E6/EV1)
OL 3100.03
1 illuminated side
L 1000 × W 80 × H 80 mm
matt anodized, black (E6/3180)
OL 3200.01
1 illuminated side
L 2000 × W 80 × H 80 mm
matt anodized, silver (E6/EV1)
OL 3200.03
1 illuminated side
L 2000 × W 80 × H 80 mm
matt anodized, black (E6/3180)
OL 3300.01
1 illuminated side
L 3000 × W 80 × H 80 mm
matt anodized, silver (E6/EV1)
OL 3300.03
1 illuminated side
L 3000 × W 80 × H 80 mm
matt anodized, black (E6/3180)
Products.
Basic parts.
M 1320.01
L 5000 × W 80 × H 16 mm
5000 mm long
matt anodized, silver (E6/EV1)

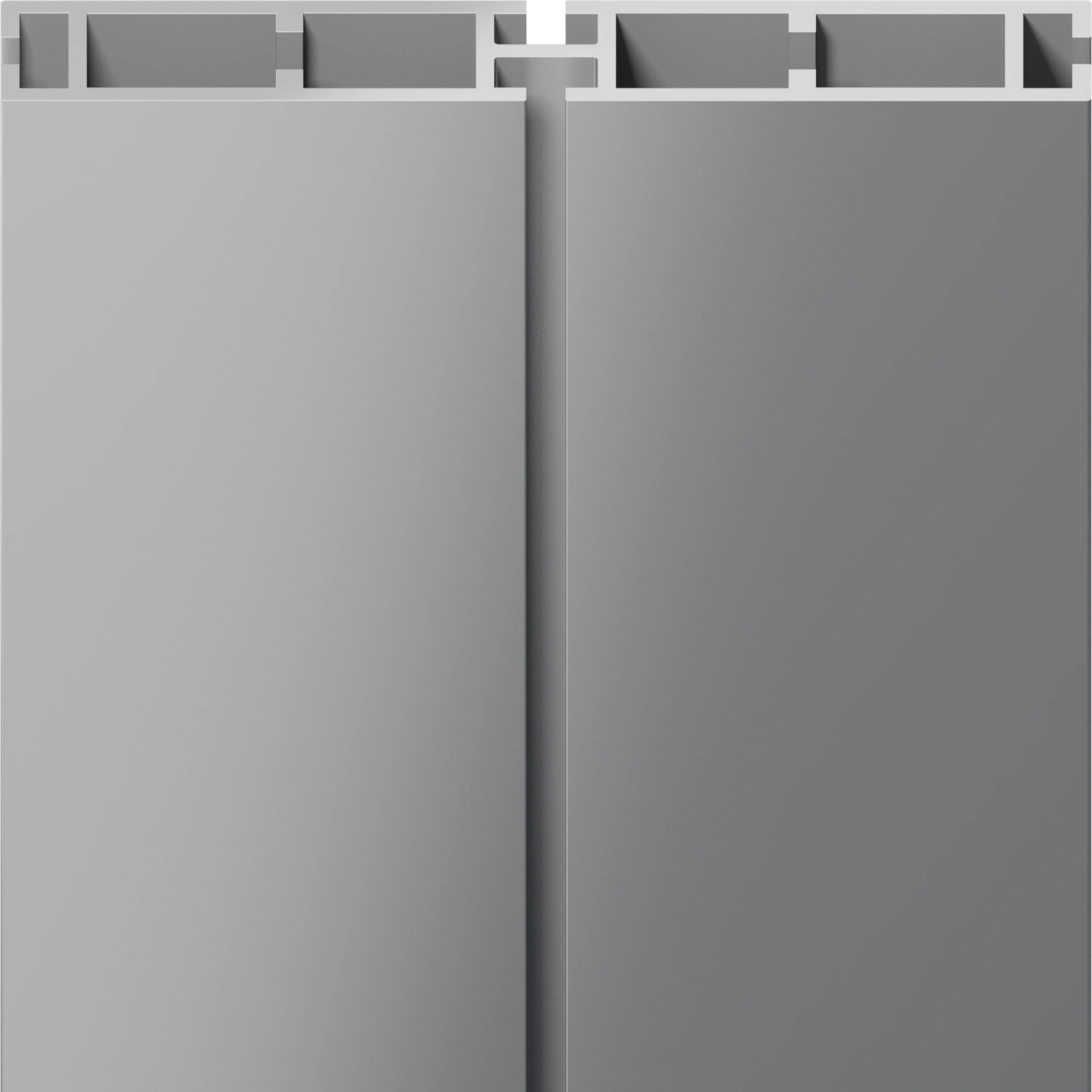

M 1340.01
L 5000 × W 120 × H 16 mm
5000 mm long
matt anodized, silver (E6/EV1)

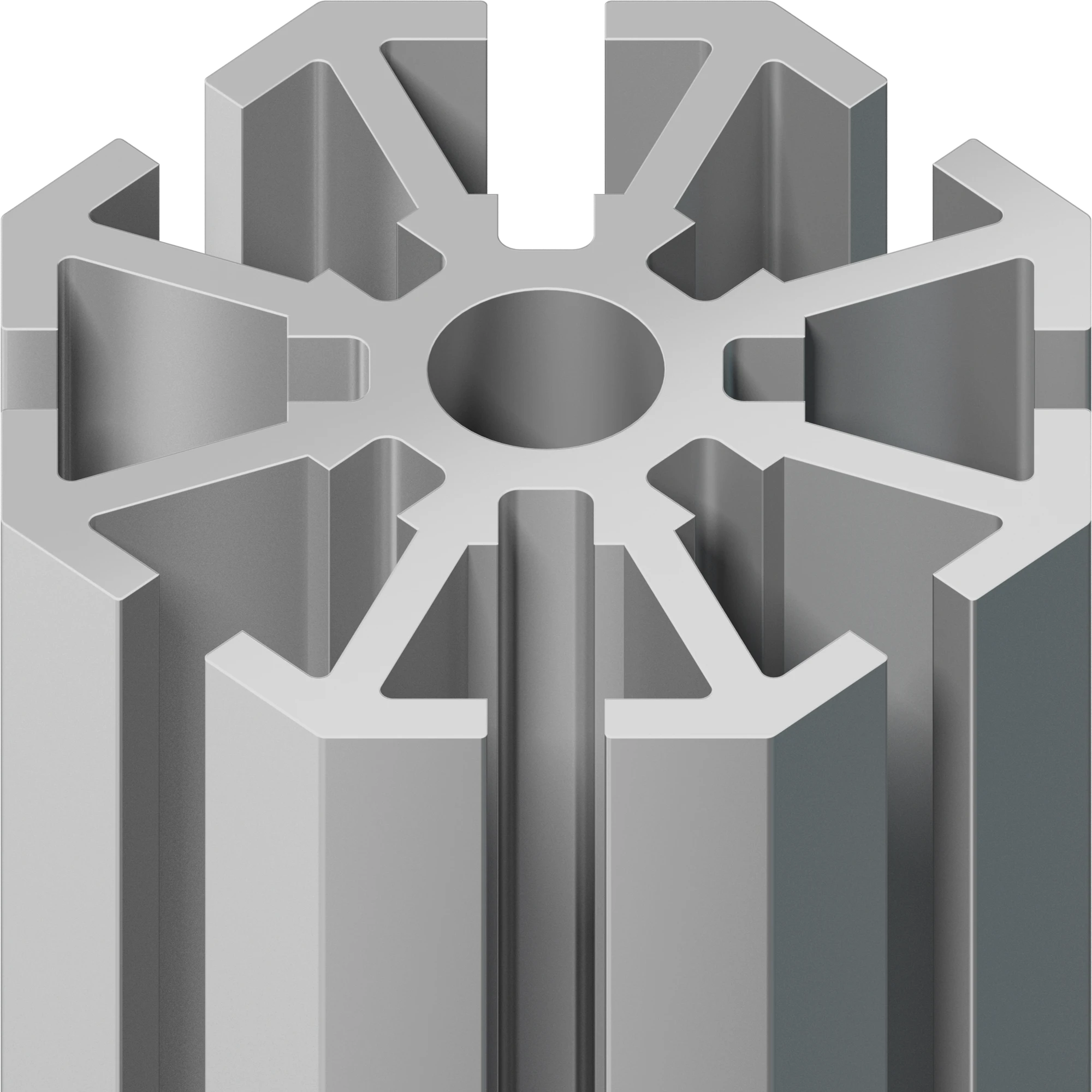

S 100.01
groove depth 10 mm
L 5000 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)
S 100.11
groove depth 10 mm
L 5000 × W 40 × H 40 mm
polished, anodized, silver (E2/EV1, E4/EV1)

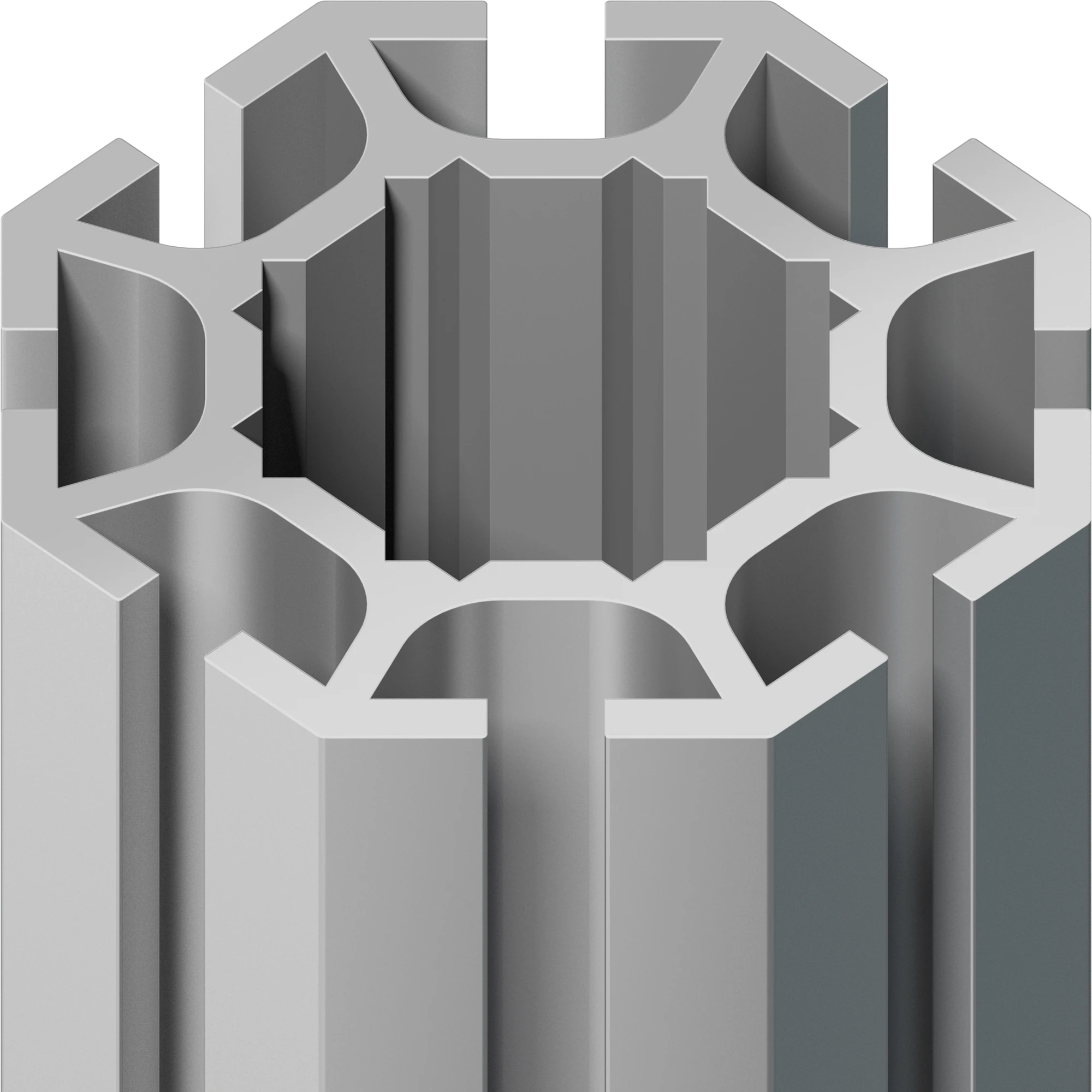

S 108.01
groove depth 7 mm
L 5000 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)
S 108.11
groove depth 7 mm
L 5000 × W 40 × H 40 mm
polished, anodized, silver (E2/EV1, E4/EV1)

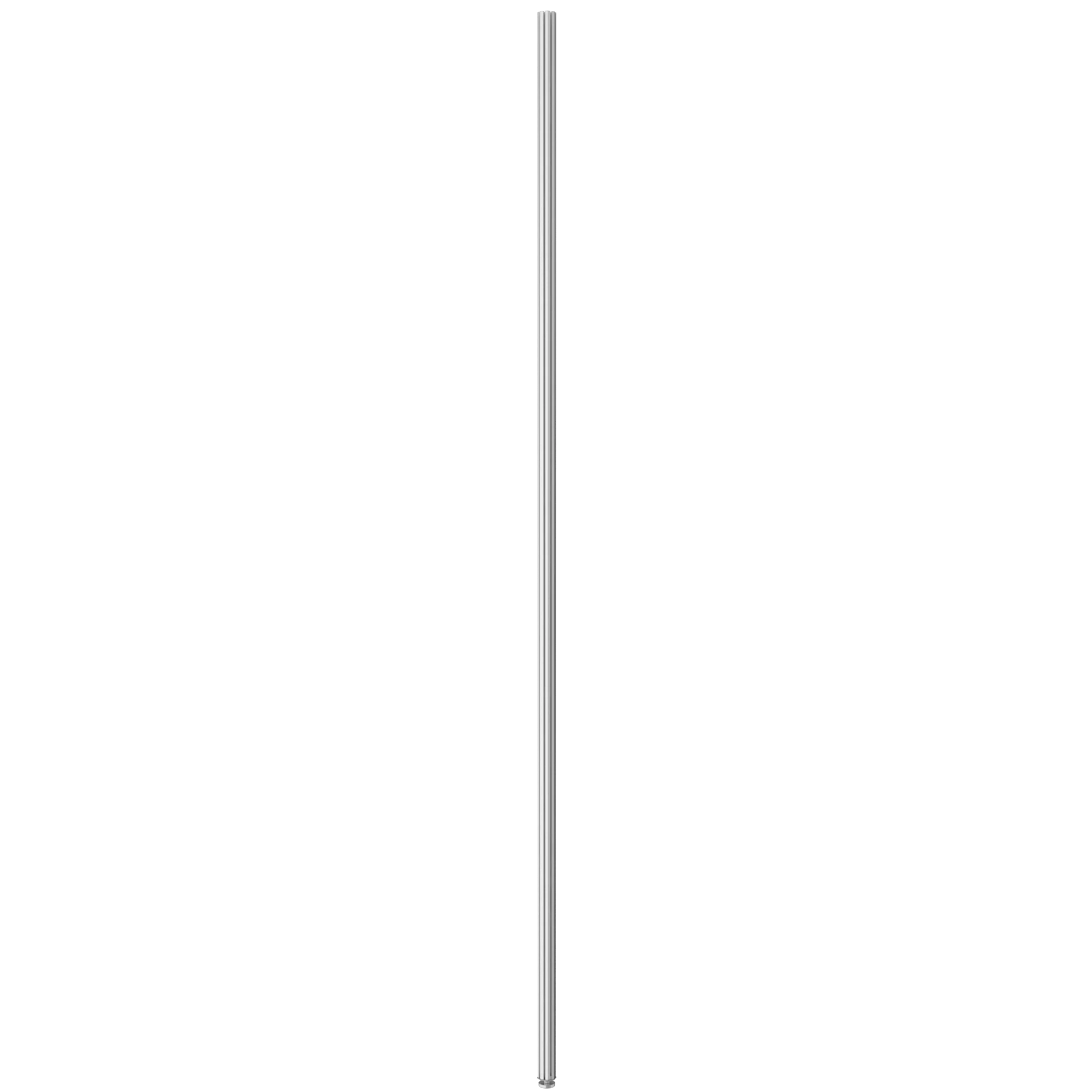

S 110.01

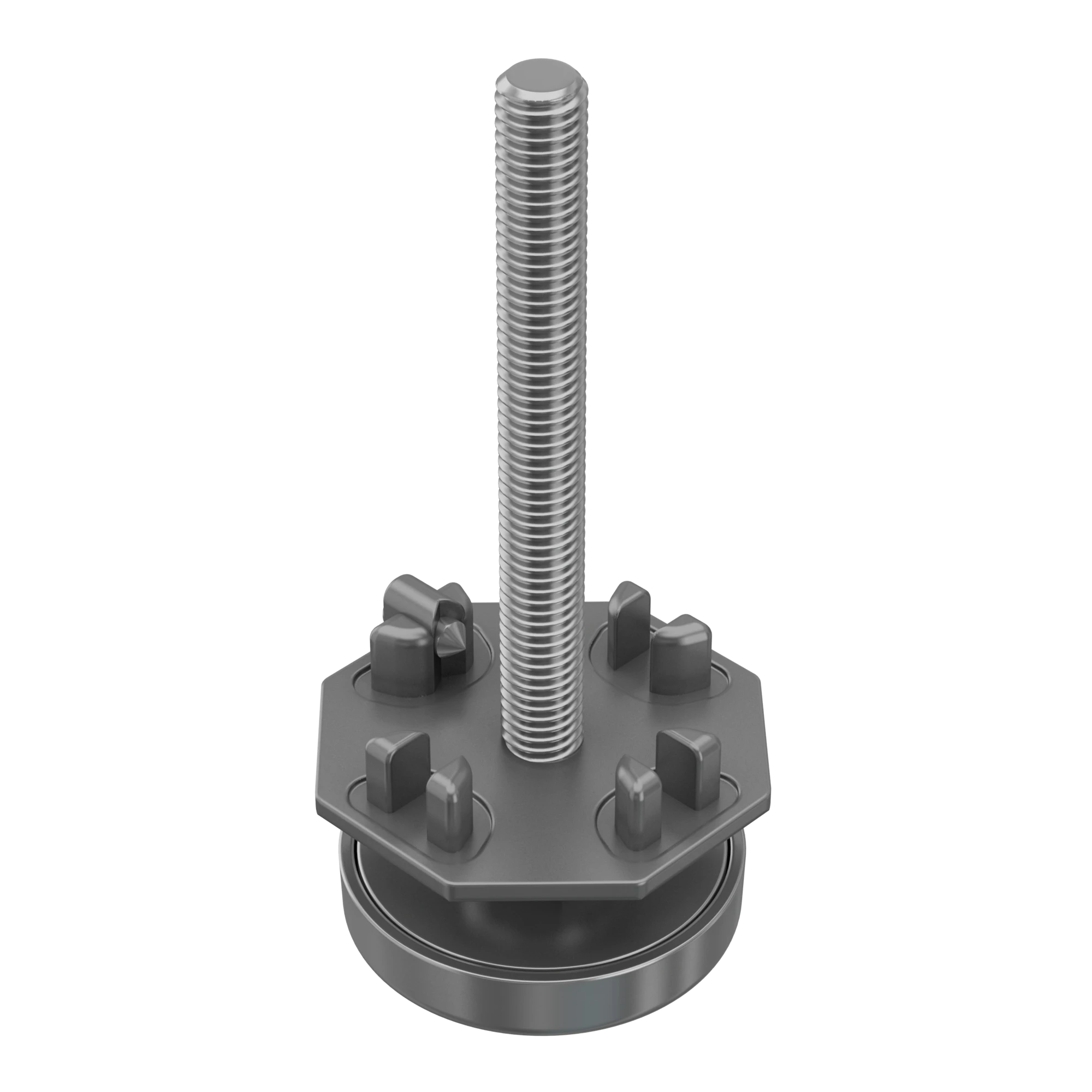

incl. adjustable foot S 140
L 40 × W 40 × H 2502 mm
matt anodized, silver (E6/EV1)
S 110.11
incl. adjustable foot S 140
L 40 × W 40 × H 2502 mm
polished, anodized, silver (E2/EV1, E4/EV1)

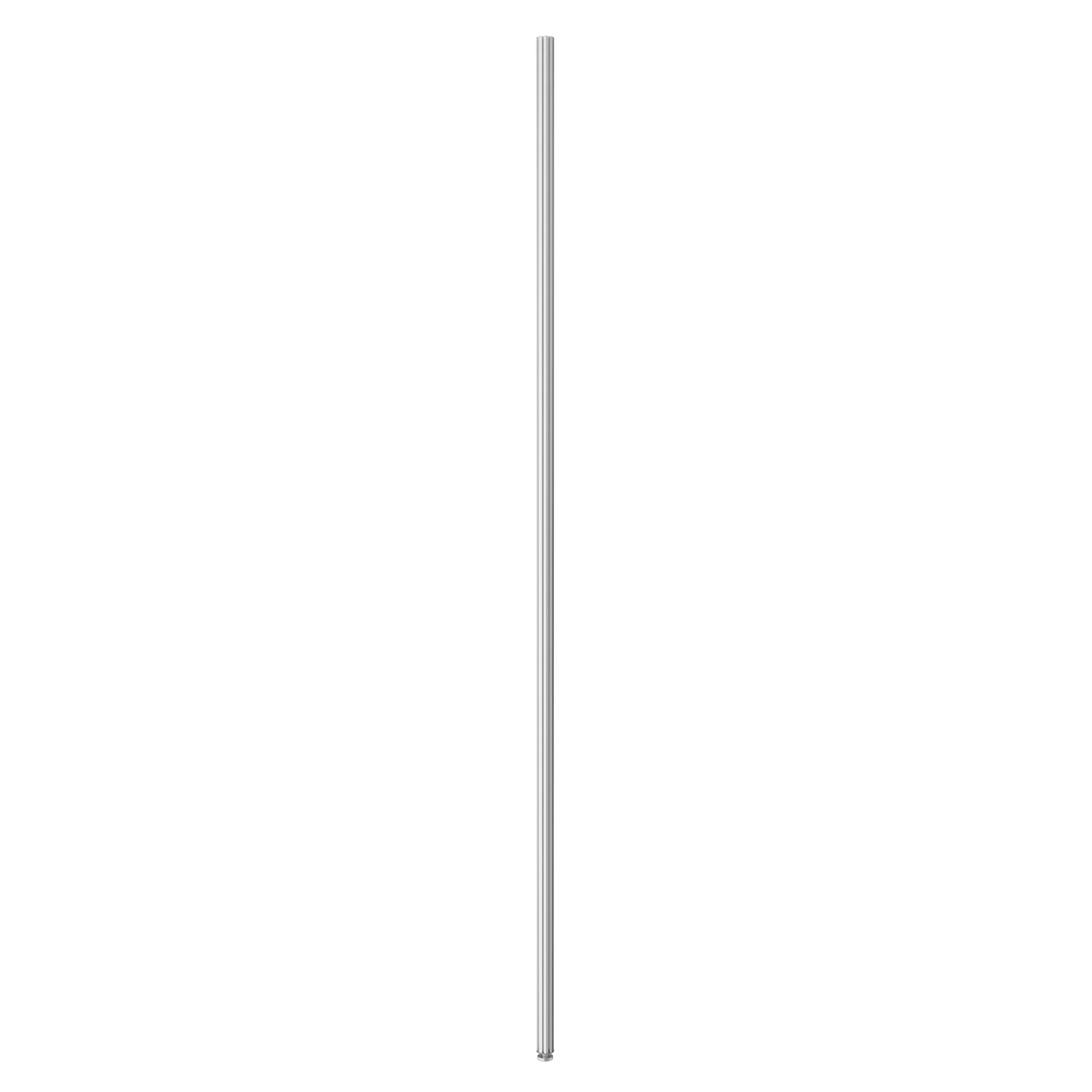

S 118.11
with adjustable foot S 140
L 40 × W 40 × H 2502 mm
polished, anodized, silver (E2/EV1, E4/EV1)

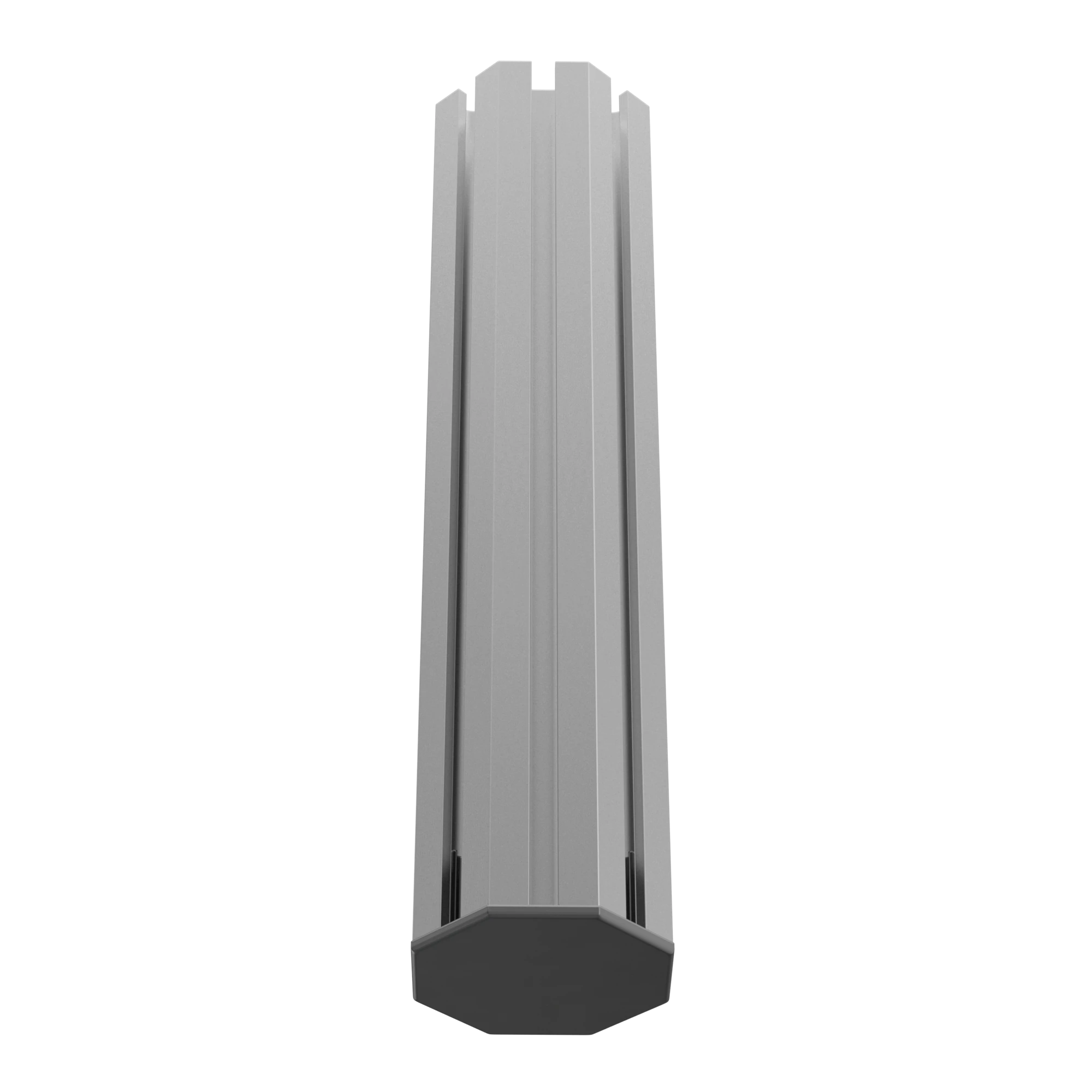

S 128.01

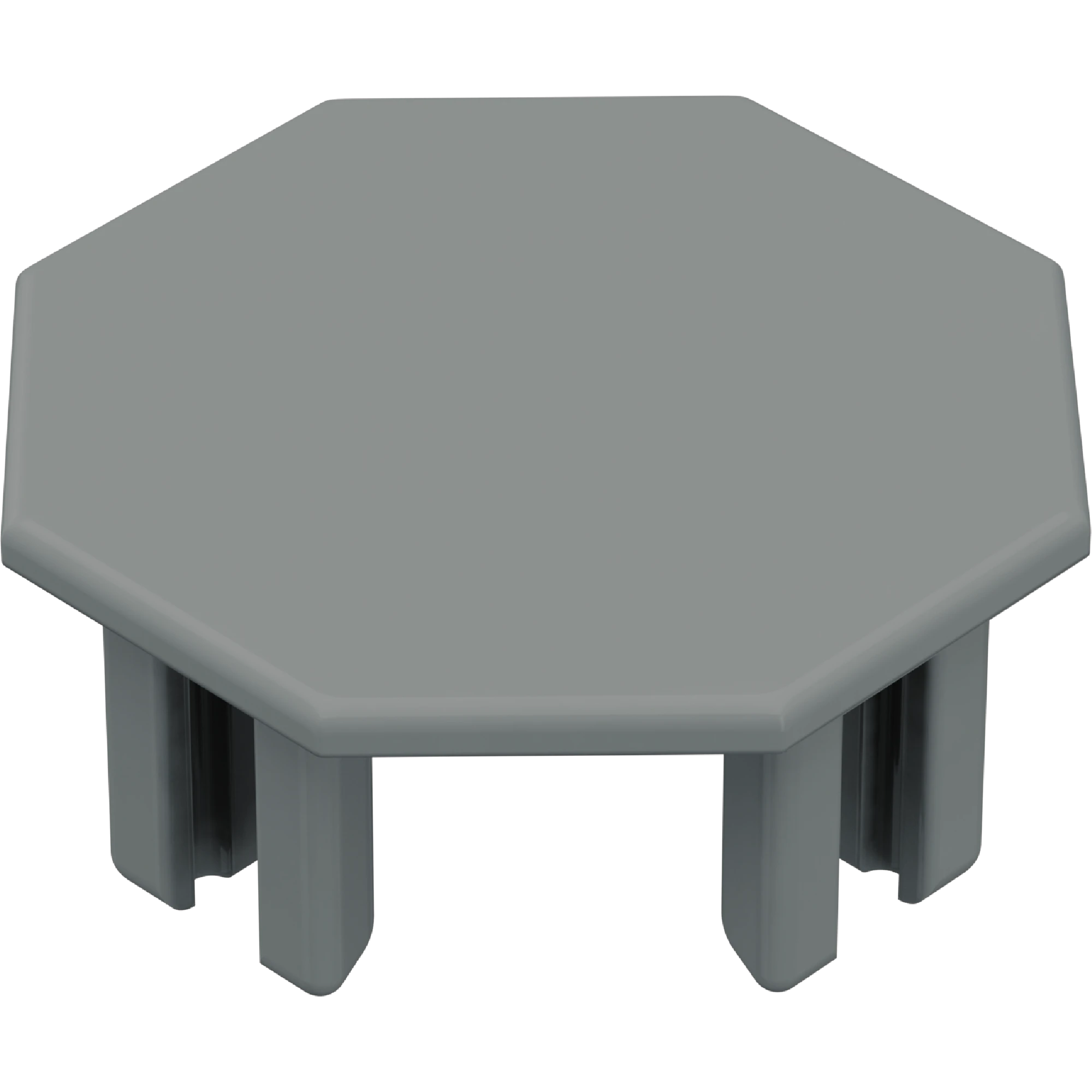

incl. end cap S 132
for ceiling
L 175 × W 40 × H 40 mm
175 mm long
matt anodized, silver (E6/EV1)
S 128.11
incl. end cap S 132
for ceiling
L 175 × W 40 × H 40 mm
175 mm long
polished, anodized, silver (E2/EV1, E4/EV1)

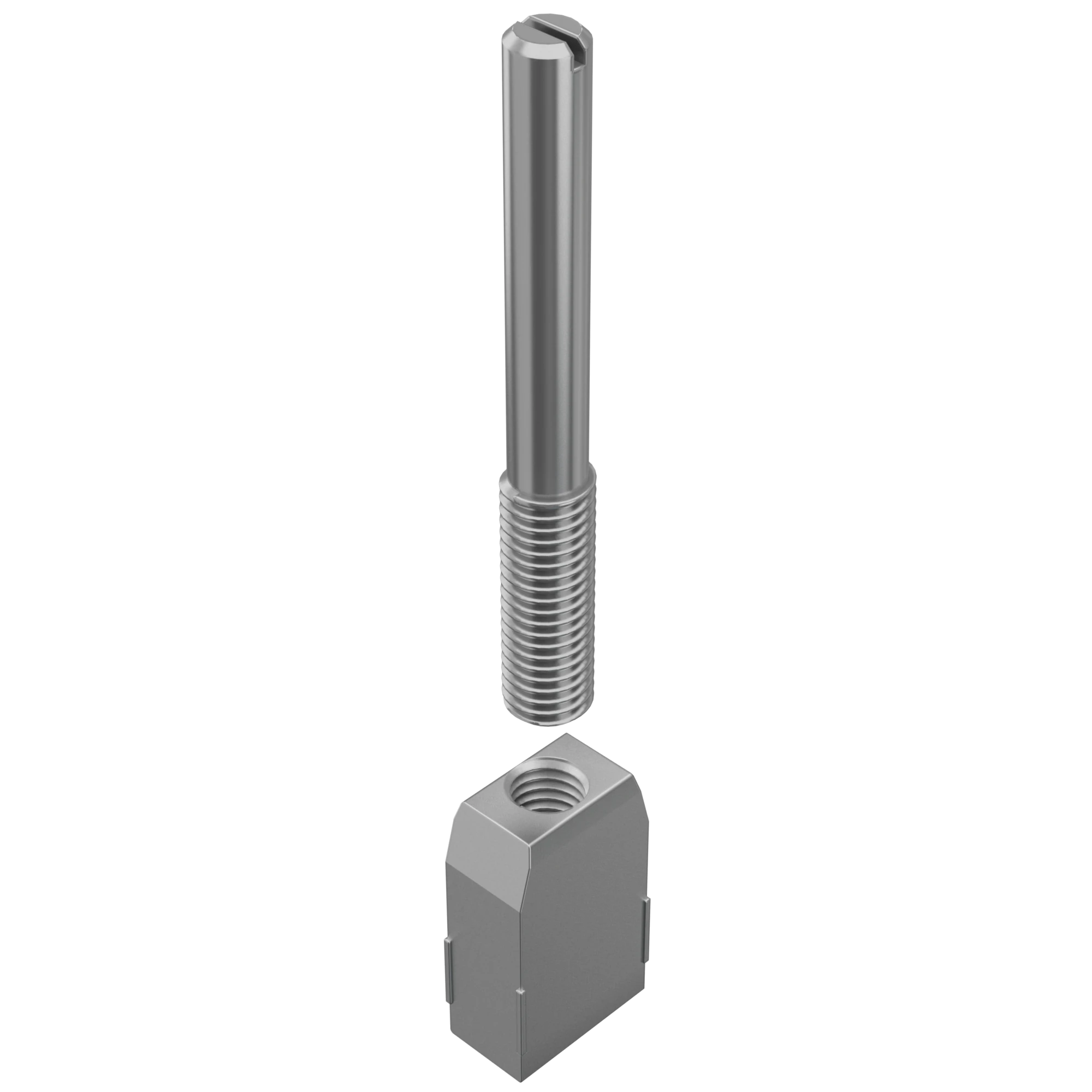

S 137.37
straight
for S 100 / S 108
L 84 × W 21 × H 12 mm
zinc-plated

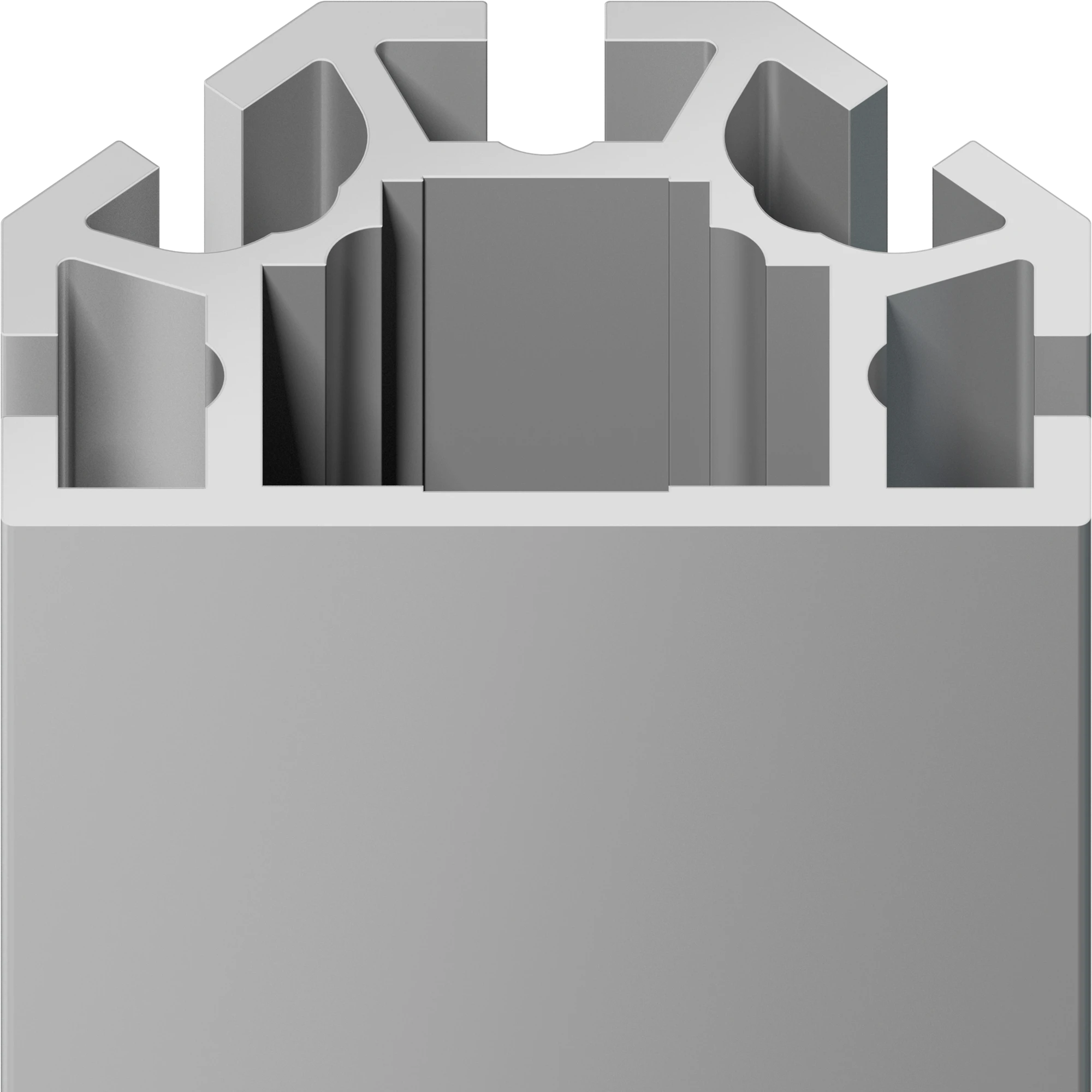

S 201.01
180°
L 5000 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)
S 201.11
180°
L 5000 × W 40 × H 40 mm
polished, anodized, silver (E2/EV1, E4/EV1)

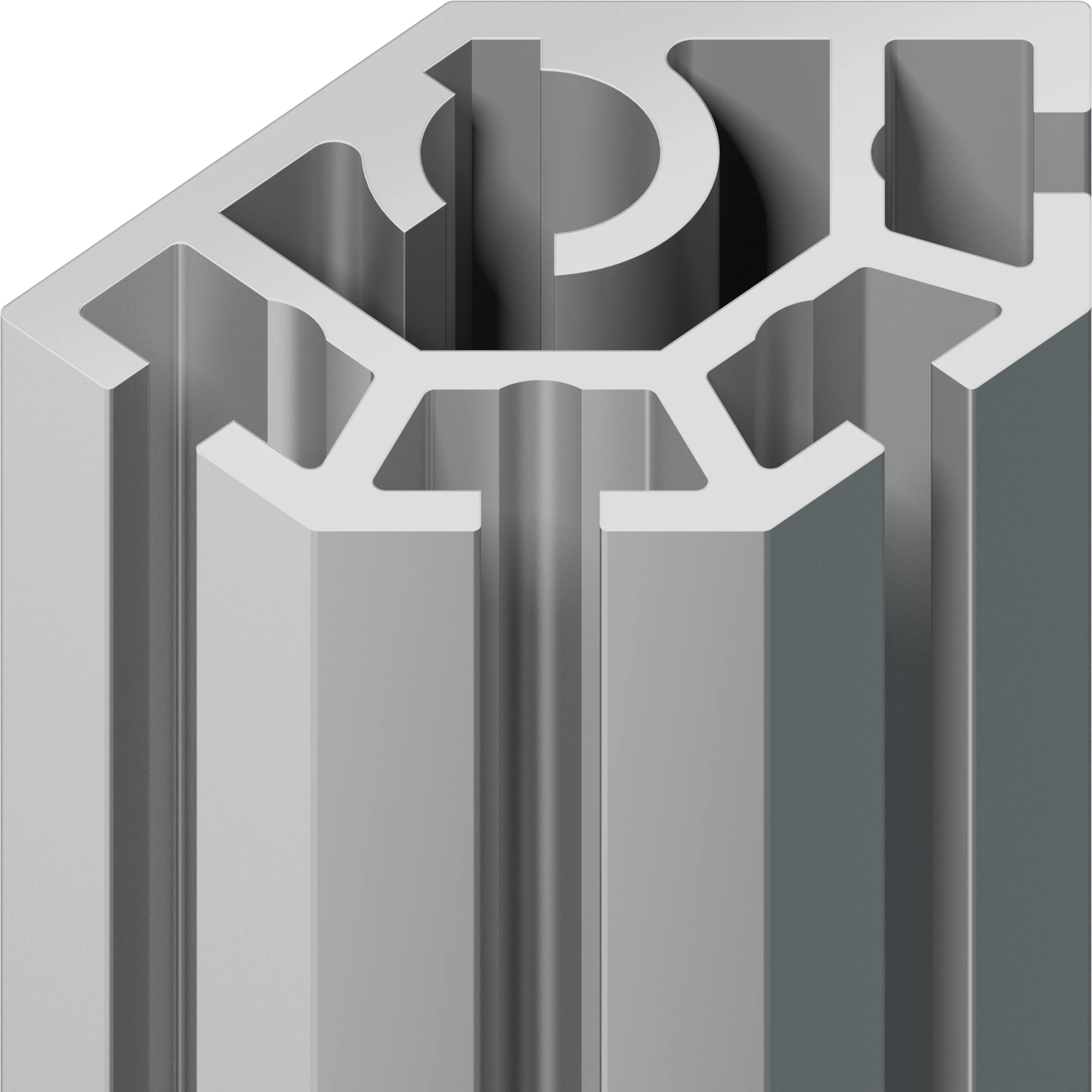

S 203.01
135°
L 5000 × W 40 × H 28 mm
matt anodized, silver (E6/EV1)
S 203.11
135°
L 5000 × W 40 × H 28 mm
polished, anodized, silver (E2/EV1, E4/EV1)

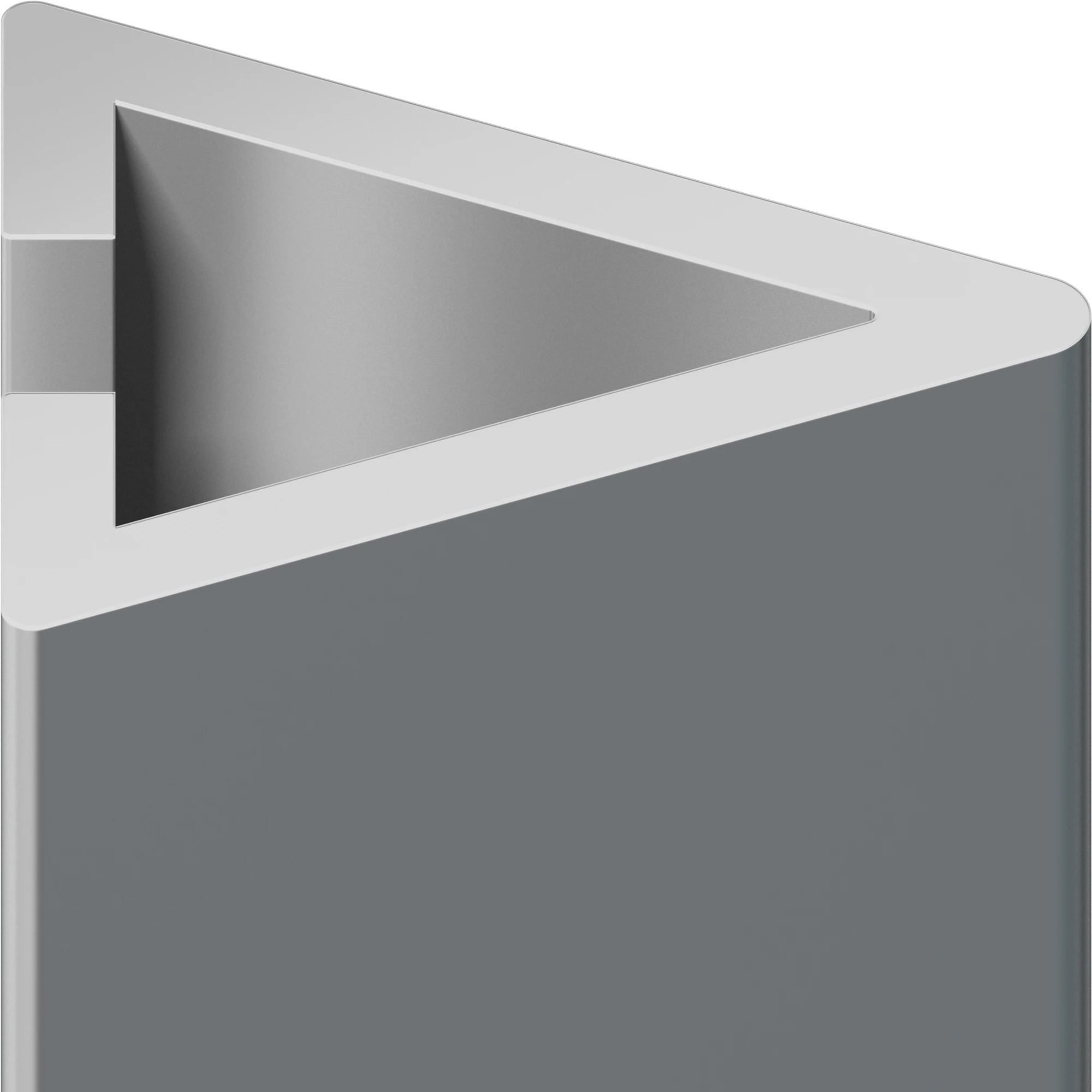

S 206.01
45°
L 5000 × W 17.5 × H 20 mm
5000 mm long
matt anodized, silver (E6/EV1)

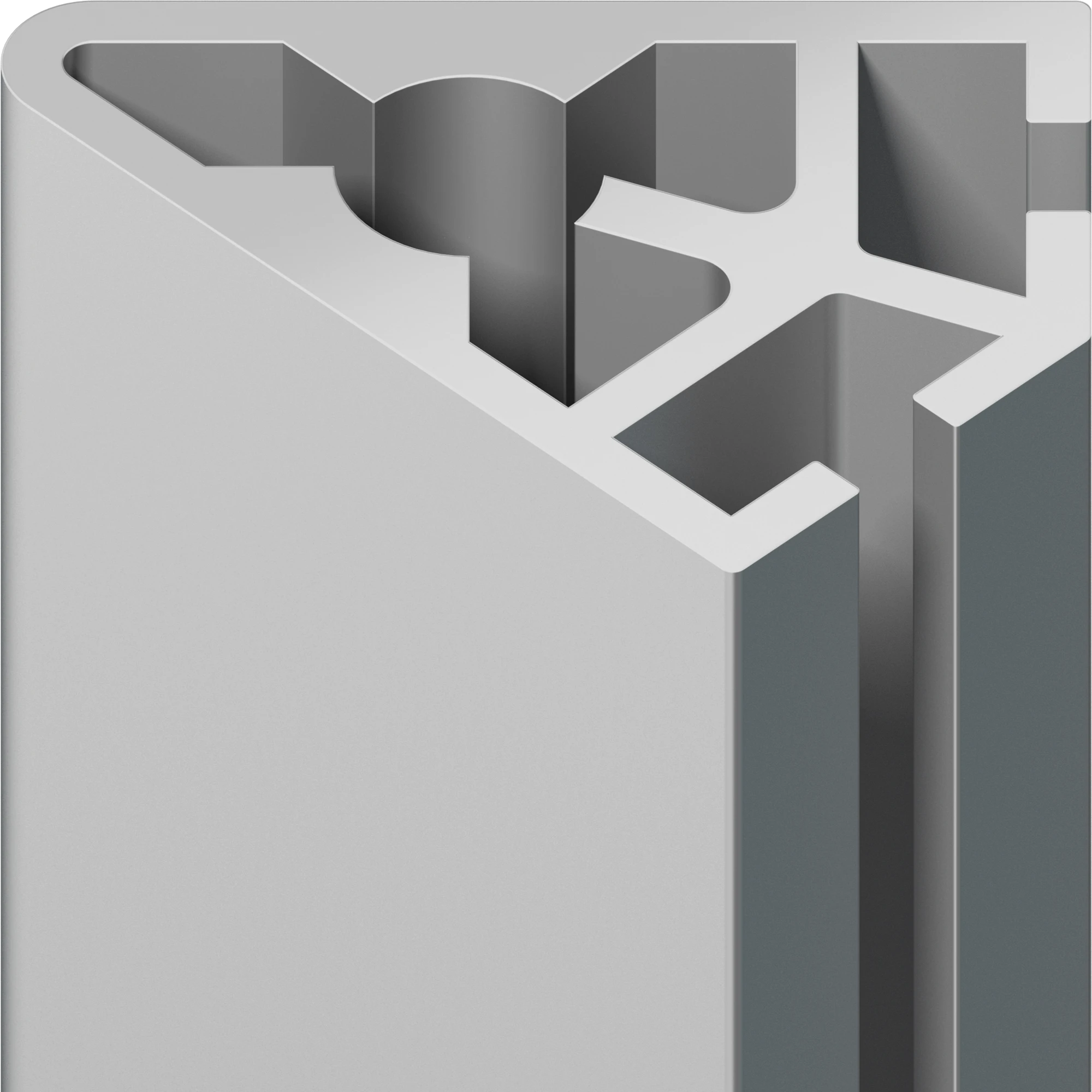

S 302.01
45°
L 5000 × W 35 × H 28 mm
5000 mm long
matt anodized, silver (E6/EV1)
S 302.11
45°
L 5000 × W 35 × H 28 mm
5000 mm long
polished, anodized, silver (E2/EV1, E4/EV1)

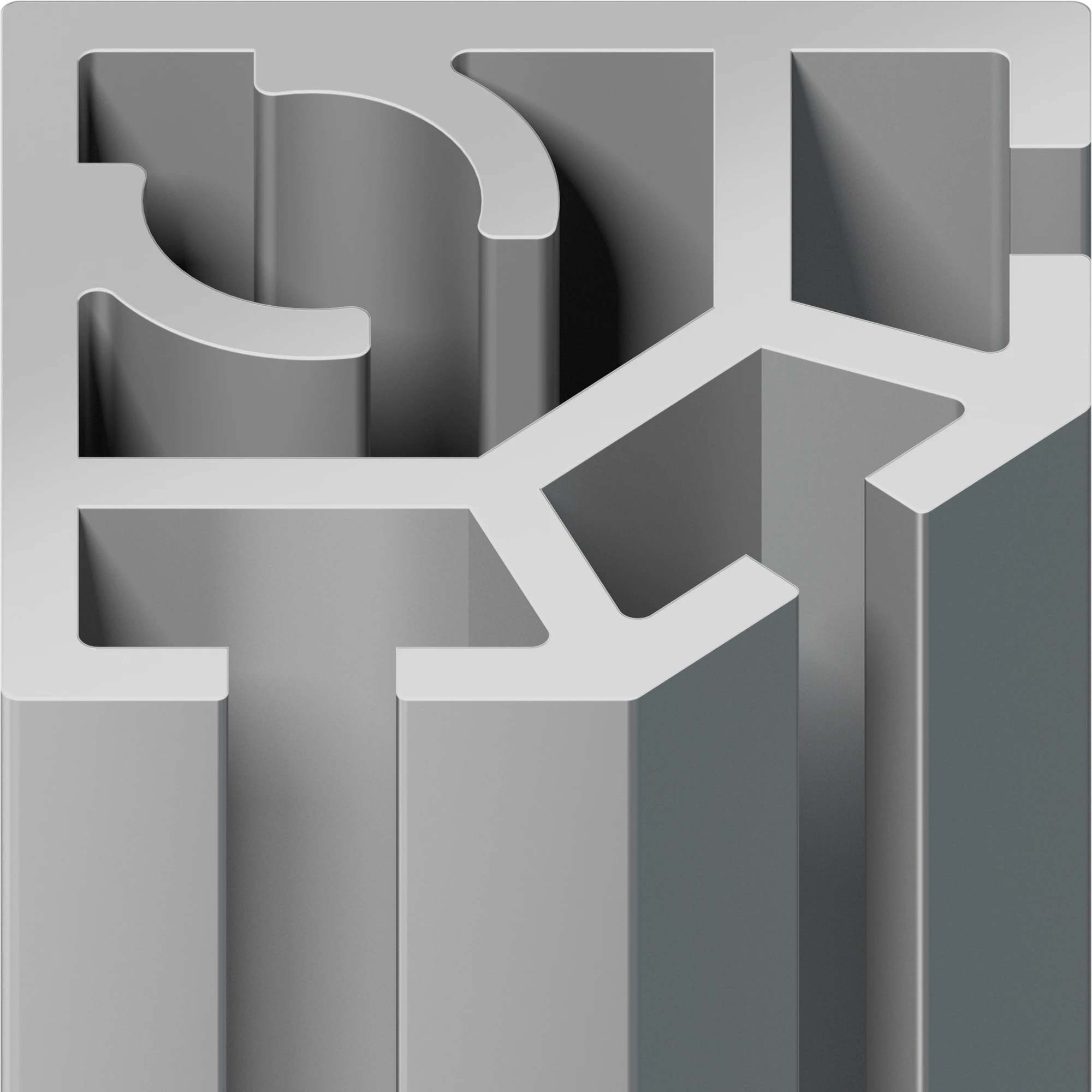

S 308.01
90°
L 5000 × W 28 × H 28 mm
matt anodized, silver (E6/EV1)
S 308.11
90°
L 5000 × W 28 × H 28 mm
polished, anodized, silver (E2/EV1, E4/EV1)

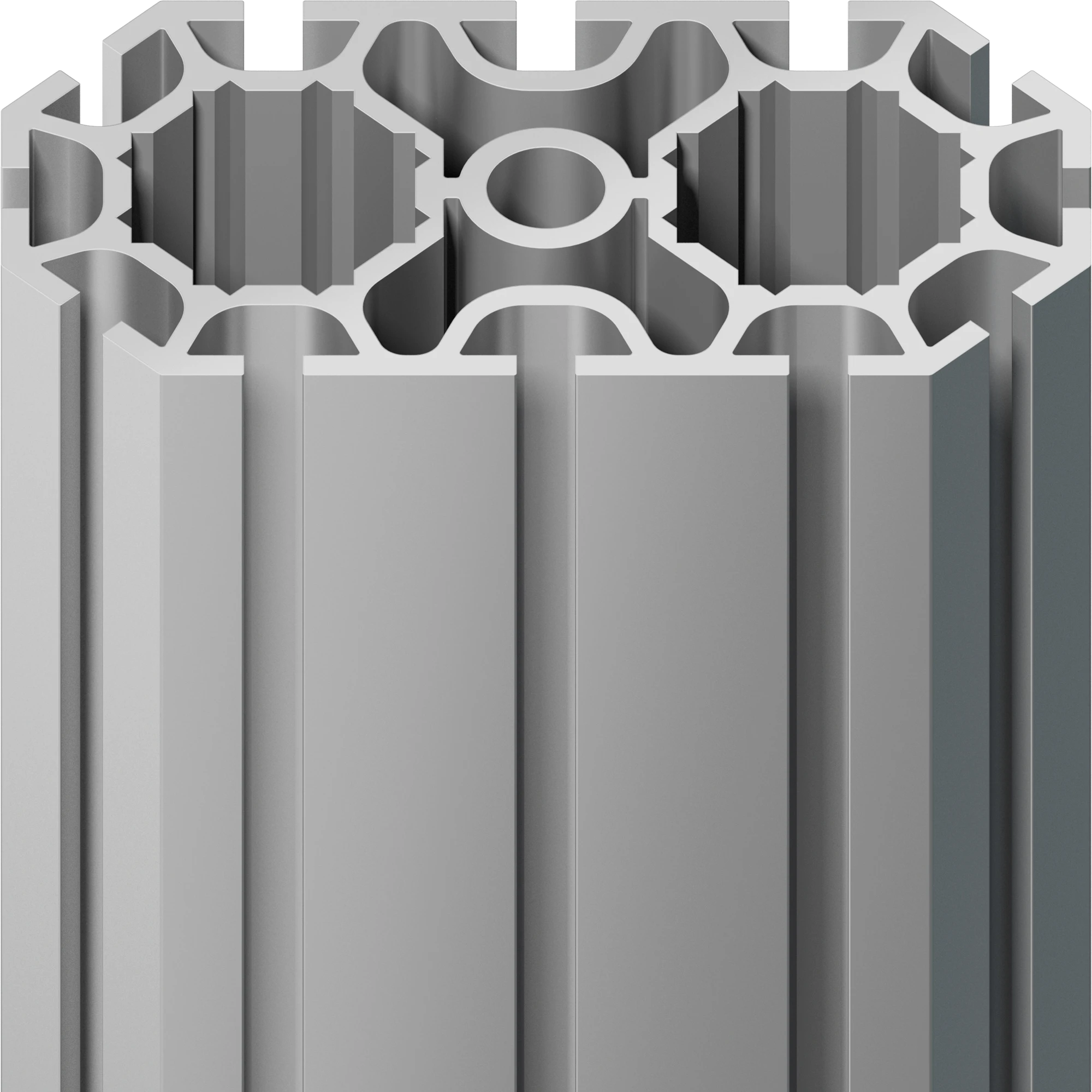

S 408.11
groove depth 7 mm
L 5000 × W 80 × H 40 mm
polished, anodized, silver (E2/EV1, E4/EV1)

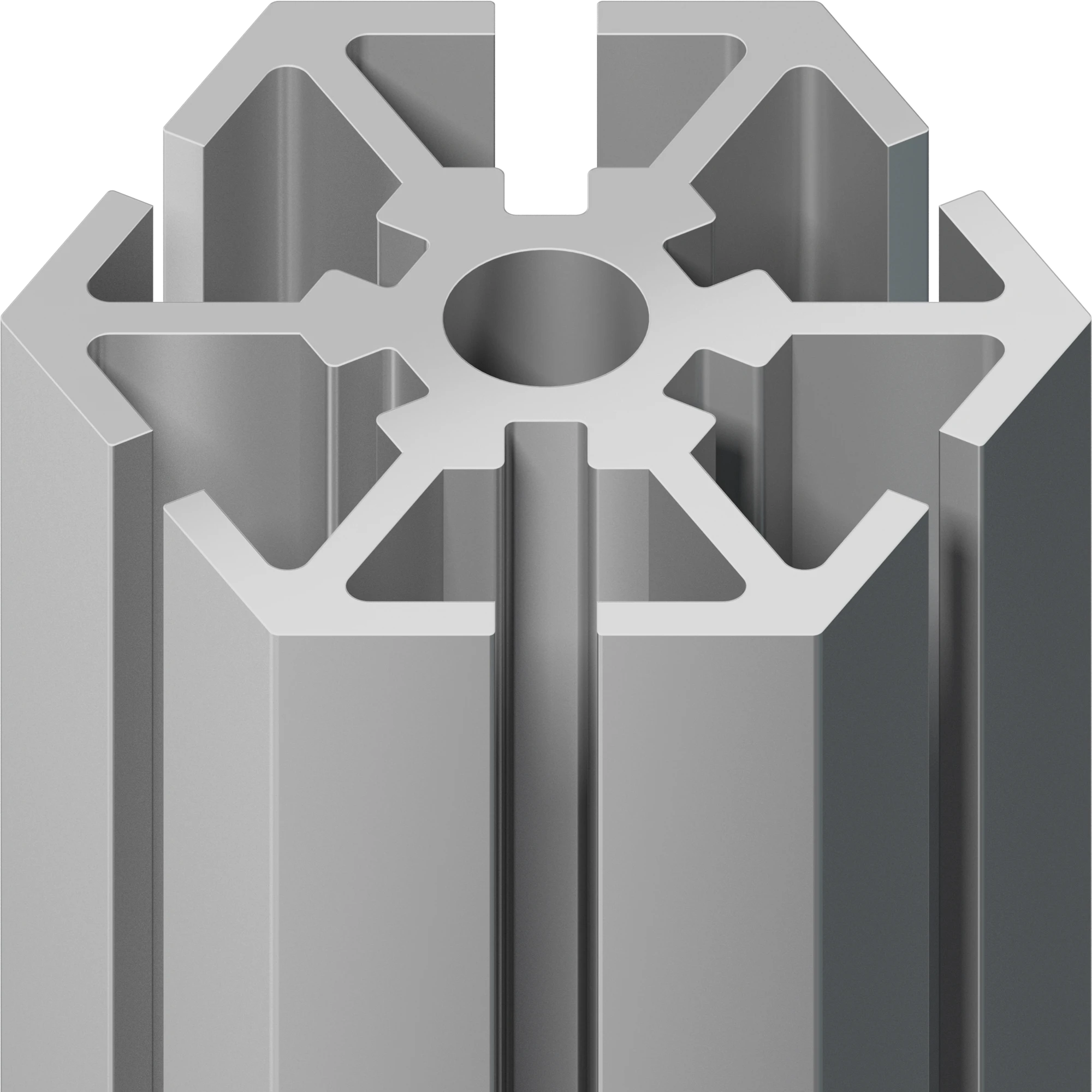

S 500.01
groove depth 10 mm
L 5000 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)
S 500.11
groove depth 10 mm
L 5000 × W 40 × H 40 mm
polished, anodized, silver (E2/EV1, E4/EV1)

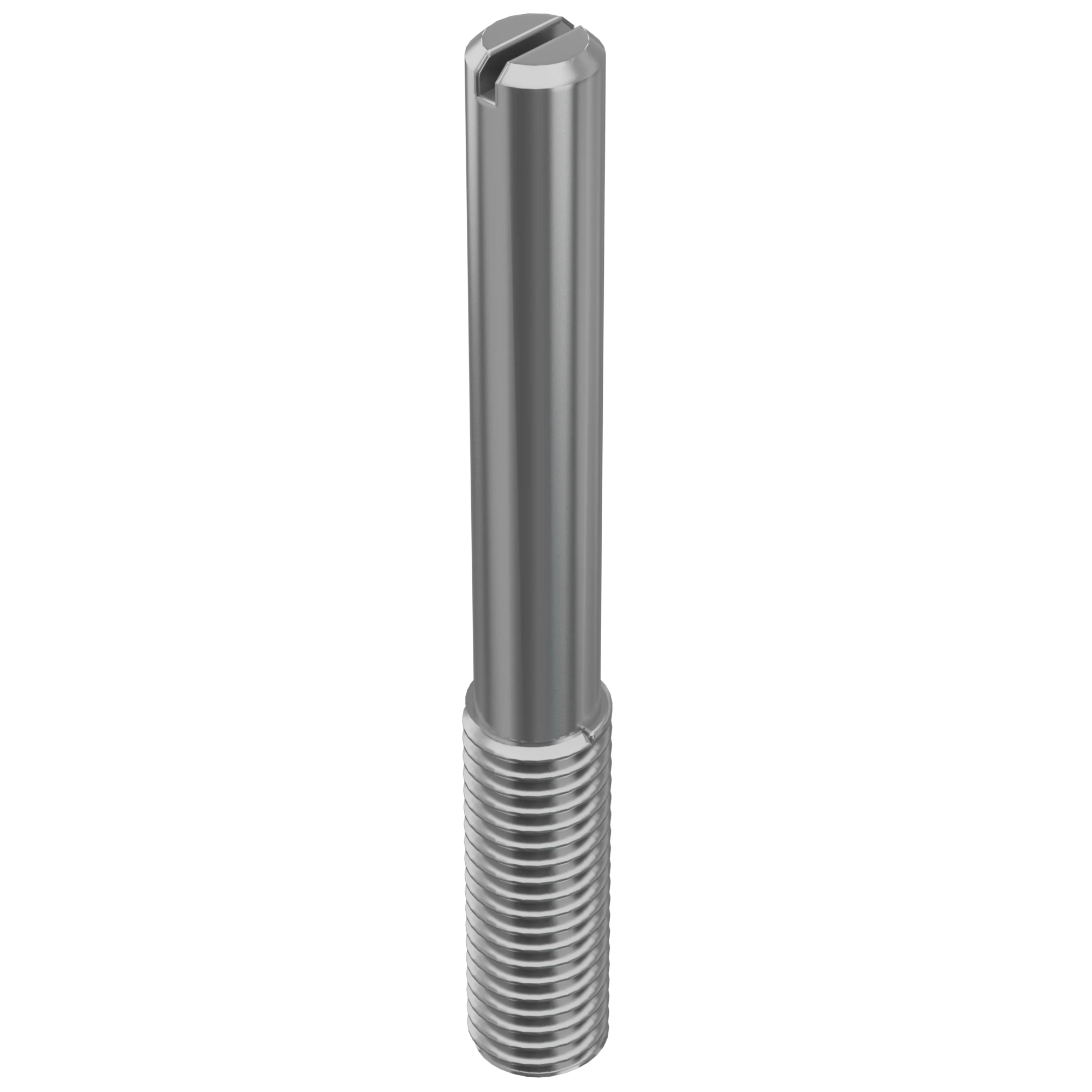

S 905.37
straight
for upright extrusion S 100
L 80 × W 10 mm
zinc-plated

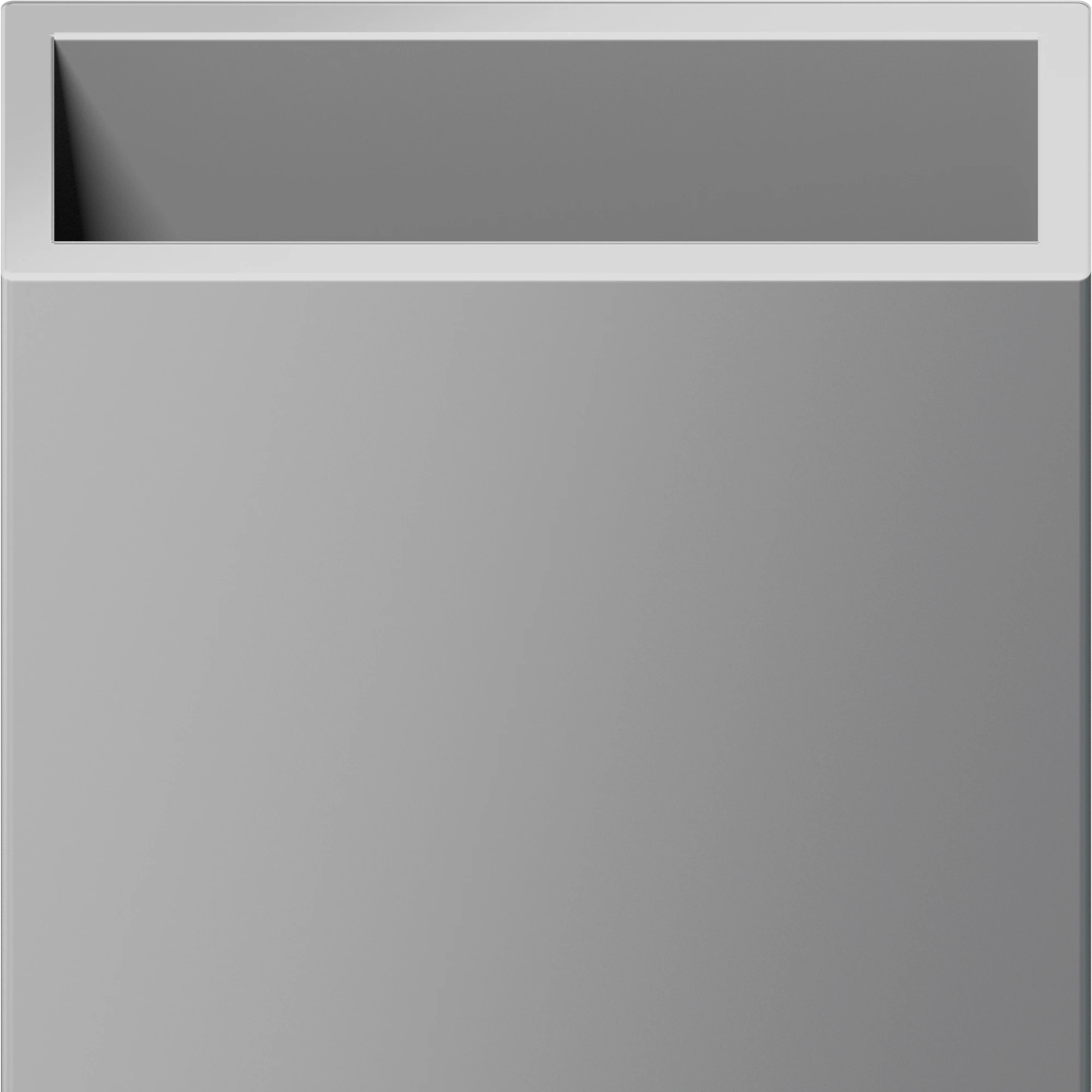

Z 100.01
without system groove
L 5000 × W 43 × H 16 mm
matt anodized, silver (E6/EV1)

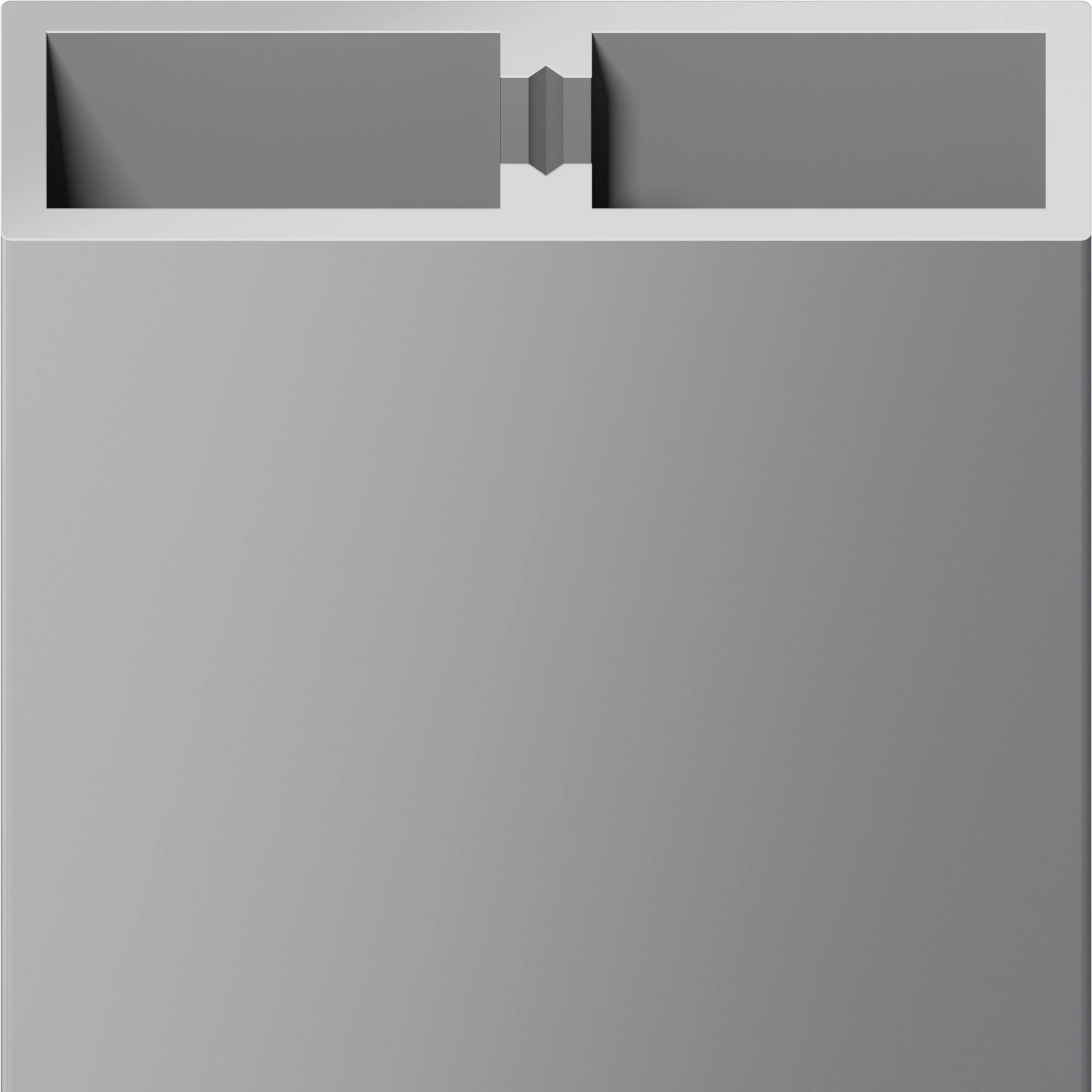

Z 100.11
without system groove
L 5000 × W 43 × H 16 mm
polished, anodized, silver (E2/EV1, E4/EV1)
Z 100.20
without system groove
L 5000 × W 43 × H 16 mm
white powder-coated (RAL 9010/IG-94750-54 or TI-1910061)
Z 100.28
without system groove
L 5000 × W 43 × H 16 mm
satin finish RAL (polish grade 70-80) standard

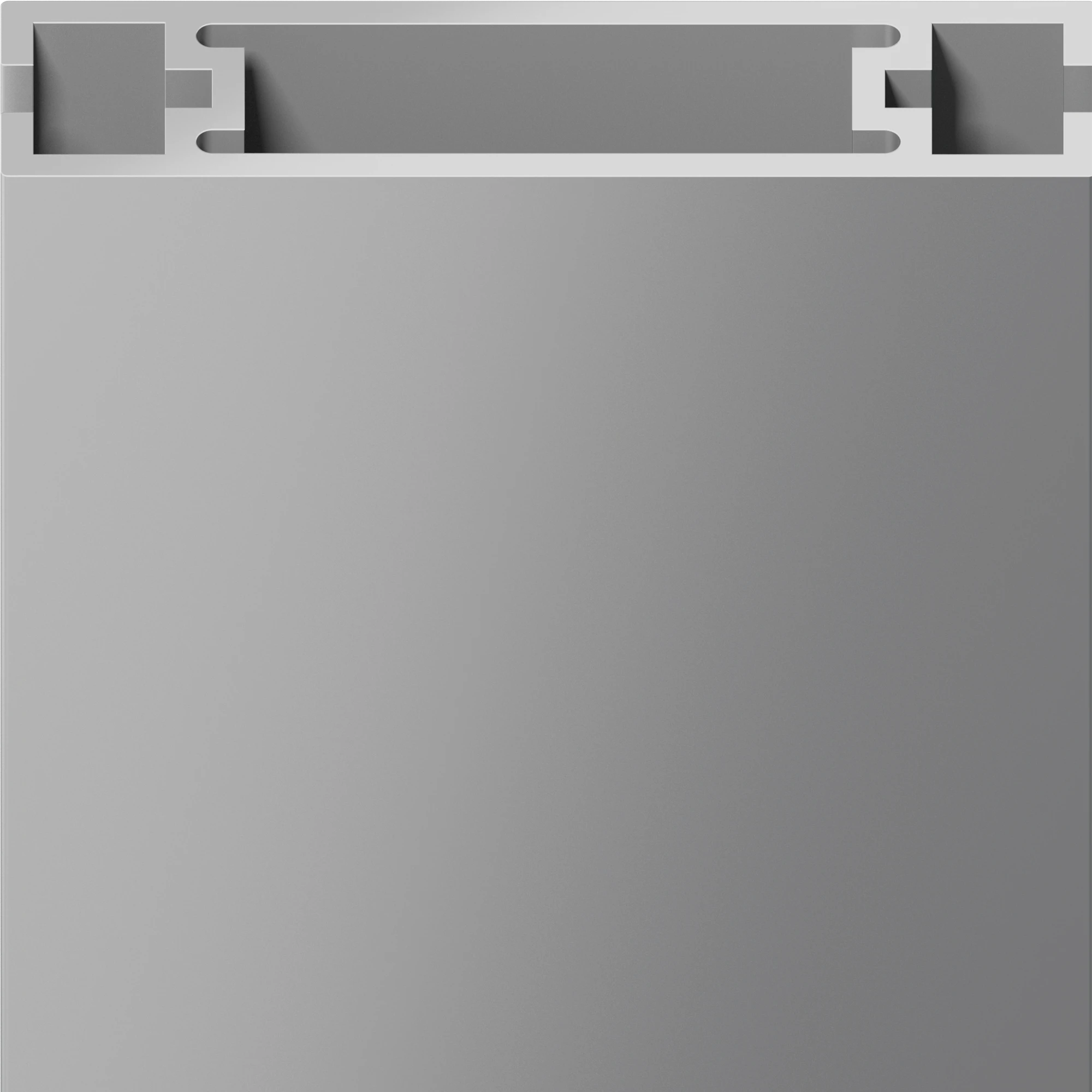

Z 110.01
groove depth 10 mm
L 5000 × W 70 × H 16 mm
5000 mm long
matt anodized, silver (E6/EV1)
Z 110.11
groove depth 10 mm
L 5000 × W 70 × H 16 mm
5000 mm long
polished, anodized, silver (E2/EV1, E4/EV1)

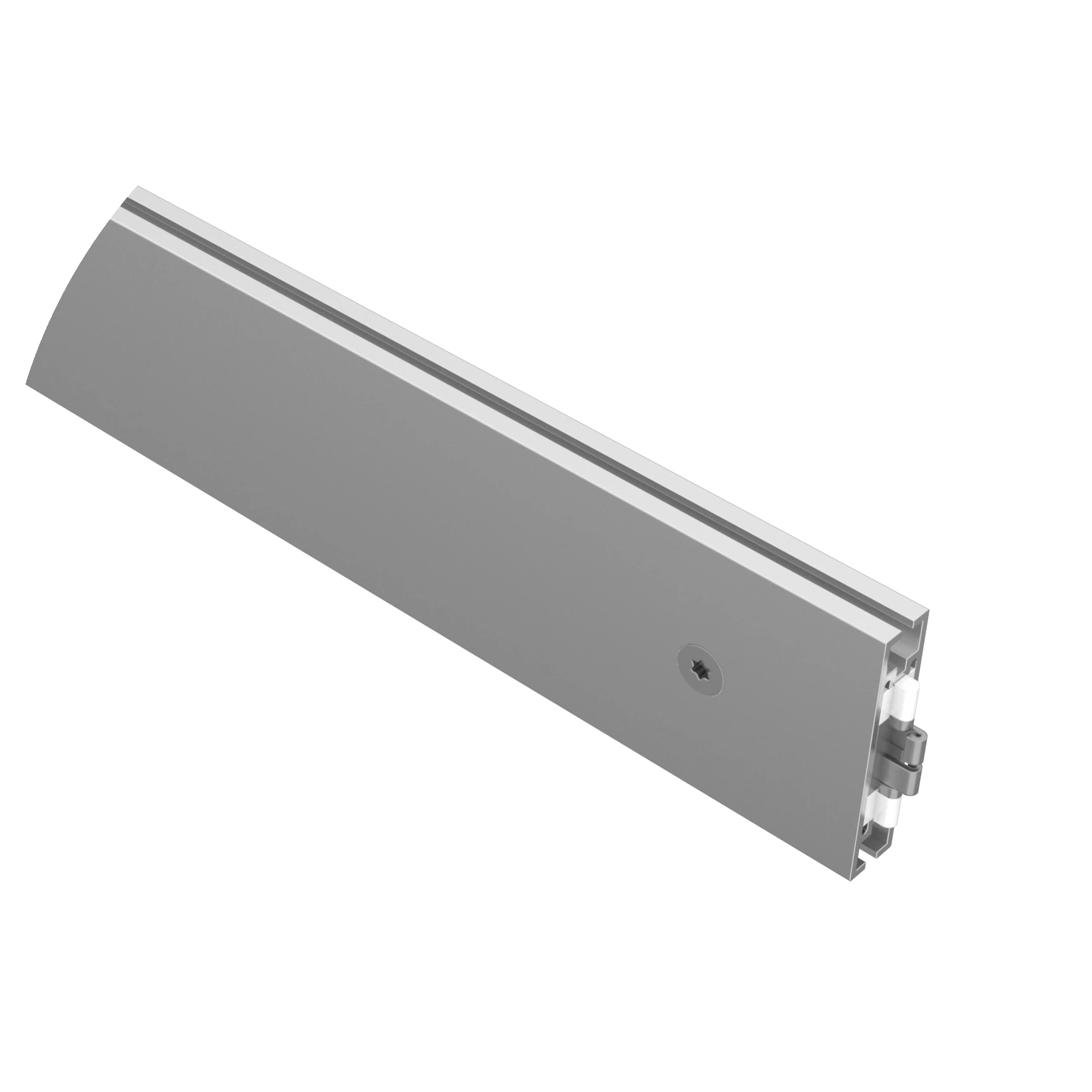

Z 115.11
with 2 × Z 961/13
L 455 × W 70 × H 16 mm
455 mm long
polished, anodized, silver (E2/EV1, E4/EV1)

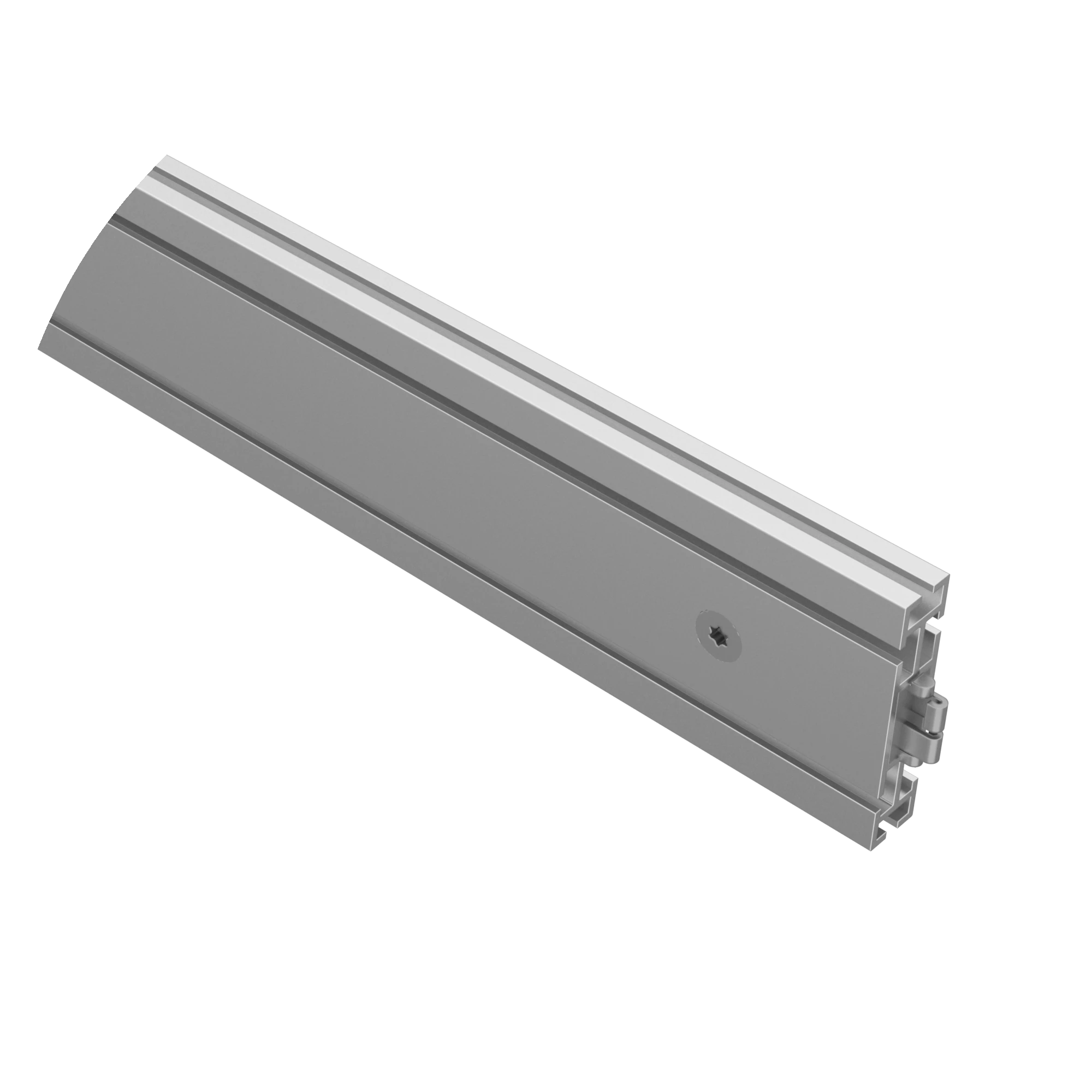

Z 116.01
455 mm long
with 2 × Z 961/13
L 455 × W 70 × H 16 mm
455 mm long
matt anodized, silver (E6/EV1)
Z 120.11
660 mm long
with 2 × Z 961/13
L 660 × W 70 × H 16 mm
660 mm long
polished, anodized, silver (E2/EV1, E4/EV1)

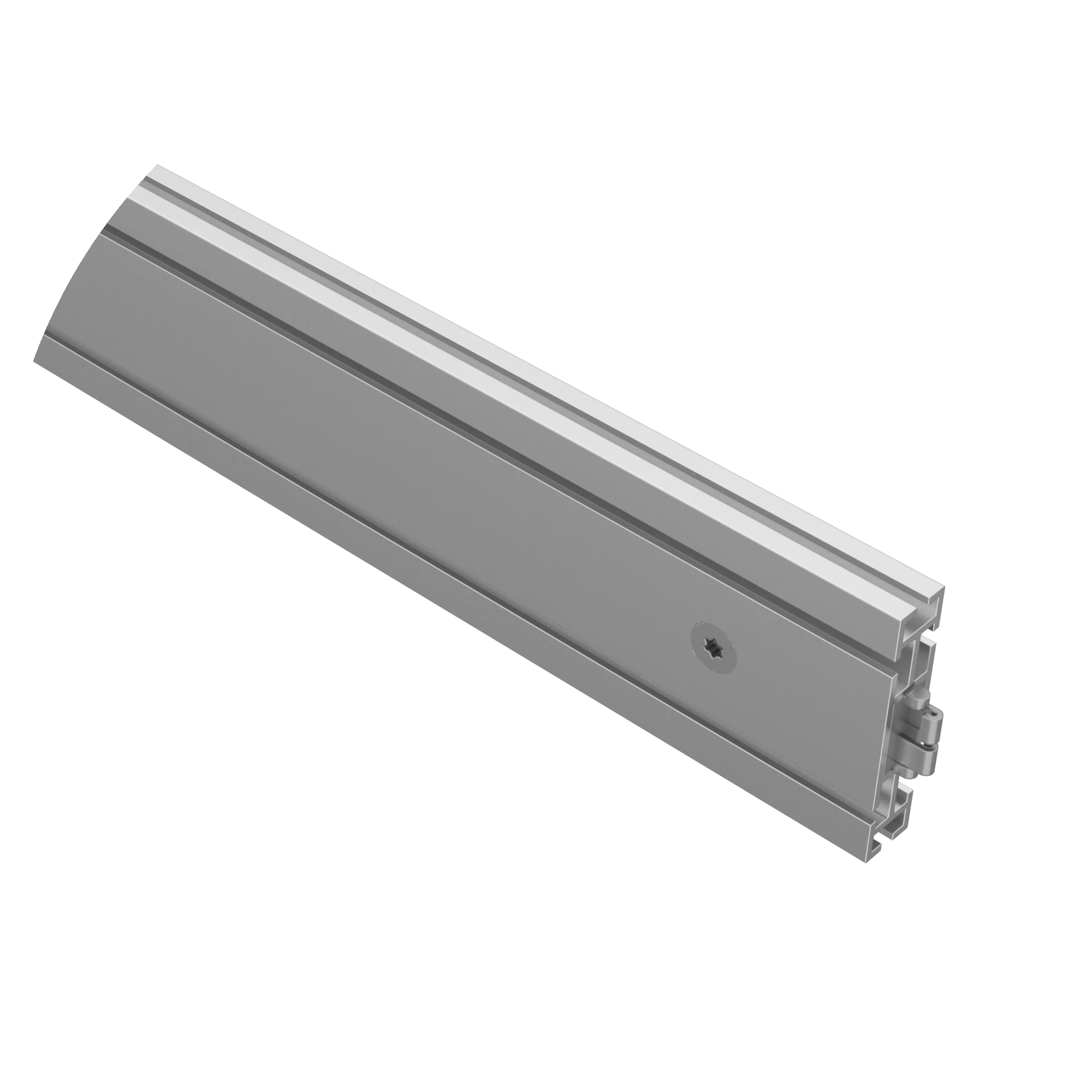

Z 121.01
with 2 × Z 961/13
L 660 × W 16 × H 70 mm
660 mm long
matt anodized, silver (E6/EV1)
Z 121.11
with 2 × Z 961/13
L 660 × W 16 × H 70 mm
660 mm long
polished, anodized, silver (E2/EV1, E4/EV1)

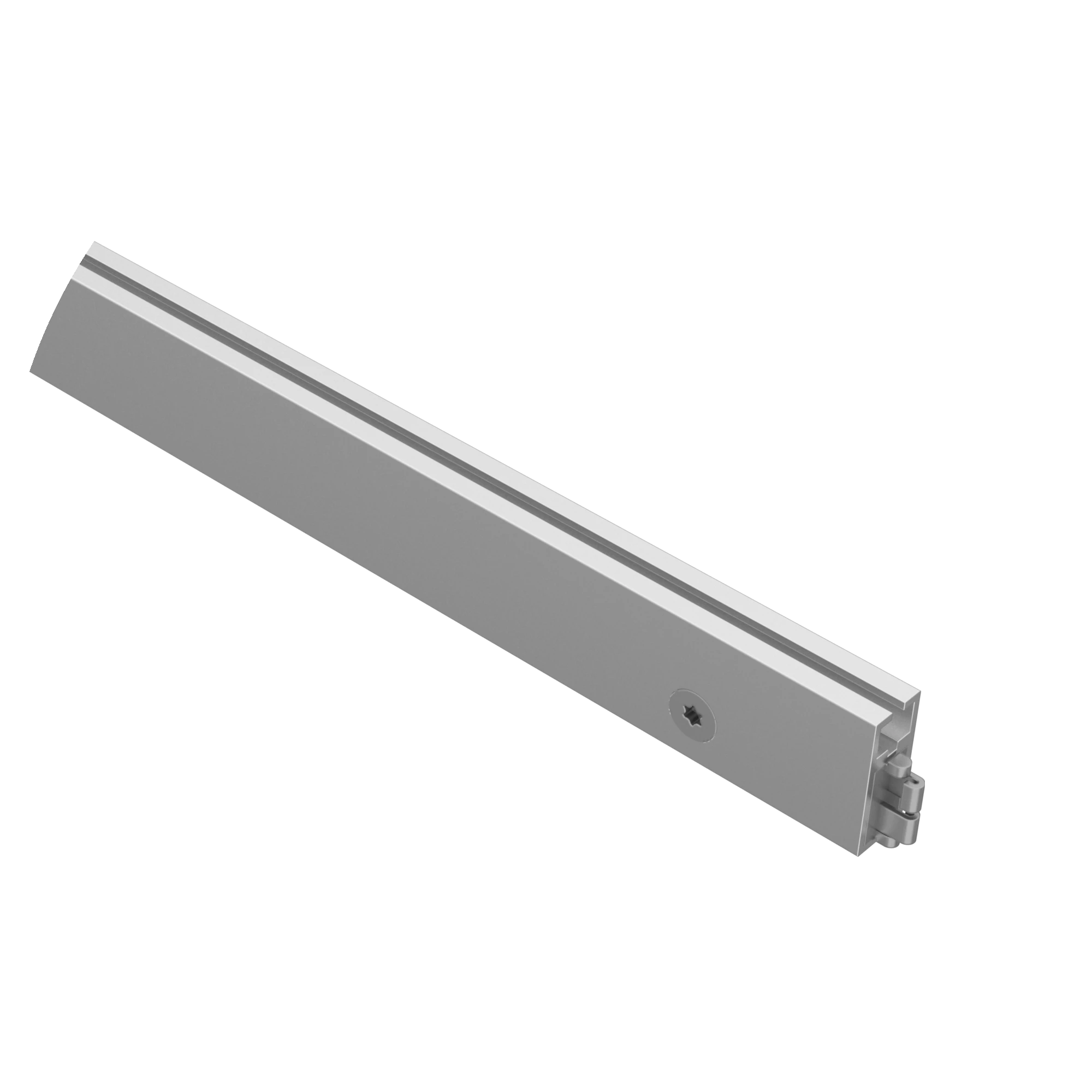

Z 125.01
with 2 × Z 961/13
L 950 × W 70 × H 16 mm
950 mm long
matt anodized, silver (E6/EV1)
Z 125.11
with 2 × Z 961/13
L 950 × W 70 × H 16 mm
950 mm long
polished, anodized, silver (E2/EV1, E4/EV1)

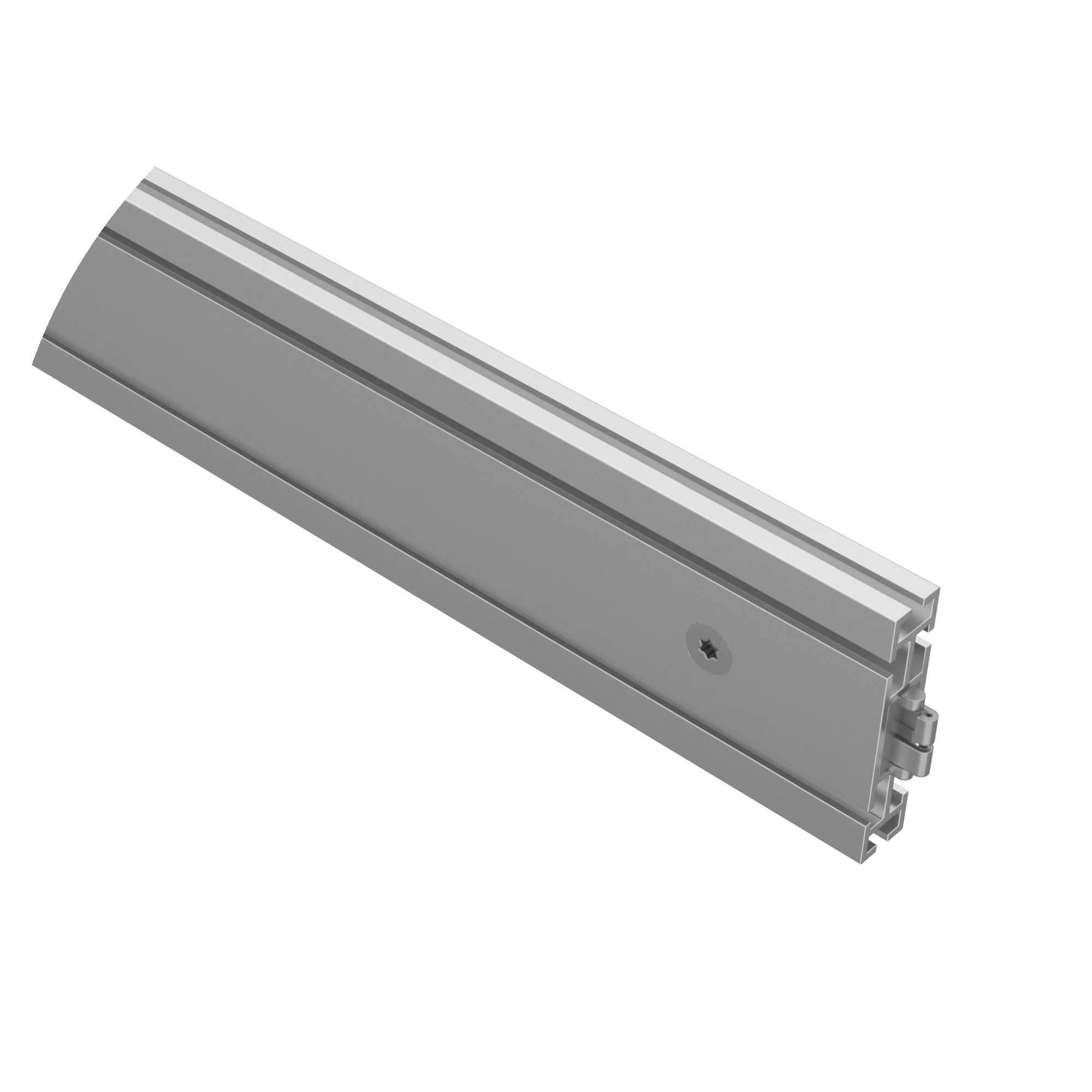

Z 126.01
with 2 × Z 961/13
L 950 × W 70 × H 16 mm
950 mm long
matt anodized, silver (E6/EV1)
Z 126.11
with 2 × Z 961/13
L 950 × W 70 × H 16 mm
950 mm long
polished, anodized, silver (E2/EV1, E4/EV1)

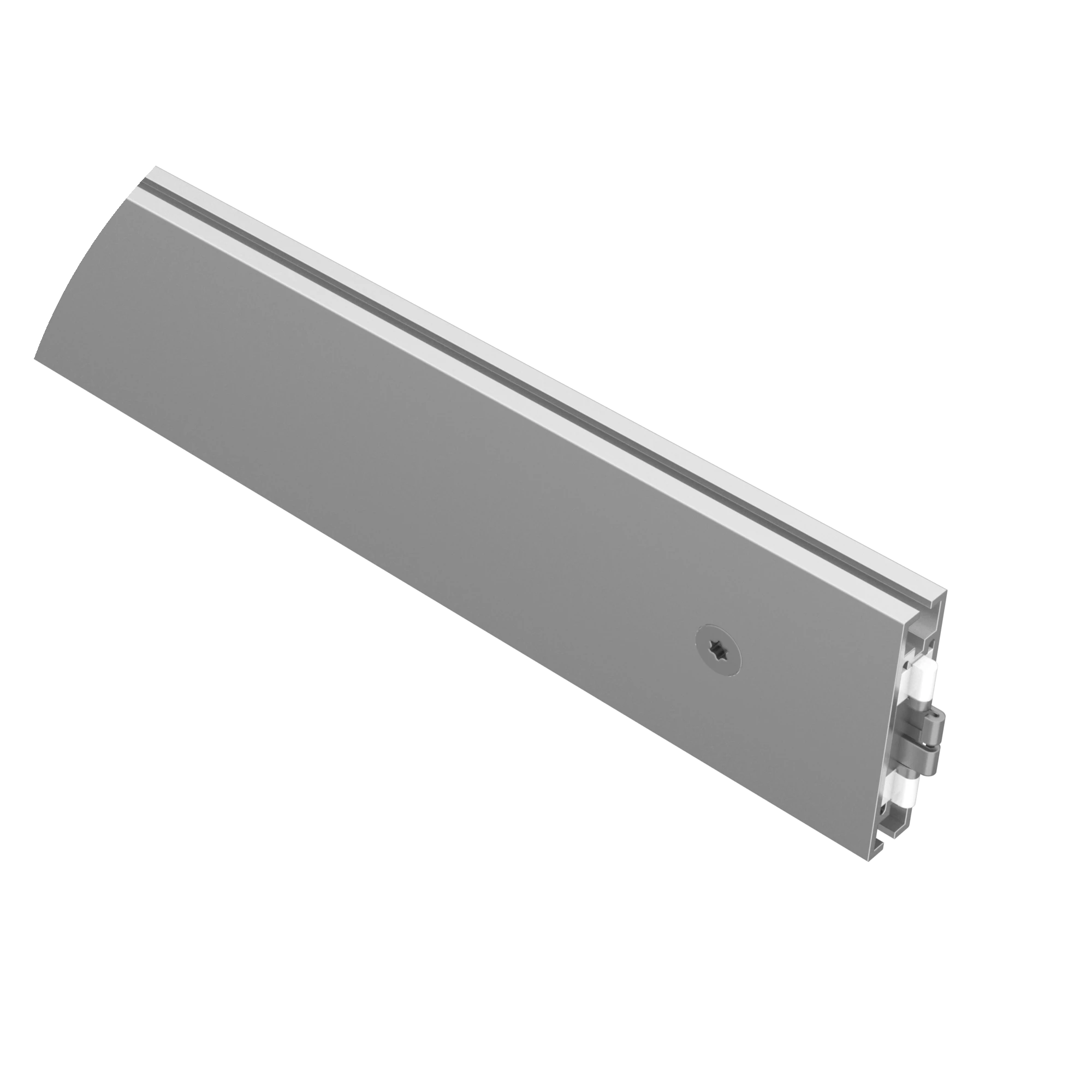

Z 130.11
1360 mm long
with 2 × Z 961/13
L 1360 × W 70 × H 16 mm
1360 mm long
polished, anodized, silver (E2/EV1, E4/EV1)

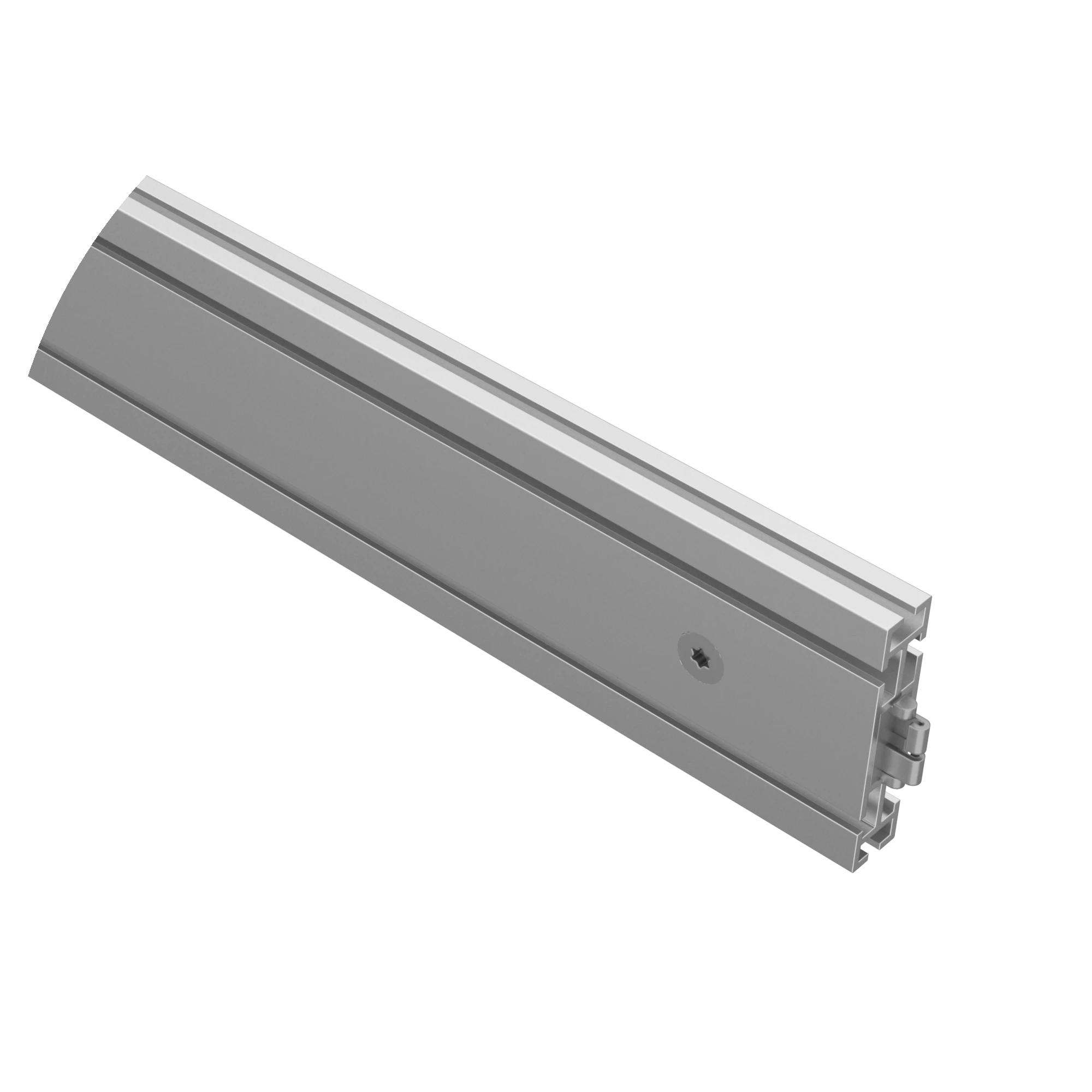

Z 131.01
with 2 × Z 961/13
L 1360 × W 70 × H 16 mm
1360 mm long
matt anodized, silver (E6/EV1)
Z 131.11
with 2 × Z 961/13
L 1360 × W 70 × H 16 mm
1360 mm long
polished, anodized, silver (E2/EV1, E4/EV1)

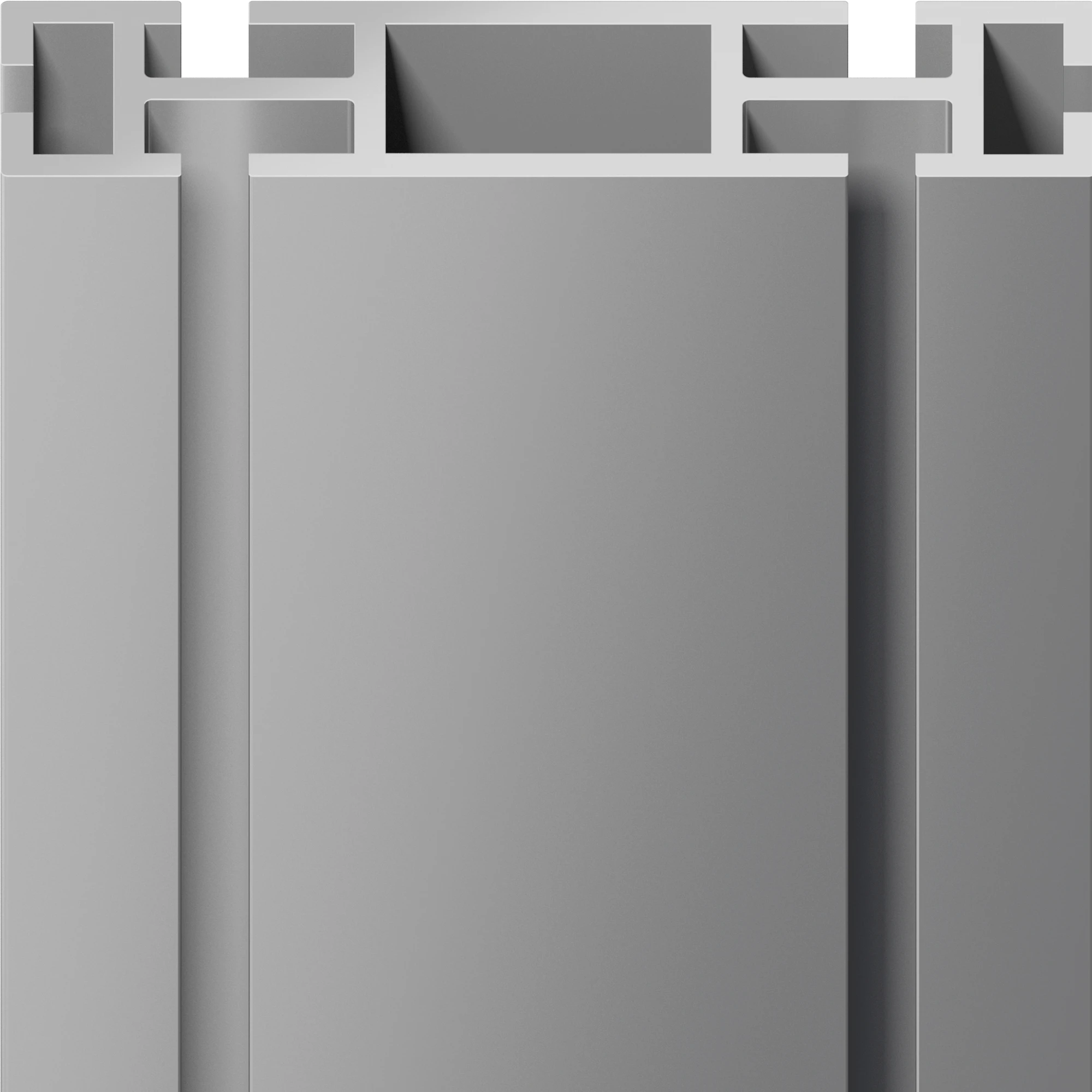

Z 160.01
groove depth 7 mm
L 5000 × W 70 × H 16 mm
5000 mm long
matt anodized, silver (E6/EV1)
Z 160.11
groove depth 7 mm
L 5000 × W 70 × H 16 mm
5000 mm long
polished, anodized, silver (E2/EV1, E4/EV1)

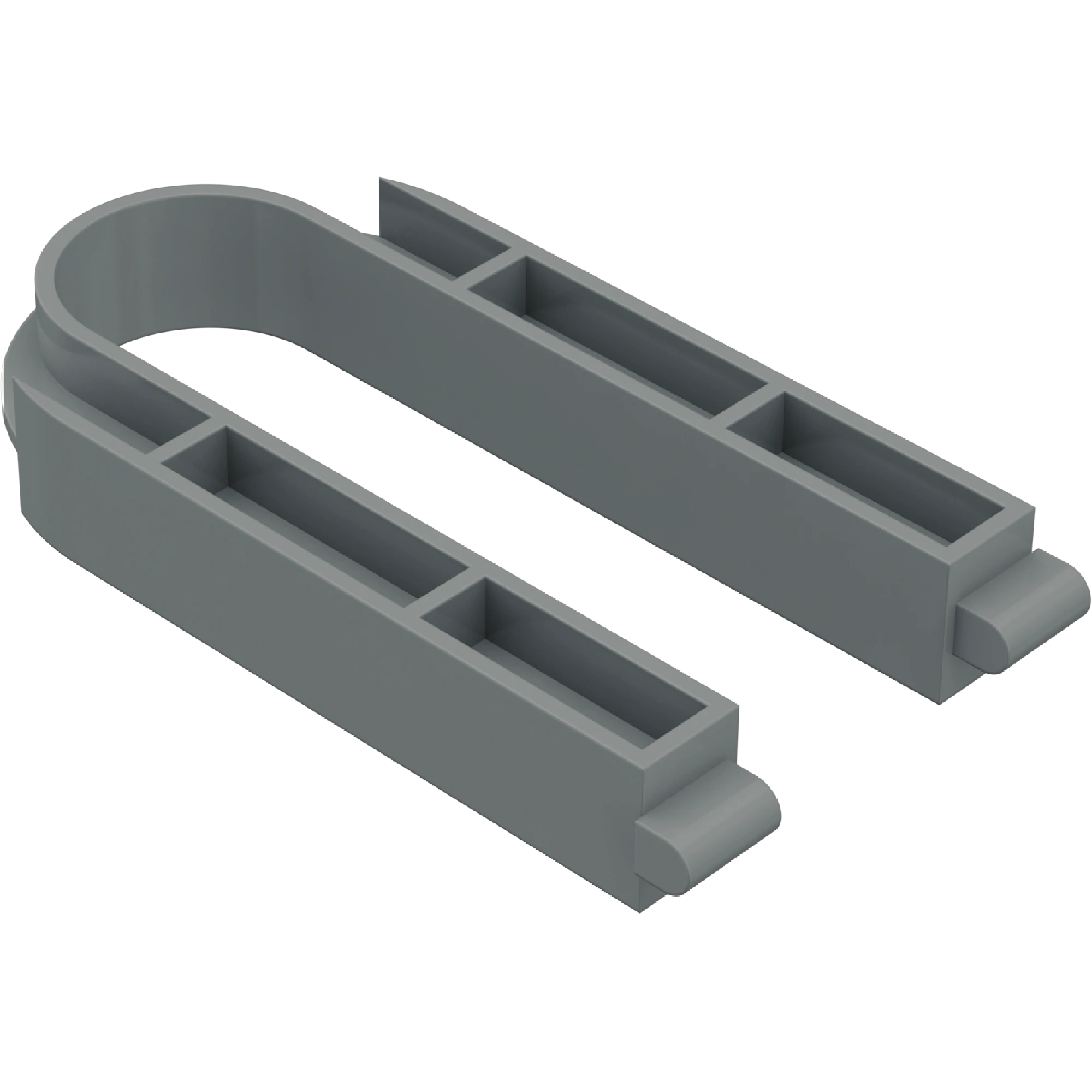

Z 161/A.90
for tension lock Z 961/13
lock chamber 39 × 12 mm
L 76 × W 44 × H 11 mm
as catalogue desciption

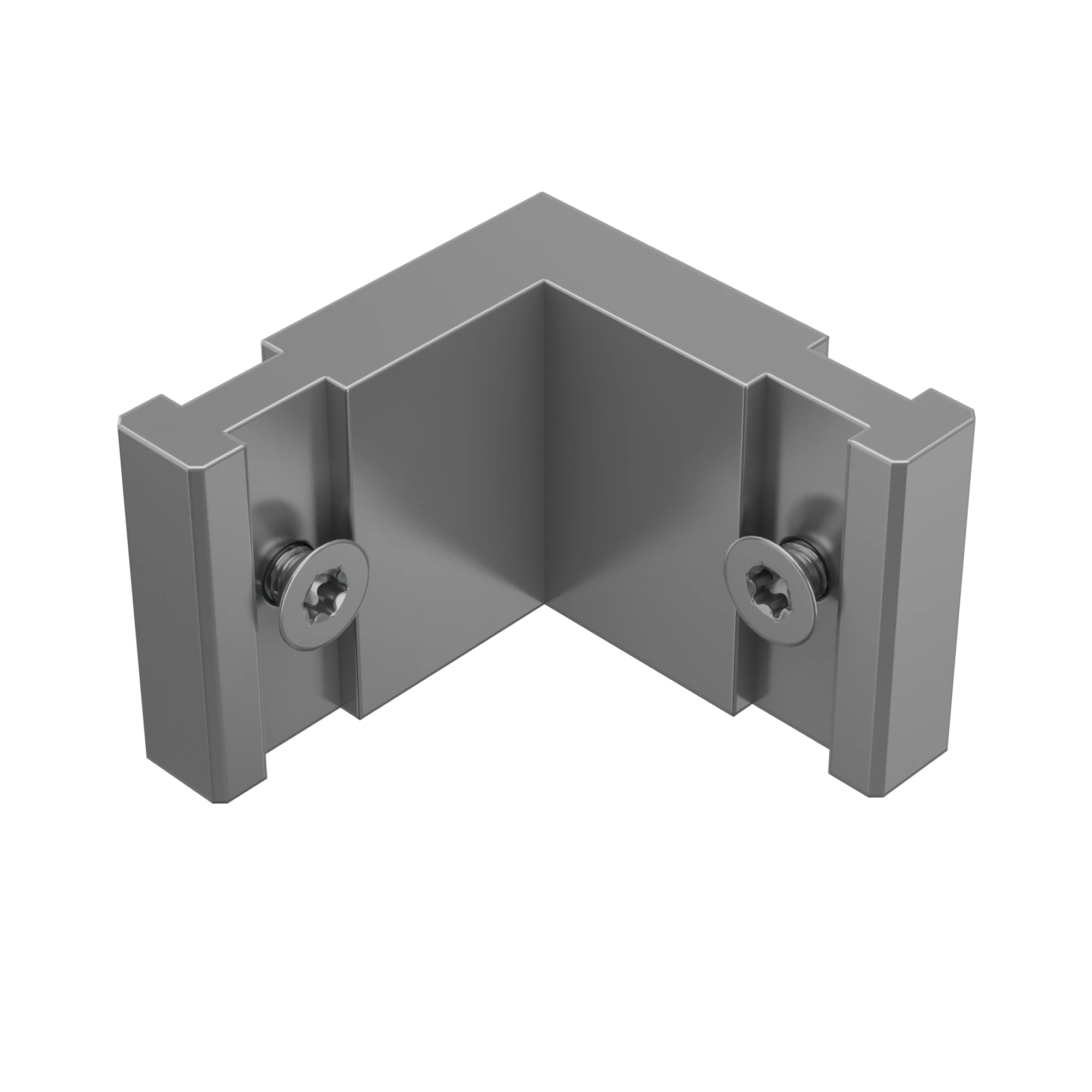

Z 165.00
90°
lock chamber 39 × 12 mm
L 55 × W 38.6 × H 12 mm
raw / unfinished

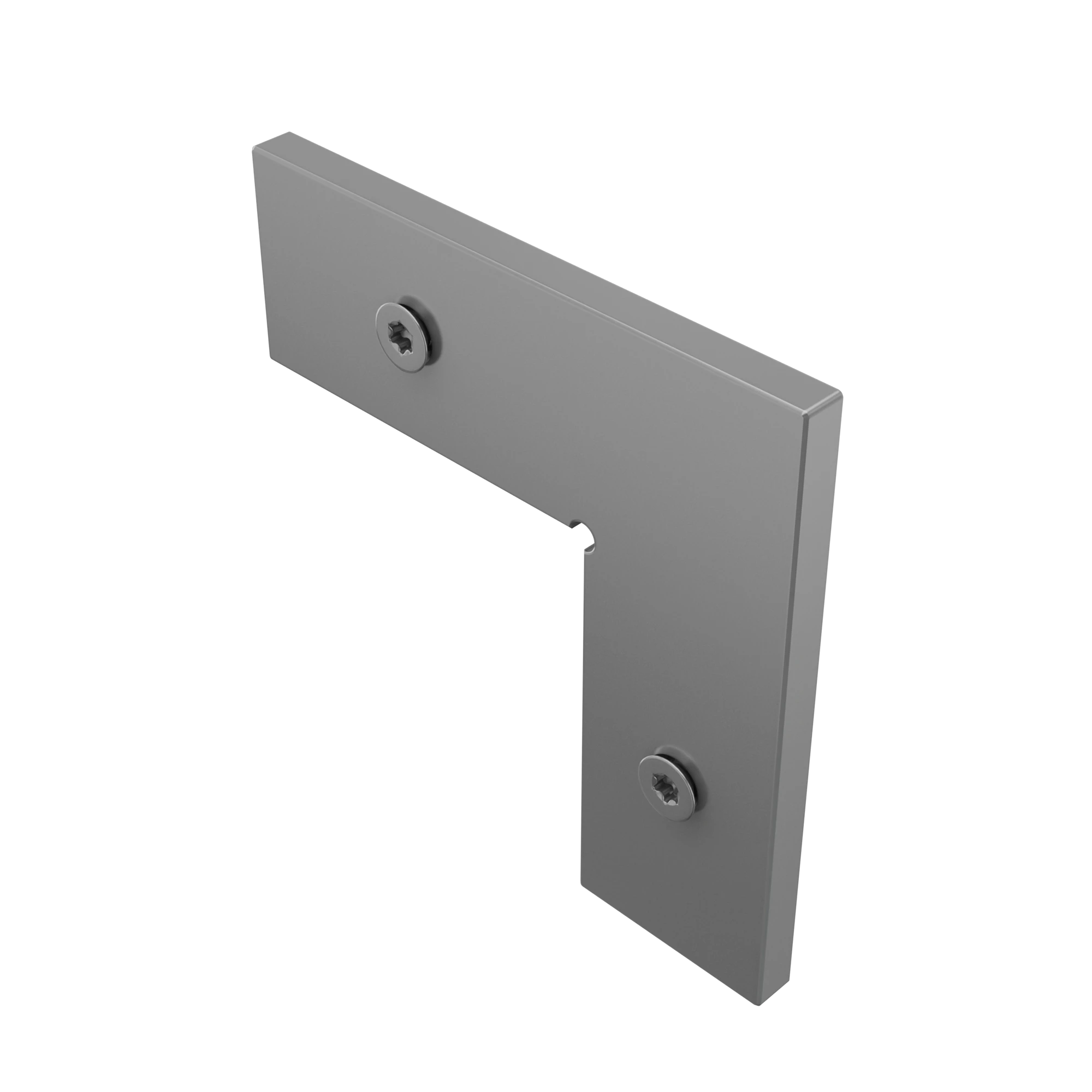

Z 166.00
90°
lock chamber 39 × 12 mm
L 110 × W 38.6 × H 8 mm
raw / unfinished

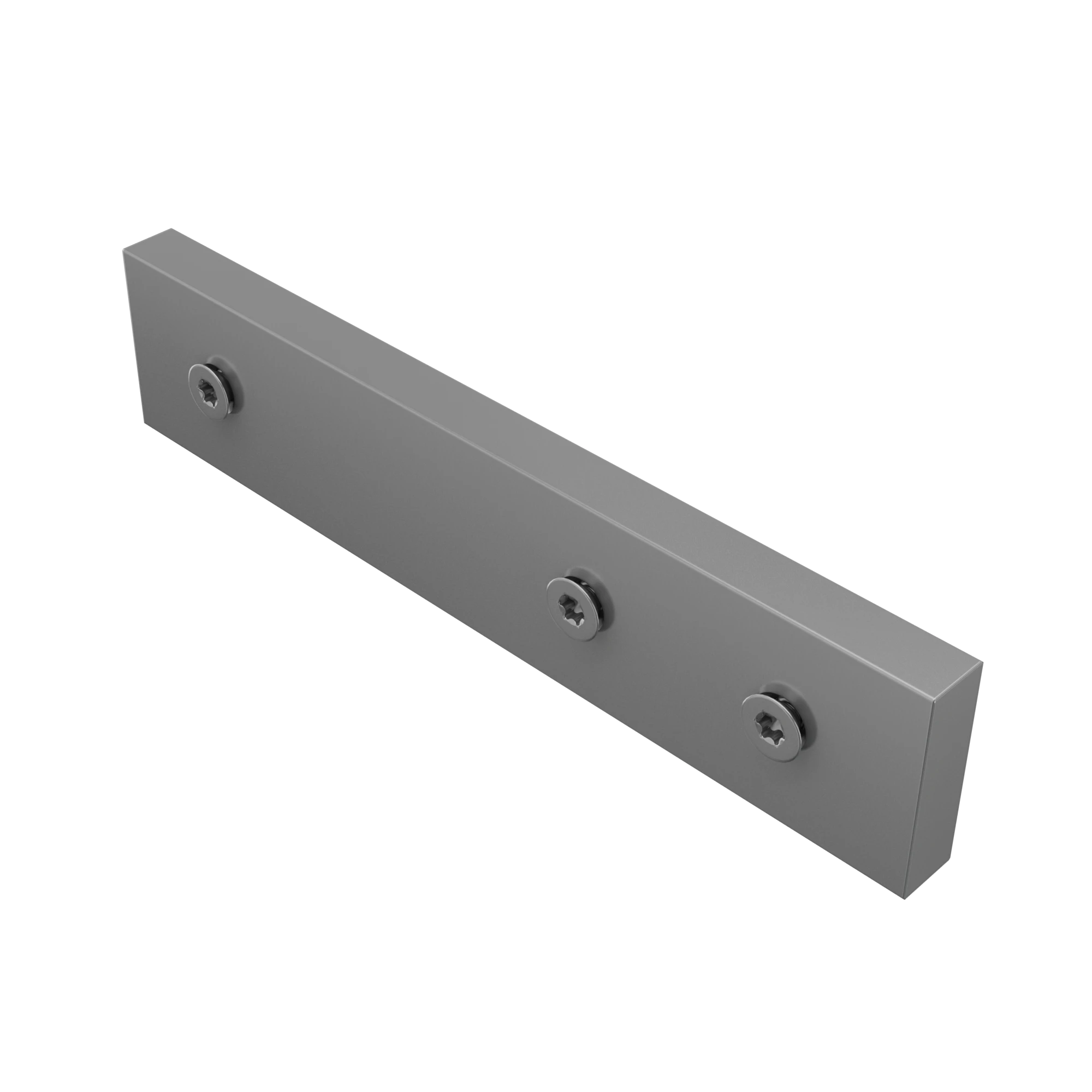

Z 167.00
straight
lock chamber 39 × 12 mm
L 181 × W 39 × H 12 mm
raw / unfinished

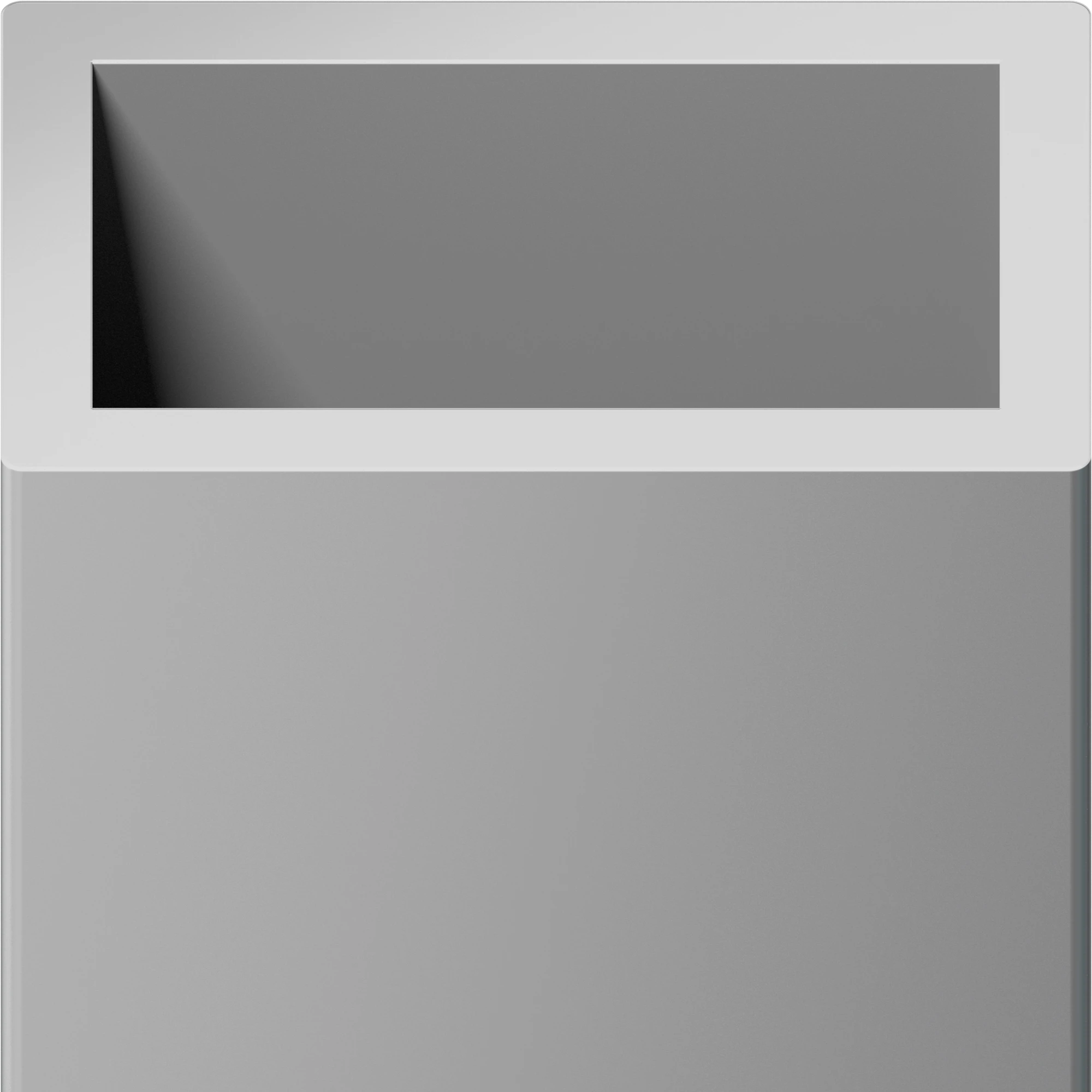

Z 300.01
for Z 961/13
L 5000 × W 25 × H 16 mm
5000 mm long
matt anodized, silver (E6/EV1)
Z 300.11
for Z 961/13
L 5000 × W 25 × H 16 mm
5000 mm long
polished, anodized, silver (E2/EV1, E4/EV1)

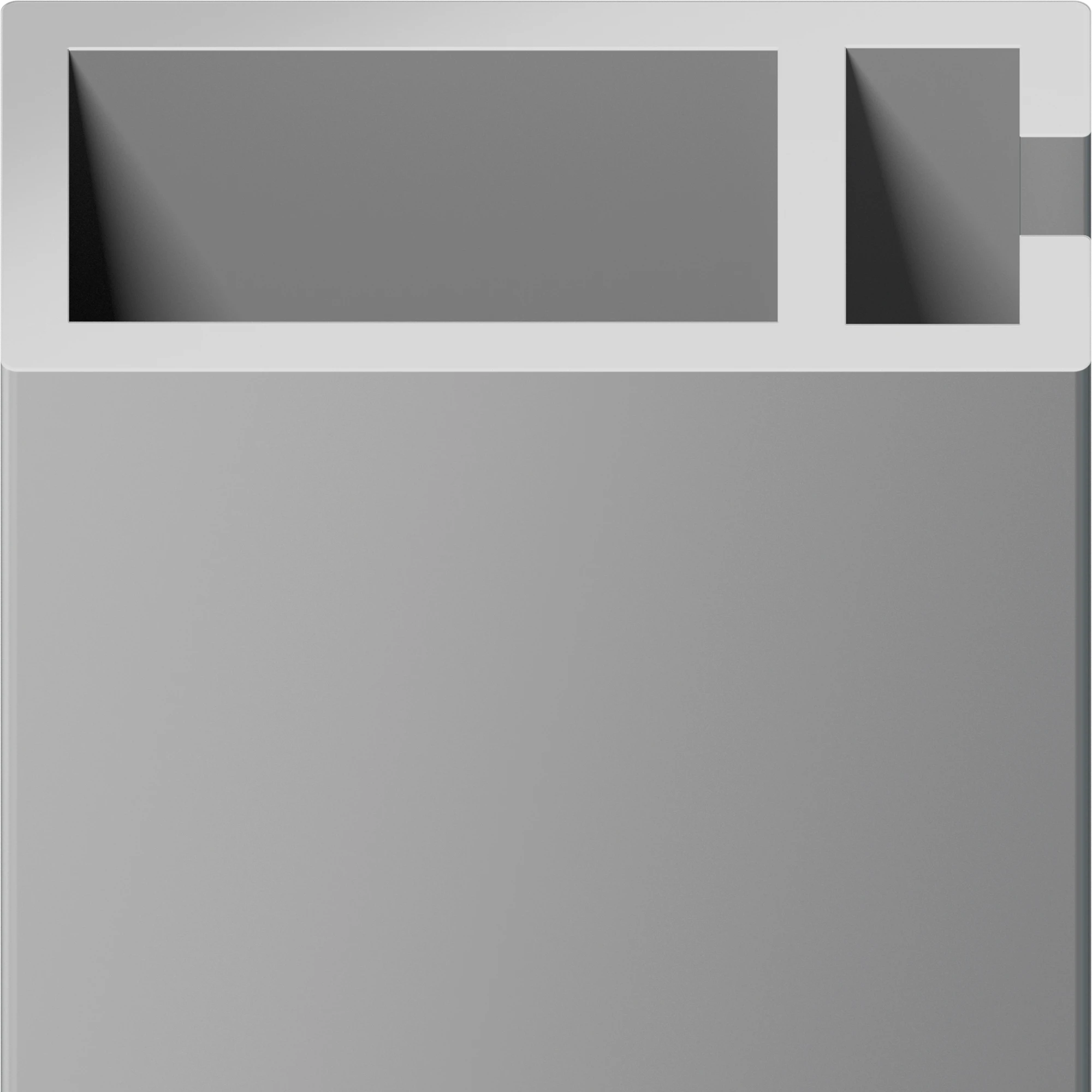

Z 308.01
for bracing
groove depth 7 mm
L 5000 × W 32 × H 16 mm
5000 mm long
matt anodized, silver (E6/EV1)
Z 308.11
for bracing
groove depth 7 mm
L 5000 × W 32 × H 16 mm
5000 mm long
polished, anodized, silver (E2/EV1, E4/EV1)

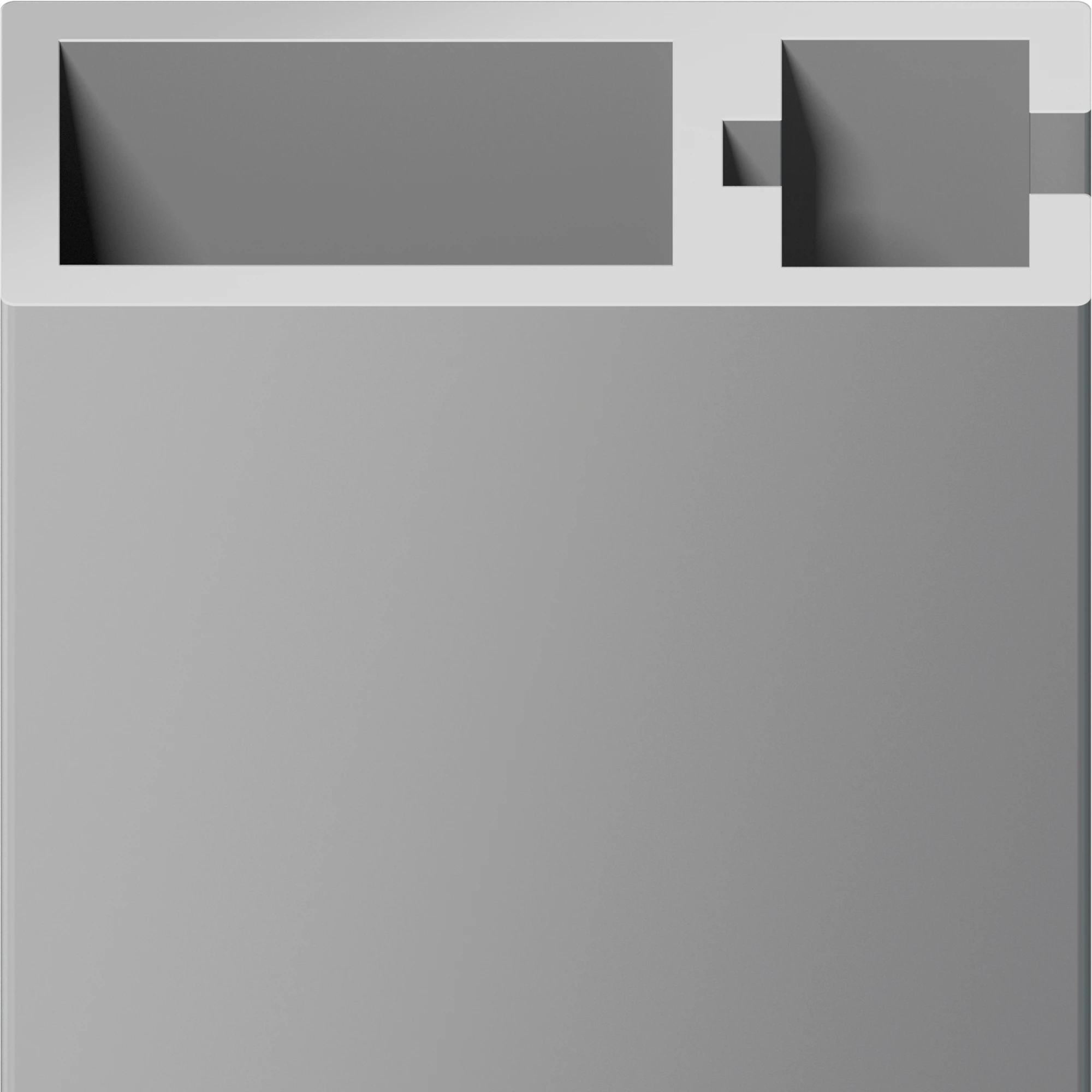

Z 310.01
groove depth 10 mm
L 5000 × W 37 × H 16 mm
5000 mm long
matt anodized, silver (E6/EV1)
Z 310.11
groove depth 10 mm
L 5000 × W 37 × H 16 mm
5000 mm long
polished, anodized, silver (E2/EV1, E4/EV1)
Z 320.01
660 mm long
with 2 × Z 961/13
L 660 × W 37 × H 16 mm
660 mm long
matt anodized, silver (E6/EV1)
Z 320.11
660 mm long
with 2 × Z 961/13
L 660 × W 37 × H 16 mm
660 mm long
polished, anodized, silver (E2/EV1, E4/EV1)
Z 325.01
950 mm long
with 2 × Z 961/13
L 950 × W 37 × H 16 mm
950 mm long
matt anodized, silver (E6/EV1)
Z 400.01
groove depth 10 mm
L 5000 × W 50 × H 16 mm
5000 mm long
matt anodized, silver (E6/EV1)
Z 400.11
groove depth 10 mm
L 5000 × W 50 × H 16 mm
5000 mm long
polished, anodized, silver (E2/EV1, E4/EV1)
Z 402.01
for 2 × Z 961/13
L 5000 × W 50 × H 16 mm
5000 mm long
matt anodized, silver (E6/EV1)
Z 415.01
with 2 × Z 961/13
L 455 × W 50 × H 16 mm
455 mm lang
matt anodized, silver (E6/EV1)
Z 415.11
with 2 × Z 961/13
L 455 × W 50 × H 16 mm
455 mm lang
polished, anodized, silver (E2/EV1, E4/EV1)
Z 416.01
with 2 × Z 961/13
L 455 × W 50 × H 16 mm
455 mm long
matt anodized, silver (E6/EV1)
Z 416.11
with 2 × Z 961/13
L 455 × W 50 × H 16 mm
455 mm long
polished, anodized, silver (E2/EV1, E4/EV1)
Z 420.01
with 2 × Z 961/13
L 660 × W 50 × H 16 mm
660 mm long
matt anodized, silver (E6/EV1)
Z 420.11
with 2 × Z 961/13
L 660 × W 50 × H 16 mm
660 mm long
polished, anodized, silver (E2/EV1, E4/EV1)
Z 421.01
660 mm long
with 2 × Z 961/13
L 660 × W 50 × H 16 mm
660 mm long
matt anodized, silver (E6/EV1)
Z 421.11
660 mm long
with 2 × Z 961/13
L 660 × W 50 × H 16 mm
660 mm long
polished, anodized, silver (E2/EV1, E4/EV1)
Z 425.11
with 2 × Z 961/13
L 950 × W 50 × H 16 mm
950 mm long
polished, anodized, silver (E2/EV1, E4/EV1)
Z 426.11
with 2 × Z 961/13
L 950 × W 50 × H 16 mm
950 mm long
polished, anodized, silver (E2/EV1, E4/EV1)
Z 430.01
with 2 × Z 961/13
L 1360 × W 50 × H 16 mm
1360 mm long
matt anodized, silver (E6/EV1)
Z 430.11
with 2 × Z 961/13
L 1360 × W 50 × H 16 mm
1360 mm long
polished, anodized, silver (E2/EV1, E4/EV1)
Z 4300.01
2 system grooves
L 5000 × W 40 × H 16 mm
5000 mm long
matt anodized, silver (E6/EV1)
Z 431.01
1360 mm long
with 2 × Z 961/13
L 1360 × W 50 × H 16 mm
1360 mm long
matt anodized, silver (E6/EV1)
Z 460.01
groove depth 7 mm
L 5000 × W 50 × H 16 mm
matt anodized, silver (E6/EV1)
Z 460.11
groove depth 7 mm
L 5000 × W 50 × H 16 mm
polished, anodized, silver (E2/EV1, E4/EV1)
Z 508.01
groove depth 7 mm
L 5000 × W 175 × H 16 mm
5000 mm long
matt anodized, silver (E6/EV1)
Z 508.11
groove depth 7 mm
L 5000 × W 175 × H 16 mm
5000 mm long
polished, anodized, silver (E2/EV1, E4/EV1)
Z 514.01
with 4 × Z 961/13
L 455 × W 175 × H 16 mm
455 mm lang
matt anodized, silver (E6/EV1)
Z 514.11
with 4 × Z 961/13
L 455 × W 175 × H 16 mm
455 mm lang
polished, anodized, silver (E2/EV1, E4/EV1)
Z 519.01
with 4 × Z 961/13
L 660 × W 175 × H 16 mm
660 mm long
matt anodized, silver (E6/EV1)
Z 519.11
with 4 × Z 961/13
L 660 × W 175 × H 16 mm
660 mm long
polished, anodized, silver (E2/EV1, E4/EV1)
Z 521.01
with 4 × Z 961/13
L 660 × W 16 × H 175 mm
660 mm long
matt anodized, silver (E6/EV1)
Z 521.11
with 4 × Z 961/13
L 660 × W 16 × H 175 mm
660 mm long
polished, anodized, silver (E2/EV1, E4/EV1)
Z 524.01
with 4 × Z 961/13
L 950 × W 175 × H 16 mm
950 mm long
matt anodized, silver (E6/EV1)
Z 524.11
with 4 × Z 961/13
L 950 × W 175 × H 16 mm
950 mm long
polished, anodized, silver (E2/EV1, E4/EV1)
Z 529.01
1360 mm long
with 4 × Z 961/13
L 1360 × W 175 × H 16 mm
1360 mm long
matt anodized, silver (E6/EV1)
Z 560.01
groove depth 7 mm
L 5000 × W 175 × H 16 mm
5000 mm long
matt anodized, silver (E6/EV1)
Z 560.11
groove depth 7 mm
L 5000 × W 175 × H 16 mm
5000 mm long
polished, anodized, silver (E2/EV1, E4/EV1)
Z 600.01
groove depth 10 mm
L 5000 × W 175 × H 16 mm
5000 mm long
matt anodized, silver (E6/EV1)
Z 600.11
groove depth 10 mm
L 5000 × W 175 × H 16 mm
5000 mm long
polished, anodized, silver (E2/EV1, E4/EV1)
Z 615.01
with 4 × Z 961/13
L 455 × W 175 × H 16 mm
matt anodized, silver (E6/EV1)
Z 615.11
with 4 × Z 961/13
L 455 × W 175 × H 16 mm
polished, anodized, silver (E2/EV1, E4/EV1)
Z 961/13.00
13 mm
L 70 × W 21 × H 13 mm
raw / unfinished
Z 961/8.00
8 mm
L 70 × W 20 × H 12 mm
raw / unfinished
Z 967.00
straight
lock chamber 21 × 12 mm
L 181 × W 12 × H 21 mm
raw / unfinished
Accessories.
E 185.01
for monitor 15" - 21"
L 120 × W 120 × H 16 mm
matt anodized, silver (E6/EV1)
E 191.90
angle 0°-8°
for monitor 32"-52"
L 973 × W 67 × H 879 mm
as catalogue desciption
E 195.90
angle 0°-10°
for monitor 32"-52"
L 770 × W 53 × H 510 mm
as catalogue desciption
E 221.38
with drill hole 4.5 mm dia.
L 24 × W 25 × H 17 mm
nickel-plated
E 225.37
double sided
support 22 mm
L 60 × W 18 × H 8 mm
zinc-plated
E 226.37
single sided
support 22 mm
L 38 × W 18 × H 8 mm
zinc-plated
E 240.30
for system groove 4.3 mm
L 9 × W 9 × H 21 mm
white
E 250.90
for curved beams
L 40 × W 43 × H 77 mm
zinc-plated
E 280.01
for 990 mm axis
L 975 × W 16 × H 37 mm
975 mm long
matt anodized, silver (E6/EV1)
E 280.11
for 990 mm axis
L 975 × W 16 × H 37 mm
975 mm long
polished, anodized, silver (E2/EV1, E4/EV1)
E 284.01
to slide on
L 62 × W 16 × H 50 mm
matt anodized, silver (E6/EV1)
E 458.35
for extrusions 16 mm
L 5000 × W 16 × H 3 mm
5000 mm long
light grey
E 708.01
straight
L 100 × W 16 × H 25 mm
100 mm long
matt anodized, silver (E6/EV1)
E 708.11
straight
L 100 × W 16 × H 25 mm
100 mm long
polished, anodized, silver (E2/EV1, E4/EV1)
E 708/K.30
for shelf bracket E 708
L 38 × W 25 × H 16 mm
white
E 708/K.35
for shelf bracket E 708
L 38 × W 25 × H 16 mm
light grey
E 710.01
straight
L 150 × W 16 × H 43 mm
150 mm long
matt anodized, silver (E6/EV1)
E 710.11
straight
L 150 × W 16 × H 43 mm
150 mm long
polished, anodized, silver (E2/EV1, E4/EV1)
E 710/K.35
for shelf bracket E 710
L 100 × W 16 × H 9 mm
light grey
E 711.01
straight
L 200 × W 16 × H 43 mm
200 mm long
matt anodized, silver (E6/EV1)
E 711.11
straight
L 200 × W 16 × H 43 mm
200 mm long
polished, anodized, silver (E2/EV1, E4/EV1)
E 712.01
straight
L 250 × W 16 × H 43 mm
250 mm long
matt anodized, silver (E6/EV1)
E 712.11
straight
L 250 × W 16 × H 43 mm
250 mm long
polished, anodized, silver (E2/EV1, E4/EV1)
E 720/G.01
for shelf brackets E 708-E 712
L 60 × W 20 × H 23 mm
matt anodized, silver (E6/EV1)
E 739.21
variable
for shelf bracket E 737
L 316 × W 974 × H 30 mm
powder coated
M 1408.21
for upright extrusions
L 320 × W 120 × H 212 mm
silver powder-coated (RAL 9006/IG-54.9006-54)
S 132.30
for extrusion S 100/S 108
L 40 × W 40 × H 17 mm
white
S 132.35
for extrusion S 100/S 108
L 40 × W 40 × H 17 mm
light grey
S 135.35
for S 108/S 201/S 208/S 408
L 16 × W 40 × H 13 mm
light grey
S 140.37
M8
for S 100 / S 108 / M 1204
L 43 × W 43 × H 94 mm
zinc-plated
S 150.21
for upright extrusion S 100
L 335 × W 335 × H 16 mm
335 mm dia.
silver powder-coated (RAL 9006/IG-54.9006-54)
S 151.01
M10
for base plate S 150
L 45 × W 45 × H 4.5 mm
matt anodized, silver (E6/EV1)
S 230.30
for upright extrusion S 201
L 40 × W 29 × H 17 mm
white
S 230.35
for upright extrusion S 201
L 40 × W 29 × H 17 mm
light grey
S 233.20
for upright extrusion S 203
L 40 × W 28 × H 12 mm
white powder-coated (RAL 9010/IG-94750-54 or TI-1910061)
S 233.39
for upright extrusion S 203
L 40 × W 28 × H 12 mm
matt chrome-plated
S 236.01
for interior corner extrusion S 206
L 20 × W 18 × H 1 mm
matt anodized, silver (E6/EV1)
S 240.37
M8
for upright extrusion S 201
L 43 × W 43 × H 94 mm
zinc-plated
S 244.35
M10
for S 203
L 40.2 × W 40.2 × H 80.5 mm
light grey
S 244/K.35
for upright extrusion S 203
L 40 × W 28.2 × H 12 mm
light grey
S 330.30
for upright extrusion S 308
L 28 × W 28 × H 12 mm
white
S 330.35
for upright extrusion S 308
L 28 × W 28 × H 12 mm
light grey
S 332.39
for S 302
L 12 × W 35 × H 28 mm
matt chrome-plated
S 340.37
M8
for upright extrusion S 308
L 43 × W 43 × H 94 mm
zinc-plated
S 342.37
M8
for upright extrusion S 302
L 43 × W 43 × H 94 mm
zinc-plated
S 343.37
M8
for upright extrusion S 303
L 43 × W 43 × H 94 mm
zinc-plated
S 540.37
M8
for upright extrusion S 500
L 49 × W 43 × H 94 mm
zinc-plated
S 6035.37
incl. S 6025/20 (M6)
L 34 × W 34 × H 10 mm
zinc-plated
Z 169.37
for beams 70 mm
L 22 × W 40 × H 70 mm
zinc-plated
Z 170.35
for Z 100
L 43 × W 16 × H 13 mm
light grey
Z 175.35
for extrusion Z 110 / Z 160
L 70 × W 16 × H 12 mm
light grey
Z 969.37
for beams 175 mm
L 22 × W 40 × H 175 mm
zinc-plated
Z 970.30
for beam extrusion Z 300
L 25 × W 16 × H 14 mm
white
Z 970.35
for beam extrusion Z 300
L 25 × W 16 × H 14 mm
light grey
Z 974.30
for beam extrusion Z 310
L 37 × W 16 × H 12 mm
white
Z 974.35
for beam extrusion Z 310
L 37 × W 16 × H 12 mm
light grey
Z 975.35
for Z 400 / Z 402 / Z 460
L 51 × W 16 × H 12 mm
light grey
Z 976.35
for beam extrusion Z 308
L 32 × W 16 × H 12 mm
light grey
Contact Persons.
Serap
Eröz
Vladimir
Carcamo Yañez
Downloads.
Product brochures.
Technical brochure.
2D / 3D data.
