Main  → octalumina 120  → octalumina 120 Products  → octalumina 120 Product Detail

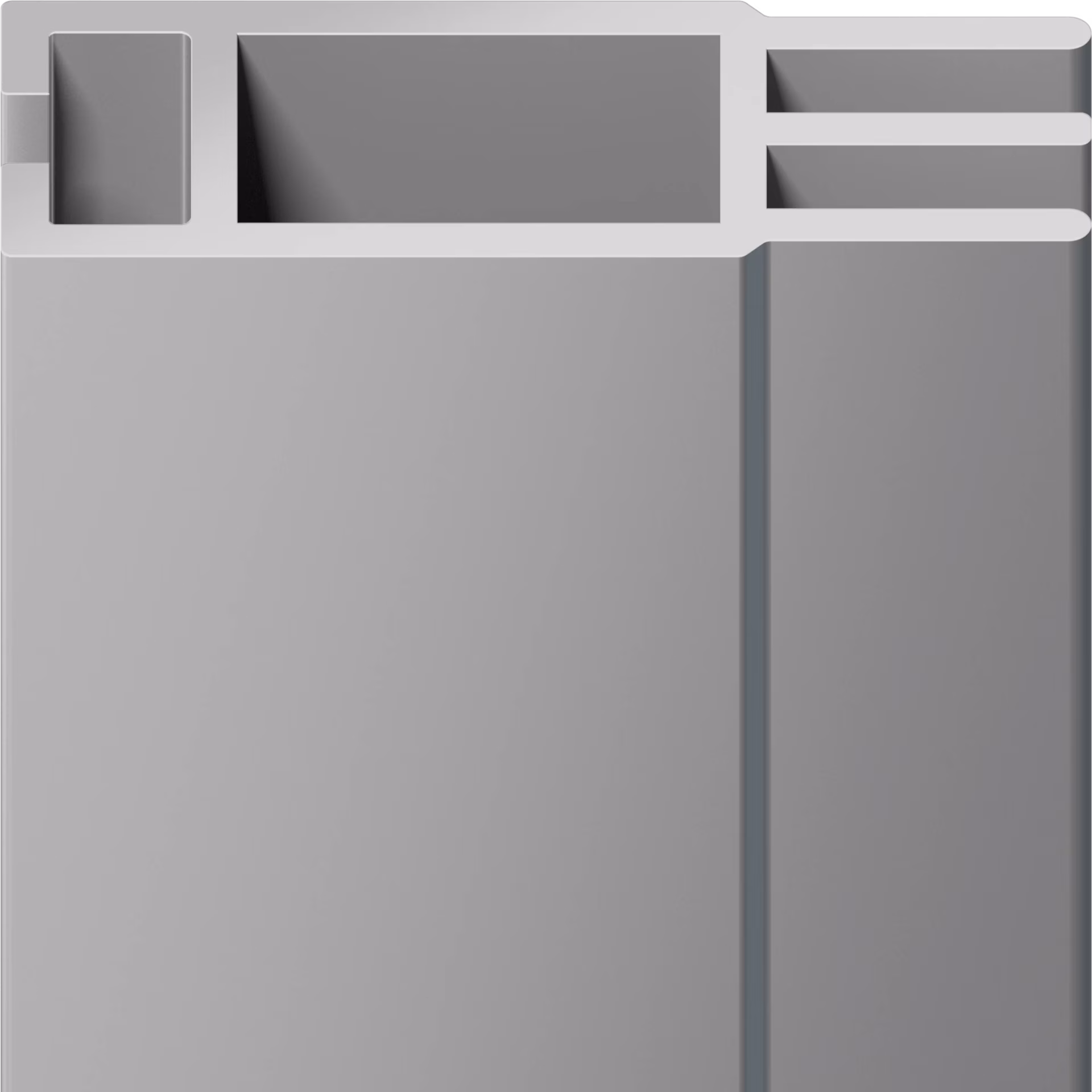

M 1504.01

for illumination
aluminium
for corner solution, for illumination, for graphics with silicone edge M 1313, suspendable
L 6000 × W 47 × H 16 mm

Available Material

matt anodized, silver (E6/EV1)
Order now.

!

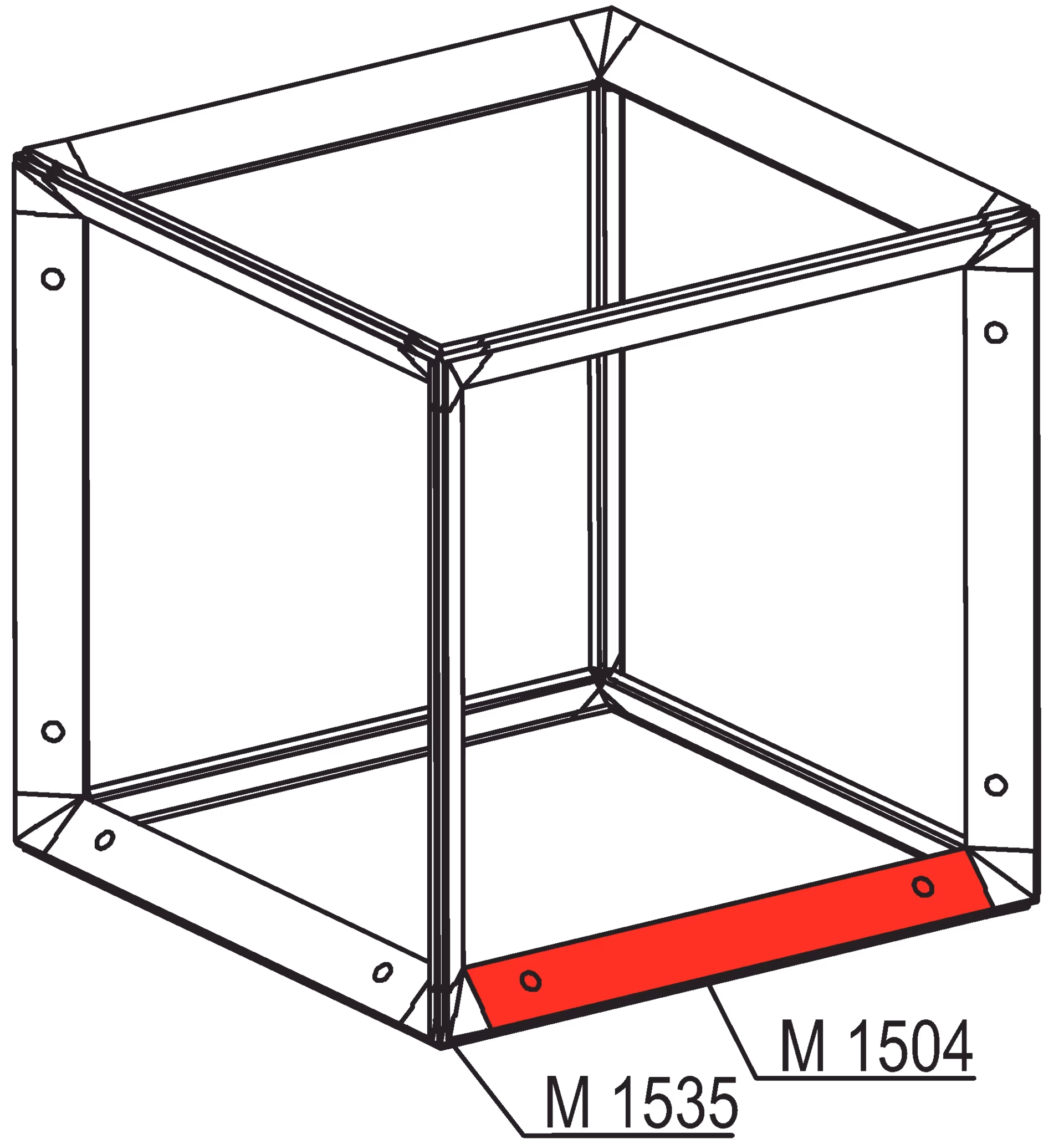

Attention: maximum size of cube 2500 × 2500 × 2500 mm

Technical Data.

Length:

6000 mm

Weight:

4.57 kg

Width:

47 mm

Height:

16 mm

M_1504.pdf
M_1504.dwg
M_1504.dxf
XM_1504.pdf

Accessories.

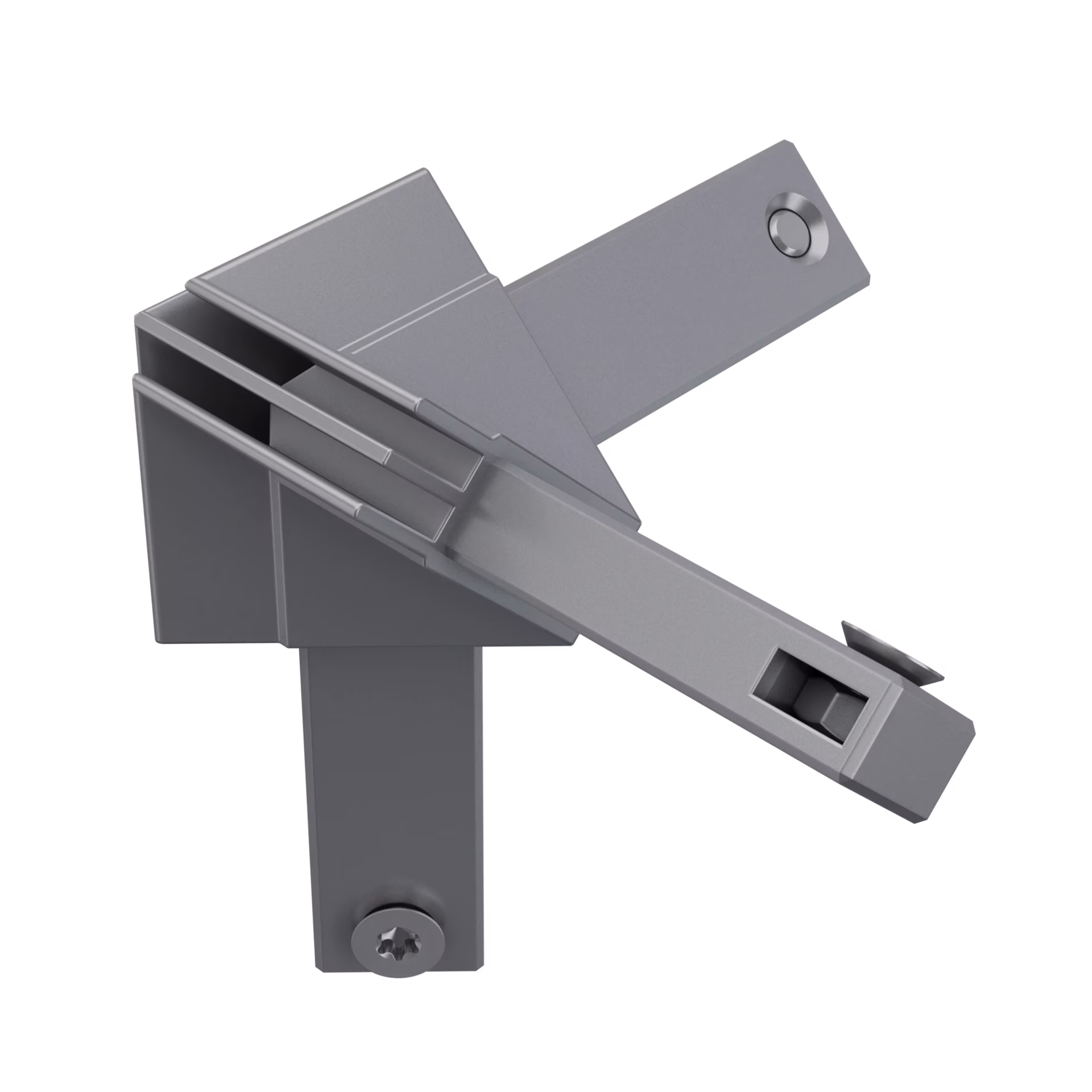

M 1535.31

for M 1504

L 96 × W 96 × H 96 mm

silver-grey

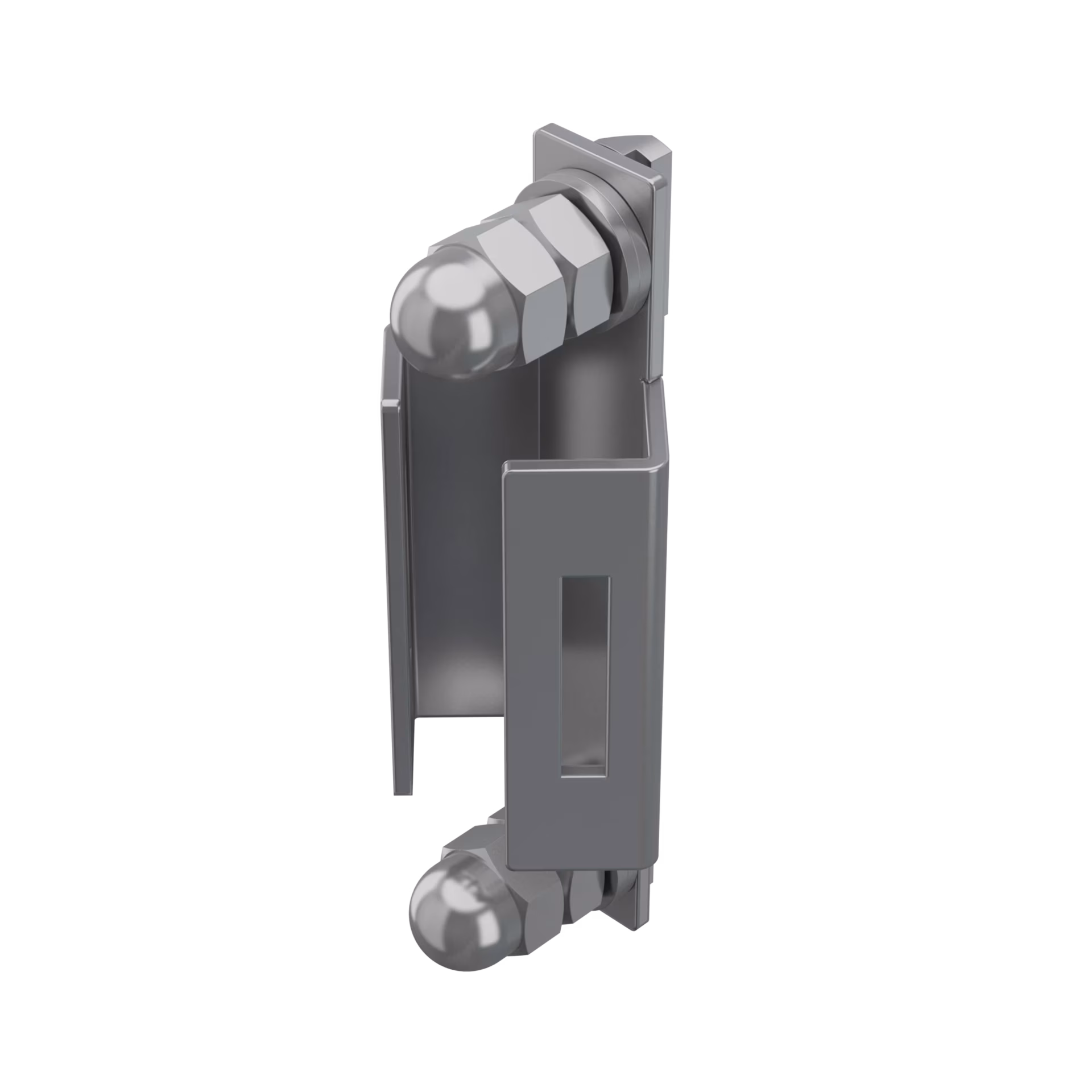

M 1545.37

for double sided bracing

for cube

L 28 × W 28 × H 95 mm

zinc-plated

M 1547.37

for single sided bracing

for cube

L 16 × W 16 × H 95 mm

zinc-plated

OL 242.85

for corner solution

top/bottom

L 86 × W 57 × H 35 mm

white

OL 244.85

for corner solution

center

L 88 × W 30 × H 28 mm

white

OL 270.30

for corner solution

for light division

L 3000 × W 140 × H 2 mm

white
