OL 415.01

aluminium

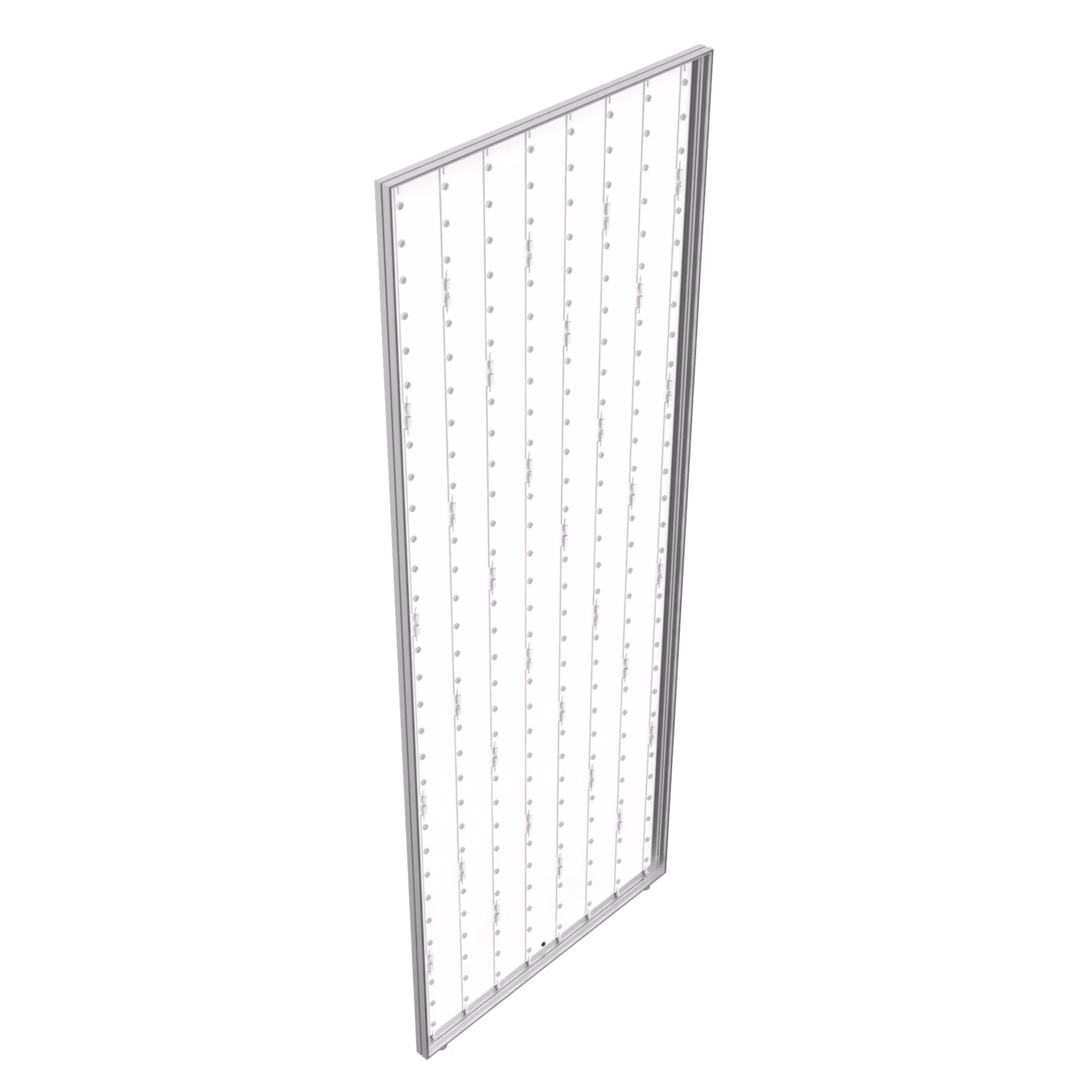

1 × frame element single-sided illuminated of M 1970, with system groove, aluminium composite panel with LED modules mounted, incl. 2 m cable with plug, with 2 × adjustable foot
W 950 × H 2480 × D 40 mm

Available Material

matt anodized, silver (E6/EV1)
Order now.

!

without fabric/graphics (fabric dimensions = outer frame dimensions)

Technical Data.

Length:

950 mm

Weight:

62 kg

Width:

40 mm

Height:

2480 mm

OL_415.pdf
OL_415_01.dwg
OL_415_01.dxf

Accessories.

OL 104/1.90

100 W (Slim Line)

installation in frame

L 298 × W 30 × H 16.5 mm

as catalogue desciption

OL 117.33

opening 10 mm dia.

L 14 × W 14 × H 9 mm

black

OL 346.85

für OCTAlumina 40

for OL 320

L 280 × W 60 × H 34 mm

white powder-coated (RAL 9016 matt, polish grade 30)

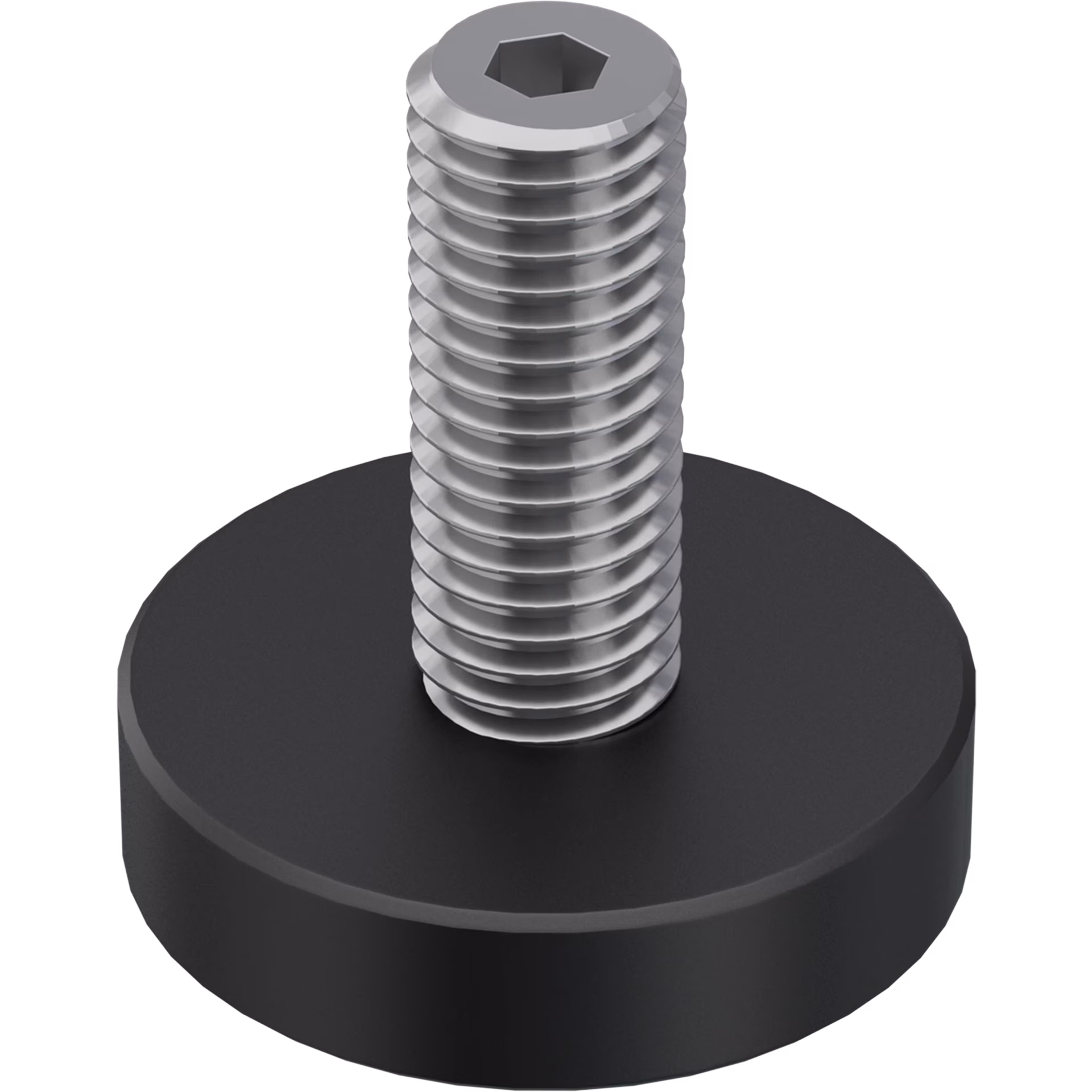

W 913/1.37

M10

for OCTAlumina 40 frames

L 32 × W 32 × H 34 mm

zinc-plated
