octawall pro Product Detail | OCTANORM Germany

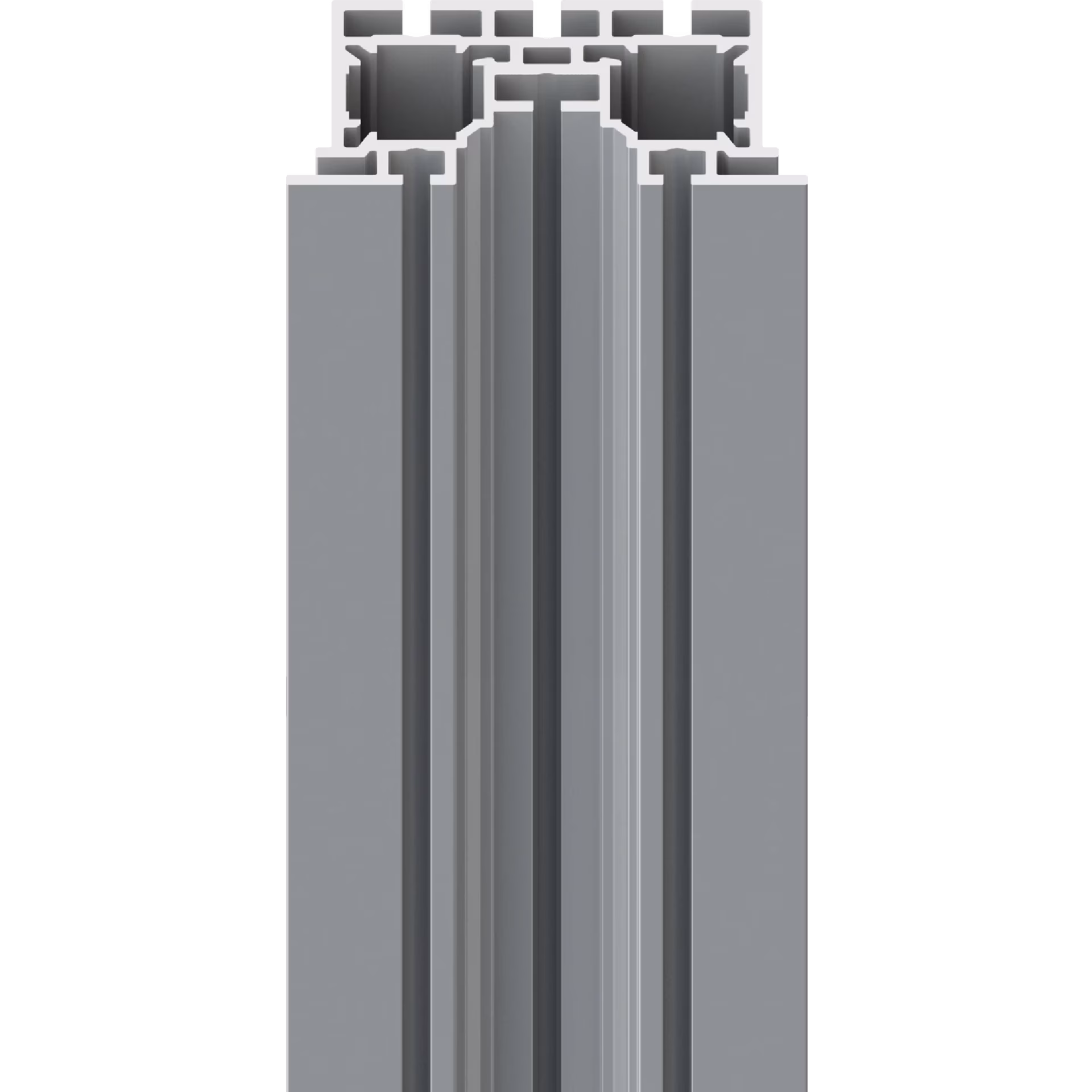

WP 860.01

for double sided fabric / panel

aluminium

for mounting either fabric (with silicone edge M 1313) or panels (with hook tape W 840 and loop tape W 841)

L 6000 × W 80 × H 40 mm

Available Material

matt anodized, silver (E6/EV1)

Order now.

Hook tape W 840 and loop tape W 841 (for mounting panels) have to be ordered separately.

Technical Data.

Length:

6000 mm

Weight:

11.918 kg

Width:

80 mm

Height:

40 mm

WP_860.pdf

XWP_860.pdf

Accessories.

M 1313.50

100 meter roll

for fabric

W 14 × H 3 mm

translucent

W 840.30

50 meter roll

for mounting of panels

W 20 × H 2 mm

white

W 841.30

25 meter roll

for mounting of panels

W 20 × H 2 mm

white

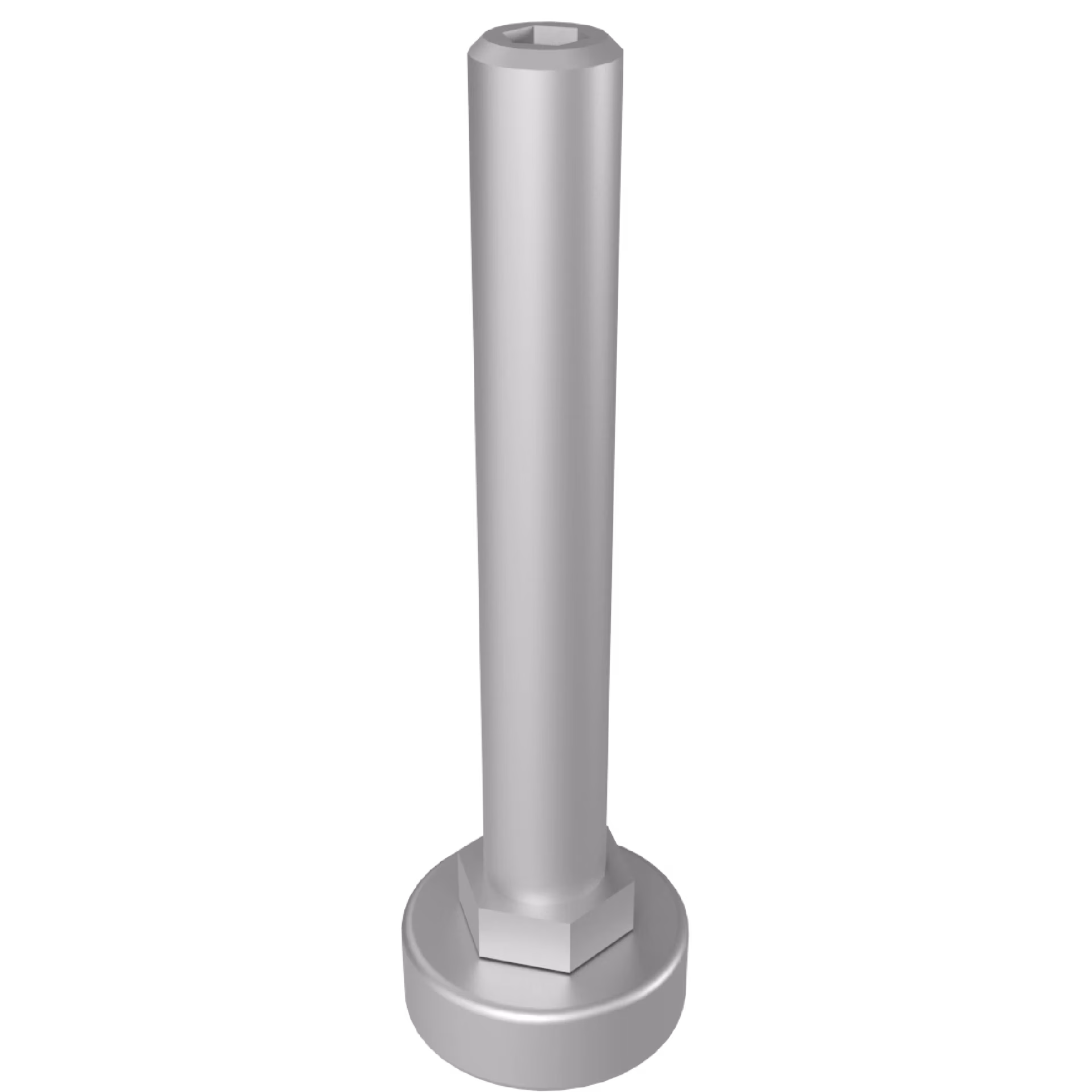

WP 80-3.37

M10

for frame elements

L 24 × W 24 × H 80 mm

zinc-plated

WP 80-8.35

for cable outlet

for extrusion WP 810

L 90 × W 36 × H 25 mm

light grey

Z 965B.00

90°

lock chamber 21 × 12 mm

L 55 × W 21 × H 12 mm

raw / unfinished
