Main  → octawall 40 classic  → octawall 40 classic Products  → octawall 40 classic Product Details

W 472.37

for W 478 / W 476
steel

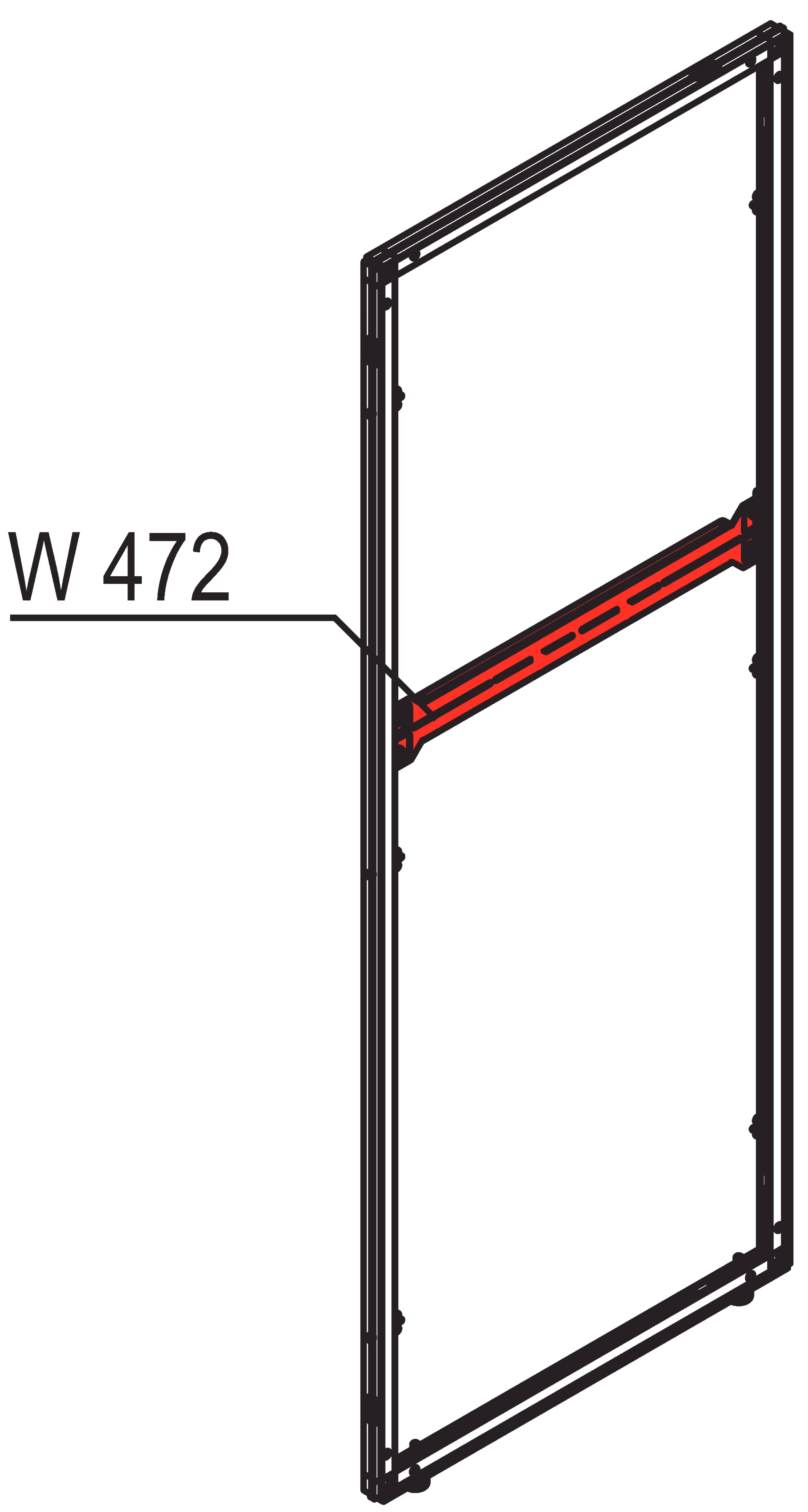

for toolless installation of literature rack W 478 and shelf W 476 to frames, 1 × steel sheet E 472-A with 4 × hammerhead screw (M 1348/Ha) and 4 × knurled nut (E 735/1)

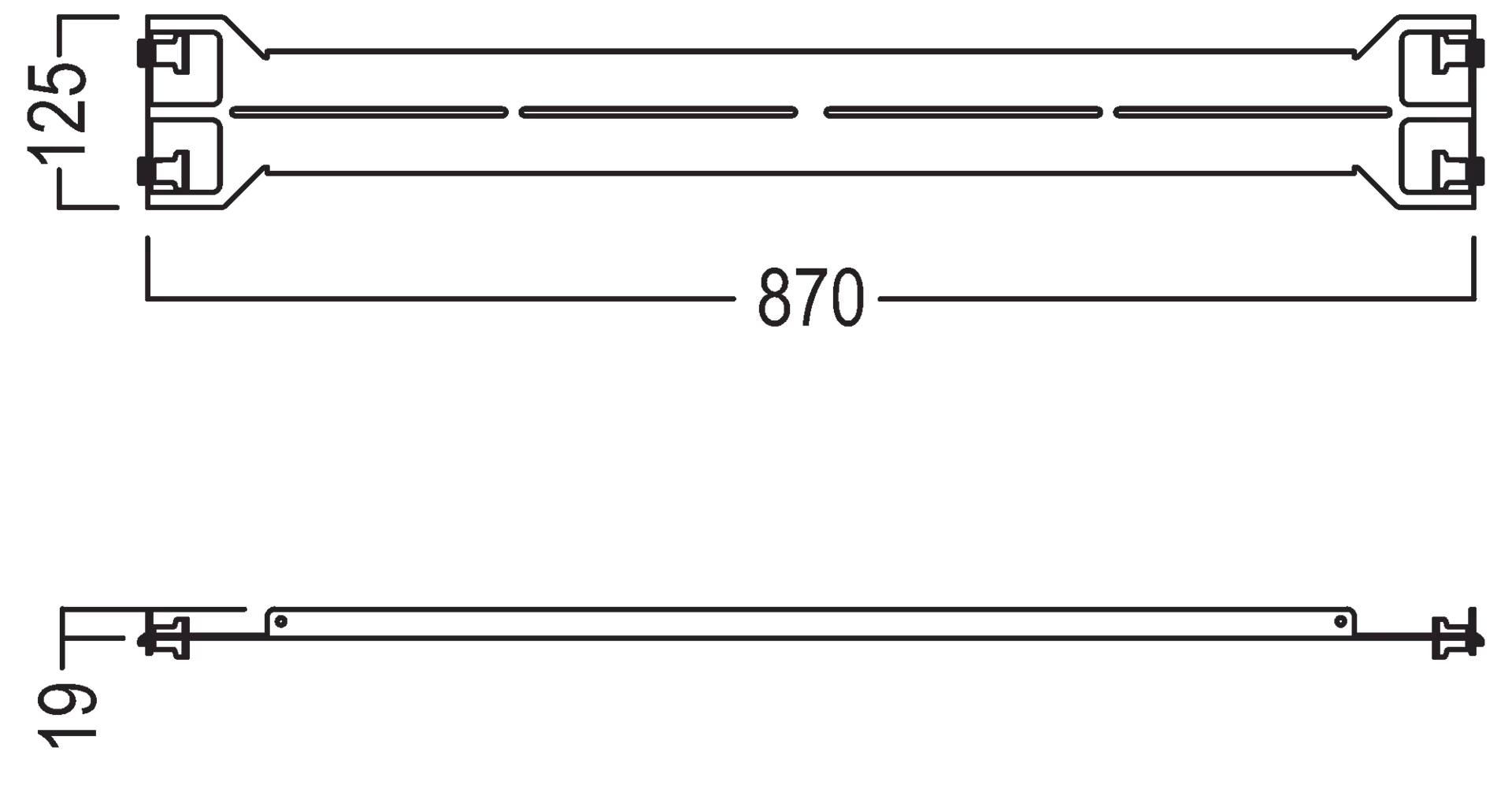

L 870 × W 19 × H 125 mm

Available Material

zinc-plated
Order now.

!

Attention: for frame width 950 mm

Technical Data.

Length:

870 mm

Weight:

1.459 kg

Width:

125 mm

Height:

29 mm

W_472.pdf
XW_472.pdf
W_472_01.dwg
W_472_01.dxf

Accessories.

W 474.37

for magnet fixing beam W 472

36 mm dia.

zinc-plated

W 476.20

max. 2 kg

for magnet fixing beam W 472

L 310 × W 220 × H 90 mm

white powder-coated (RAL 9010/IG-94750-54 or TI-1910061)

W 478.20

max. 2 kg

for magnet fixing beam W 472

W 220 × H 304 mm

white powder-coated (RAL 9010/IG-94750-54 or TI-1910061)
