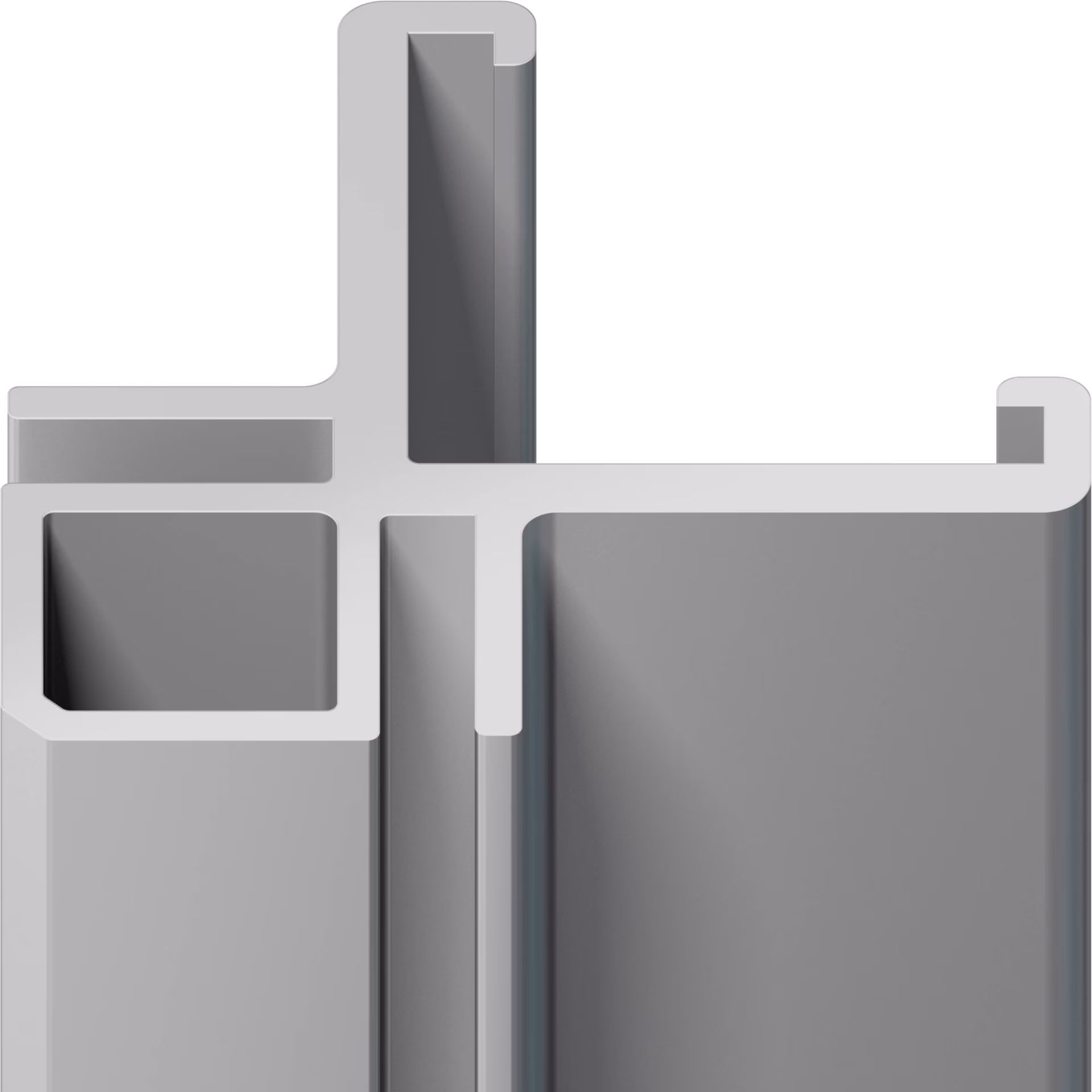

M 1332.01

for cube

aluminium

for cube, with 2 × fabric retaining groove, 90°, for tension fabric, graphics with silicone edge M 1313, not suspendable

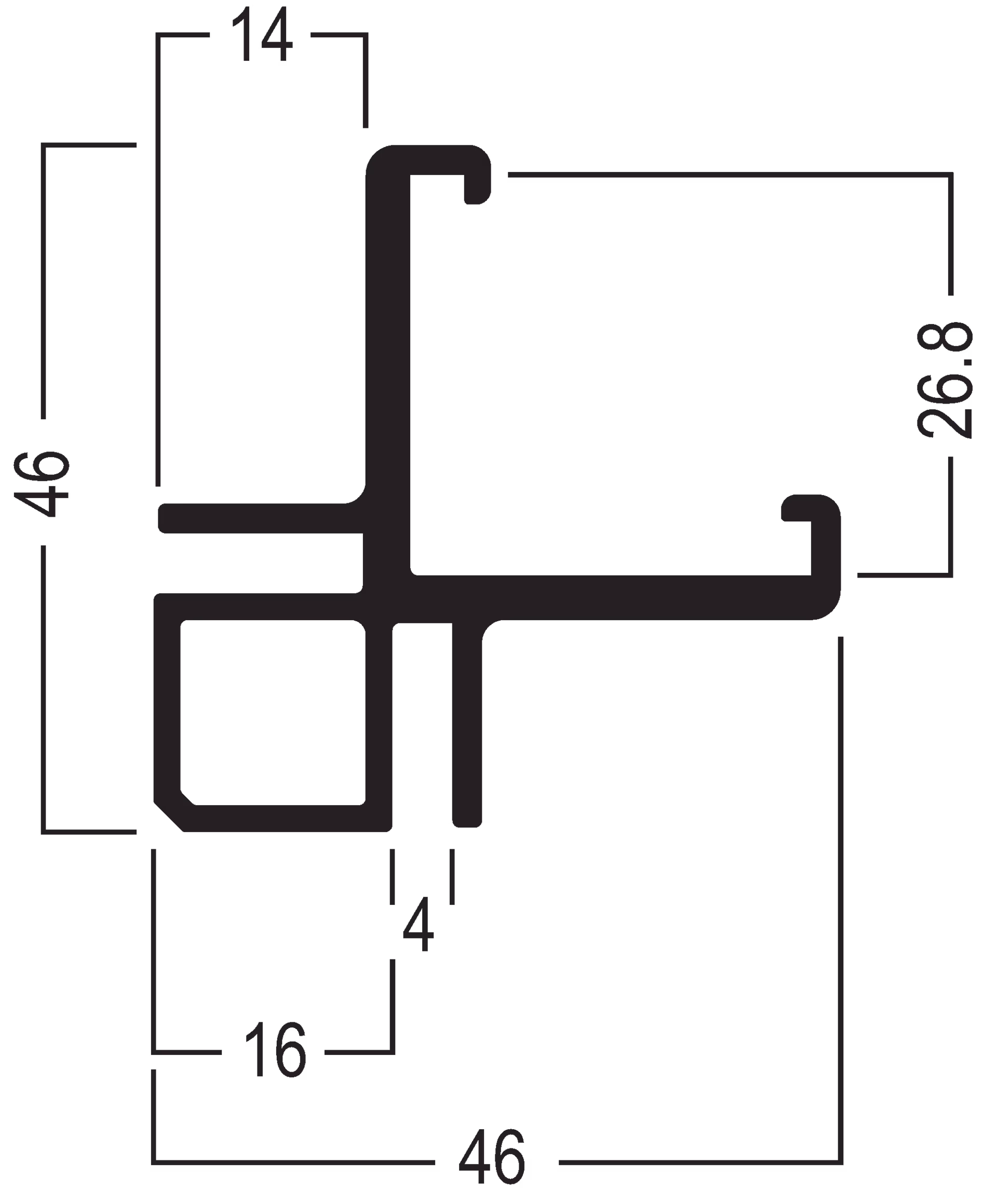

L 6000 × W 46 × H 46 mm

Available Material

matt anodized, silver (E6/EV1)

Order now.

Technical Data.

Length:

6000 mm

Weight:

5.939 kg

Width:

46 mm

Height:

46 mm

M_1332.pdf

M_1332.dwg

M_1332.dxf

XM_1332.pdf

Accessories.

M 1313.50

100 meter roll

for fabric

W 14 × H 3 mm

translucent

M 1326.01

for M 1332

L 6000 × W 28 × H 26 mm

matt anodized, silver (E6/EV1)

M 1329.01

for M 1332

L 80 × W 28 × H 20 mm

80 mm long

matt anodized, silver (E6/EV1)

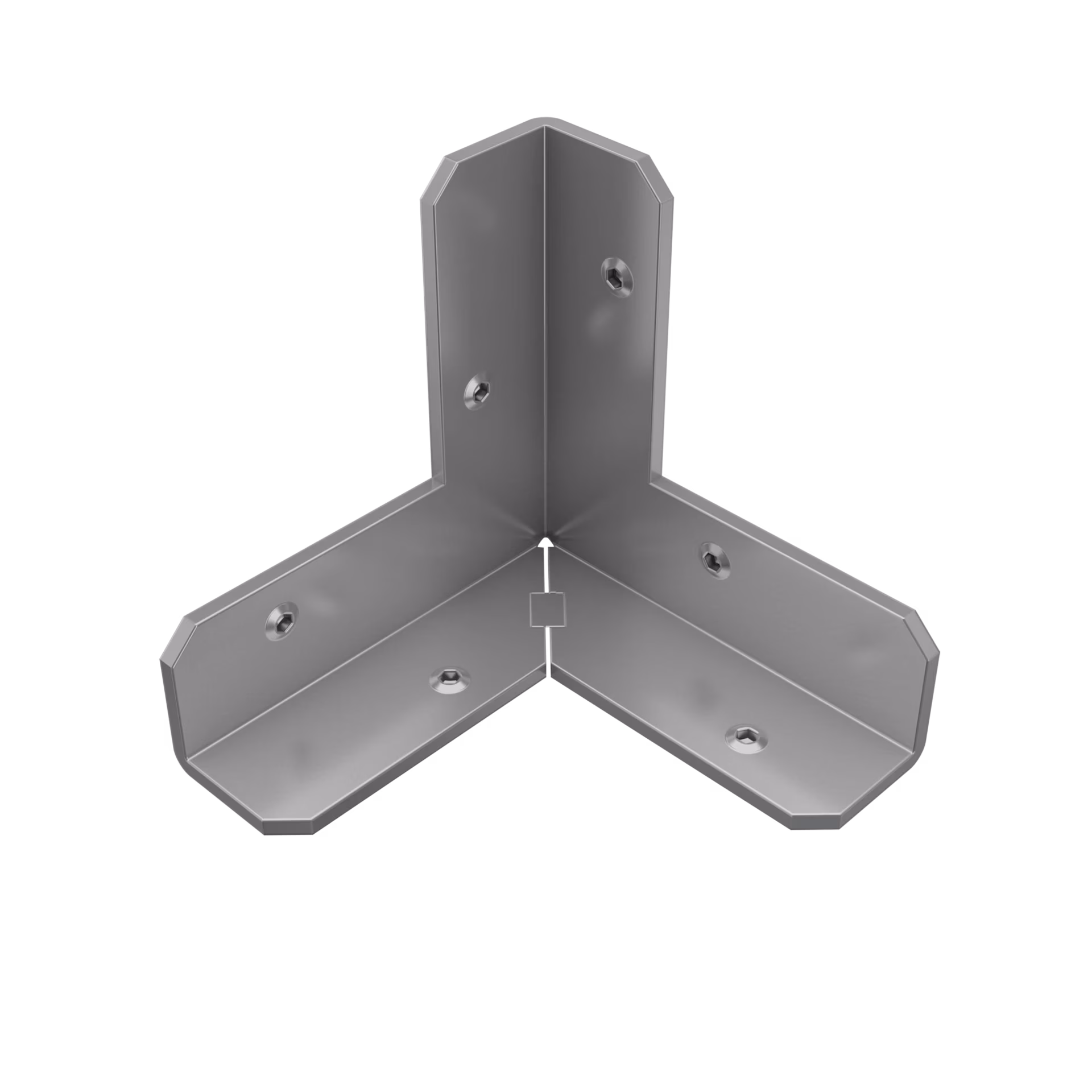

M 1334.37

internal

for 3 × M 1332

L 80 × W 80 × H 80 mm

zinc-plated
