Cable retaining | E 463.35

for system groove 4.3 mm
plastic, semi-hard
big, for system groove 4.3 mm
L 5000 × W 30 × H 30 mm

Available Material

light grey

Technical Data.

Length:

5000 mm

Weight:

1.195 kg

Width:

30 mm

Height:

30 mm

E_463.pdf
E_463.dwg
E_463.dxf
XE_463.pdf

Similar Products.

Extrusion connector

E 451.35

for wooden panels >13 mm

L 5000 × W 7 × H 6 mm

5000 mm long

Extrusion connector

E 452.35

for wooden panels >13 mm

L 5000 × W 5 × H 7 mm

5000 mm long

Technical Informations.

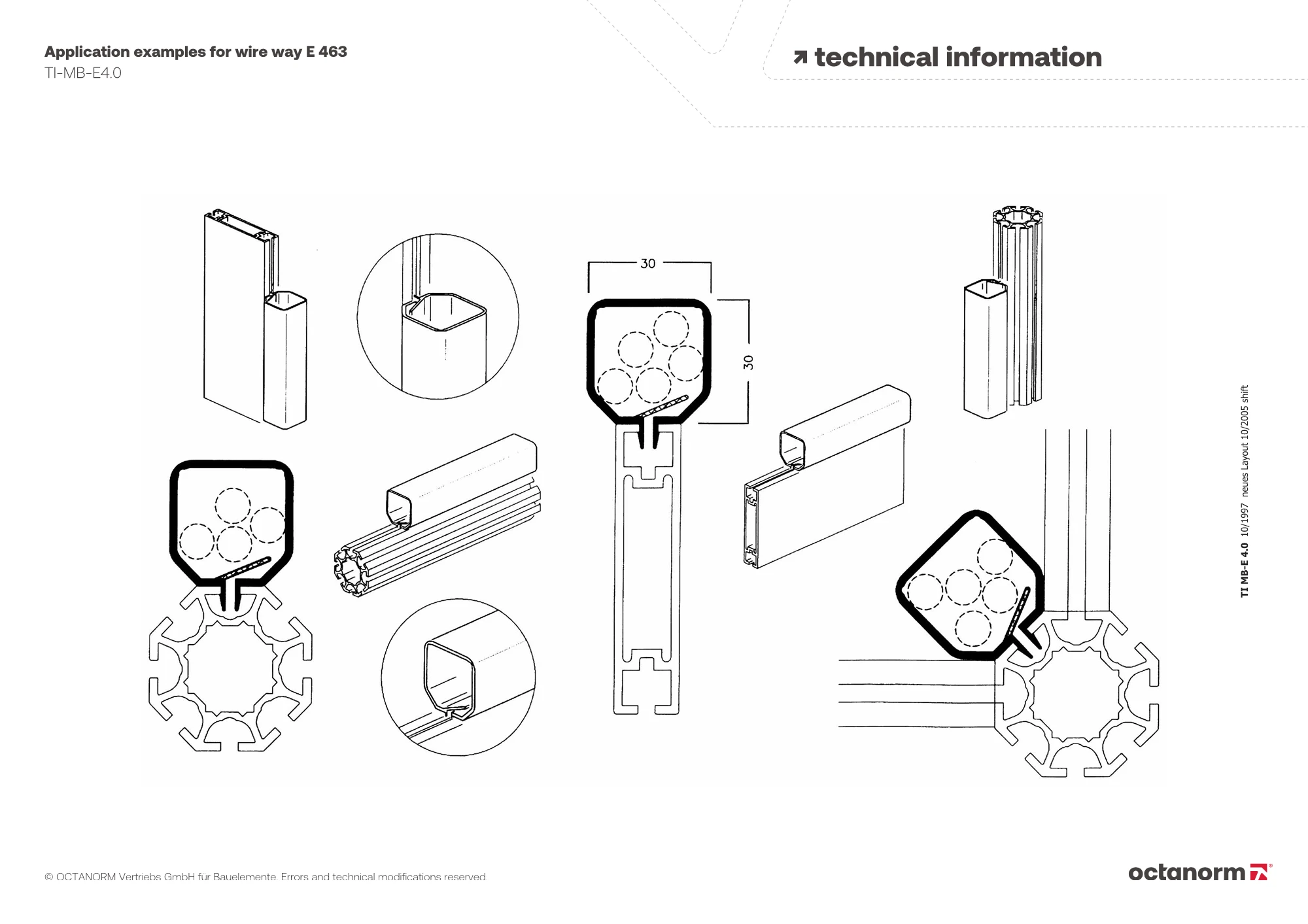

Application examples for wire way E 463

TI-MB-E4.0 TI-MB-E4.0
