Sliding door lock | E 295/N.33

for panel 4-6 mm
metal
for 4-6 mm panels, incl. 2 × key E 292/Sch, key can be removed when locked or unlocked
L 140 × W 80 × H 35 mm

Available Material

black

Technical Data.

Length:

140 mm

Weight:

0.084 kg

Width:

80 mm

Height:

35 mm

Technical Informations.

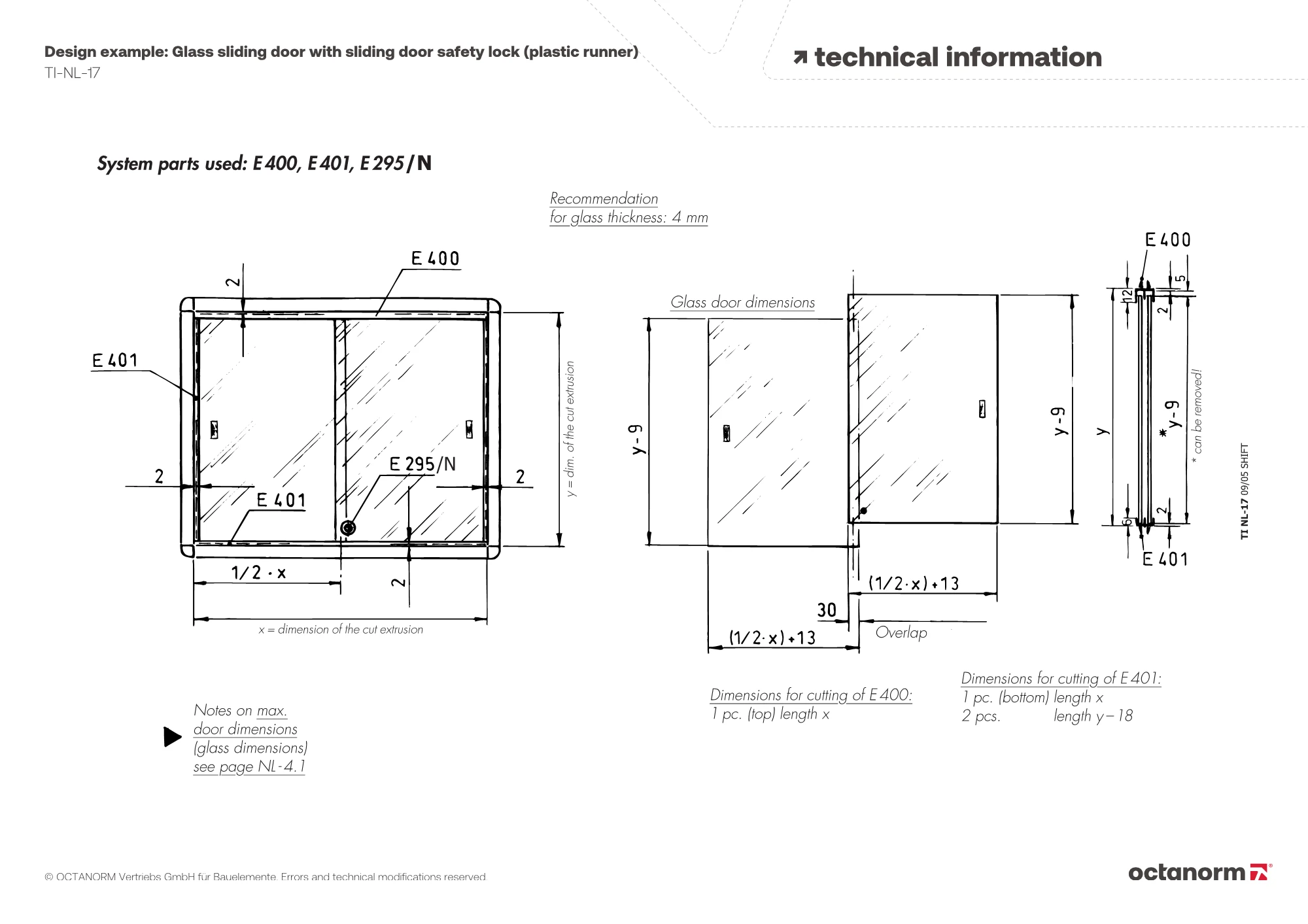

Design example: Glass sliding door with sliding door safety lock (plastic runner)

TI-NL-17 TI-NL-17

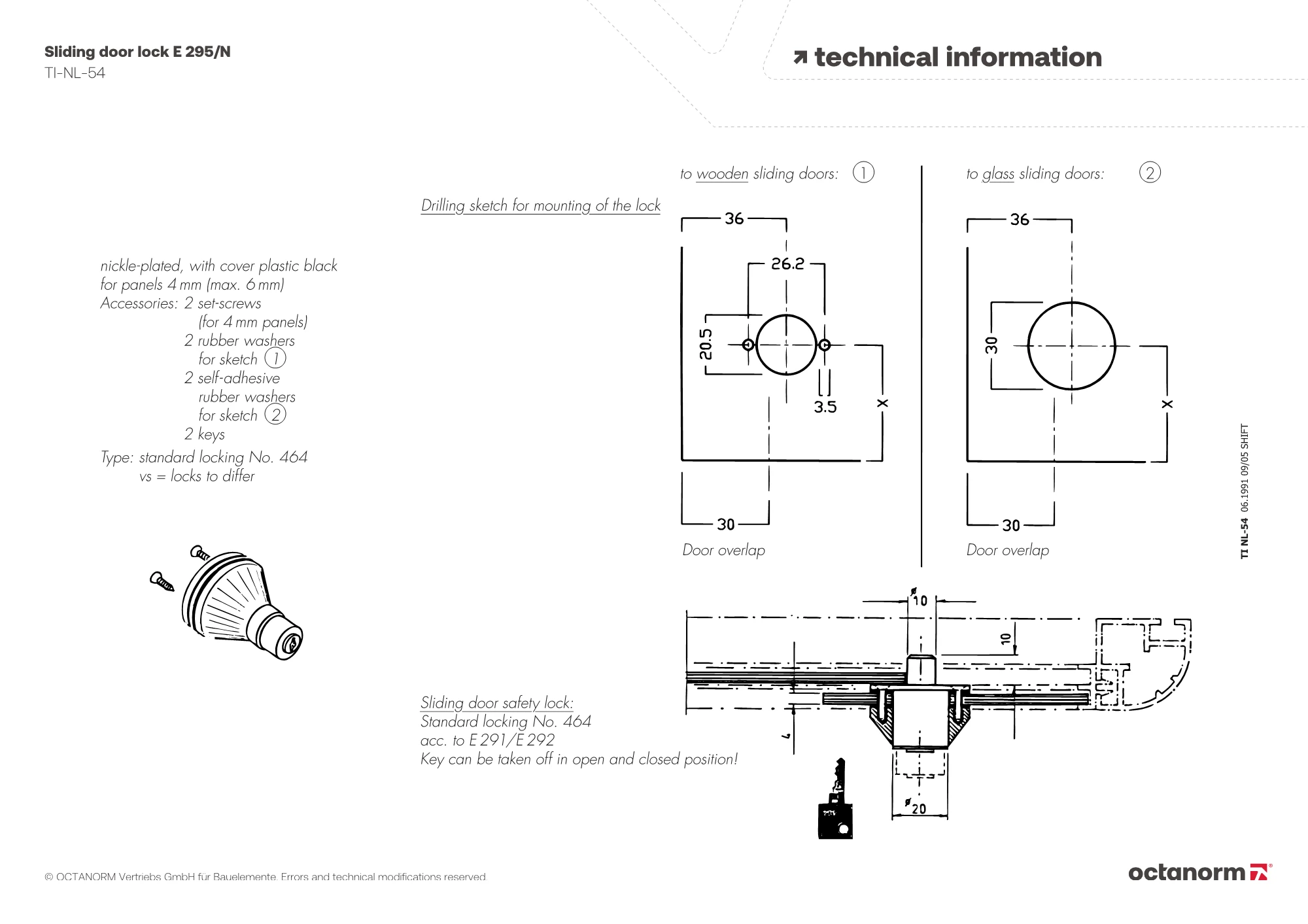

Sliding door lock E 295/N

TI-NL-54 TI-NL-54
