Sliding door lock | E 478.39

for E 472
zinc die cast
to be mounted in extrusion E 472, for use on left and right hand side, incl. 2 × key E 479, universal
L 695 × W 43 × H 28 mm

Available Material

matt chrome-plated

Technical Data.

Length:

695 mm

Weight:

0.097 kg

Width:

43 mm

Height:

28 mm

Technical Informations.

Glass sliding doors - Mounting instructions and functional dimensions

TI-NL-63.1 TI-NL-63.1

Calculation sheme for glass sliding doors (runner)

TI-NL-63.4.2 TI-NL-63.4.2

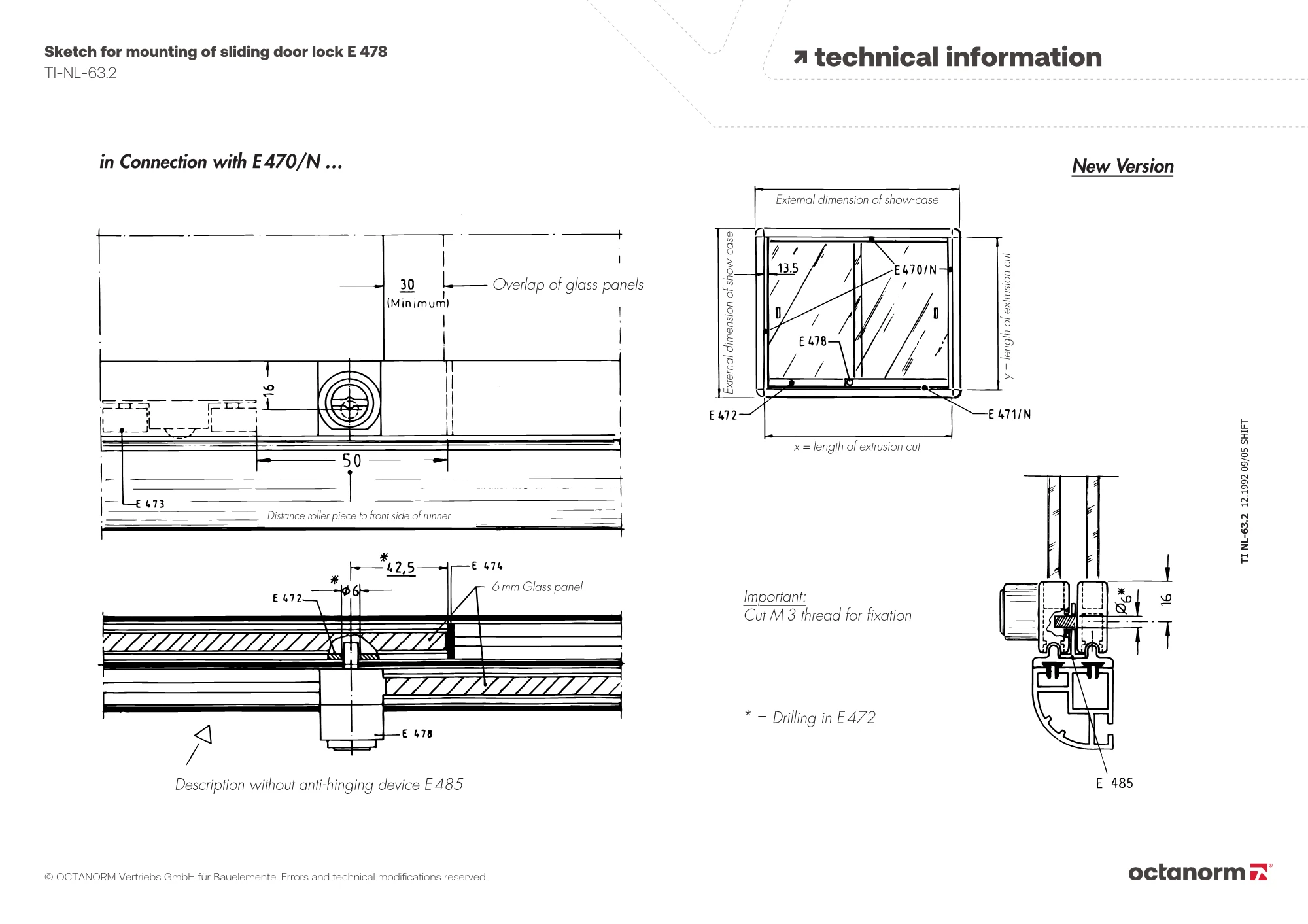

Sketch for mounting of sliding door lock E 478

TI-NL-63.2 TI-NL-63.2

Calculation sheme for glass sliding doors (runner)

TI-NL-63.4.1 TI-NL-63.4.1
