octalumina.
Contact Person.Tension fabric extr. | M 1901.01
Available Material
Technical Data.
Length:
6000 mm
Weight:
9.77 kg
Width:
120 mm
Height:
16 mm
Accessories.
Universal retainer
OL 230.37
ceiiling suspension/wall mount
for extrusion M 1901
L 62 × W 50 × H 43 mm
Internal connector
OL 240.00
straight
lock chamber 21 × 12 mm
L 180 × W 21 × H 12 mm
Retainer
OL 242.85
for corner solution
top/bottom
L 86 × W 57 × H 35 mm
Corner connector
Z 965B.00
90°
lock chamber 21 × 12 mm
L 55 × W 21 × H 12 mm
Contact Person.
Downloads.
Product Brochures
General Catalog General Catalog Extrusions Catalog Extrusions Catalog octaliving octaliving Tension Fabric Extrusions Tension Fabric ExtrusionsAssembly Instructions / User Manuals

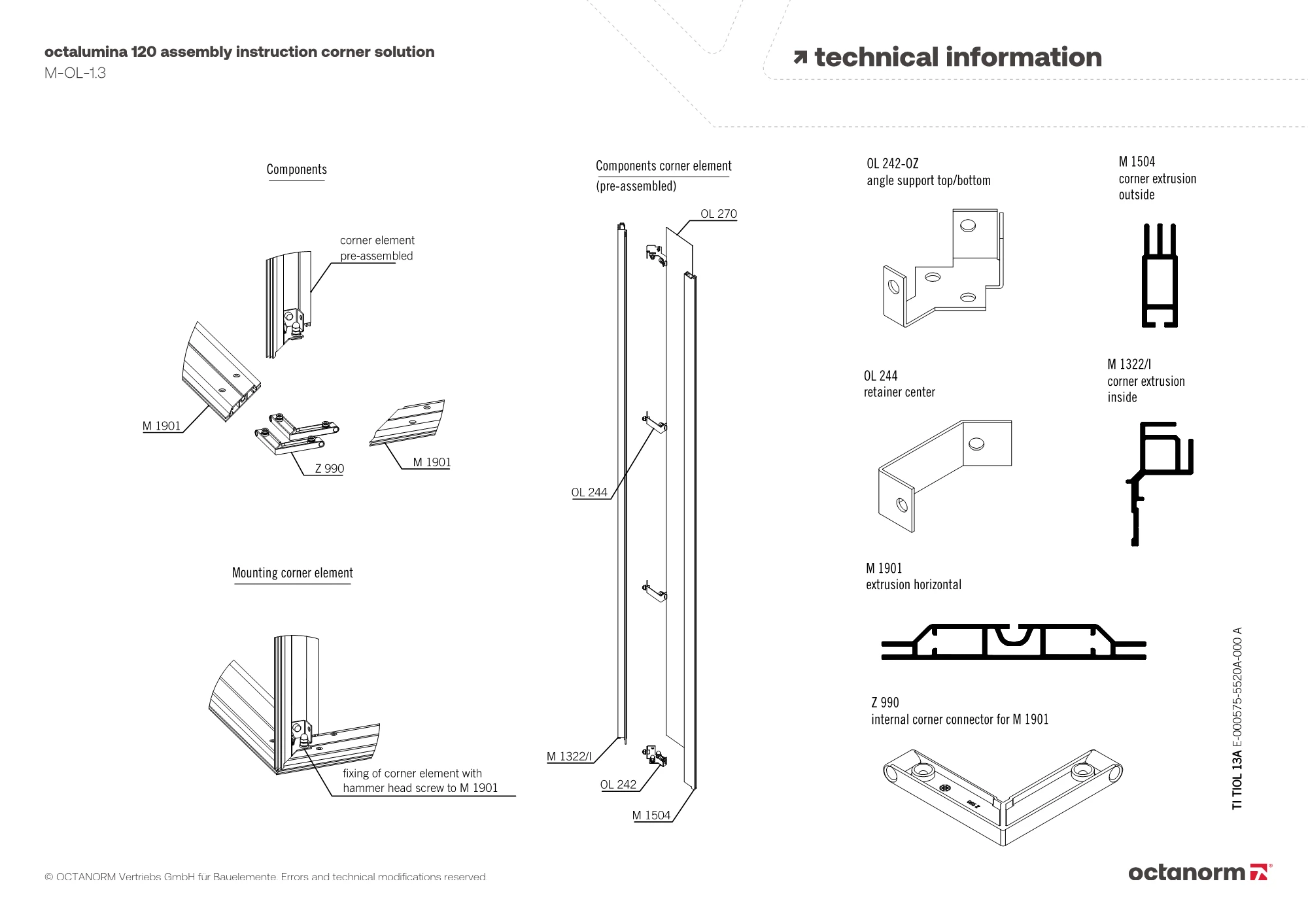

octalumina 120 assembly instruction corner solution octalumina 120 assembly instruction corner solution
