octalumina.
Contact Person.Tension fabric extr. | M 1935.01
Available Material
Technical Data.
Length:
6000 mm
Weight:
9.575 kg
Width:
80 mm
Height:
40 mm
Accessories.
Silicone edge
M 1313.50
100 meter roll
for fabric
W 14 × H 3 mm
Corner connector
M 1965B.00
90°
lock chamber 16 × 12 mm
L 55 × W 55 × H 16 mm
Internal connector
M 1967.00
straight
for extrusions M 1925 / M 1935
L 180 × W 16 × H 12 mm
Internal connector
M 1977.00
straight
for extrusions M 1935
L 180 × W 21 × H 8 mm
Contact Person.
Downloads.
Product Brochures
General Catalog General Catalog Extrusions Catalog Extrusions Catalog octaliving octaliving Tension Fabric Extrusions Tension Fabric ExtrusionsAssembly Instructions / User Manuals

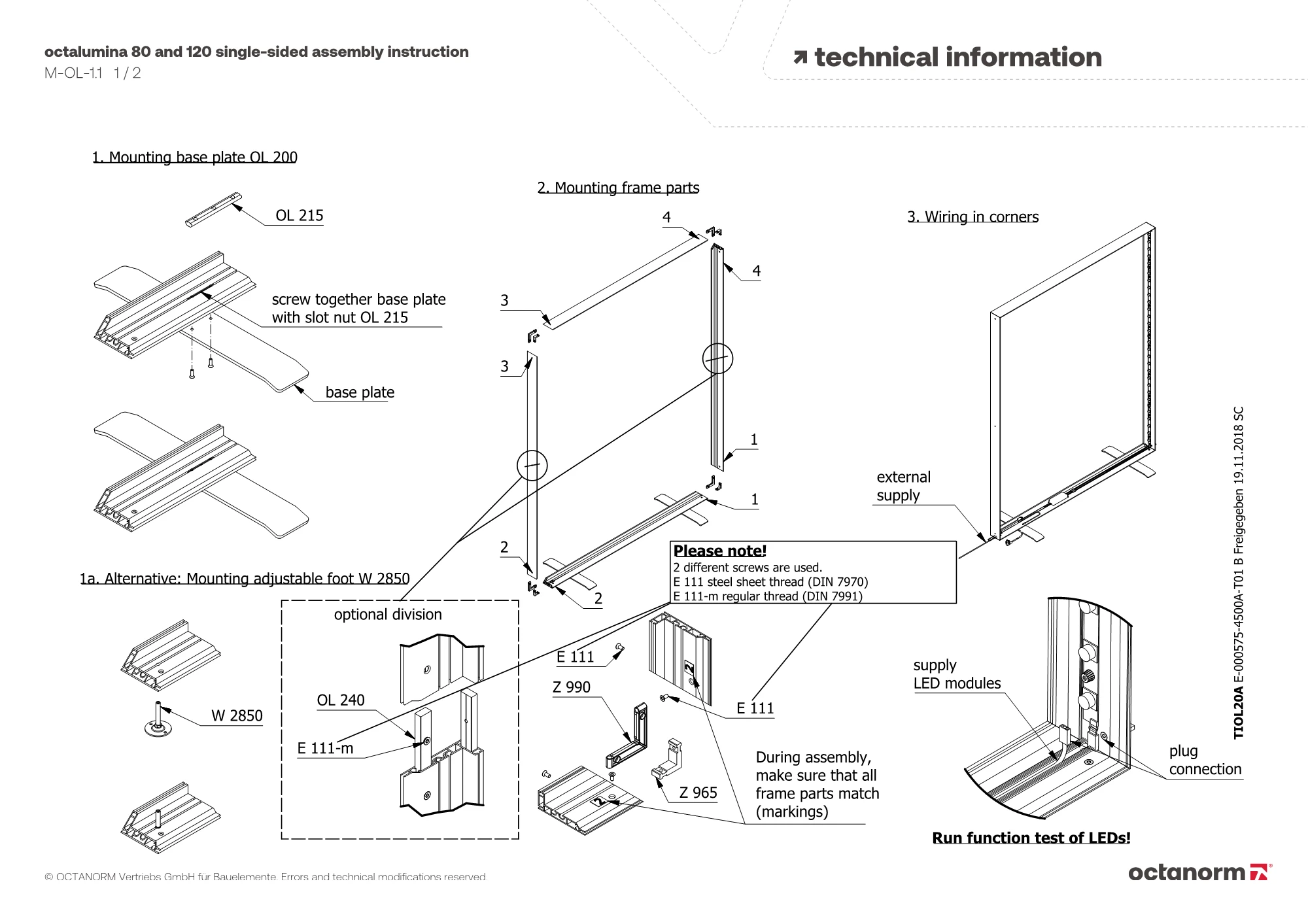

octalumina 80 and 120 single-sided assembly instruction octalumina 80 and 120 single-sided assembly instruction
