Corner upright extrusion | S 382.01

with silicone edge groove
aluminium
90°, for connection of octawall 40 frames, fabric can be mounted over the extrusion right to the edge
L 5000 × W 40 × H 40 mm

Available Material

matt anodized, silver (E6/EV1)

Technical Data.

Length:

5000 mm

Weight:

6.912 kg

Width:

40 mm

Height:

40 mm

S_382.pdf
S_382.dxf
S_382_01.dwg
XS_382.pdf

Accessories.

End cap

S 383.35

for extrusion S 382

L 40 × W 40 × H 6 mm

Technical Informations.

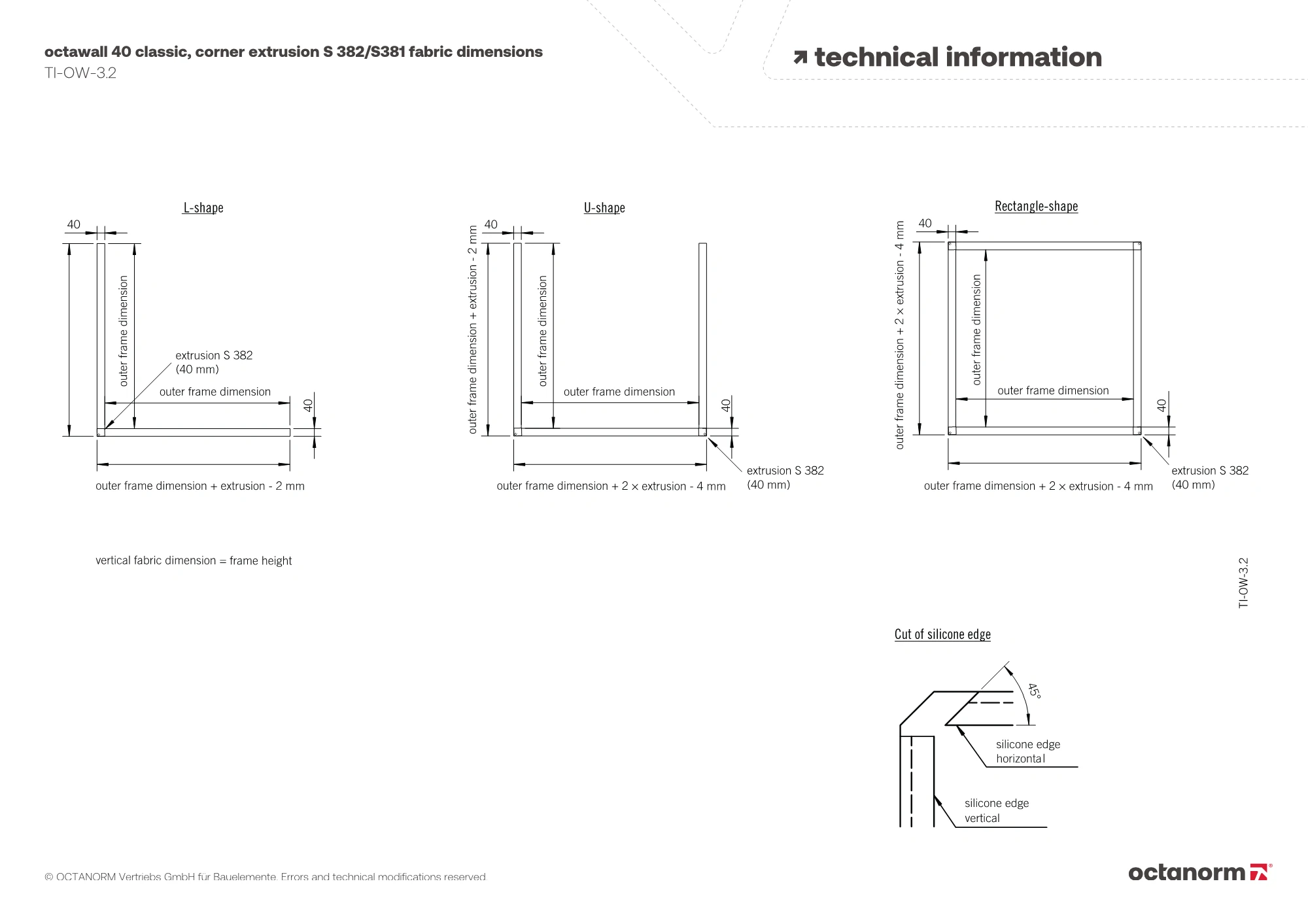

octawall 40 classic, corner extrusion S 382/S381 fabric dimensions

TI-OW-3.2 TI-OW-3.2
