Frame extrusion | WP 860.01

for double sided fabric / panel
aluminium
for mounting either fabric (with silicone edge M 1313) or panels (with hook tape W 840 and loop tape W 841)
L 6000 × W 80 × H 40 mm

Available Material

matt anodized, silver (E6/EV1)

!

Hook tape W 840 and loop tape W 841 (for mounting panels) have to be ordered separately.

Technical Data.

Length:

6000 mm

Weight:

11.918 kg

Width:

80 mm

Height:

40 mm

Technical Informations.

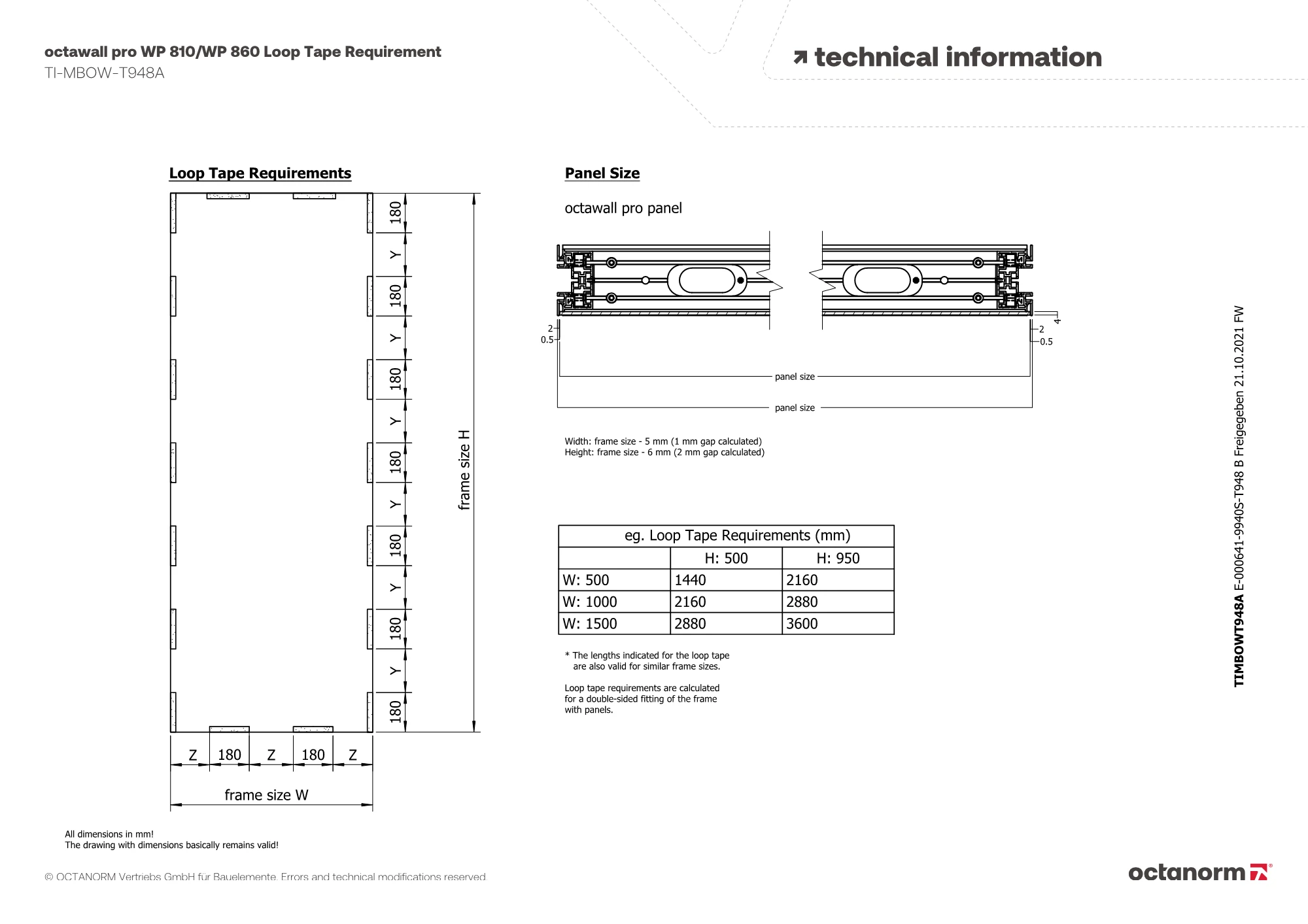

octawall pro WP 810/WP 860 Loop Tape Requirement

TI-MBOW-T948A TI-MBOW-T948A

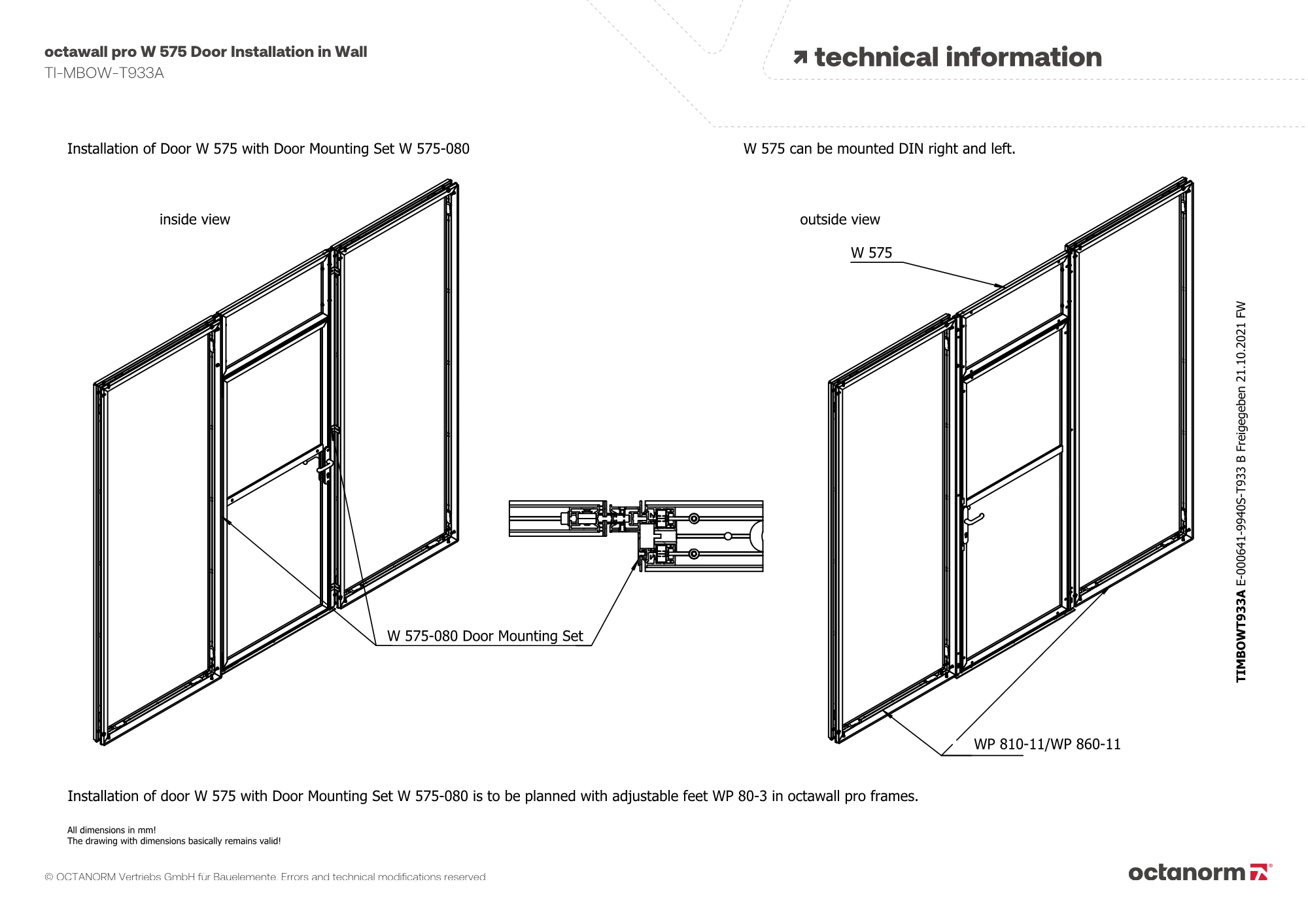

octawall pro W 575 Door Installation in Wall

TI-MBOW-T933A TI-MBOW-T933A
