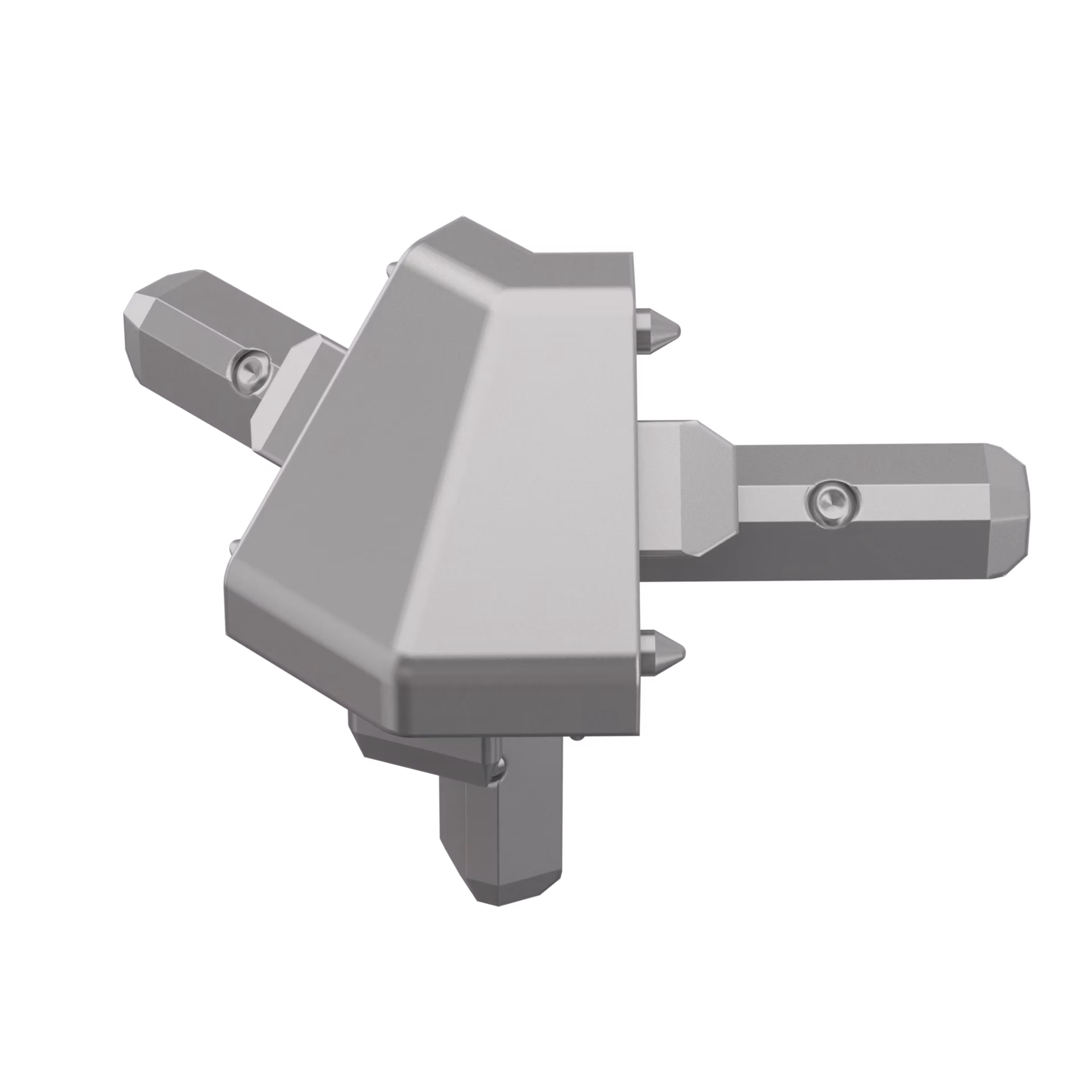

Contact Person.Knuckle | M 1689.39
for M 1622/M 1629
zinc die cast

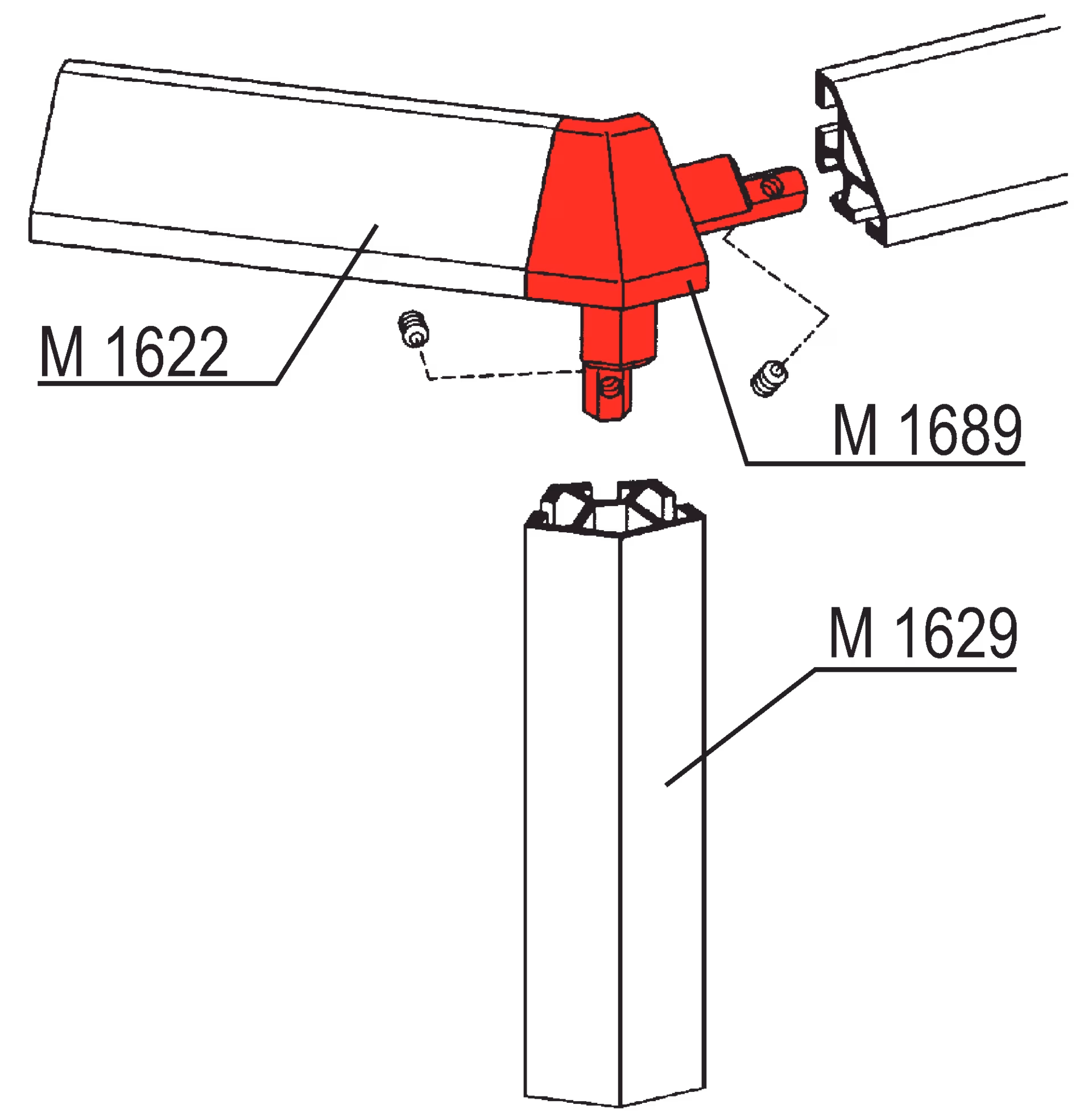

135°, for mounting 2 × triangular extrusion M 1622 and 1 × corner extrusion M 1629, incl. 3 × set screw M 1431/20 (M4)
L 65 × W 48 × H 30 mm
Available Material
matt chrome-plated
Order now.
Product Brochures
AW 887 / General Catalog / June 2026
Technical Information
TI-NL-27.1 / Design example: Knuckle joint - length of the leg / April 2014
