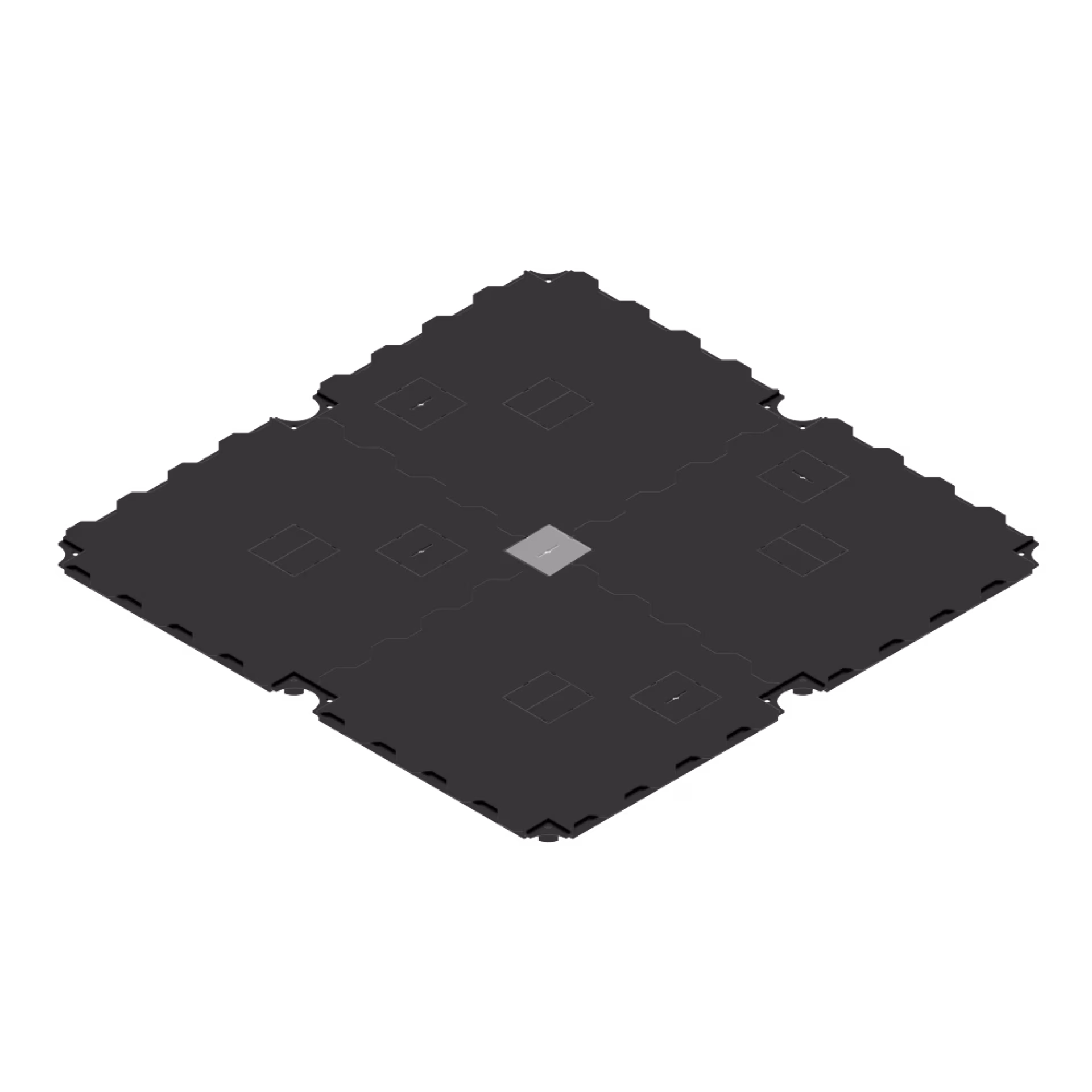

Base plate | F 304 Cfl S1.90

1 m² (4 floor panels)

polypropylene

1 m² consisting of 4 × floor panel, each floor panel with 2 × cable outlet (dia. 35/70 mm), incl. 4 × cover plate F 106 Cfl S1, 8 × cover plate F 107 Cfl S1 and 1 × connector F 314 Cfl S1, flame retardant Cfl-S1, connectors for F 304 not included

L 1017 × W 1017 × H 43 mm

Available Material

black

Order now.

!

cable outlets dia. 35/70 mm

Technical Data.

Length:

998 mm

Weight:

10.96 kg

Width:

998 mm

Height:

43 mm

F_304_Cfl_S1.pdf

XF_304_Cfl_S1.pdf

F_304_Cfl_S1_03.dwg

F_304_Cfl_S1_03.dxf

Technical Informations.

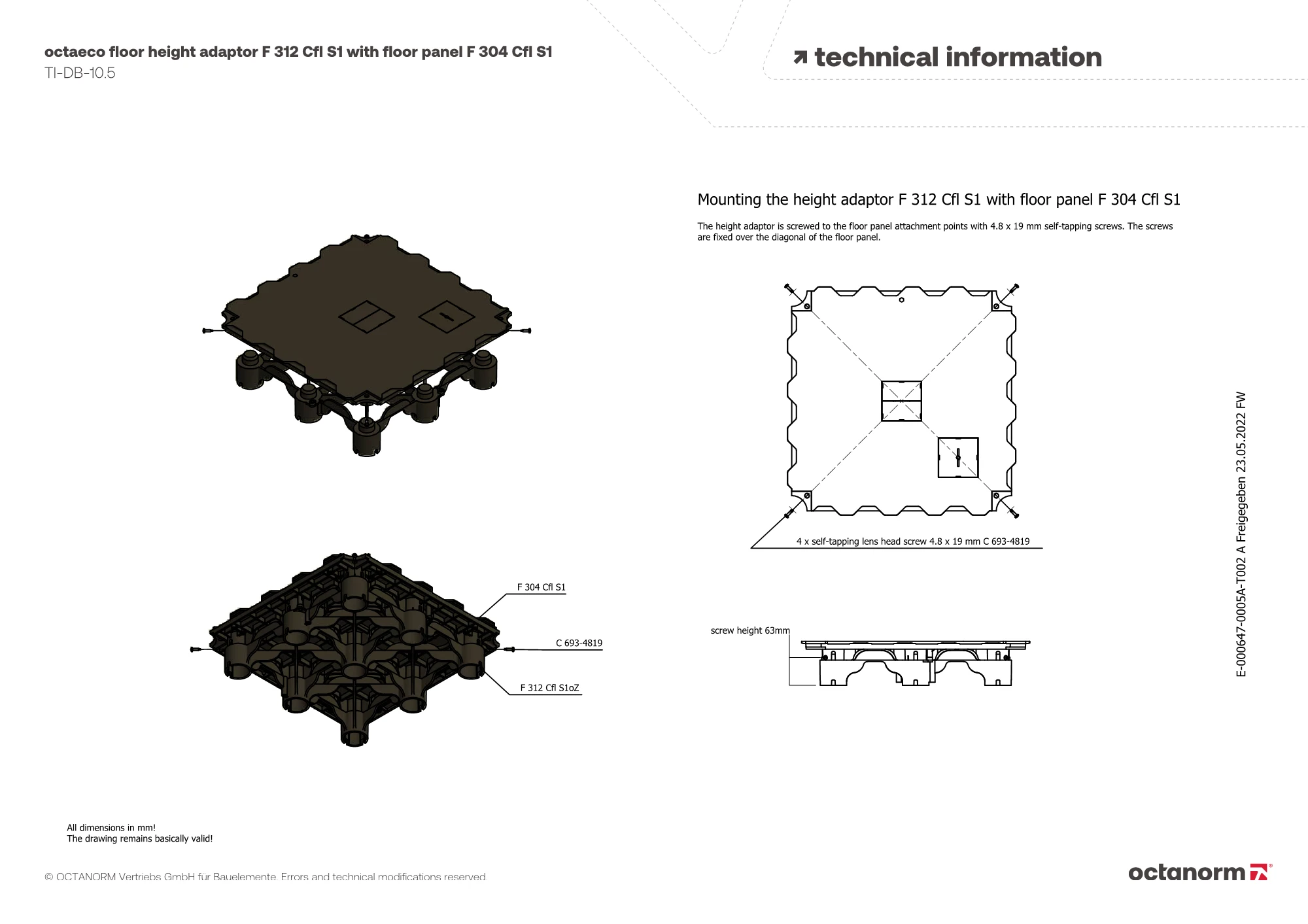

octaeco floor height adaptor F 312 Cfl S1 with floor panel F 304 Cfl S1

TI-DB-10.5 TI-DB-10.5

octaeco floor floor laying example

TI-DB-10.0 TI-DB-10.0

octaeco floor connectors F 314 Cfl S1

TI-DB-10.2 TI-DB-10.2

octaeco floor corner mounting position SO 620

TI-DB-10.8 TI-DB-10.8

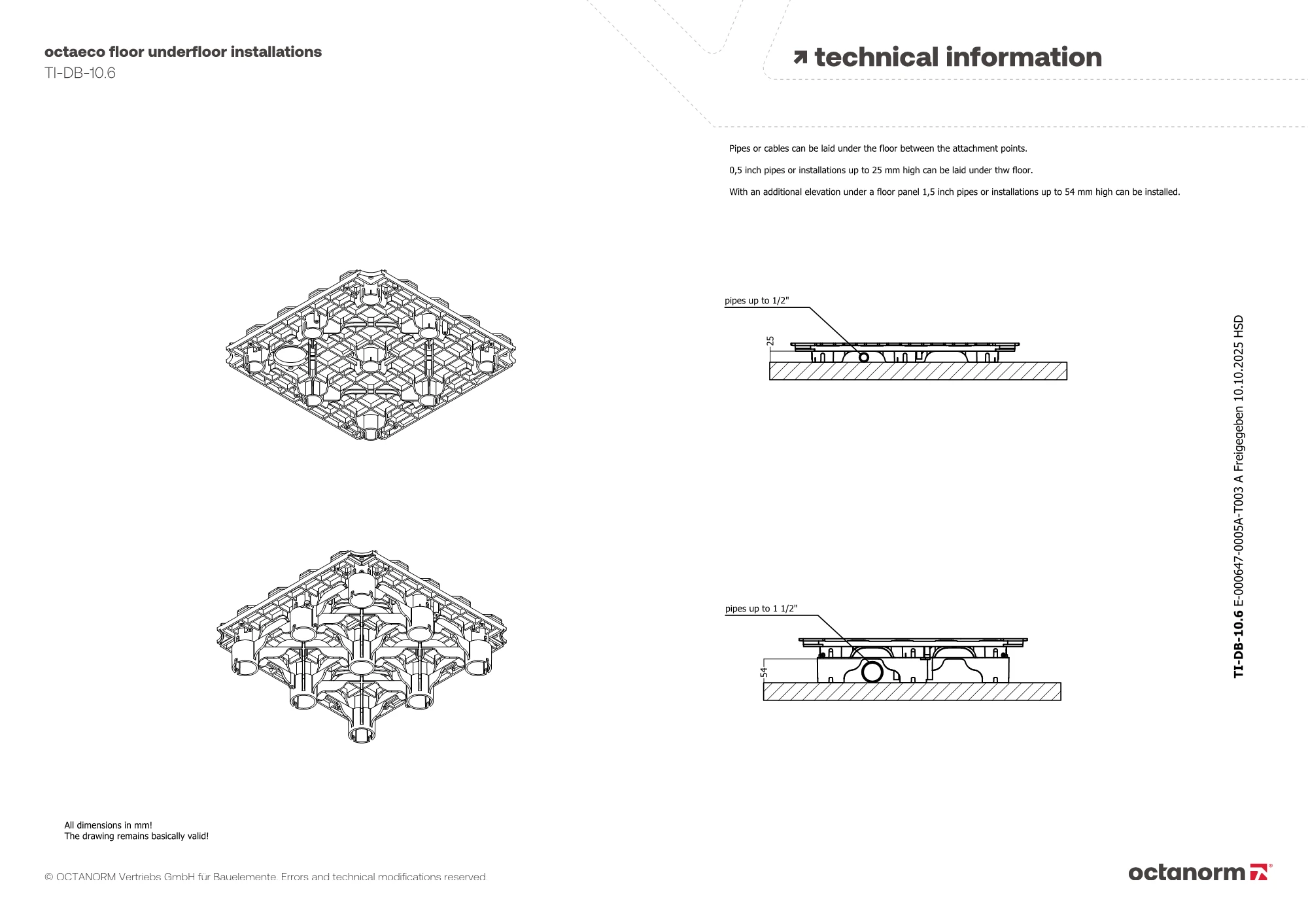

octaeco floor underfloor installations

TI-DB-10.6 TI-DB-10.6

octaeco floor corner mounting position SO 630

TI-DB-10.9 TI-DB-10.9

octaeco floor removing inspection panel F 308 Cfl S1

TI-DB-10.1 TI-DB-10.1

octaeco floor positioning of spacer brackets F 313 Cfl S1 for plinth panel

TI-DB-10.7 TI-DB-10.7

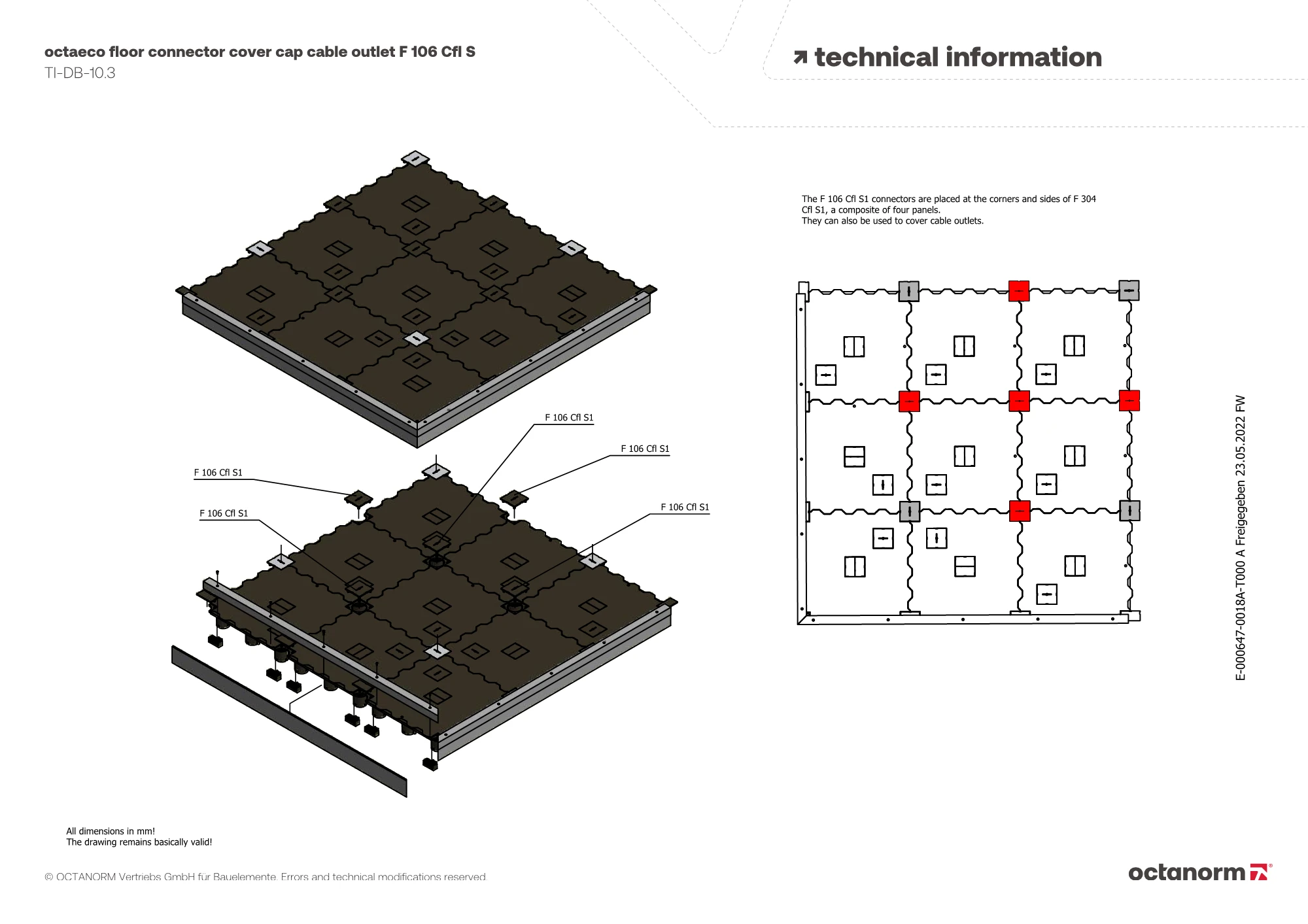

octaeco floor connector cover cap cable outlet F 106 Cfl S

TI-DB-10.3 TI-DB-10.3

octaeco floor half cover cap cable outlet F 107 Cfl S1

TI-DB-10.4 TI-DB-10.4
