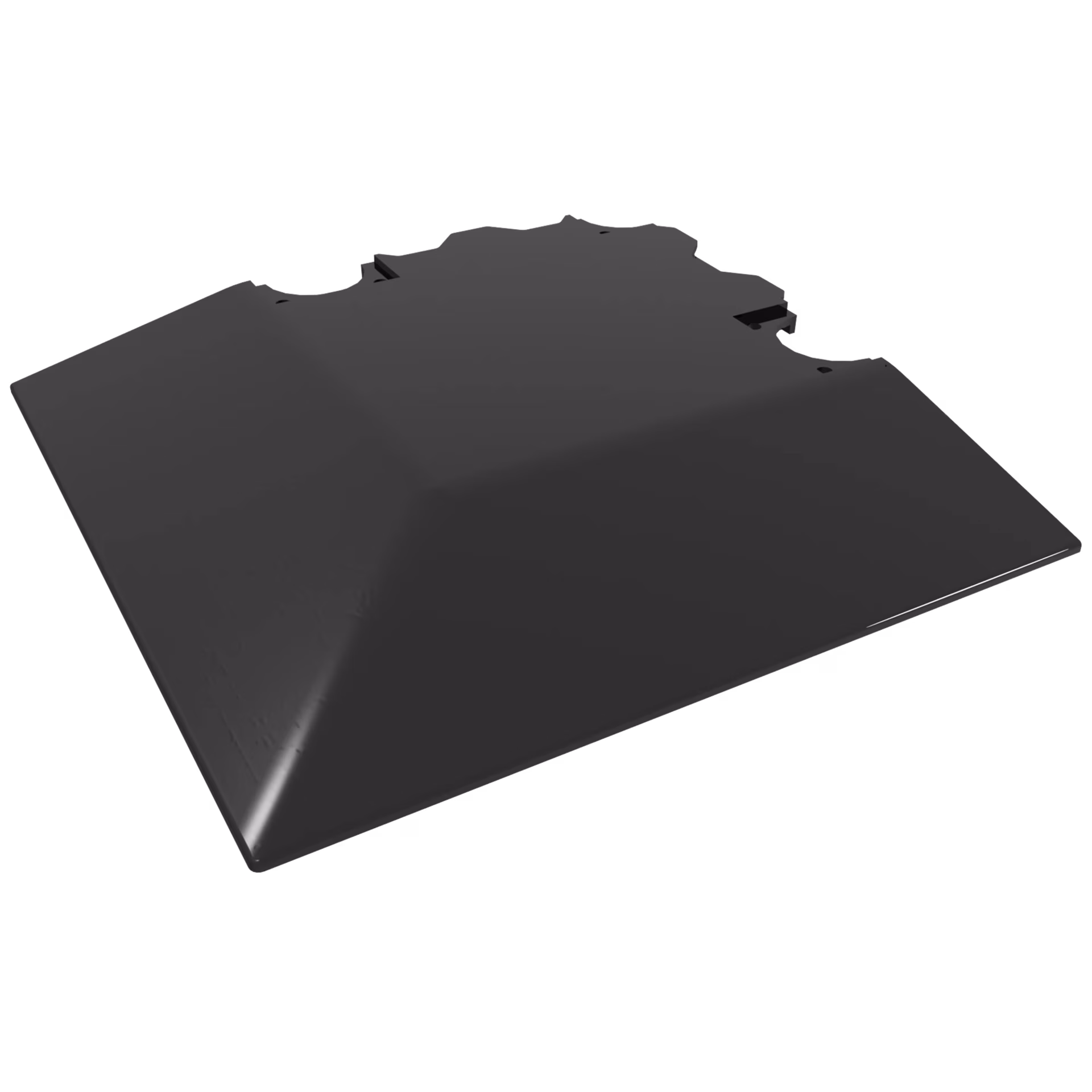

Slope edge corner tile | F 309 Cfl S1.90

Corner
polypropylene
1 × Slope edge corner tile F 309-oZ Cfl S1 with 1 x cover plate F 314 Cfl S1 for connection with slope edge element F 315 Cfl S1, flame retardant Cfl-S1
L 467 × W 467 × H 42 mm

Available Material

black
Order now.

!

standard size of 500 x 500 mm is obtained incl. SO 640

Technical Data.

Length:

470 mm

Weight:

1.874 kg

Width:

470 mm

Height:

43 mm

F_309_Cfl_S1.pdf
XF_309_Cfl_S1.pdf
F_309_Cfl_S1_03.dwg
F_309_Cfl_S1_02.dxf

Technical Informations.

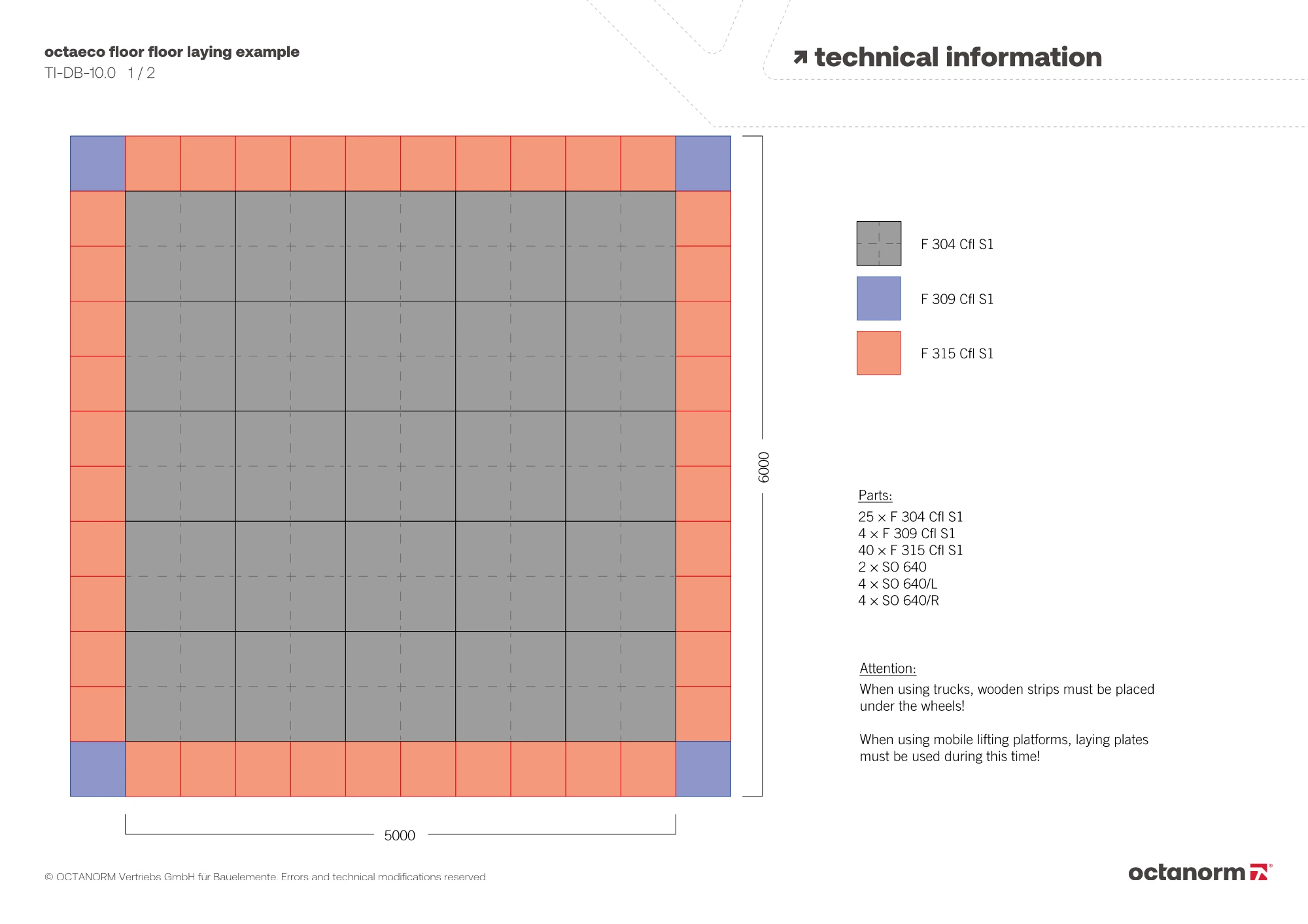

octaeco floor floor laying example

TI-DB-10.0 TI-DB-10.0

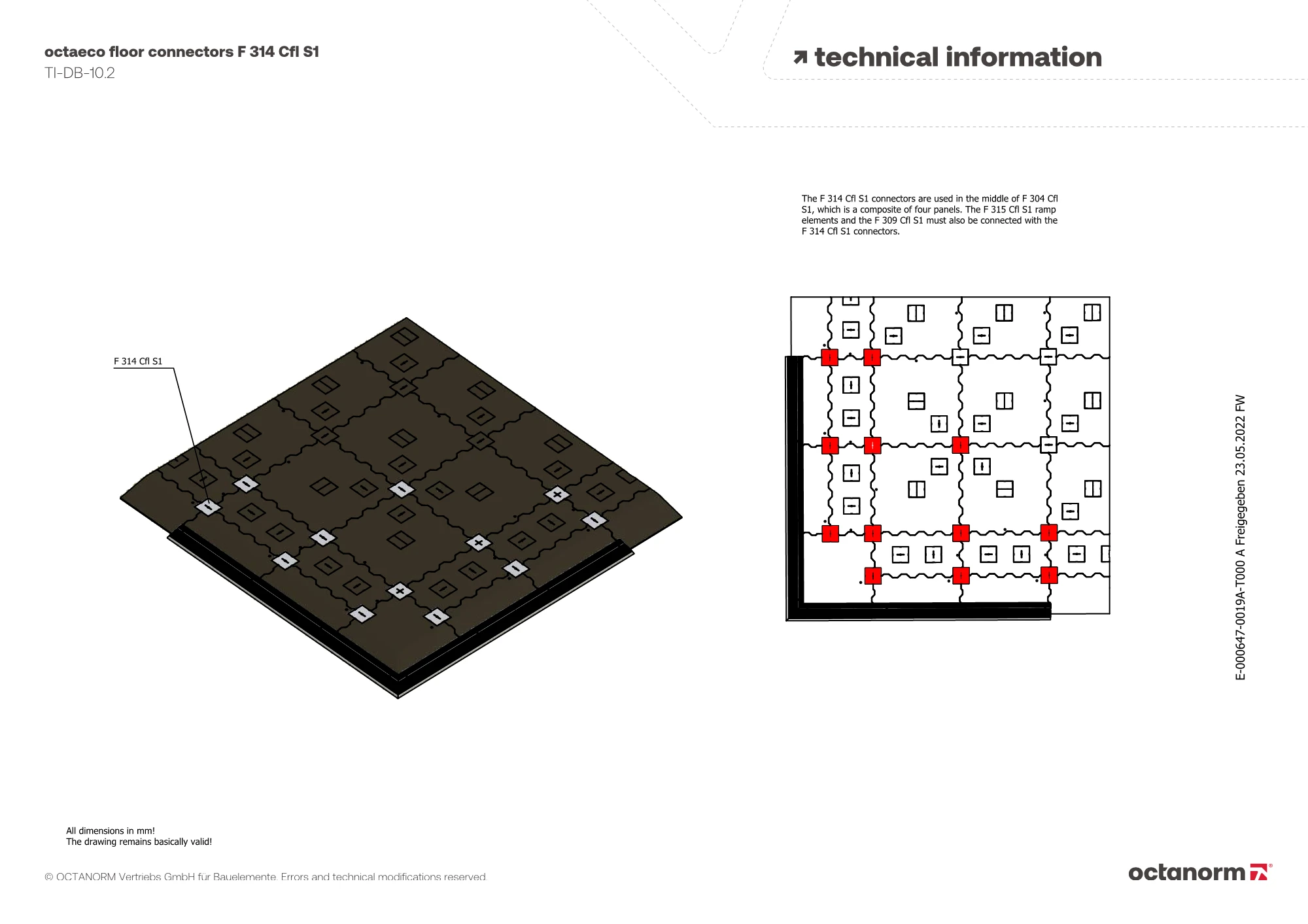

octaeco floor connectors F 314 Cfl S1

TI-DB-10.2 TI-DB-10.2
