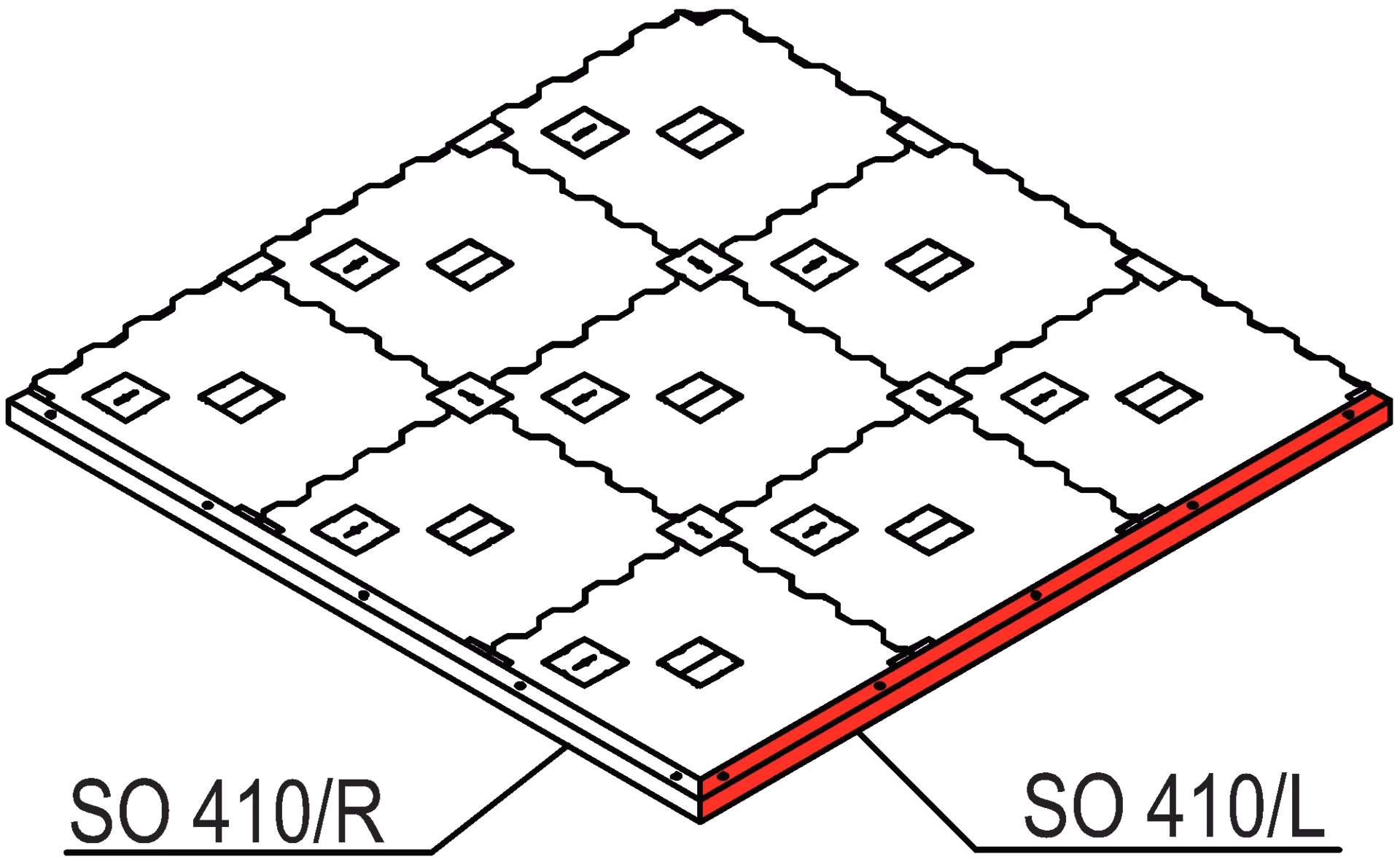

Skirting extrusion | SO 410/L.01

for floor panel F 304 Cfl S1

aluminium

1 × skirting extrusion made of SO 400, to cover the edges of the floor panel F 304 Cfl S1, incl. 5 × countersunk drill for woodscrews 4 mm dia., 45° miter cut on the left side

L 1502 × W 40 × H 40 mm

Available Material

matt anodized, silver (E6/EV1)

Order now.

Technical Data.

Length:

1502 mm

Weight:

0.649 kg

Width:

40 mm

Height:

40 mm

SO_410_L.pdf

XSO_410_L.pdf

SO_410_L.dwg

SO_410_L.dxf

Similar Products.

Skirting extrusion

SO 410/R.01

Miter 45°, right

for floor panel F 304 Cfl S1

L 1502 × W 40 × H 40 mm

Animation.

octaeco floo Skirting

Product Brochures

AW 887 / General Catalog / July 2026

AW 883 / octafloor / June 2023

2D/3D Data

CAD 3.0 - OCTAeco floor / 2D/3D Data - octaeco floor / May 2025

Technical Information

TI-DB-10.7 / octaeco floor positioning of spacer brackets F 313 Cfl S1 for plinth panel / July 2022

TI-DB-10.4 / octaeco floor half cover cap cable outlet F 107 Cfl S1 / July 2022

Technical Info Brochures

AW 8838 / octafloor Technical Info / November 2025
