Basic module

DFL 12TLA.01

Staircase landing

L 1.2 x W 1.5 m

L 1485 x W 1360 x H 3936 mm

Basic module

DFL 14TGA.01

Staircase

straight

L 4046 × W 1360 × H 3936 mm

Basic module

DFL 14TVA.01

Staircase with landing

straight/angled

L 5457 × W 1360 × H 3936 mm

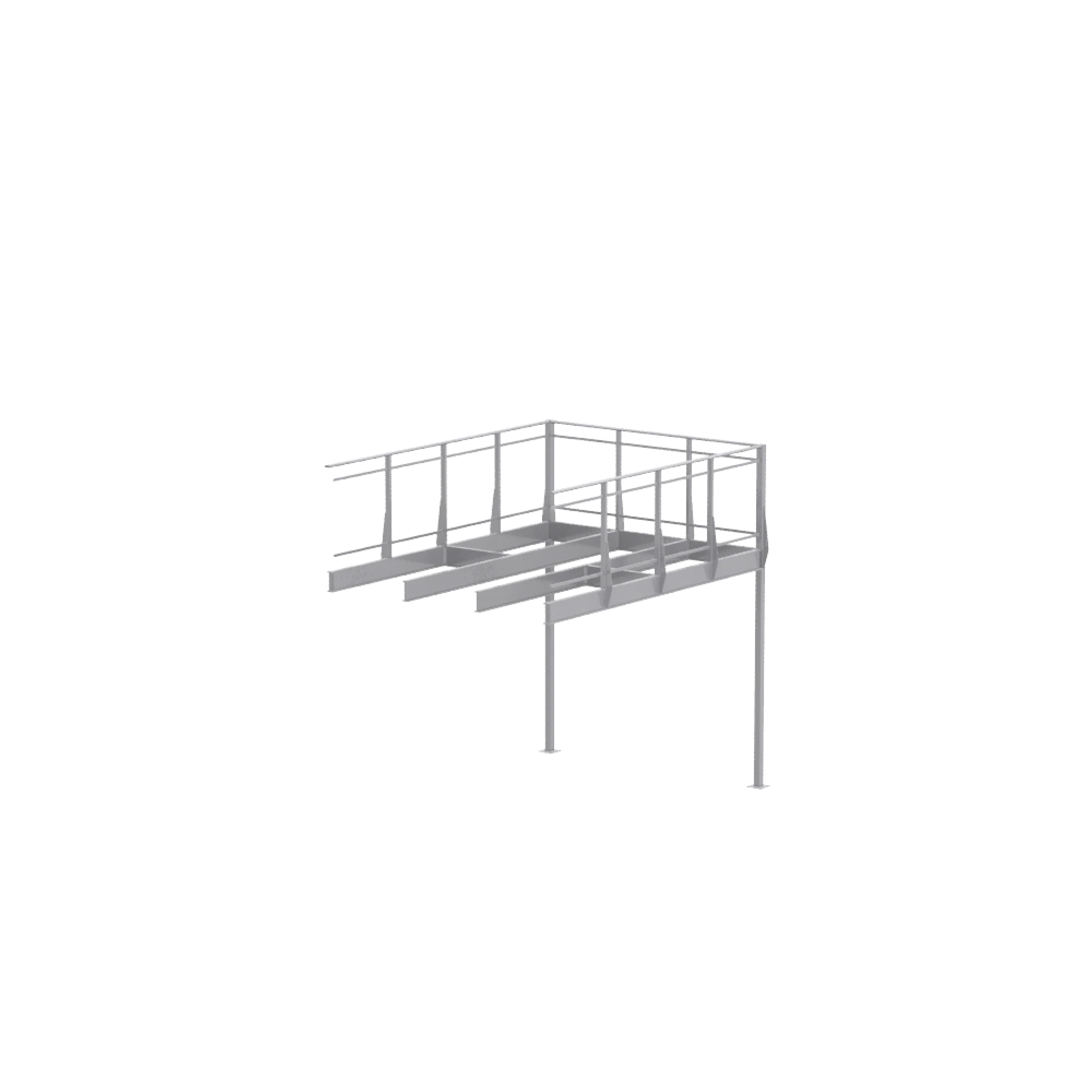

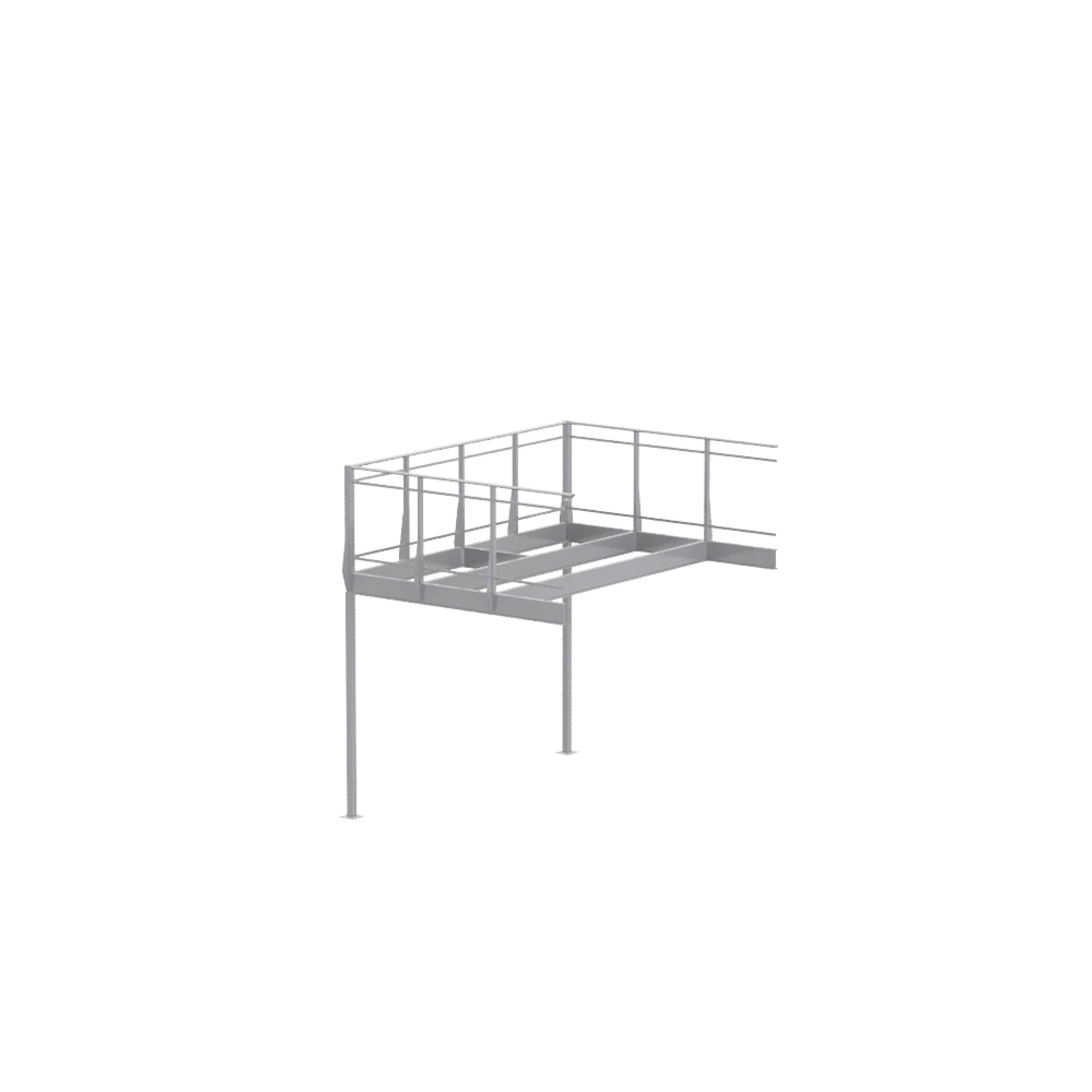

Extension module

DFL 34AMA.01

3 × 4 m

double deck

L 3050 × W 4040 × H 3936 mm

Basic module

DFL 34GMA.01

3 × 4 m

double deck

L 3050 × W 4040 × H 3936 mm

Extension module

DFL 43AMA.01

4 × 3 m

double deck

L 4040 × W 3050 × H 3936 mm

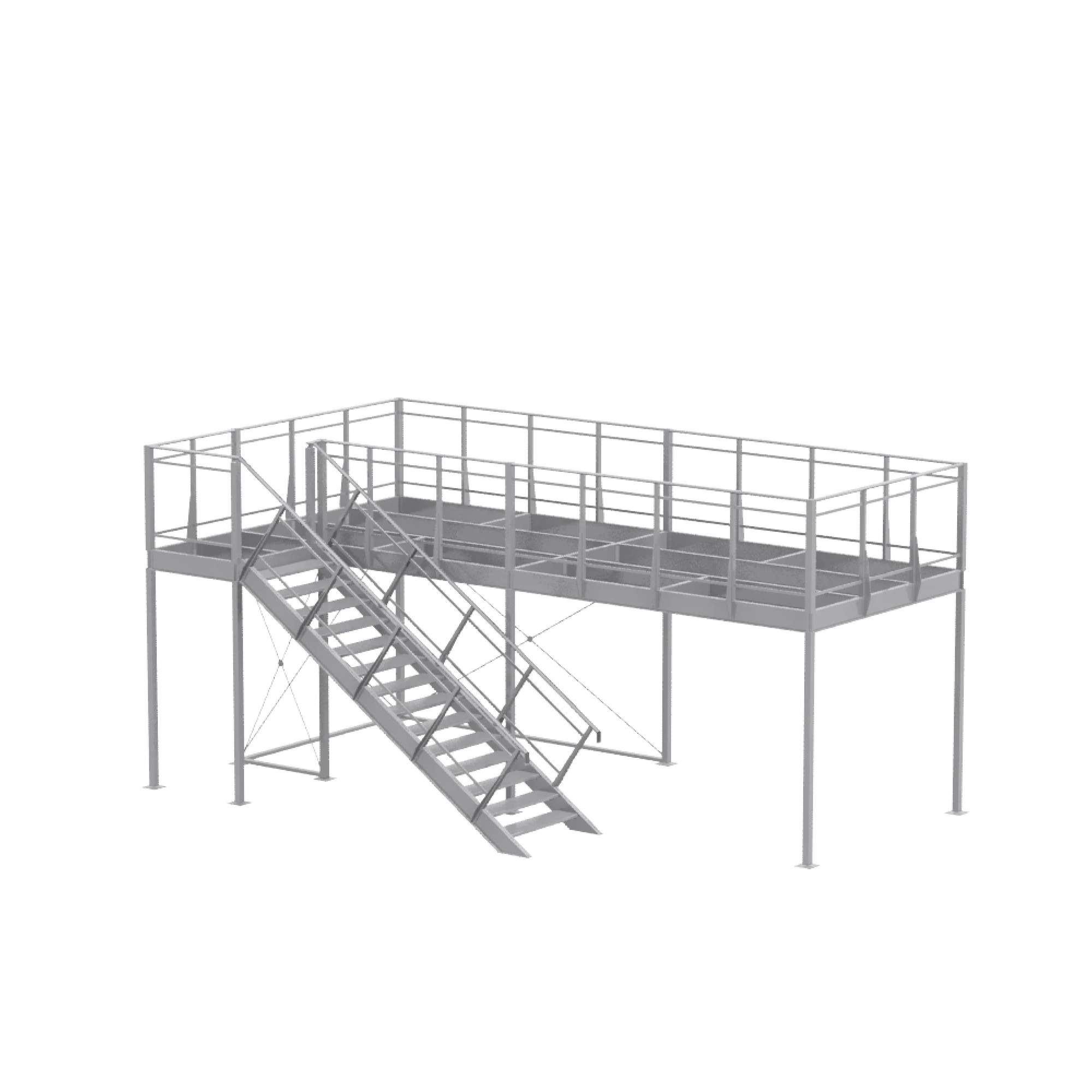

Basic module

DFL 43GMA.01

4 × 3 m

double deck

L 4040 × W 3050 × H 3936 mm

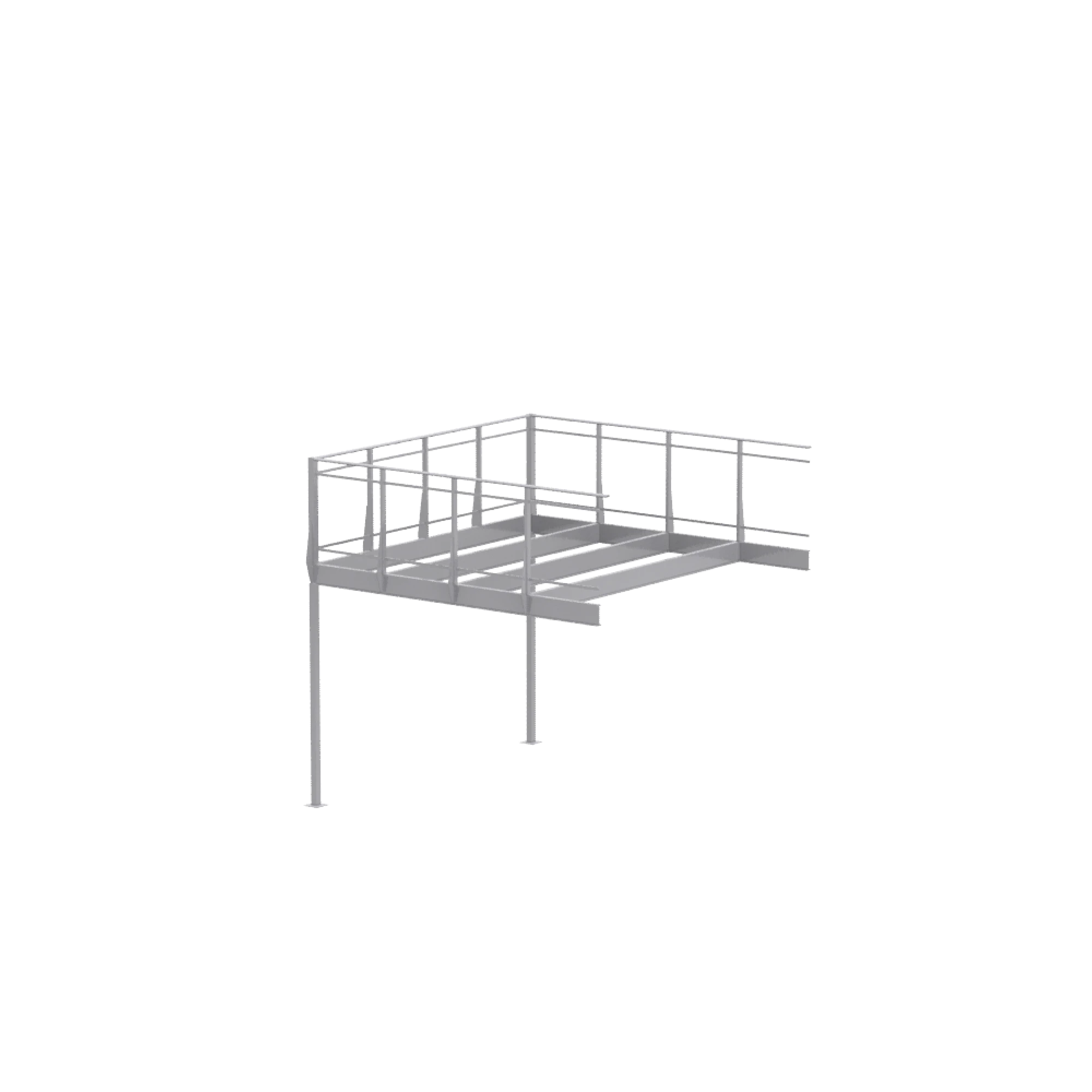

Extension module

DFL 44AMA.01

4 × 4 m

double deck

L 4040 × W 4040 × H 3936 mm

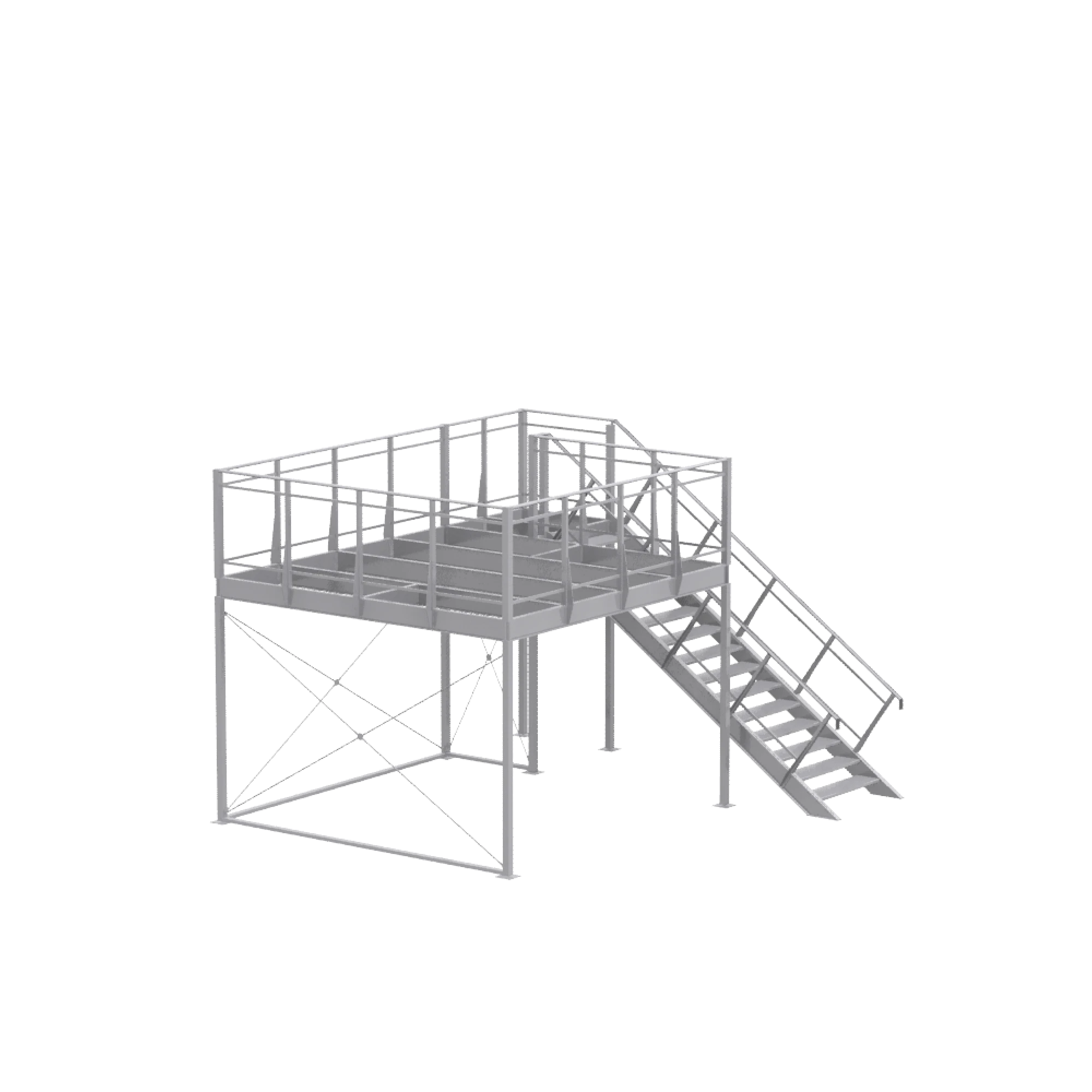

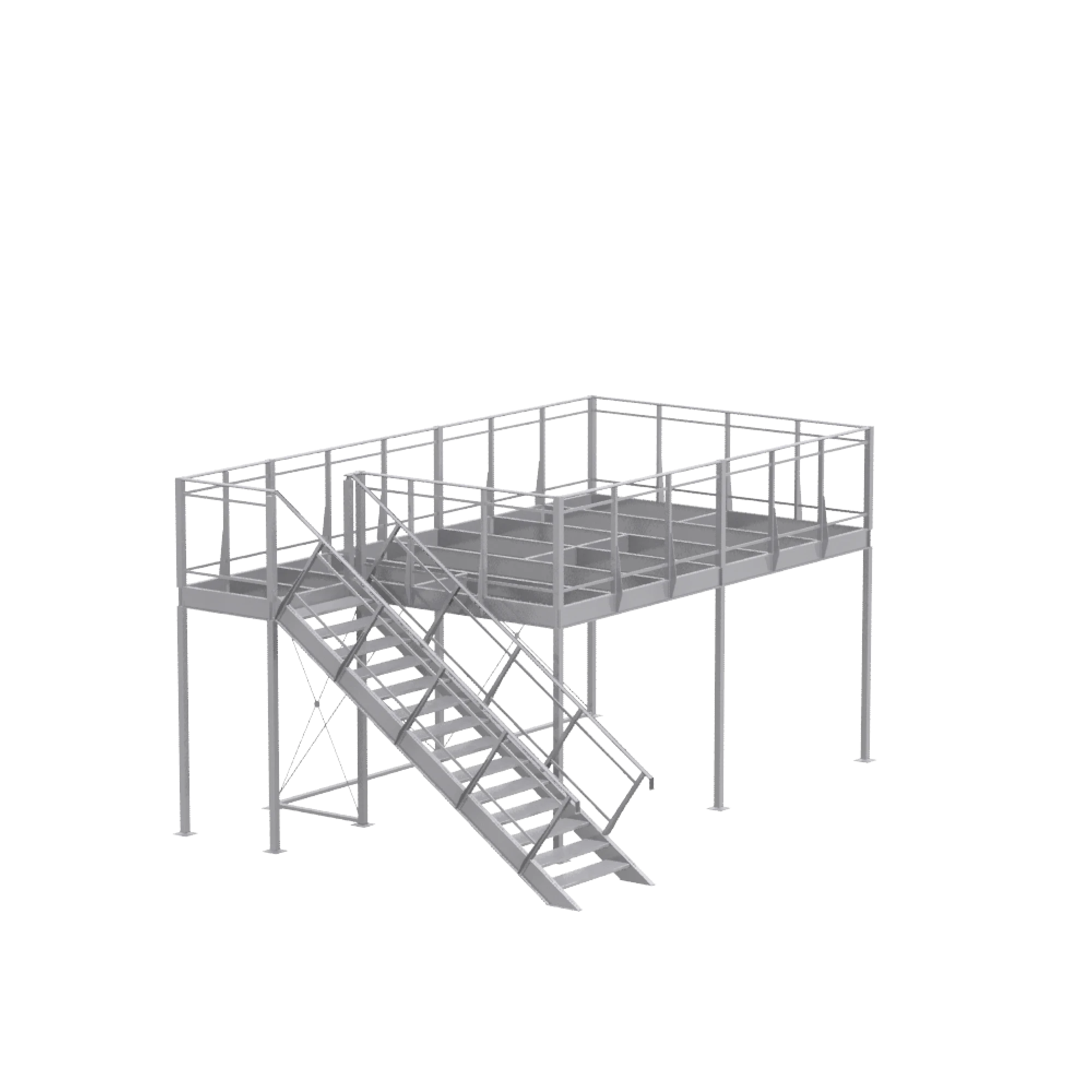

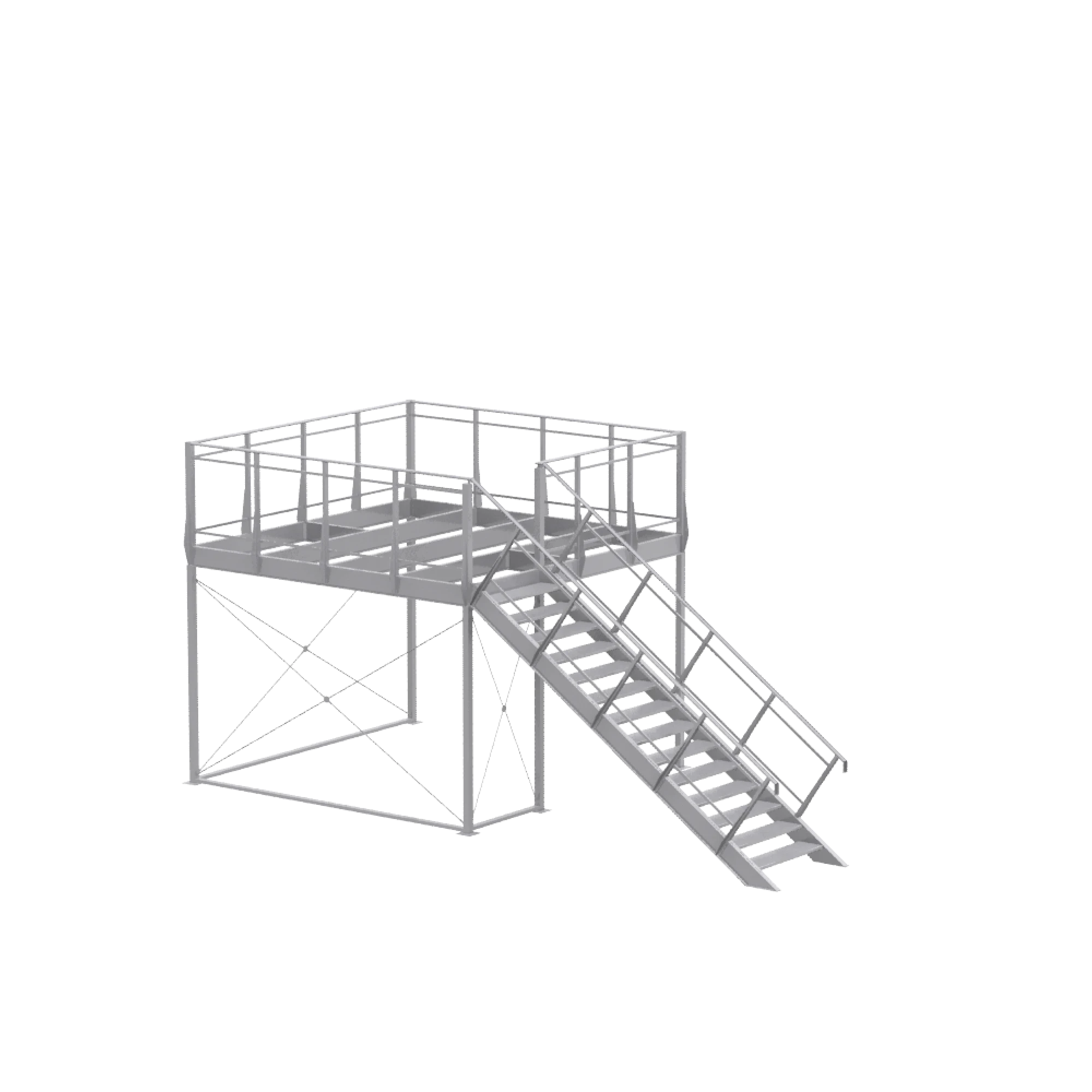

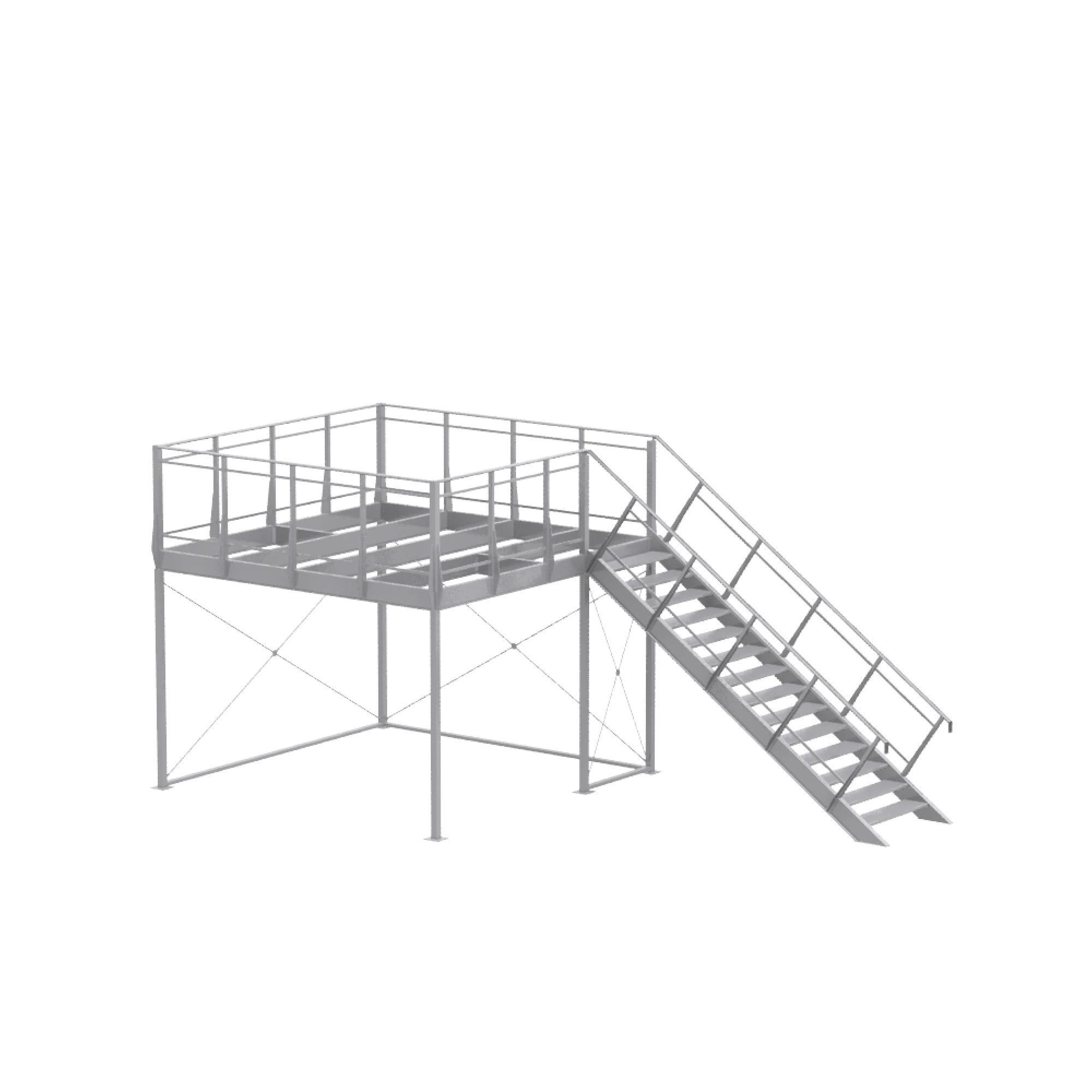

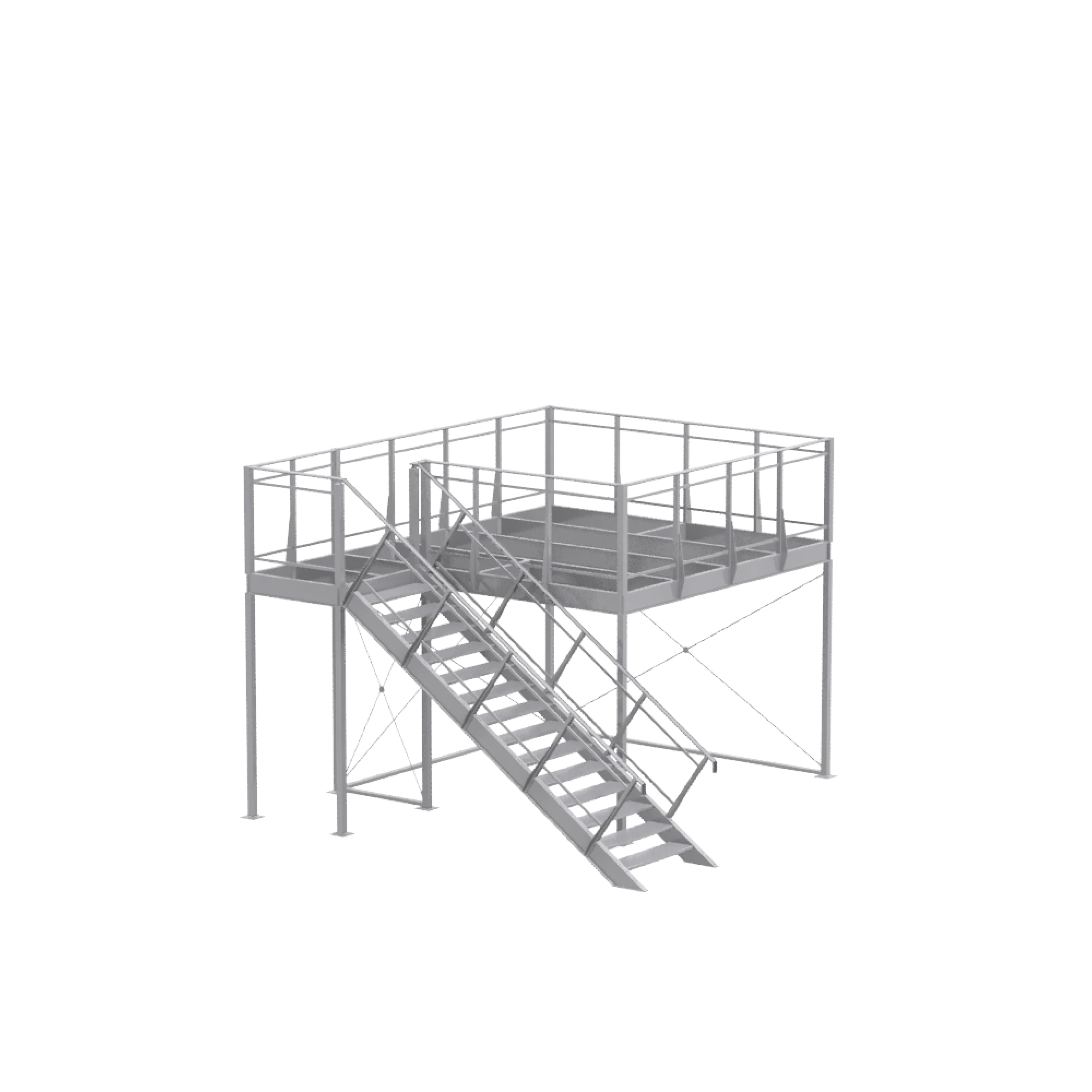

Basic module

DFL 44GMA.01

4 × 4 m

double deck

L 4040 × W 4040 × H 3936 mm

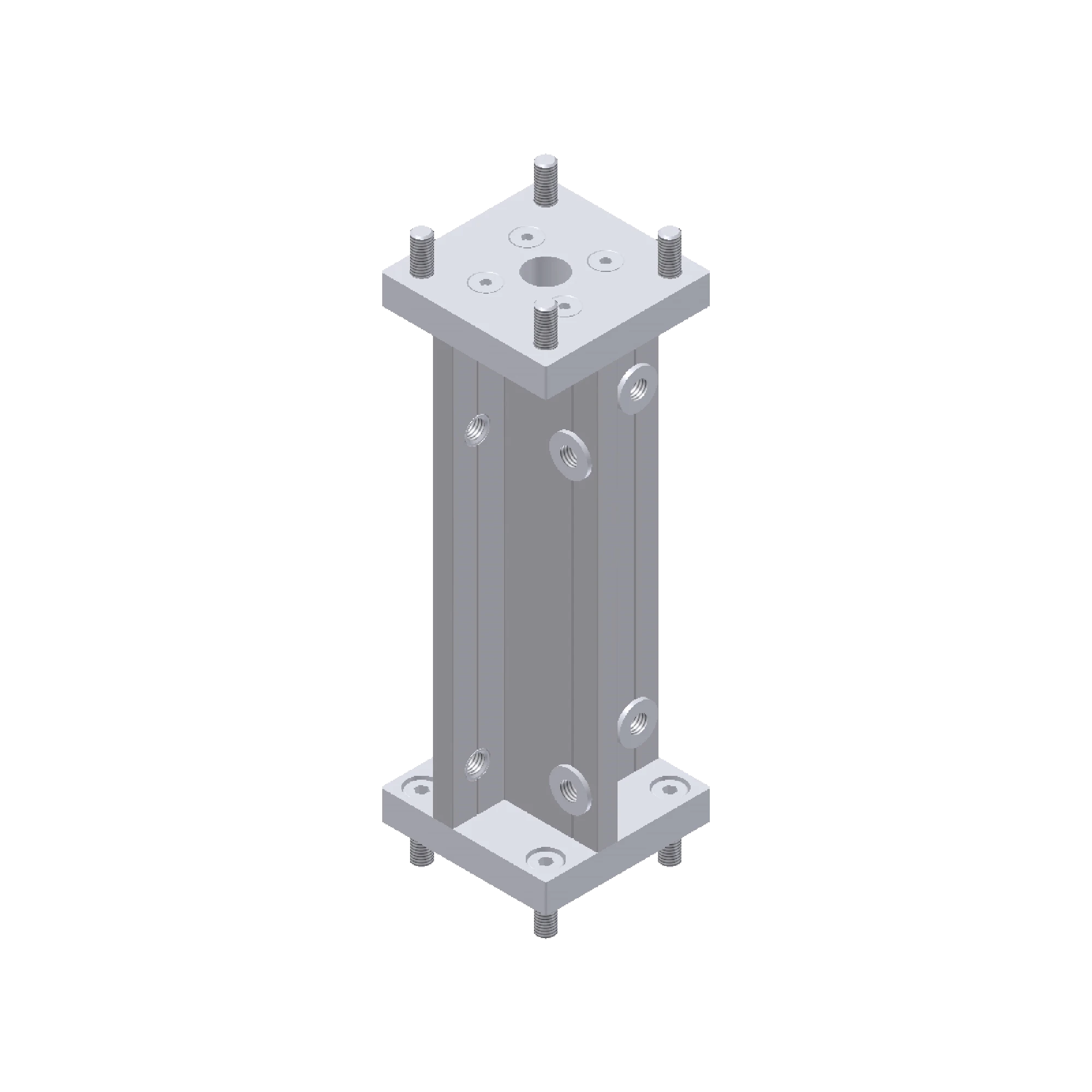

Connector

DFL 100.01

for DFL 150/DFL 421/DFL 423

L 80 × W 80 × H 230 mm

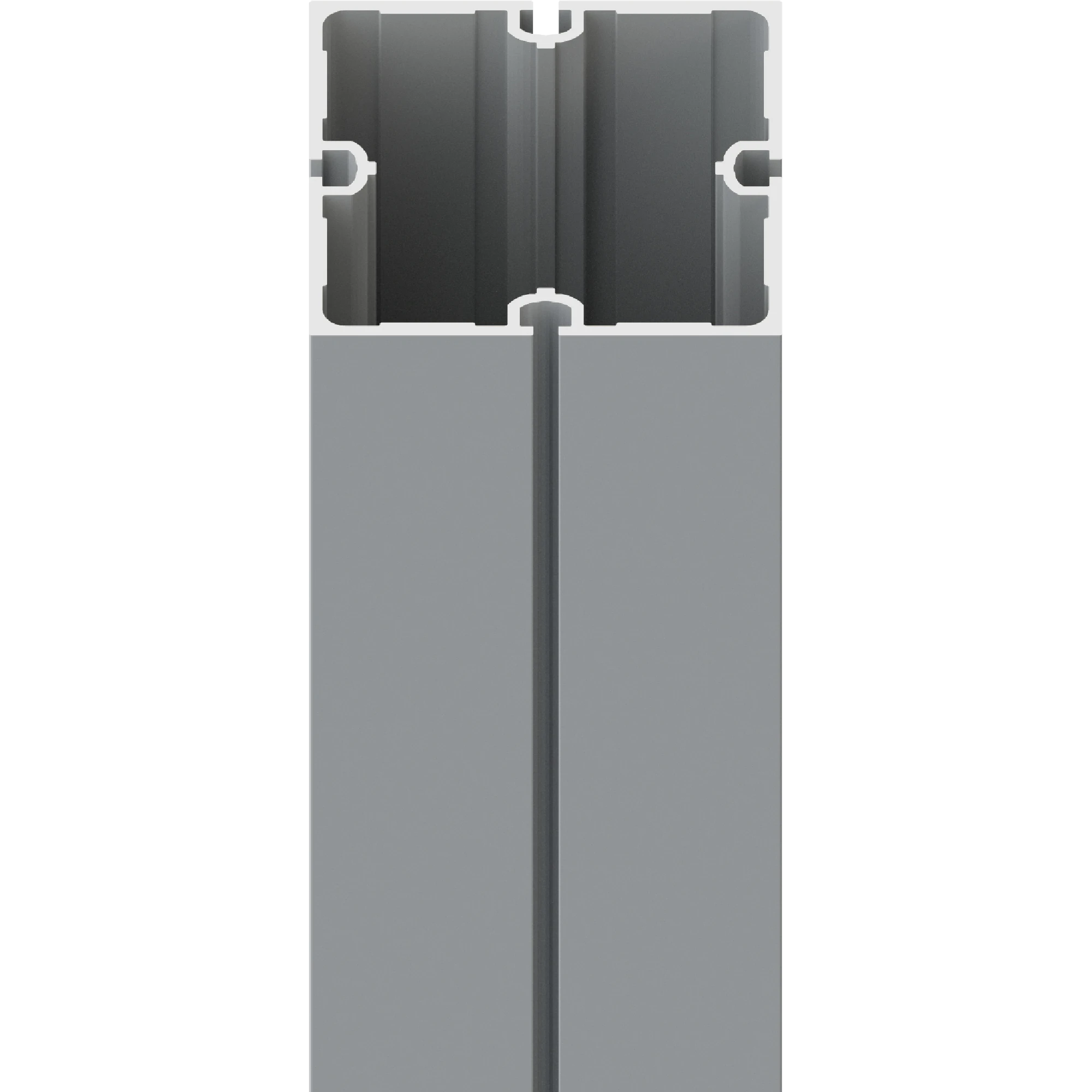

Upright

DFL 150-2510.01

for DFL 180/DFL 100

L 2510 × W 80 × H 80 mm

Upright

DFL 152-2510.01

for DFL 180/DFL 100

L 2510 × B 80 × H 80 mm

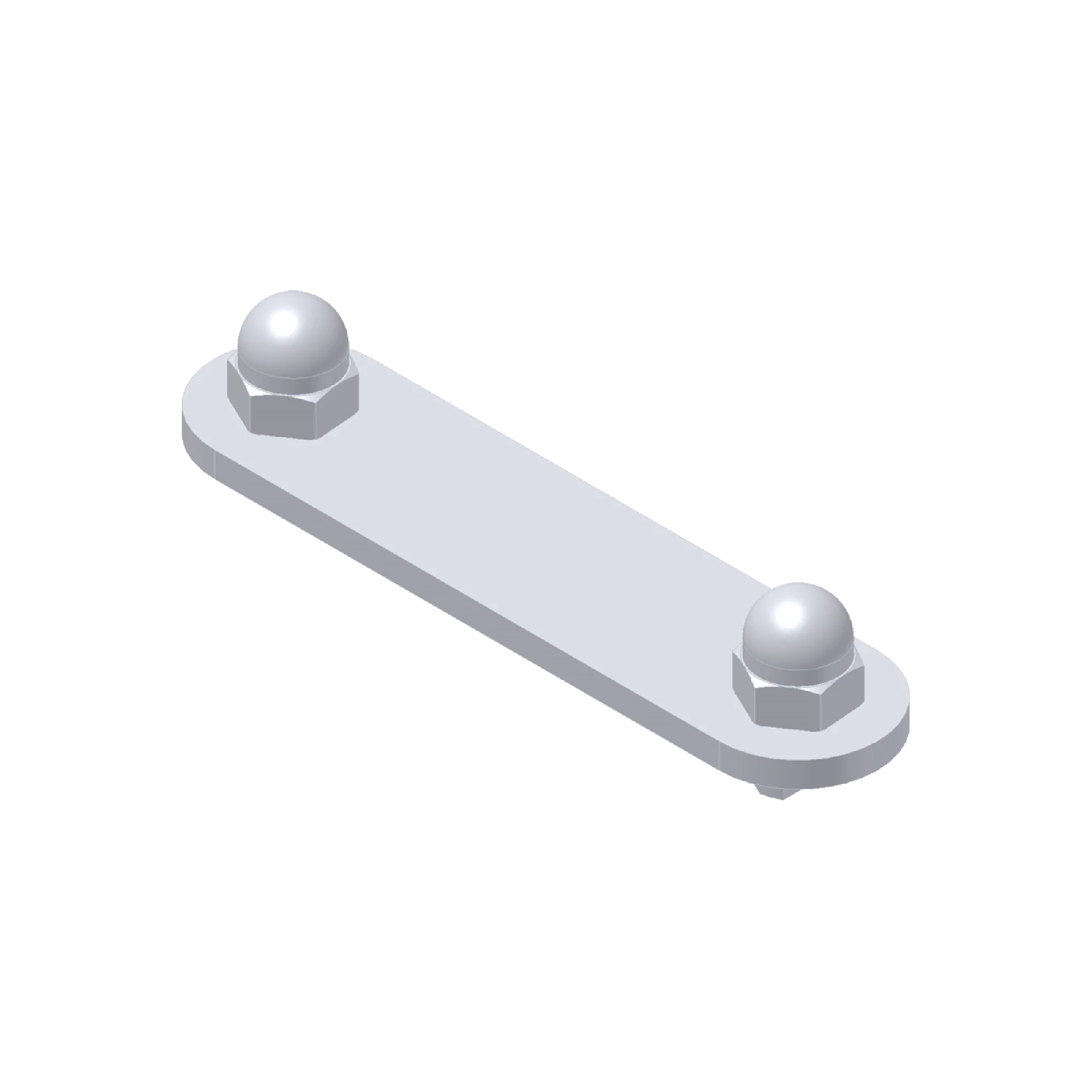

Internal connector

DFL 580.37

for uprights / beams

parallel

L 105 × W 25 × H 4 mm

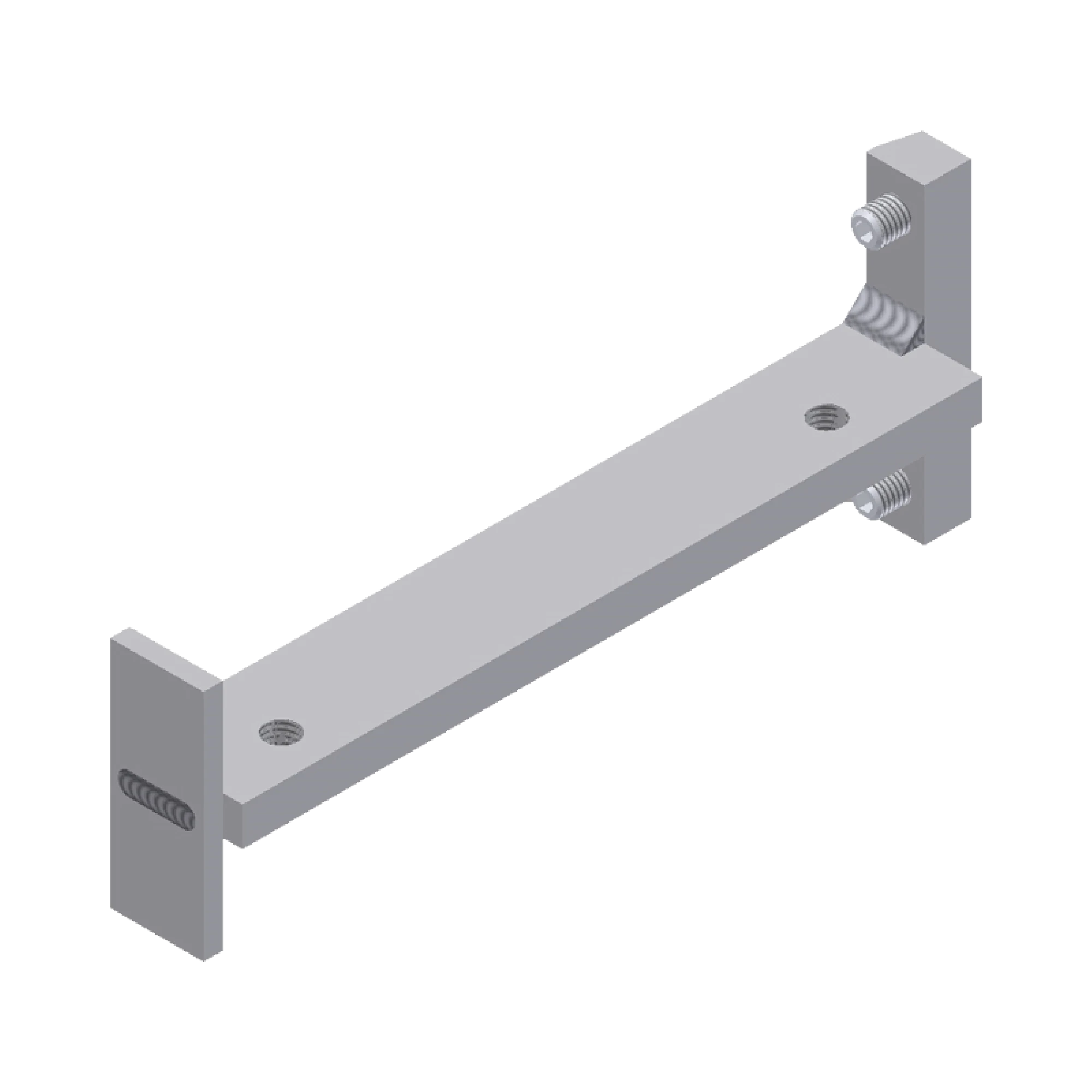

Beam adaptor

DFL 200.37

for DFL 230 / DFL 502

90°

L 207 × W 80 × H 29 mm

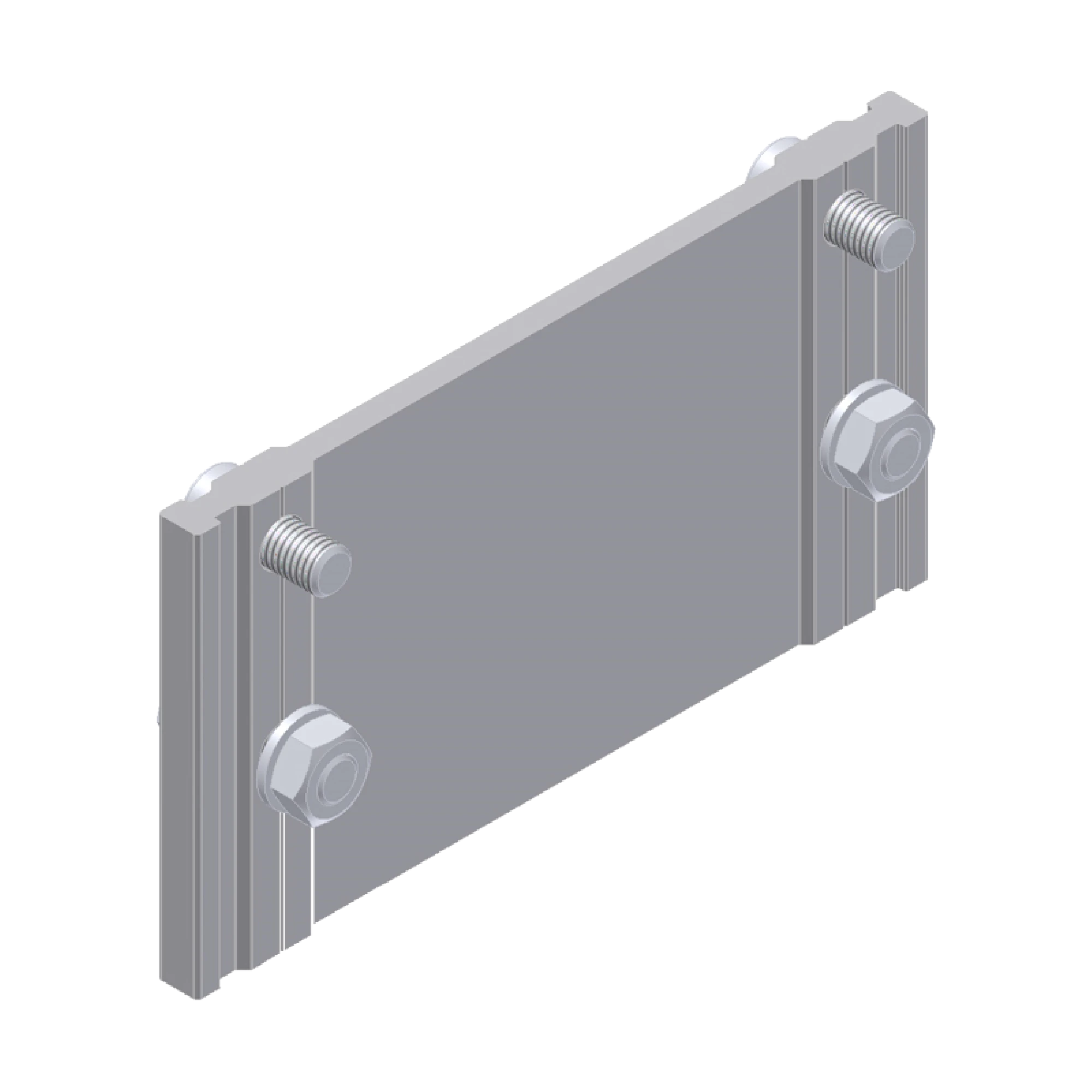

Beam adaptor

DFL 211.00

for DFL 230/DFL 100/DFL 200

L 100 × W 10 × H 182 mm

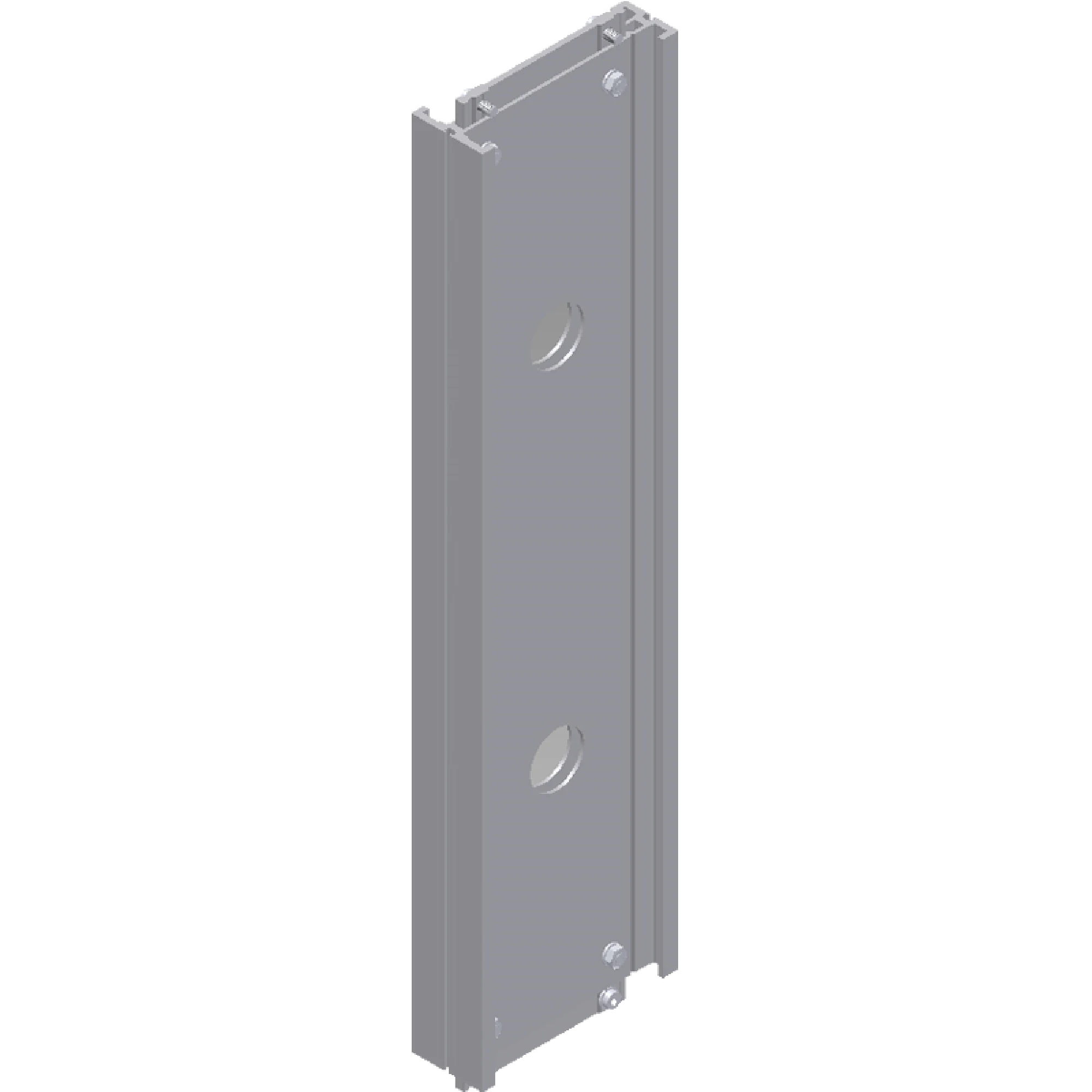

Supporting beam

DFL 230-0910.00

1 axis

for DFL 100/DFL 200

L 910 × W 80 × H 230 mm

Supporting beam

DFL 230-1200.00

for DFL 100/DFL 200

L 1200 × W 80 × H 230 mm

Supporting beam

DFL 230-1405.00

for DFL 100/DFL 200

L 1405 × W 80 × H 230 mm

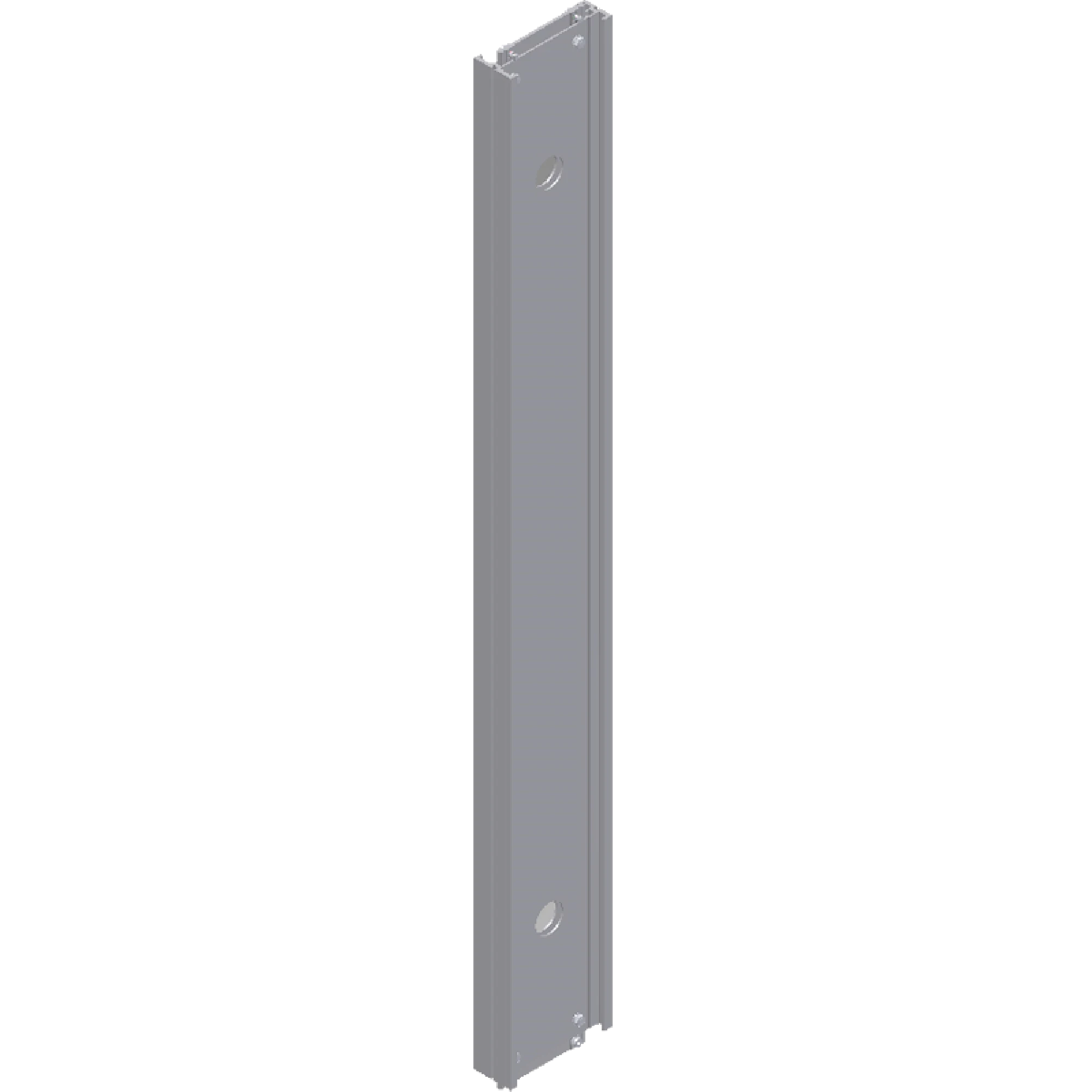

Supporting beam

DFL 230-1900.00

2 axes

for DFL 100/DFL 200

L 1900 × W 80 × H 230 mm

Supporting beam

DFL 230-2890.00

3 axes

for DFL 100/DFL 200

L 2890 × W 80 × H 230 mm

Supporting beam

DFL 230-3880.00

4 axes

for DFL 100/DFL 200

L 3880 × W 80 × H 230 mm

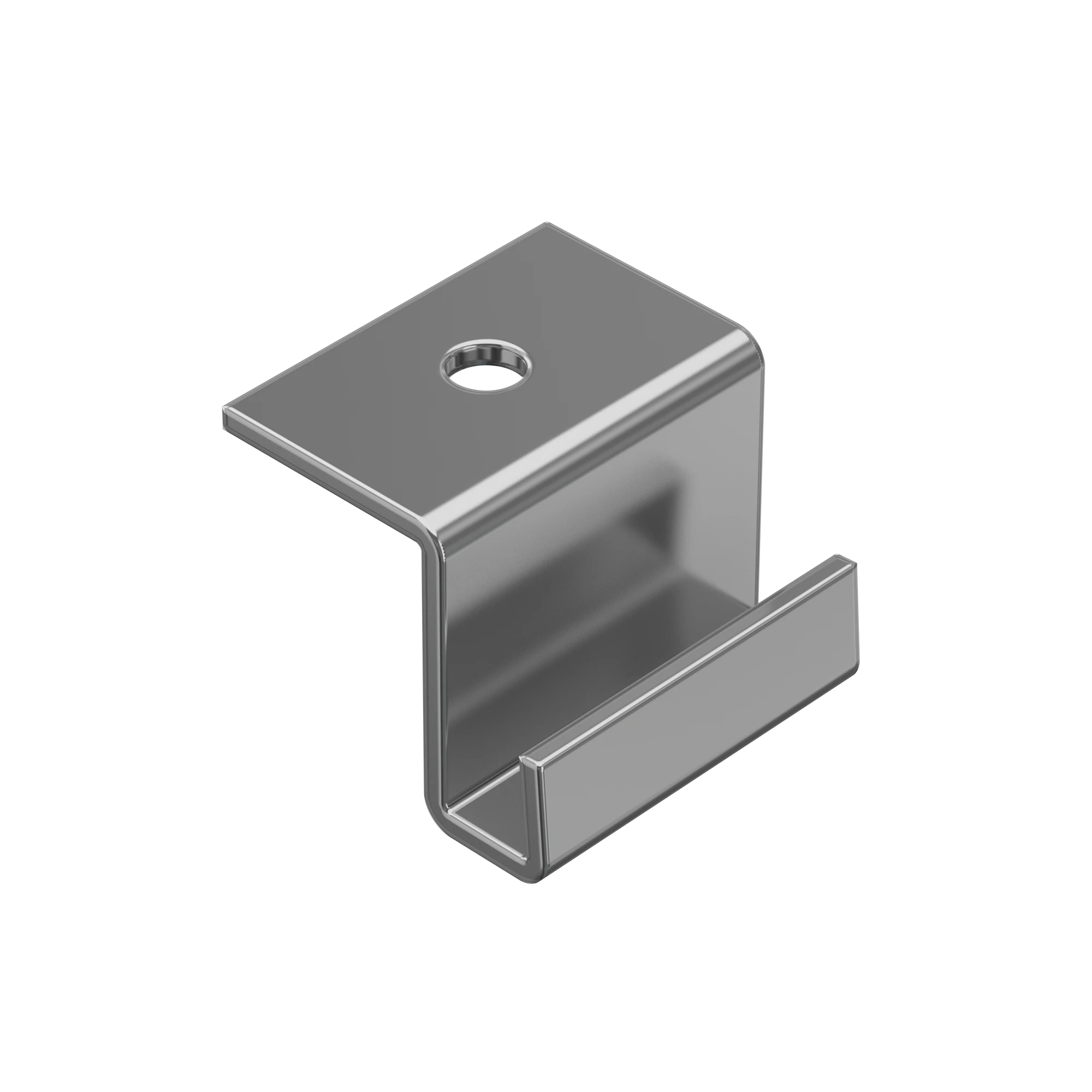

Panel retainer

E 221.38

with drill hole 4.5 mm dia.

L 24 × W 25 × H 17 mm

Base plate

DFL 180.37

M8

L 200 × W 200 × H 8 mm

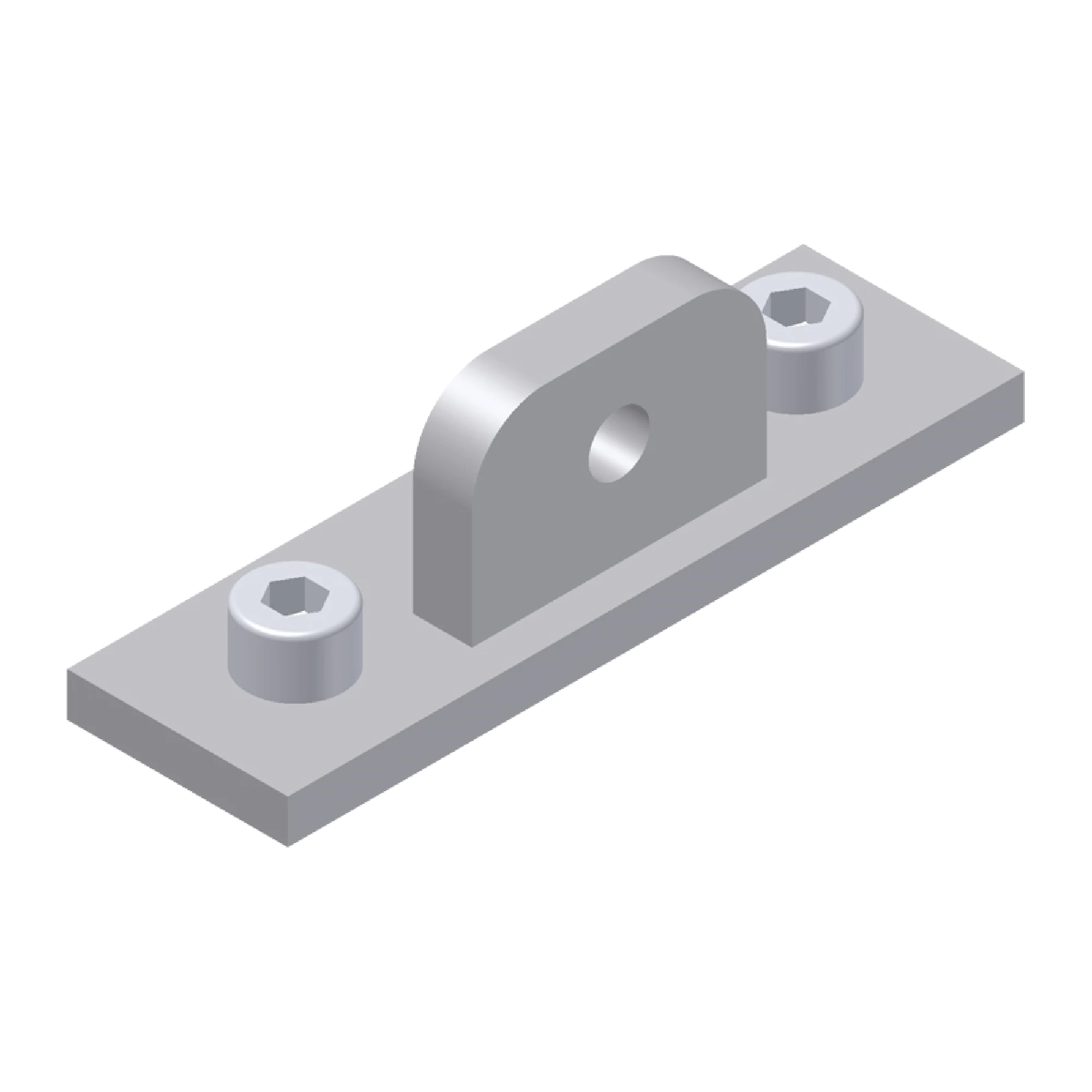

Fixing set

DFL 310.37

for DFL 150 / DFL 331

L 100 × W 30 × H 32 mm

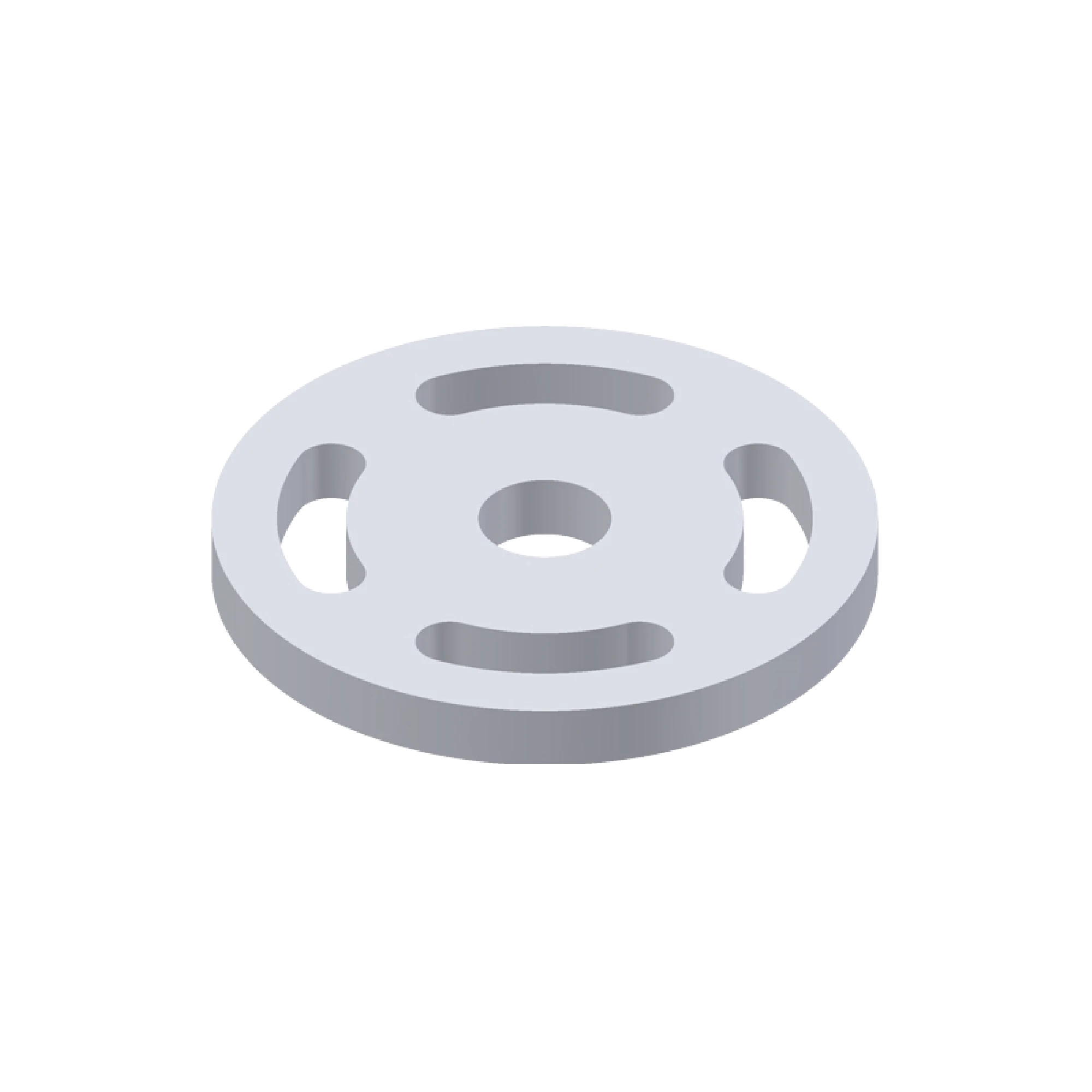

Internal connector

DFL 320.37

for DFL 331

L 80 × W 80 × H 8 mm

80 mm dia.

Vertical cross bracing

DFL 331-0990.01

set

1 axis

L 990 × W 80 × H 2450 mm

Vertical cross bracing

DFL 331-1280.01

set

L 1280 × W 80 × H 2450 mm

Vertical cross bracing

DFL 331-1485.01

set

L 1485 × W 80 × H 2450 mm

Vertical cross bracing

DFL 331-1690.01

set

L 1690 × W 80 × H 2450 mm

Vertical cross bracing

DFL 331-1980.01

set

2 axes

L 1980 × W 80 × H 2450 mm

Vertical cross bracing

DFL 331-2680.01

set

L 2680 × W 80 × H 2450 mm

Vertical cross bracing

DFL 331-2970.01

set

3 axes

L 2970 × W 80 × H 2450 mm

Vertical cross bracing

DFL 331-3960.01

set

4 axes

L 3960 × W 80 × H 3960 mm

Upright

DFL 351-2510.01

for DFL 331-...

L 80 × W 80 × H 2510 mm

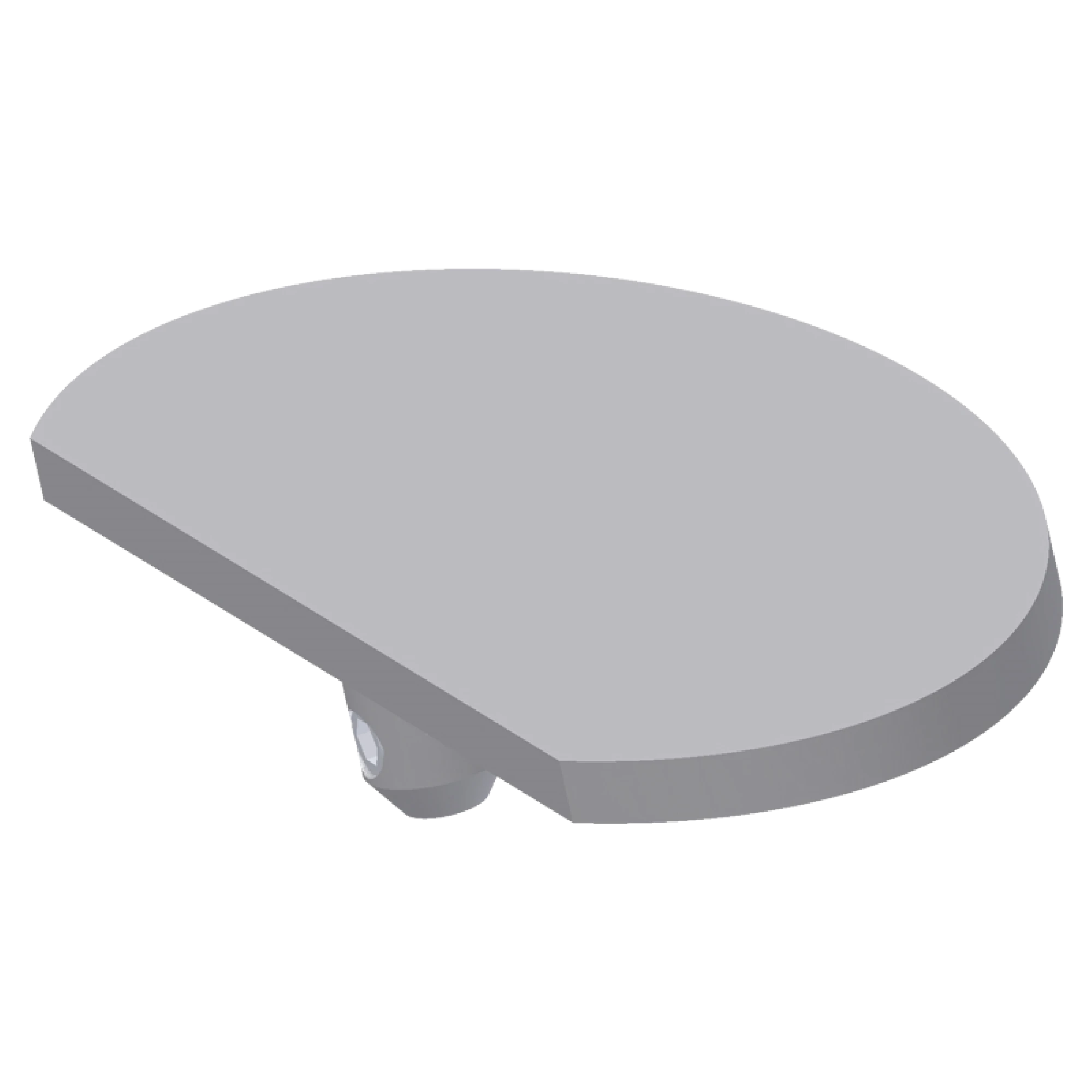

End plate

DFL 410.21

for DFL 470

L 76 × W 31 × H 15 mm

Handrail extrusion

DFL 435-2880.01

for DFL 418 / DFL 500

staircase

L 2880 × W 76 × H 31 mm

Handrail extrusion

DFL 435-4860.01

for DFL 418 / DFL 500

staircase

L 4860 × W 76 × H 31 mm

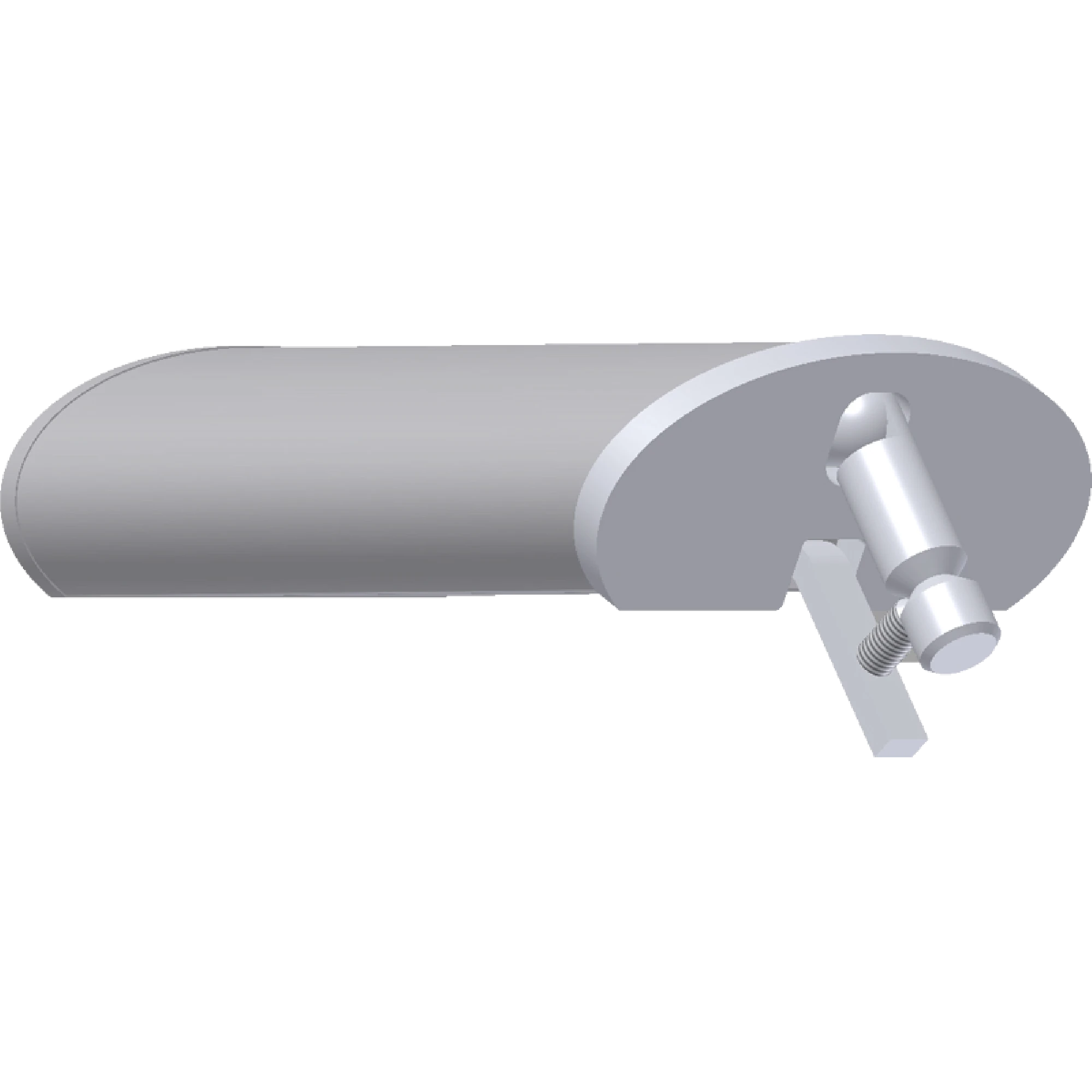

Handrail extrusion

DFL 470.01

for DFL 435

stair "end piece"

L 76 × W 31 × H 120 mm

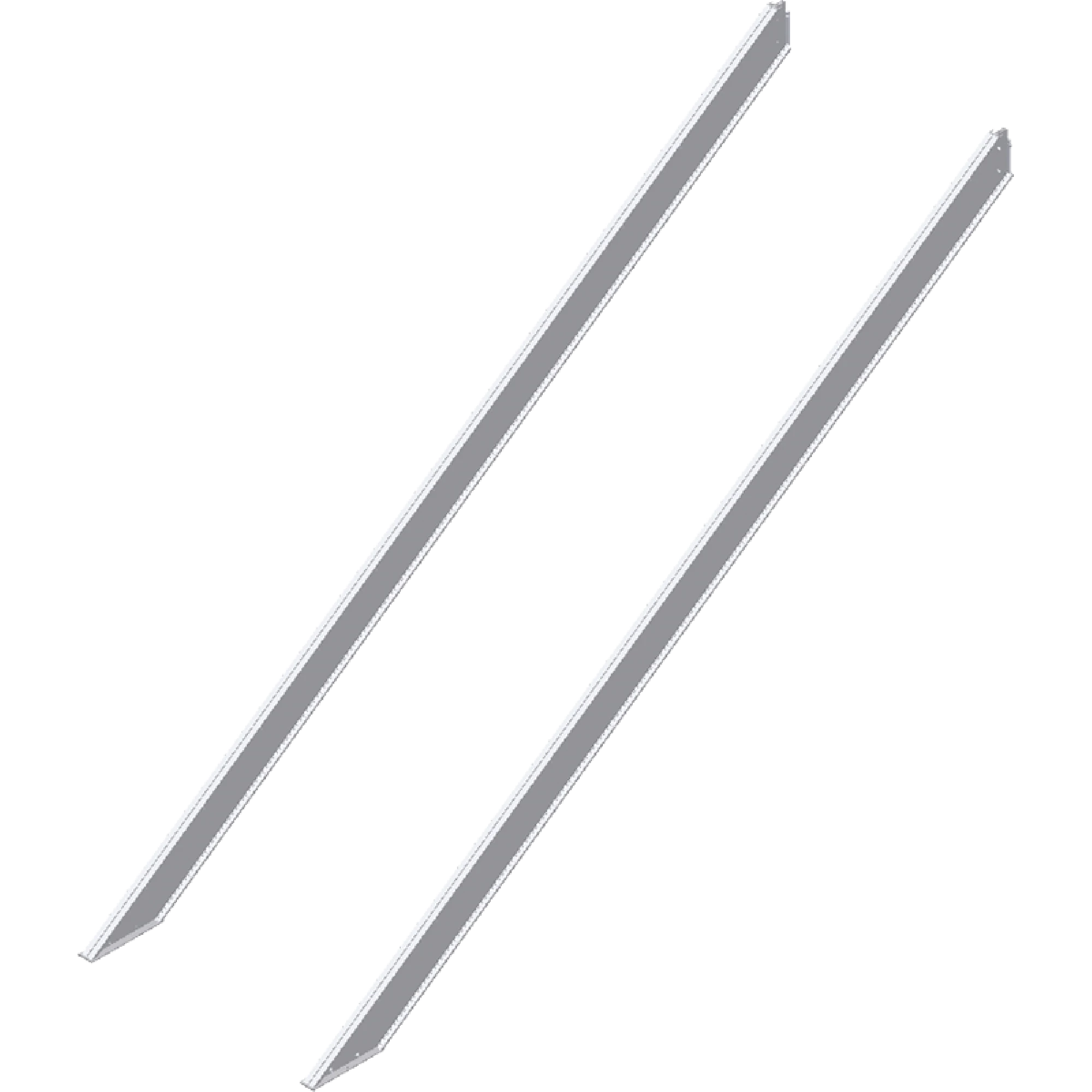

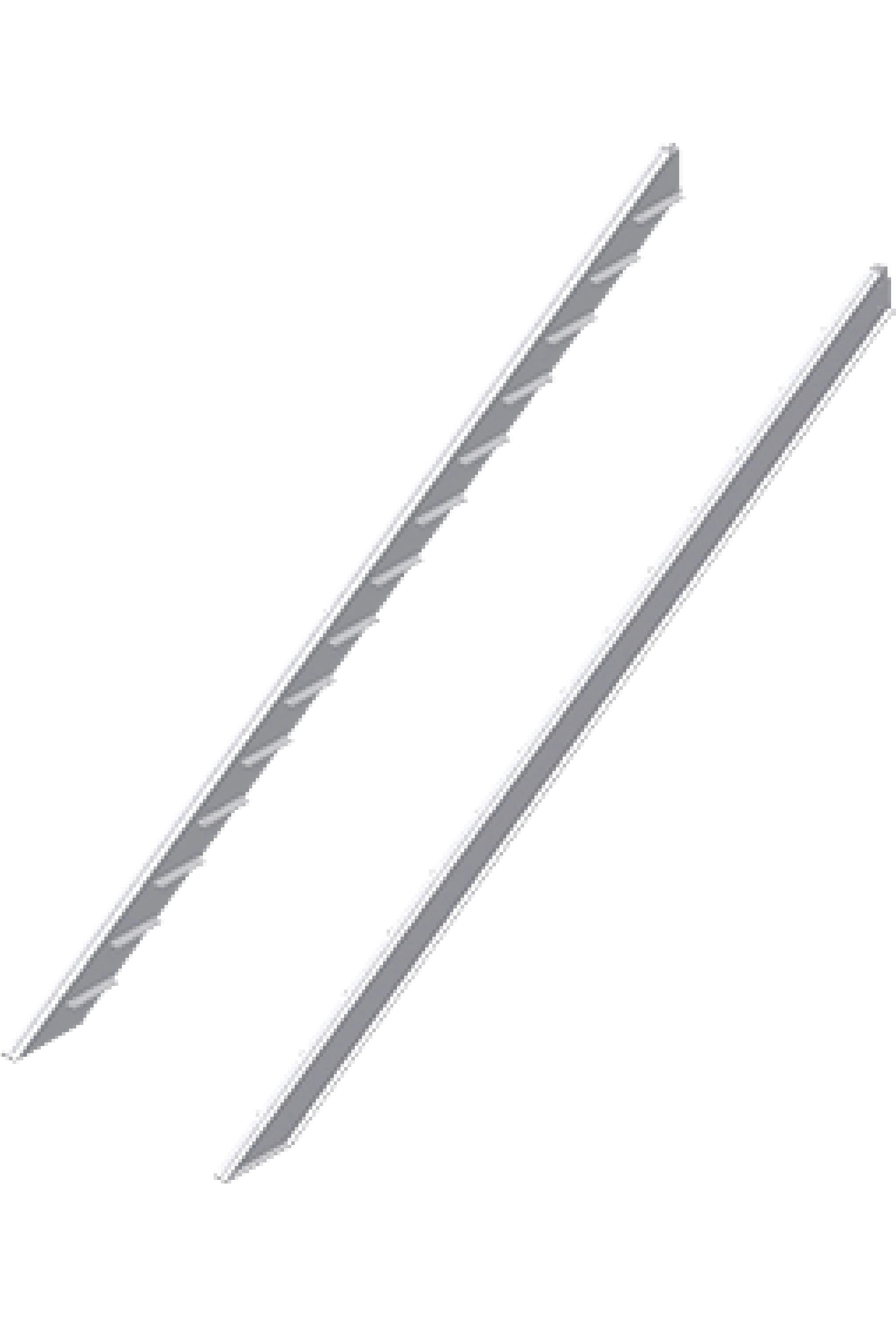

Stair stringer

DFL 501-2640.00

set

35°, 7 stairs

L 2640 × W 130 × H 230 mm

Stair stringer

DFL 501-4897.00

set

35°, 14 stairs

L 4910 × W 130 × H 230 mm

Stair stringer

DFL 506-2451.00

Set

35°, 7 stairs

L 2451 × W 130 × H 230 mm

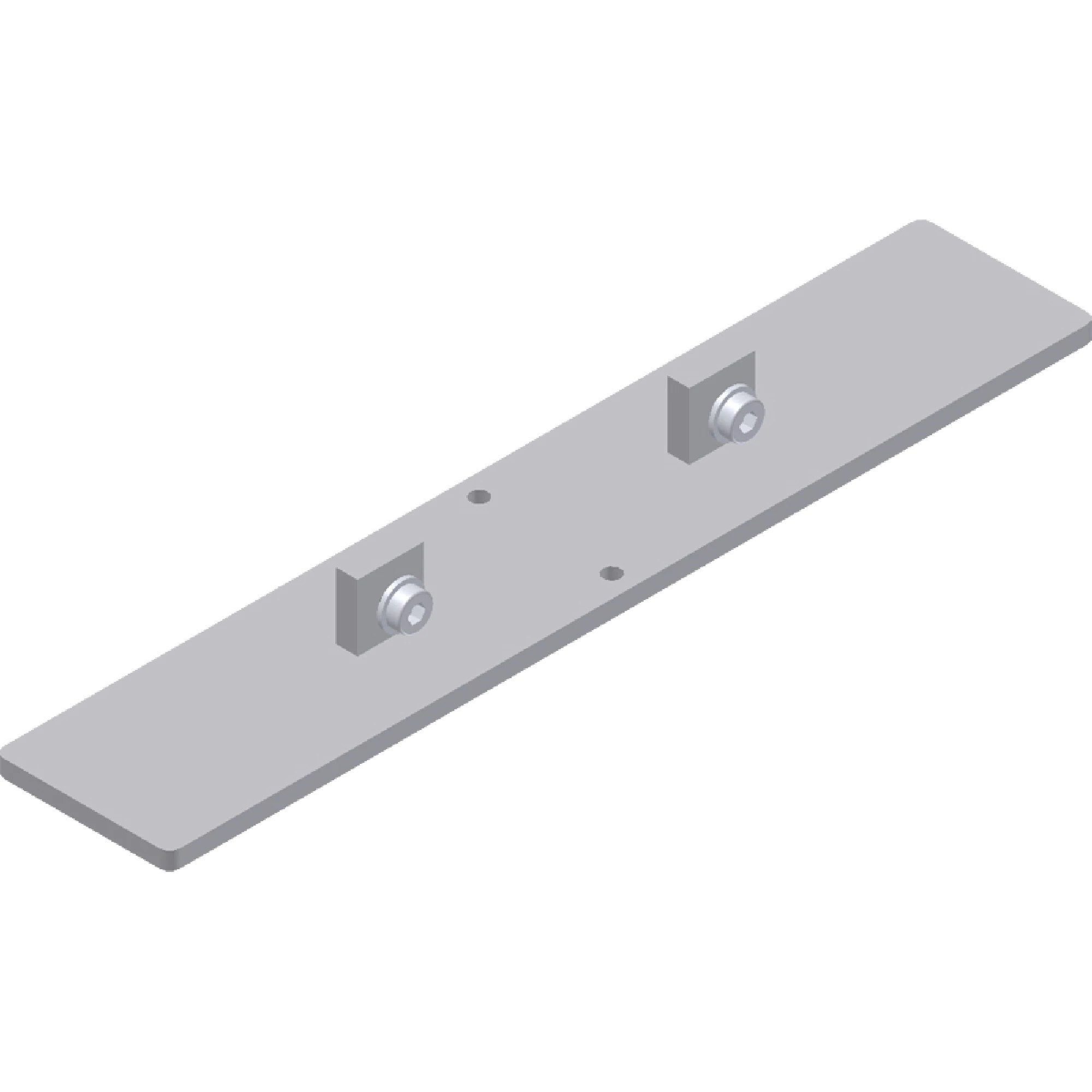

Base plate

DFL 510.37

for stair stringer

L 420 × W 80 × H 38 mm

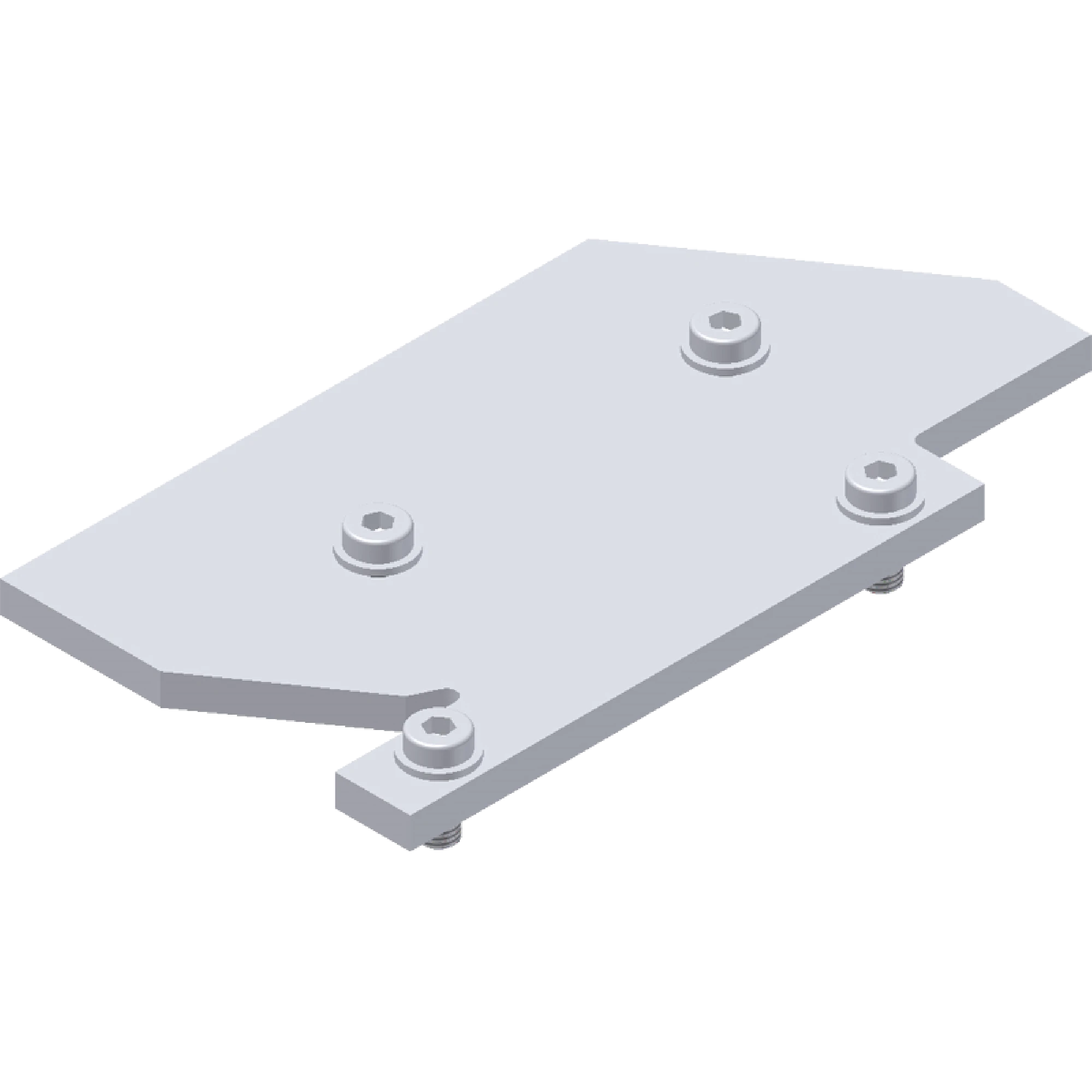

Mounting connector

DFL 512.37

for stair stringer

L 130 × W 10 × H 240 mm

Tread support

DFL 520.37

L 276 × W 50 × H 50 mm

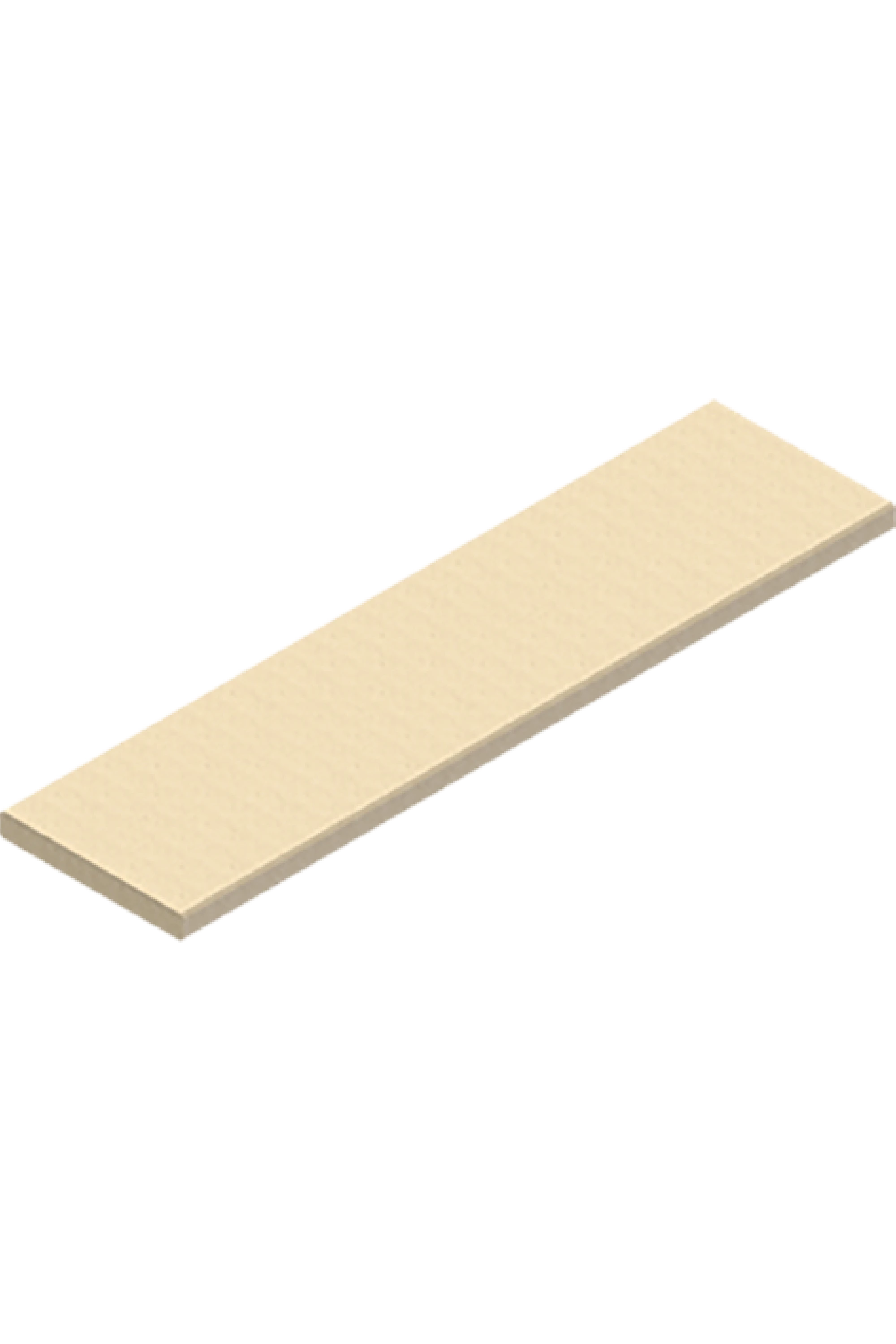

Step

DFL 533.90

flame retardant

L 1200 × W 310 × H 40 mm

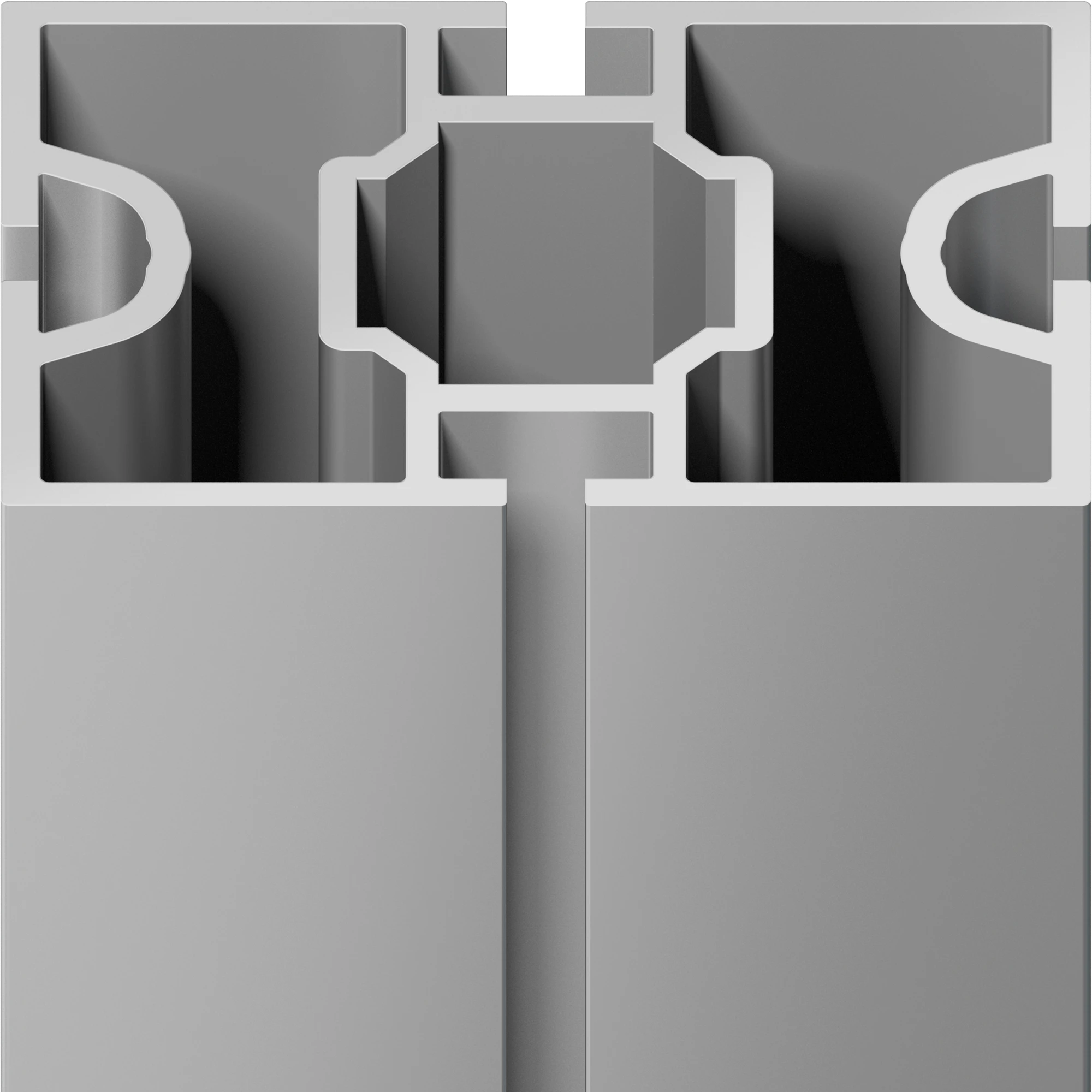

Railing post

DFL 415-0893.01

made of M 1082

L 893 × W 60 × H 40 mm

Railing post

DFL 415-1157.01

made of M 1082

L 1157 × W 60 × H 40 mm

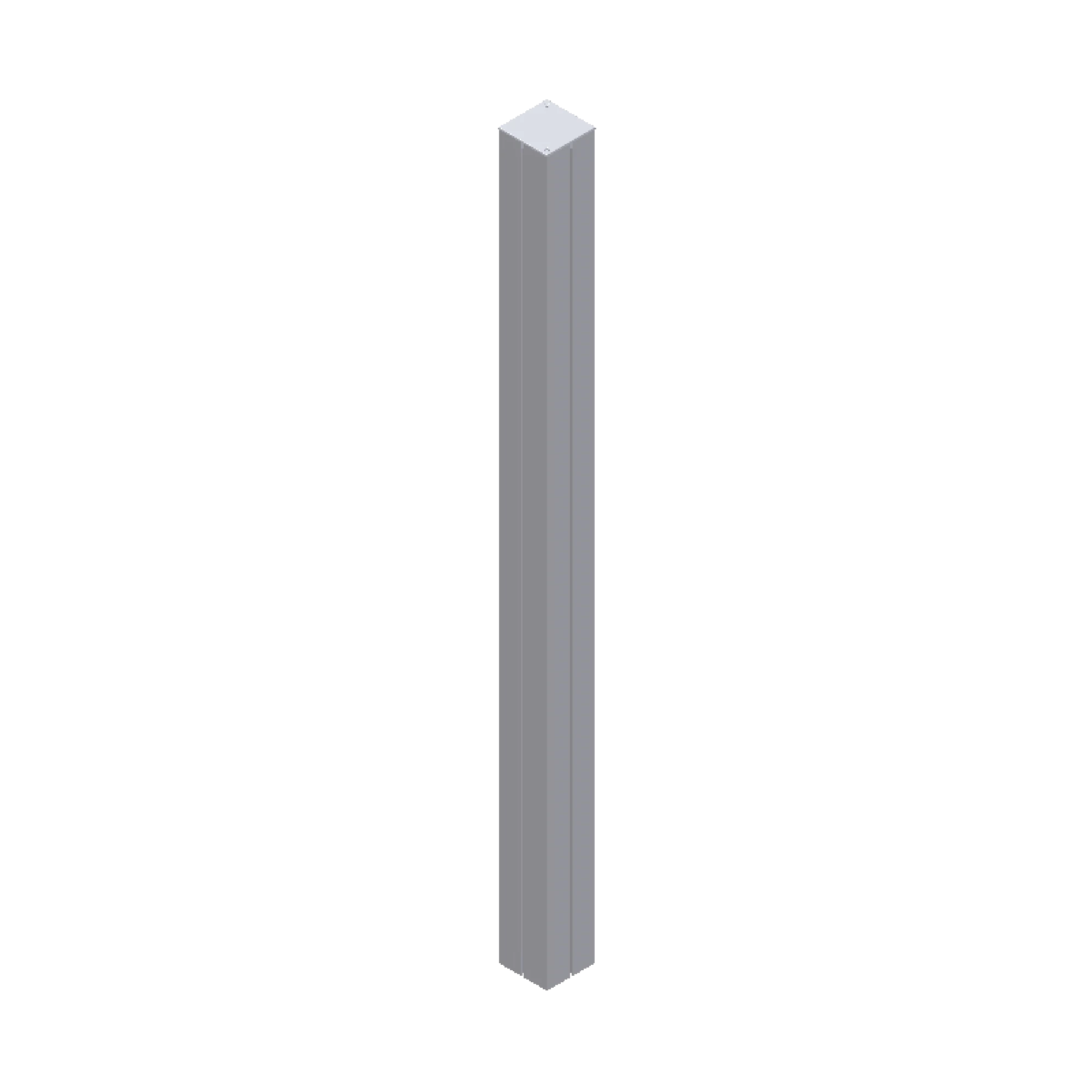

Railing post

DFL 421-1191.01

made of DFS 84

lateral connection

L 1191 × W 80 × H 80 mm

Railing post

DFL 423-1112.01

made of DFS 84

L 1112 × W 80 × H 80 mm

Railing post

DFL 424-1112.01

made of DFS 84

L 1112 × W 80 × H 80 mm

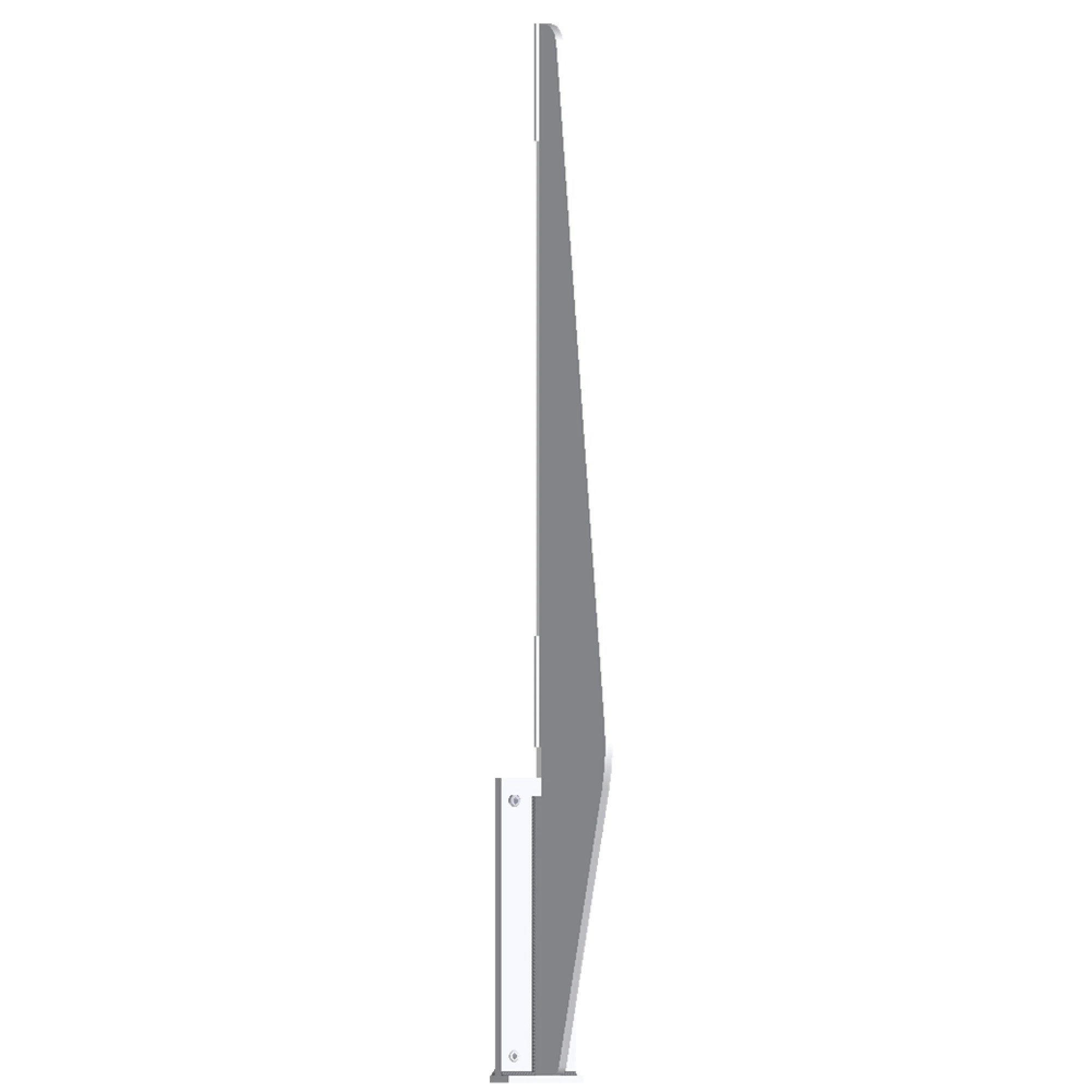

Railing post support

DFL 430.21

for DFL 230

L 90 × W 60 × H 716 mm

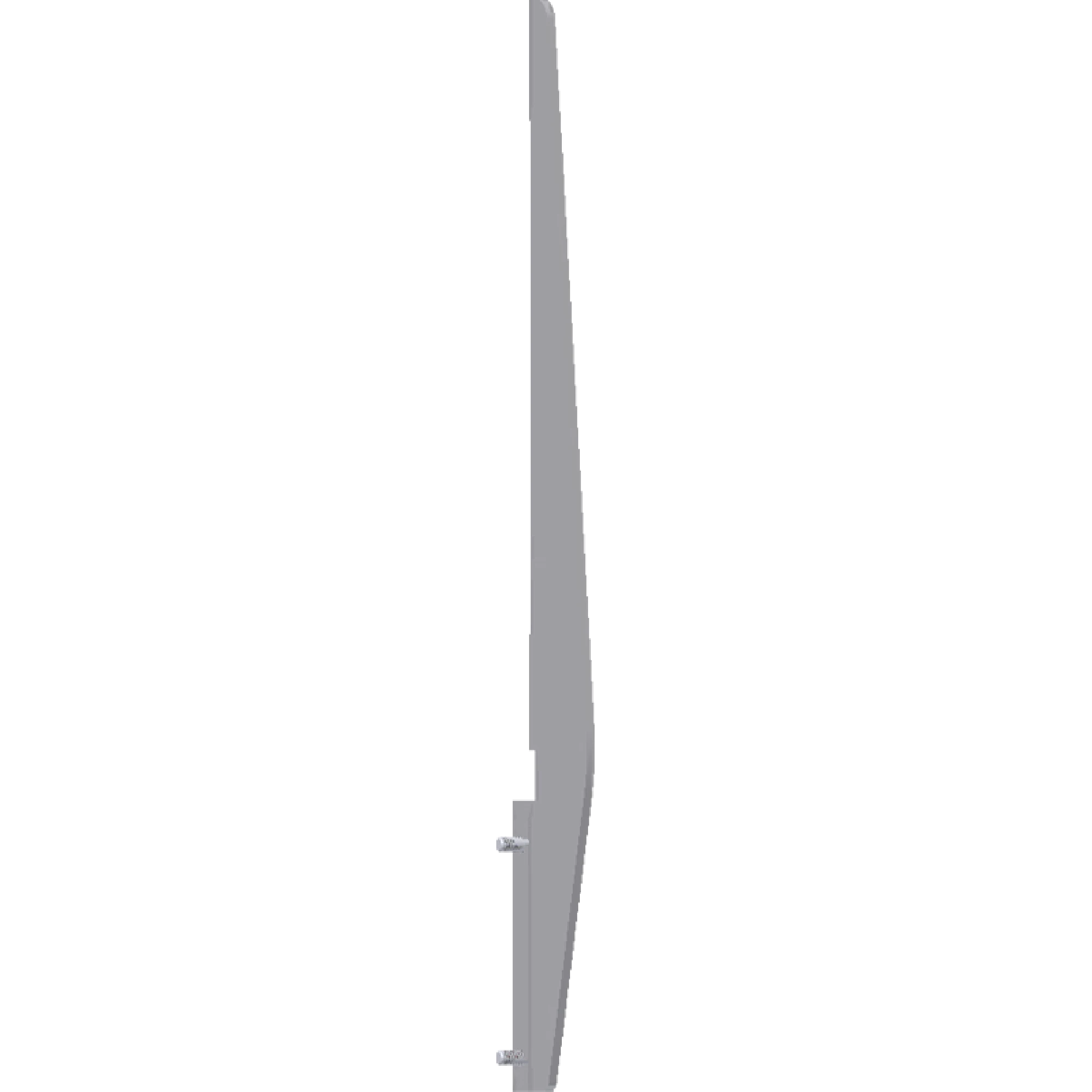

Railing post support

DFL 431.21

for DFL 100

L 108 × W 9 × H 716 mm

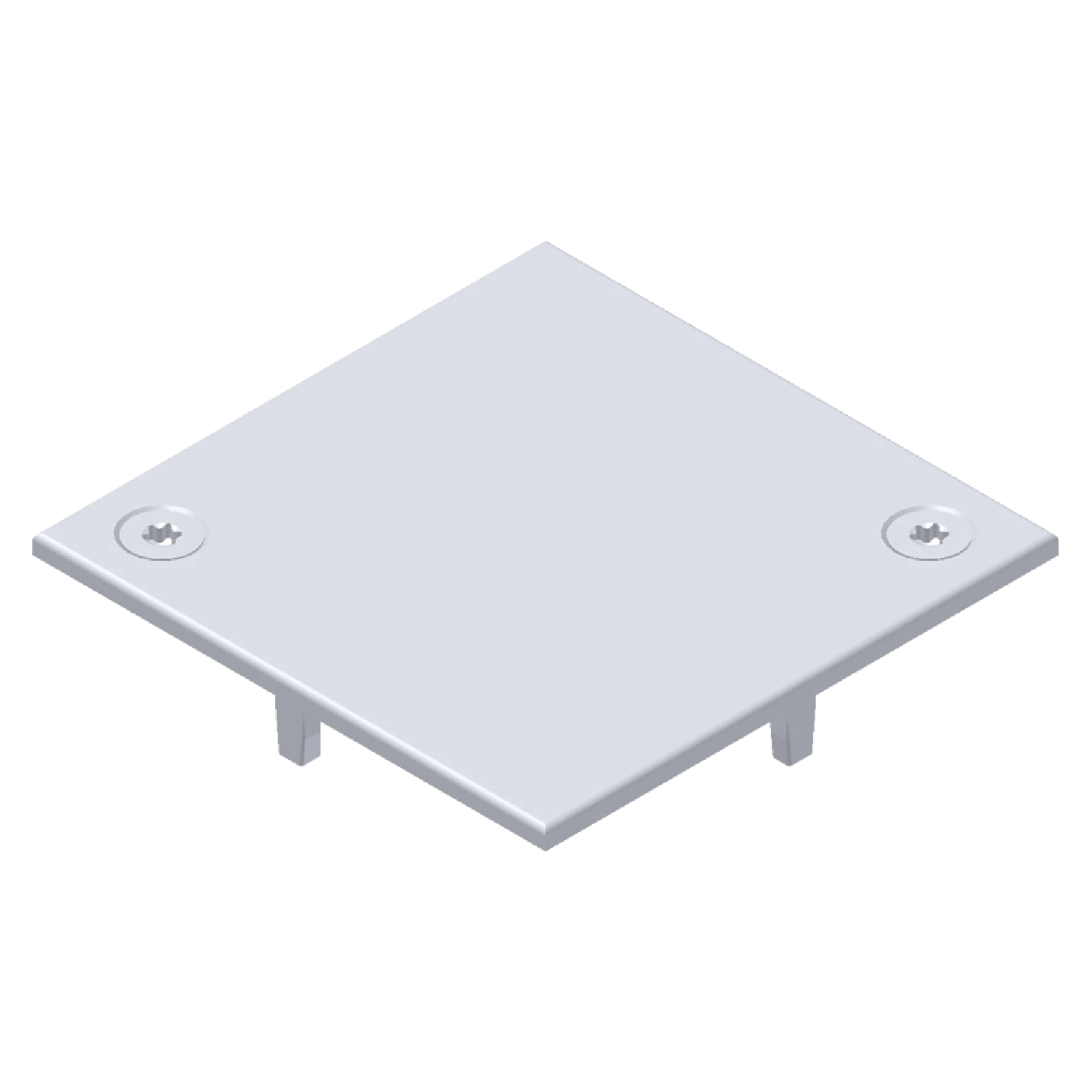

End cap

DFL 448.35

for DFL 421

L 80.3 × W 80.3 × H 3 mm

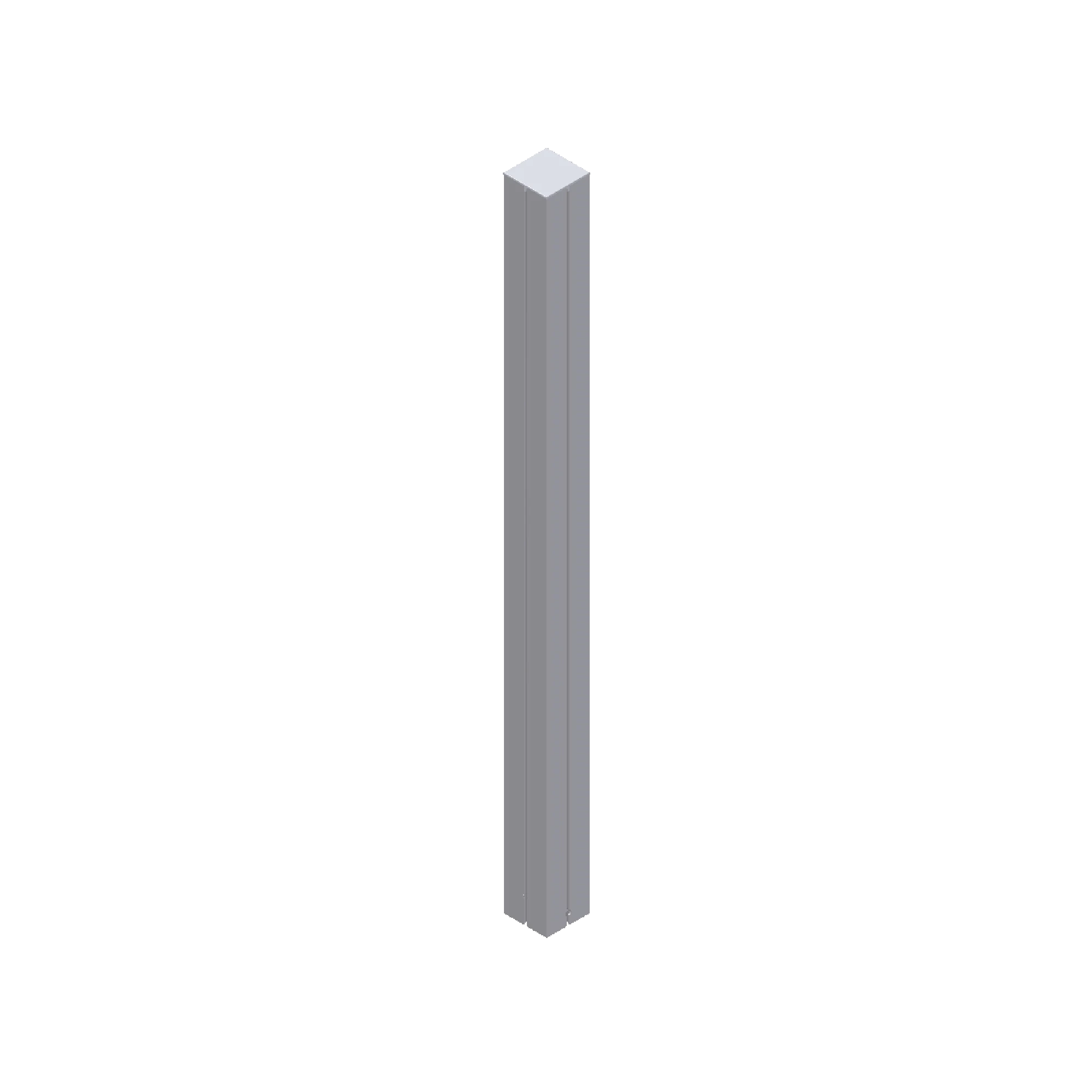

Railing post

DFL 568.01

staircase landing

L 80 × W 80 × H 1188 mm

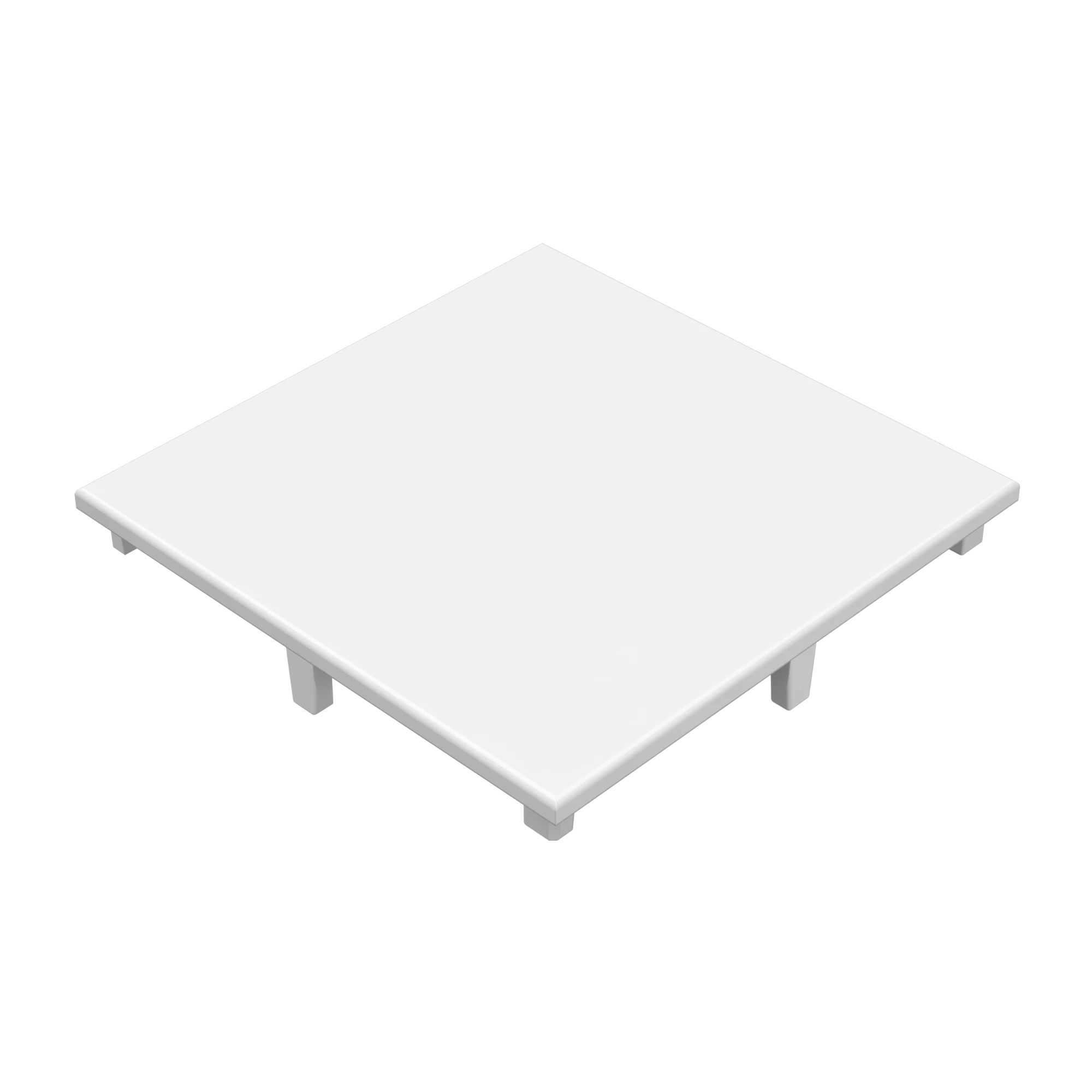

End cap

M 1034.35

for extrusions 80 × 80 mm

L 80 × W 80 × H 3 mm

Handrail extrusion

DFL 412-0065.01

universal

L 65 × W 76 × H 31 mm

Handrail extrusion

DFL 412-0095.01

universal

L 95 × W 76 × H 31 mm

Handrail extrusion

DFL 412-0590.01

universal

L 590 × W 76 × H 31 mm

Handrail extrusion

DFL 412-0880.01

universal

L 880 × W 76 × H 31 mm

Handrail extrusion

DFL 412-0910.01

universal

1 axis

L 910 × W 76 × H 31 mm

Handrail extrusion

DFL 412-1140.01

universal

L 1140 × W 76 × H 31 mm

Handrail extrusion

DFL 412-1170.01

universal

L 1170 × B 76 × H 31 mm

Handrail extrusion

DFL 412-1345.01

universal

L 1345 × W 76 × H 31 mm

Handrail extrusion

DFL 412-1405.01

universal

L 1405 × W 76 × H 31 mm

Handrail extrusion

DFL 412-1580.01

universal

L 1580 × W 76 × H 31 mm

Handrail extrusion

DFL 412-1610.01

universal

L 1610 × W 76 × H 31 mm

Handrail extrusion

DFL 412-1900.01

universal

2 axes

L 1900 × W 76 × H 31 mm

Handrail extrusion

DFL 412-2570.01

universal

L 2570 × W 76 × H 31 mm

Handrail extrusion

DFL 412-2600.01

universal

L 2600 × W 76 × H 31 mm

Handrail extrusion

DFL 412-2860.01

universal

L 2860 × W 76 × H 31 mm

Handrail extrusion

DFL 412-2890.01

universal

3 axes

L 2890 × W 76 × H 31 mm

Handrail extrusion

DFL 412-3850.01

universal

L 3850 × W 76 × H 31 mm

Handrail extrusion

DFL 412-3880.01

universal

4 axes

L 3880 × W 76 × H 31 mm

Handrail connector

DFL 462/H.21

straight

0° & 17.5°

L 142.4 × W 82 × H 77.6 mm

Handrail connector

DFL 462/N.21

straight

-17.5° & 0°

L 150.2 × W 82 × H 76.1 mm

Handrail connector

DFL 463/G.21

straight

0° & 0°

L 140 × W 82 × H 76.1 mm

Handrail connector

DFL 464/H.21

corner, right

0° & 17.5°

L 113.4 × W 111 × H 77.6 mm

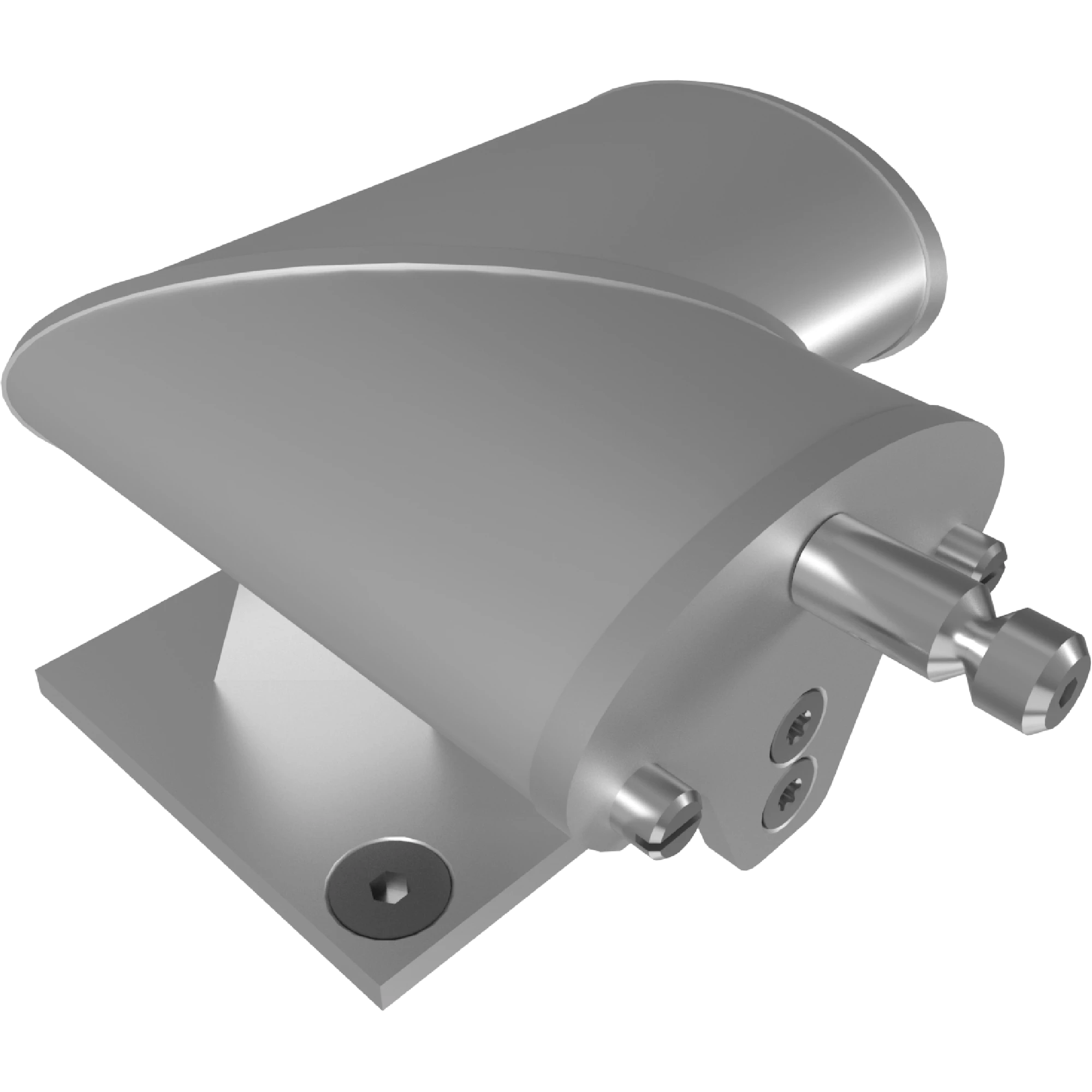

Handrail connector

DFL 464/N.21

corner, left

-17.5° & 0°

L 121.2 × W 111 × H 76.1 mm

Handrail connector

DFL 465/E.21

corner

0° & 0°

L 111 × W 111 × H 76.1 mm

Handrail connector

DFL 465/L.21

corner, left

-17.5° & 17.5°

L 121.2 × W 113.4 × H 77.6 mm

Handrail connector

DFL 465/R.21

corner, right

-17.5° & 17.5°

L 121.2 × W 113.4 × H 77.6 mm

Handrail connector

DFL 466/H.21

corner, left

0° & 17.5°

L 113.4 × W 111 × H 77.6 mm

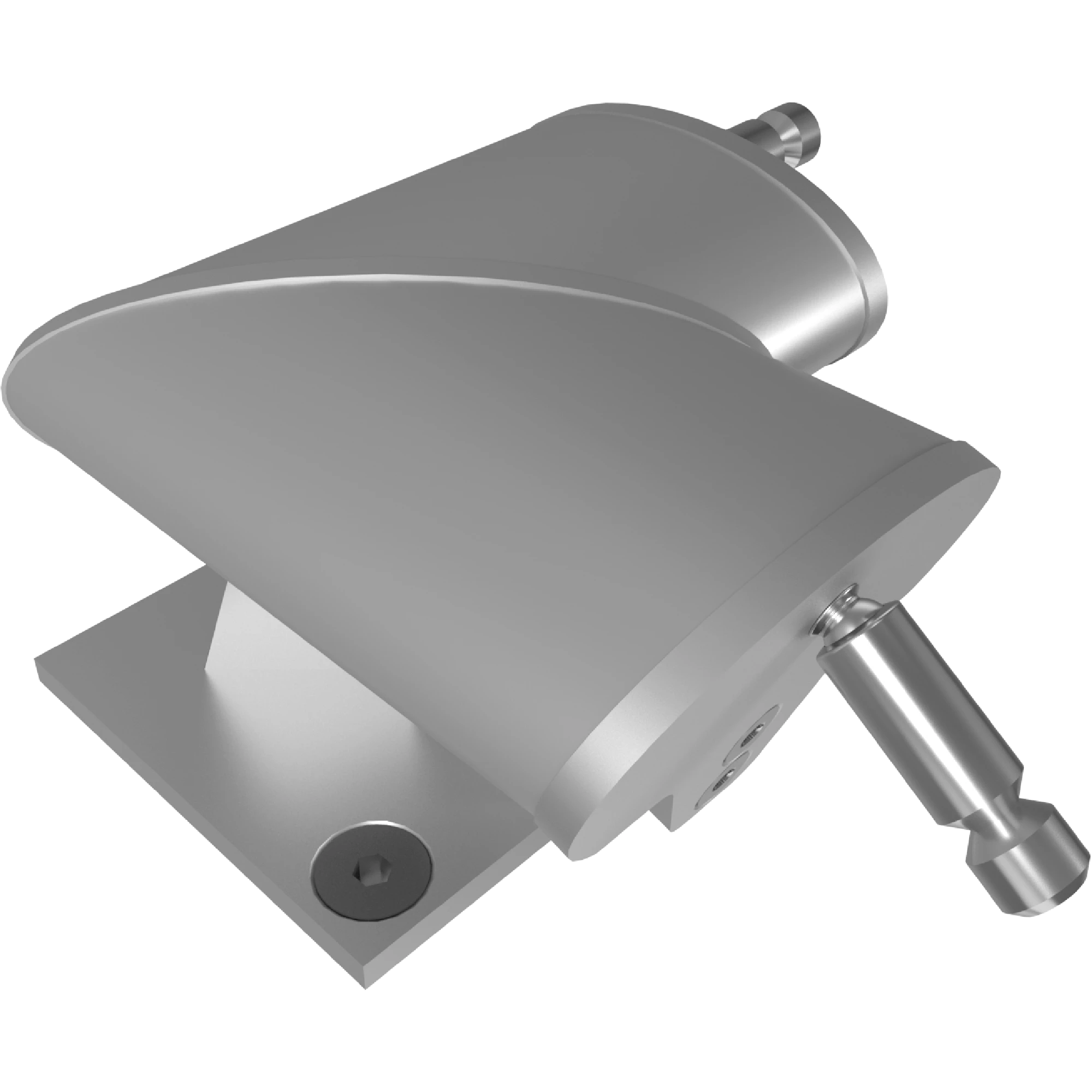

Handrail connector

DFL 466/N.21

corner, right

-17.5° & 0°

L 121.2 × W 111 × H 76.1 mm

Beam

DFL 432-0125.01

made of Z 400

as roll-off edge

L 125 × W 16 × H 50 mm

Beam

DFL 432-0640.01

made of Z 400

as roll-off edge

L 640 × W 16 × H 50 mm

Beam

DFL 432-0950.01

made of Z 400

as roll-off edge

L 950 × W 16 × H 50 mm

Beam

DFL 432-1200.01

made of Z 400

as roll-off edge

L 1200 × W 16 × H 50 mm

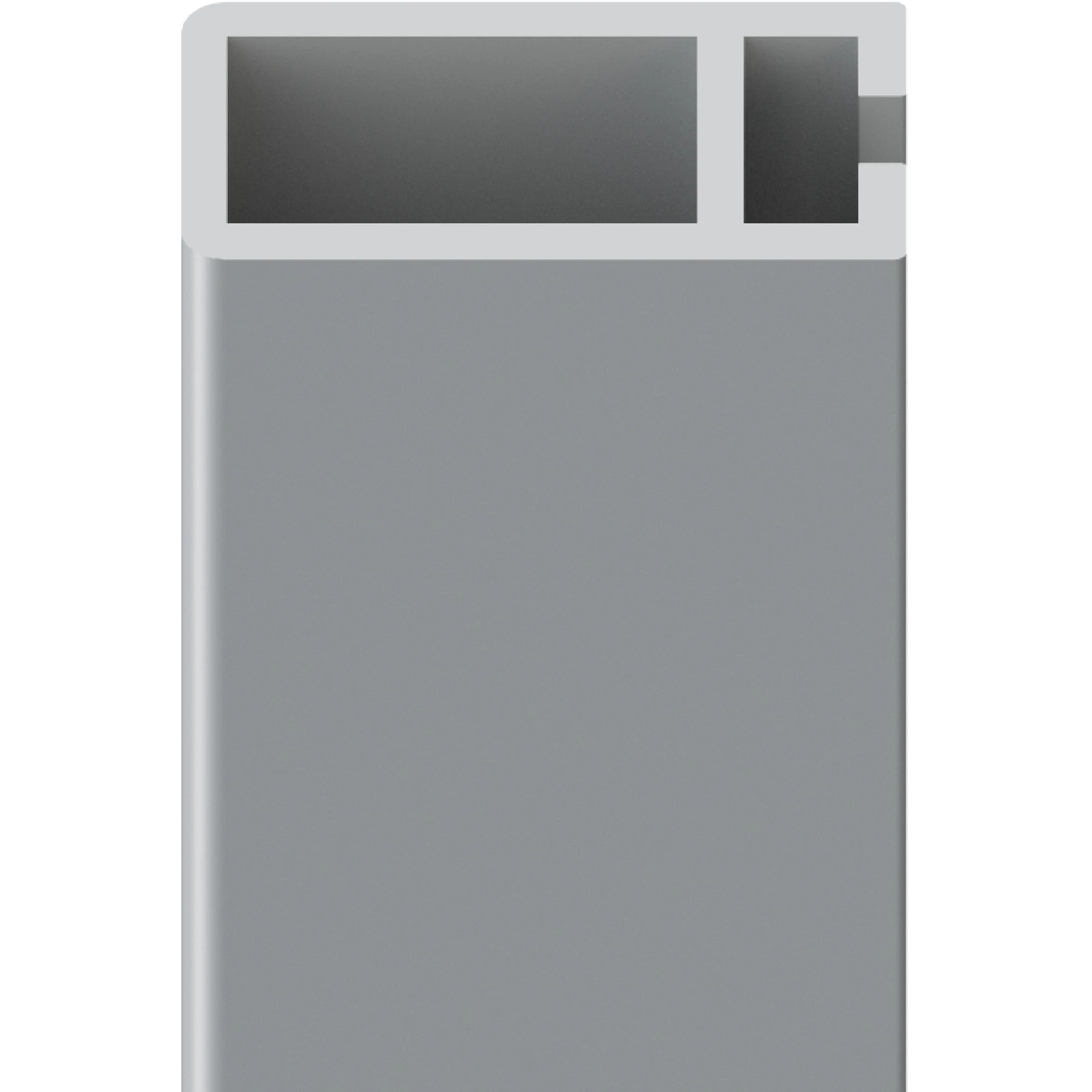

Beam

DFL 484-0125.01

made of Z 303

L 125 × W 16 × H 32 mm

Beam

DFL 484-0640.01

made of Z 303

L 640 × W 16 × H 32 mm

Beam

DFL 484-0930.01

made of Z 303

L 930 × W 16 × H 32 mm

Beam

DFL 484-0950.01

made of Z 303

L 950 × B 16 × H 32 mm

Beam

DFL 484-1200.01

made of Z 303

L 1200 × W 16 × H 32 mm

Beam

DFL 484B6825.01

made of 303

L 682.5 × W 16 × H 32 mm

Beam

DFL 485B0738.01

made of Z 303

left

L 738 × W 16 × H 32 mm

Beam

DFL 485B1097.01

made of Z 303

left

L 1097 × W 16 × H 32 mm

Beam

DFL 485C0215.01

made of Z 303

right

L 215 × W 16 × H 32 mm

Beam

DFL 485C0574.01

made of Z 303

right

L 574 × W 16 × H 32 mm

Beam

DFL 485D0738.01

made of Z 303

right

L 738 × W 16 × H 32 mm

Beam

DFL 485D1097.01

made of Z 303

right

L 1097 × W 16 × H 32 mm

Beam

DFL 485E0215.01

made of Z 303

left

L 215 × W 16 × H 32 mm

Beam

DFL 485E0574.01

made of Z 303

left

L 574 × W 16 × H 32 mm

Glass retainer

M 1492.39

for glass 13.5 mm

L 67 × W 38 × H 55 mm

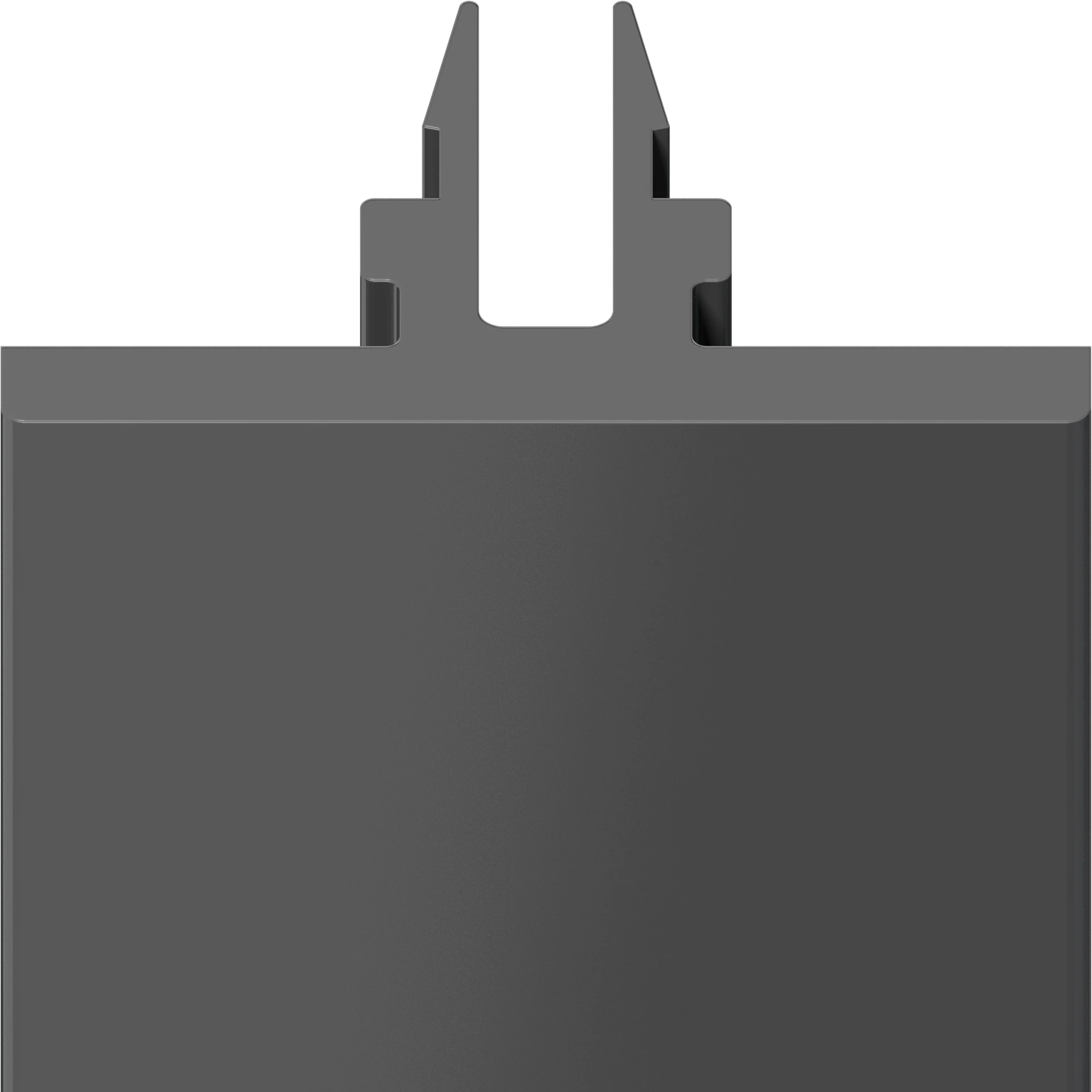

Cover extrusion

M 1844.35

for panel 4 mm

L 6000 × W 22 × H 7 mm

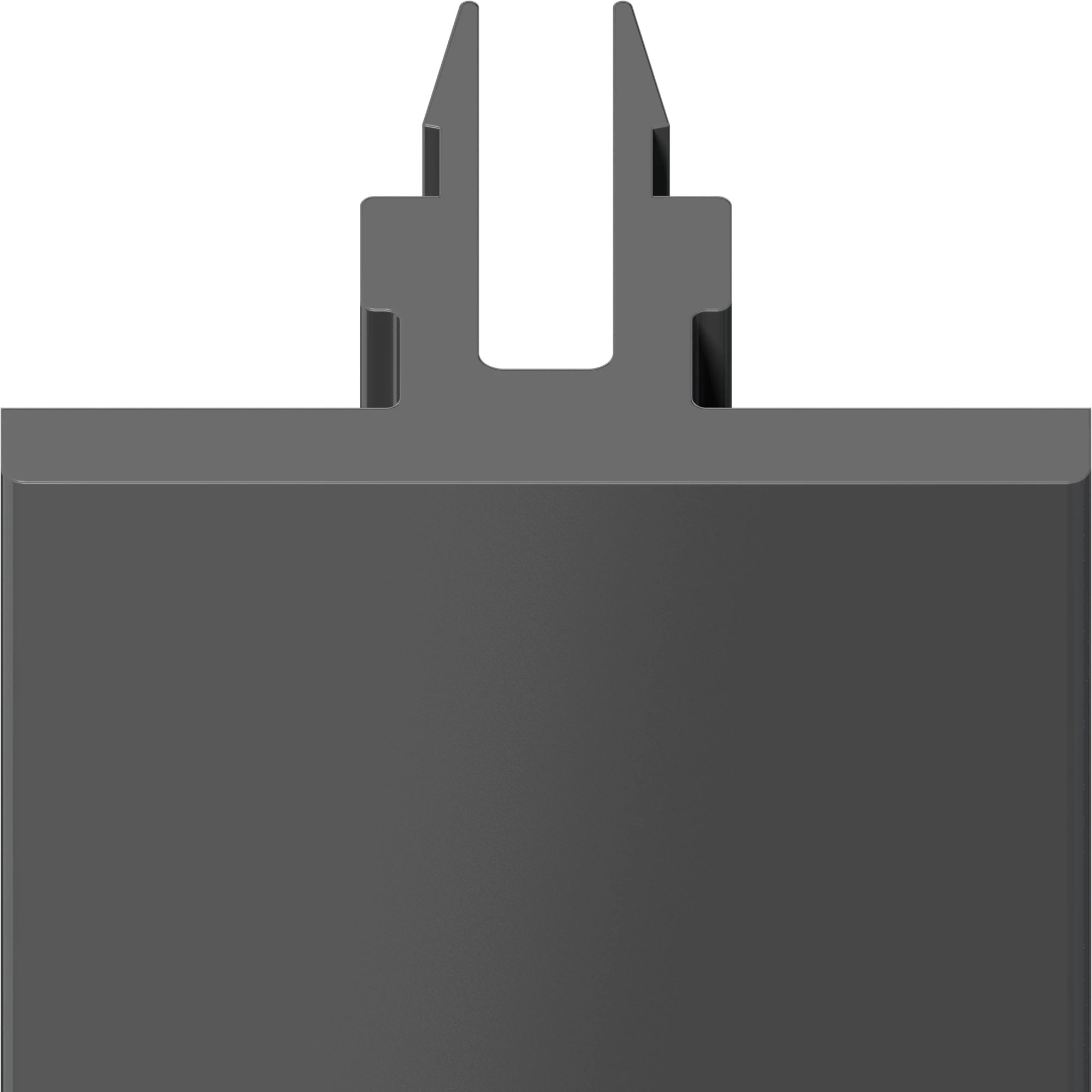

Cover extrusion

M 1846.35

for panel 6 mm

L 6000 × W 22 × H 9 mm

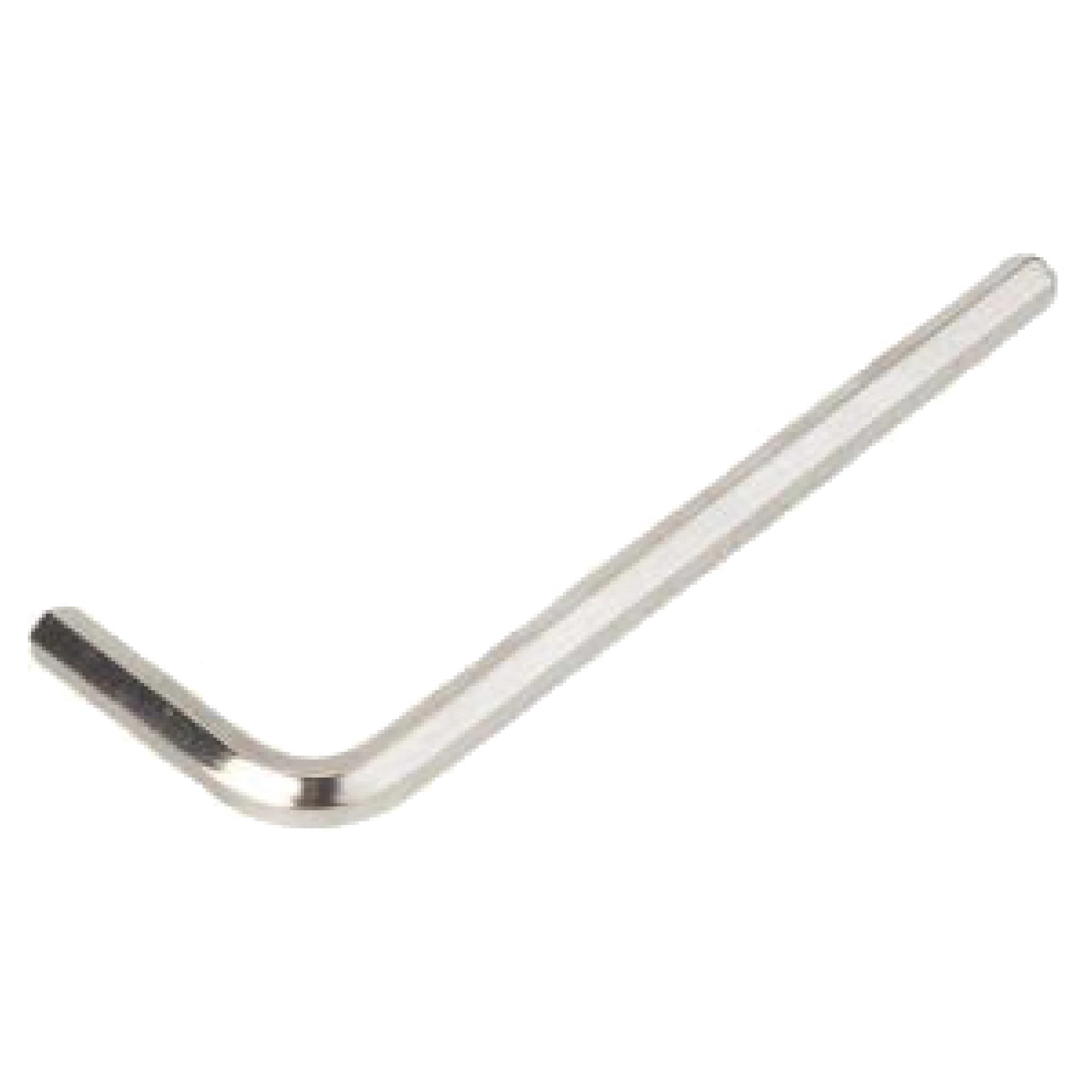

Hexagon wrench

DFL 590.90

A/F 7

190 mm long

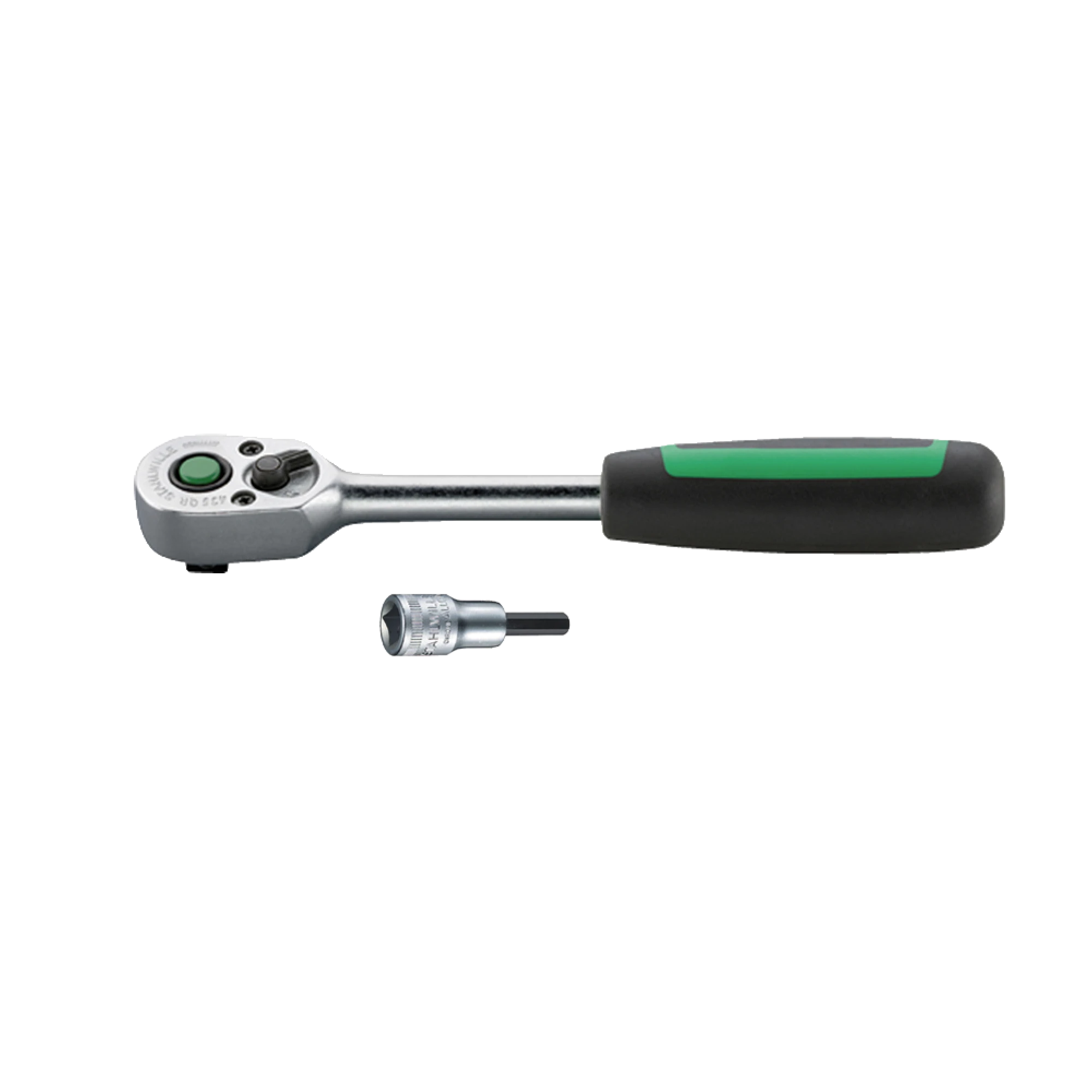

Ratchet

DFL 592.90

7 mm 3/8"

193 mm long
