Base plate | WP 2450.21

for frame elements
steel
for freestanding octawall pro frames, 3 different mounting positions possible, can be used right/left/center, with 1 × WP 2472 angle bracket and 1 × WP 2476 mounting accessories, max. frame height = 2500 mm
L 576 × W 192 × H 122 mm

Available Material

silver powder-coated (RAL 9006/IG-54.9006-54)
Order now.

!

max. frame height = 2500 mm

Technical Data.

Length:

576 mm

Weight:

5.699 kg

Width:

122 mm

Height:

192 mm

WP_2450.pdf
XWP_2450.pdf
WP_2450.dwg
WP_2450.dxf

Accessories.

WP 2476.37

Similar Products.

Base plate

WP 2460.21

short

for frame elements

L 328 × W 192 × H 122 mm

Product Brochures

AW 887 / General Catalog / July 2026

AW 7972 / octawall pro / July 2026

Technical Information

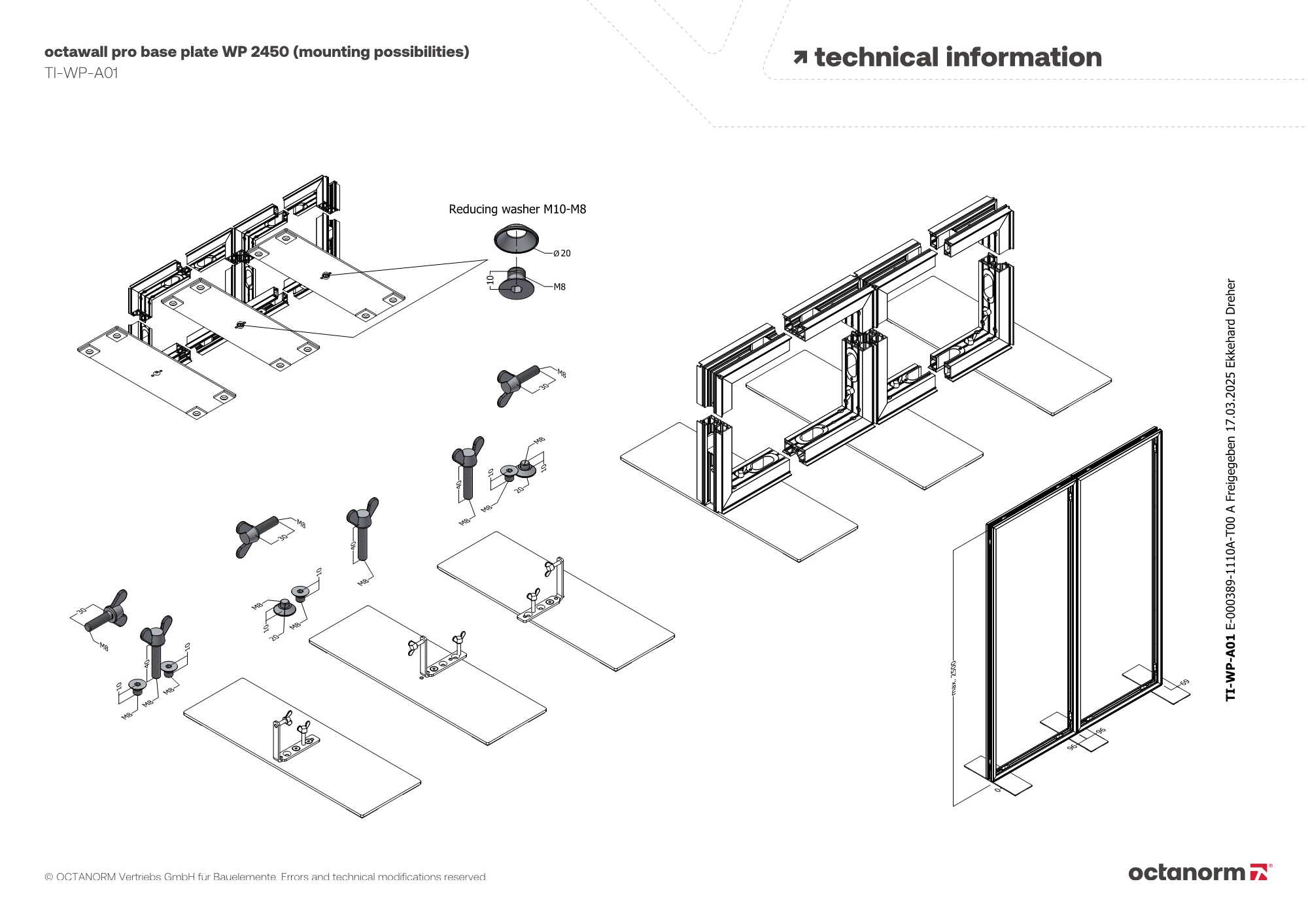

TI-WP-A01 / octawall pro base plate WP 2450 (mounting possibilities) / July 2025

Technical Info Brochures

AW 7972 T / octawall pro Technical Info / July 2026
