Square extrusion

M 1041.01

offen

L 6000 × W 120 × H 120 mm

6000 mm long

Adaptor

M 1102.00

with 2 × Z 961/13

for extrusions 120 mm

L 108 × W 22.5 × H 95 mm

Adaptor

M 1104/L.00

with 2 × Z 961/13

for extrusions 120 mm

L 108 × W 95 × H 95 mm

Adaptor

M 1104/R.00

with 2 × Z 961/13

for extrusions 120 mm

L 108 × W 95 × H 95 mm

Corner connector

M 1111.00

90°

for extrusions 120 × 120 mm

L 240 × W 240 × H 19.5 mm

Adaptor

M 1122.00

with 2 × Z 961/13

for extrusions 120 mm

L 108 × W 22.5 × H 95 mm

Adaptor

M 1124.00

with 2 × M 1161/R

for extrusions 120 mm

L 108 × W 19.5 × H 95 mm

Adaptor

M 1126.00

with 2 × M 1161/L

for extrusions 120 mm

L 108 × W 19.5 × H 95 mm

Internal connector

M 1133.00

straight

for 1000-3000 mm

L 92 × W 23 × H 720 mm

720 mm long

Safety tension lock

M 1161/L.90

left

lock chamber 39 × 12 mm

L 86.5 × W 38.5 × H 11,5 mm

Safety tension lock

M 1161/R.90

right

lock chamber 39 × 12 mm

L 86.5 × W 38.5 × H 11,5 mm

Knuckle

M 1410.01

for cable suspension

L 120 × W 120 × H 170 mm

Spigot tube

M 1419.00

square

for extrusions 120 × 120 mm

L 120 × W 120 × H 604 mm

Square extrusion

M 225.01

4 system grooves

L 5000 × W 120 × H 120 mm

5000 mm long

Square extrusion

M 226.01

L 6000 × W 120 × H 120 mm

6000 mm long

Corner upright extrusion

M 260.01

90° corner, round

L 6000 × W 120 × H 120 mm

Adaptor

E 185.01

for monitor 15" - 21"

L 120 × W 120 × H 16 mm

Screw eye

E 218.41

max. 45 kg

Opening 12.3 mm dia.

L 28 × W 22 × H 12 mm

Cover extrusion

M 1046.01

for extrusions M 1041

L 6000 × W 91 × H 11 mm

6000 mm long

Fixing angle

M 1107.21

for cable fixing

L 110 × W 60 × H 110 mm

Fixing angle

M 1117.37

for extrusions 80/120 mm

L 80 × W 60 × H 40 mm

Distance piece

M 1146.01

with 2 × M 1142

L 40 × W 24 × H 24 mm

40 mm long

Connector part

M 1172.37

max. 150 kg

for rope suspension

L 136 × W 66 × H 50 mm

Connector part

M 1174.37

max. 100 kg

for rope suspension

L 76 × W 66 × H 8 mm

Screw eye

M 1233.37

max. 35 kg

Opening 20 mm dia.

L 36 × W 20 × H 36 mm

Cover extrusion

M 1368.01

for extrusions 120 mm

L 5000 × W 121 × H 6 mm

5000 mm long

Base plate

M 1426.21

for extrusions 120 mm

L 450 × W 450 × H 250 mm

Connector part

M 1435.00

incl. 2 × M 1435/70

L 50 × W 56 × H 40 mm

End plate

M 261.21

for 80 mm extrusions

for M 260

L 120 × W 120 × H 6 mm

End plate

M 271.21

for 120 mm extrusions

for M 260

L 120 × W 120 × H 6 mm

End plate

M 274.21

for extrusions 120 × 120 mm

L 121 × W 121 × H 3 mm

Adjustable foot

M 285.37

for extrusions 120 × 120 mm

L 123 × W 123 × H 74 mm

Internal connector

Z 910.01

with 2 × Z 961/13

L 62 × W 16 × H 50 mm

Beam retainer

M 1105.00

with set screw M 1105/20

L 75 × W 52 × H 16 mm

Beam retainer

M 1106.37

for M 1102 / M 1104/L/R

L 38 × W 14 × H 14 mm

38 mm long

Beam retainer

M 1108.37

for adaptor M 1101 / M 1103

L 27 × W 10 × H 10 mm

27 mm long

Corner bracing

M 1112.21

with 2 × M 1142

L 240 × W 160 × H 25 mm

Beam retainer

M 1125.37

for extrusion M 1041

L 56 × W 16 × H 22 mm

Reinforcement

M 1129.37

with 3 × M 1435/70

L 102.6 × W 8 × H 102.6 mm

Reinforcing plate

M 1134.21

with 6 × M 1473

for extrusions 120 × 120 mm

L 280 × W 280 × H 6 mm

Reinforcement

M 1139.37

with 4 × M 1435/70

L 300 × W 8 × H 300 mm

Anti-slipping device

M 1141.37

with 3 × M 1473

L 120 × W 25 × H 6 mm

Reinforcement

M 1150.37

with 2 × M 1435/70

L 67.6 × W 8 × H 67.6 mm

Reinforcing plate

M 826.00

with set screw M 826/S

small

L 16 × W 10 × H 6 mm

Door cylinder

W 514.38

for W 425 / W 575 / W 805

L 61 × W 42 × H 28 mm

Threshold plate

W 524.37

for axis measurement 990 mm

for W 510/Z / W 580/Z

L 1140 × W 50 × H 5 mm

Door Mounting Set

W 575-120.01

for door W 575

integration into 120 mm

L 60 × W 32 × H 60 mm

Door set

W 575-SET.01

for 40/80/120 mm

W 950 × H 2500 × D 40 mm

Door

W 575So.01

for 40/80/120 mm

40 mm, custom size

Door set

W 580-Set.30

Set right

W 860 × H 1985 × D 39 mm

Door frame

W 580/Z.01

for door panel W 580 / W 581

W 950 × H 2030 × D 16 mm

Door set

W 581-Set.30

Set left

W 860 × H 1985 × D 39 mm

Glass panel retainer

E 420.30

for glass 4-8 mm

L 5000 × W 16 × H 16.5 mm

5000 mm long

Glass panel retainer

E 420.33

for glass 4-8 mm

L 5000 × W 16 × H 16.5 mm

5000 mm long

Glass panel retainer

E 420.35

for glass 4-8 mm

L 5000 × W 16 × H 16.5 mm

5000 mm long

Glass panel retainer

E 424.30

for glass 4-6 mm

L 5000 × W 16 × H 10 mm

5000 mm long

Glass panel retainer

E 424.35

for glass 4-6 mm

L 5000 × W 16 × H 10 mm

5000 mm long

Tension fabric extr.

M 1319.35

for system groove 4.3 mm

for single sided fabric

L 6000 × W 15 × H 20 mm

6000 mm long

Tension fabric extr.

M 1321.01

45°

for single sided fabric

L 6000 × W 43 × H 20 mm

6000 mm long

Tension fabric extr.

M 1322.01

for single sided fabric

L 6000 × W 28.5 × H 20 mm

6000 mm long

Tension fabric extr.

M 1322/E.01

90° outer corner

for single sided fabric

L 6000 × W 48.5 × H 27.8 mm

6000 mm long

Tension fabric extr.

M 1322/I.01

90° internal corner

for single sided fabric

L 6000 × W 56.3 × H 27.8 mm

Tension fabric extr.

M 1330.01

for double sided fabric

L 6000 × W 120 × H 9 mm

Retainer

M 1339.37

for extrusions 80/120 mm

for fixing set M 1348

L 70.7 × B 28 × H 10 mm

Fixing set

M 1345.37

for M 1310/M 1325/M 1330

L 28 × W 24 × H 24 mm

Fixing set

M 1348.37

for M 1321 / M 1322/E/I

L 21 × W 24 × H 24 mm

Panel retainer

M 1391.90

for glass 5-6 mm

for panel max. 10 mm

L 30 × W 30 × H 8 mm

Panel retainer

M 1392.90

for glass 8-10 mm

for panel max. 14 mm

L 30 × W 30 × H 8 mm

Glass retainer

M 1445.39

for glass 8 mm

L 38 × W 23 × H 52 mm

Glass retainer

M 1447.39

for glass 10 mm

L 45 × W 27.5 × H 63 mm

Glass retainer

M 1467.39

for glass 12 mm

L 45 × W 27.5 × H 63 mm

Glass retainer

M 1492.39

for glass 13.5 mm

L 67 × W 38 × H 55 mm

Hinged flange plate

M 1270.21

for 78 mm dia.

for system groove 4.3 mm

L 109 × W 78 × H 60 mm

Hinged flange plate

M 1271.21

for 78 dia.

for system groove 4.3 mm

L 102 × W 82 × H 82 mm

Covering

M 1278.35

for 78 mm dia.

1 pair

L 25 × W 80 × H 80 mm

Anti-slipping device

M 1299.33

for 78 mm dia.

L 70 × W 70 × H 0.6 mm

Hinged set

M 1457.39

for system groove 4.3 mm

L 24 × W 24 × H 74 mm

Cable retaining

E 460.30

small

for system groove 4.3 mm

L 5000 × W 16 × H 20 mm

Cable retaining

E 460.35

small

for system groove 4.3 mm

L 5000 × W 16 × H 20 mm

Cable retaining

E 463.35

big

for system groove 4.3 mm

L 5000 × W 30 × H 30 mm

5000 mm long

Retainer

M 1481.01

for long-arm floodlight M 1498

L 26 × W 35 × H 16 mm

Connecting cable

M 1494-1000.33

for M 1494

1000 mm long

Connecting cable

M 1494-2000.33

for M 1494

2000 mm long

Connecting cable

M 1494-3000.33

for M 1494

3000 mm long

Long-arm floodlight

M 1494.31

25 W

L 490 × W 232 × H 40 mm

Long-arm floodlight

M 1494.33

25 W

L 490 × W 232 × H 40 mm

Extension cable

M 1497-1.33

for wallwasher M 1497

3000 mm long

Power supply

M 1497-11.90

for wallwasher M 1497

L 1175 × W 72 × H 35 mm

Cable

M 1497-12.90

for wallwasher M 1497

2500 mm long

Cable

M 1497-3.90

Y-Splitter

for wallwasher M 1497

300 mm long

PWM Dimmer

M 1497-4.90

for wallwasher M 1497

L 150 × W 40 × H 20 mm

Hanging lamp

M 1497-H.33

LED / 56W / 230V

L 818 × W 150 × H 35 mm

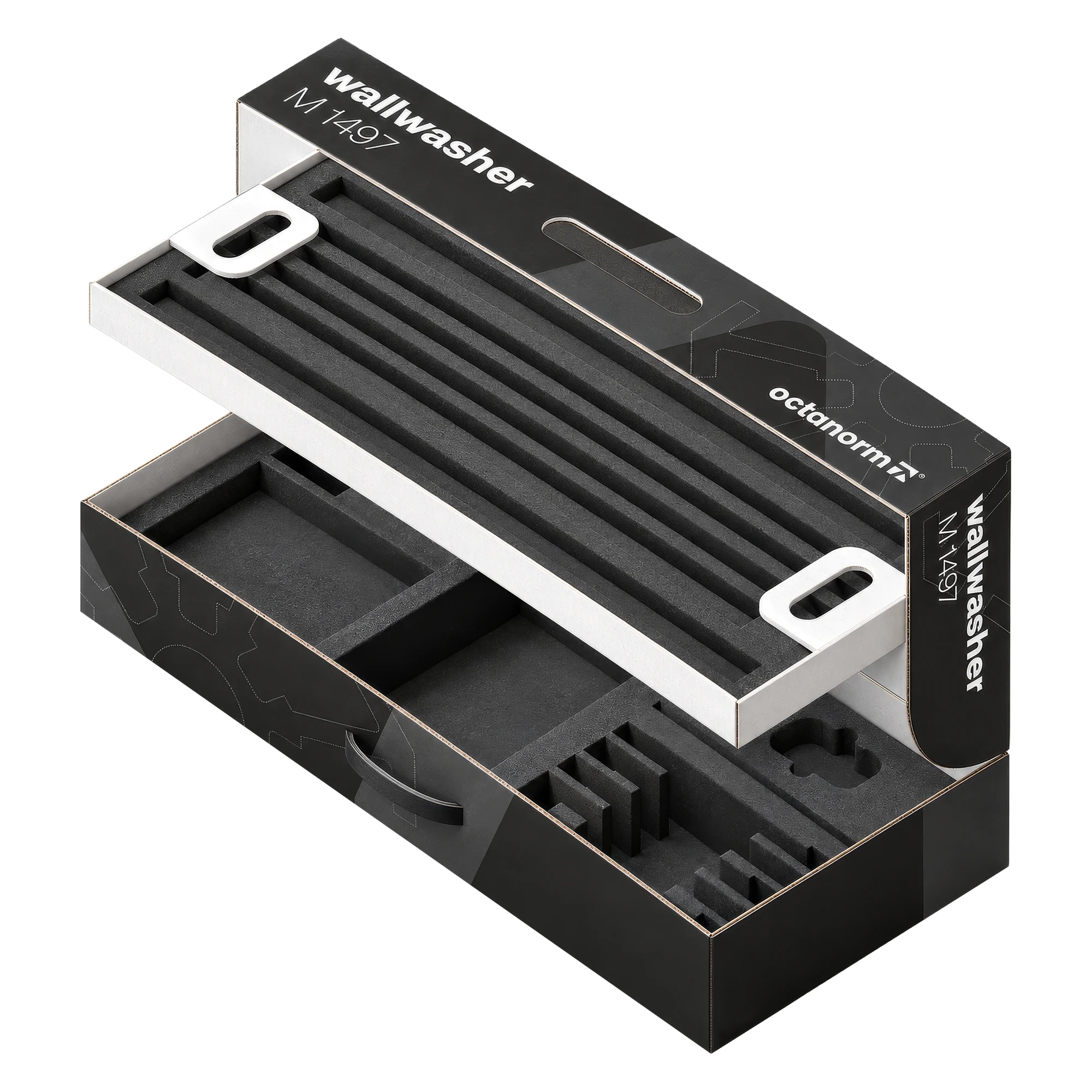

Wallwasher

M 1497.31

LED / 28W / 230V

L 812 × W 166 × H 263 mm

Wallwasher

M 1497.33

LED / 28W / 230V

L 812 × W 166 × H 263 mm

Long-arm floodlight

M 1498.31

LED / 12W / 230V

L 535 × W 119 × H 250 mm

Pendant light

OL 3100.01

1 illuminated side

L 1000 × W 80 × H 80 mm

Pendant light

OL 3100.03

1 illuminated side

L 1000 × W 80 × H 80 mm

Pendant light

OL 3200.01

1 illuminated side

L 2000 × W 80 × H 80 mm

Pendant light

OL 3200.03

1 illuminated side

L 2000 × W 80 × H 80 mm

Pendant light

OL 3300.01

1 illuminated side

L 3000 × W 80 × H 80 mm

Pendant light

OL 3300.03

1 illuminated side

L 3000 × W 80 × H 80 mm
