Screw eye | M 1233.37

Opening 20 mm dia.
steel
for system groove 4.3 mm, opening 20 mm dia., consists of 1 × hammer head screw (M8) M 1470/Ha and 1 × eye nut (M8) M 1401/21
L 36 × W 20 × H 36 mm

Available Material

zinc-plated

!

max. load capacity 35 kg

Technical Data.

Length:

36 mm

Weight:

0.061 kg

Width:

20 mm

Height:

36 mm

M_1233.pdf
M_1233_03.dwg
M_1233_03.dxf

Similar Products.

Fixing set

M 1147.37

for M 1140

L 31 × W 24 × H 10 mm

Fixing set

M 1369.37

for banner

L 140 × W 80 × H 20 mm

Technical Informations.

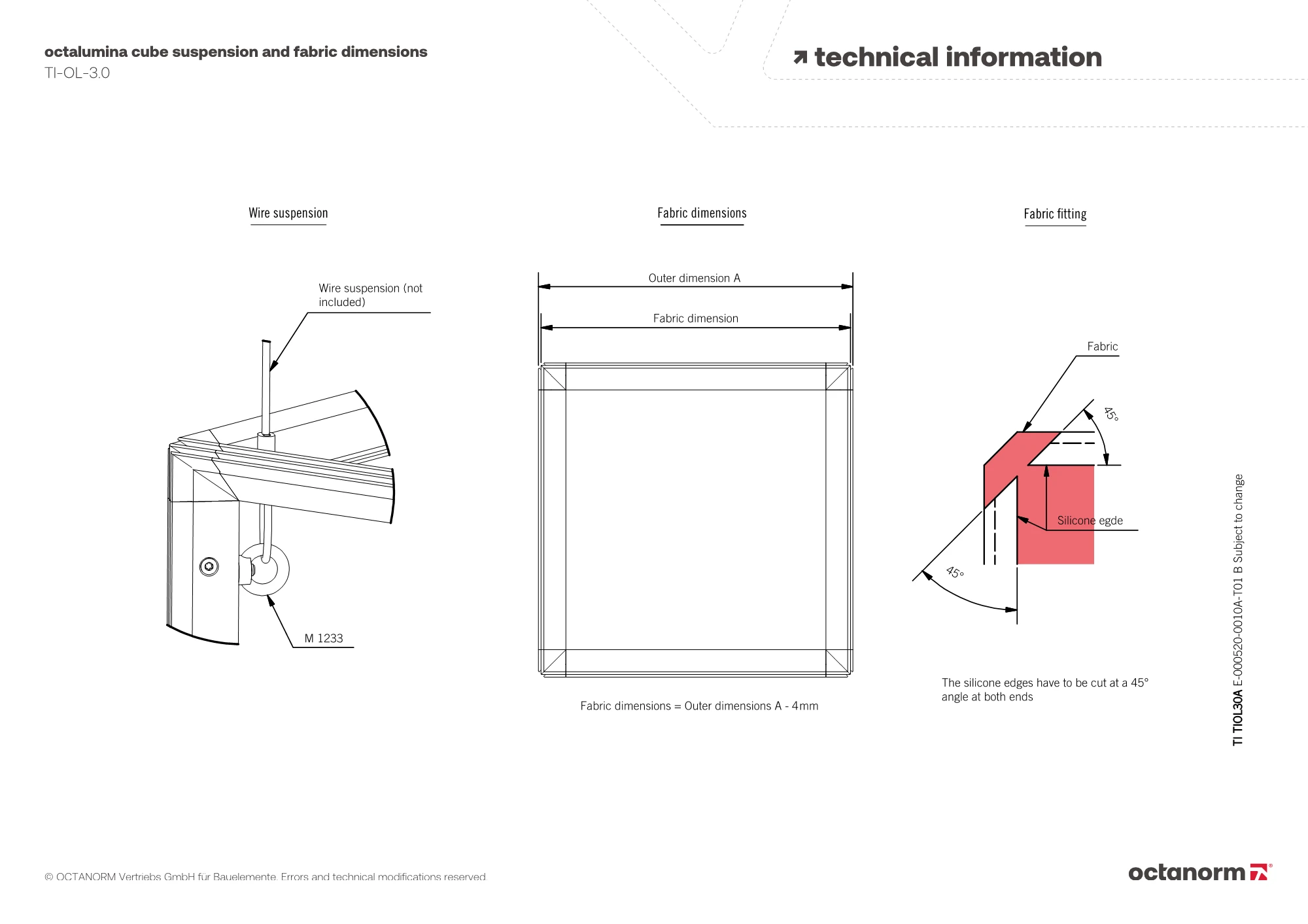

octalumina kubus suspension and fabric dimensions

TI-OL-3.0 TI-OL-3.0

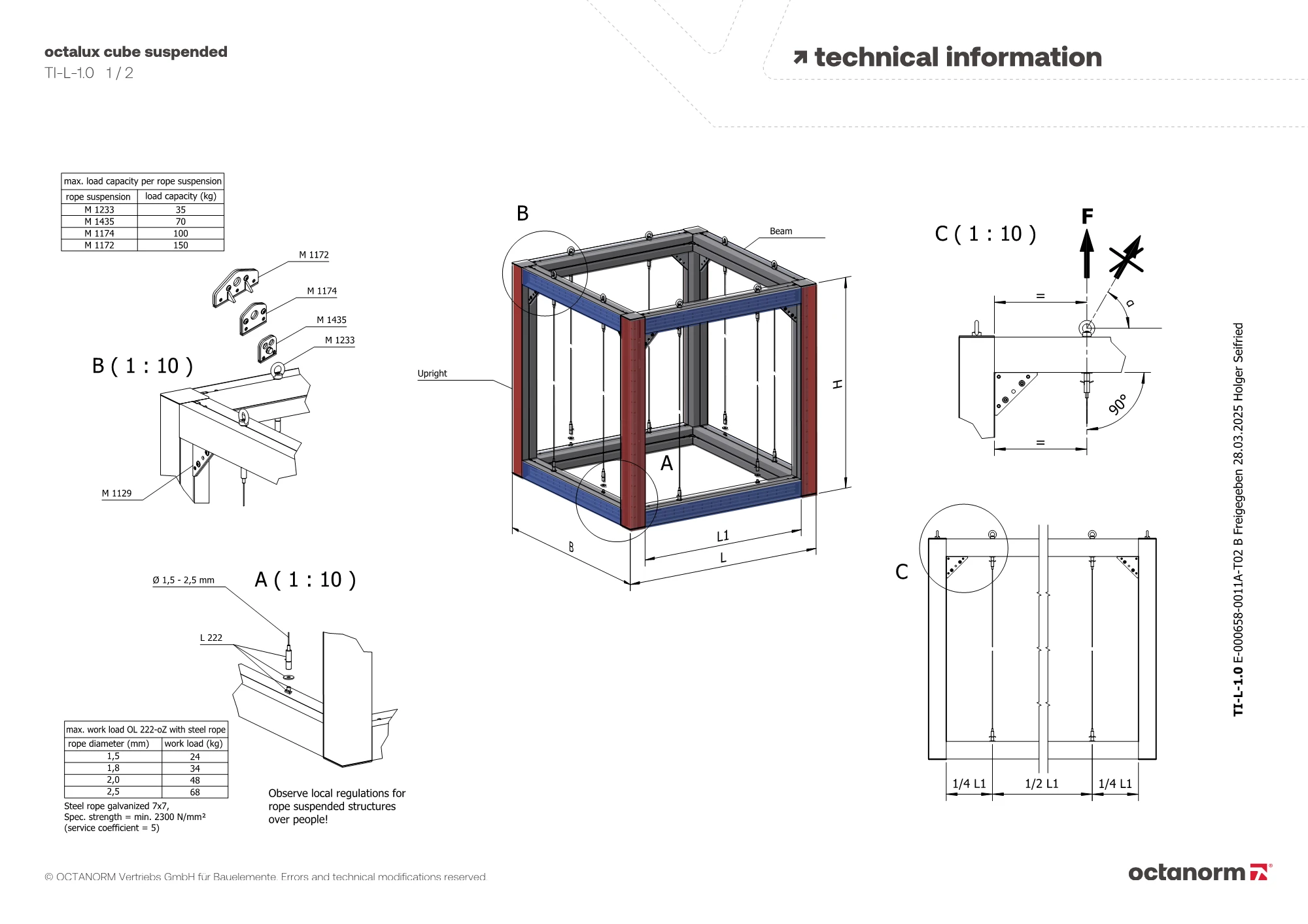

octalux cube suspended

TI-L-1.0 TI-L-1.0
