Tension fabric extr. | M 1305.01

for double sided fabric

aluminium

for double sided fabric (with silicone edge M 1313), with 4 grooves to fix fabric, tension lock Z 961/8 can be mounted in 2 positions

L 6000 × W 40 × H 40 mm

Available Material

matt anodized, silver (E6/EV1)

Technical Data.

Length:

6000 mm

Weight:

8.234 kg

Width:

40 mm

Height:

40 mm

M_1305.pdf

M_1305.dwg

M_1305.dxf

XM_1305.pdf

Accessories.

Adjustable foot

M 1016.37

for extrusions 40 × 40 mm

L 43 × W 43 × H 94 mm

Silicone edge

M 1313.50

100 meter roll

for fabric

W 14 × H 3 mm

Base plate

M 1941.21

side

L 495 × W 170 × H 301 mm

Base plate

M 1943.21

middle

L 495 × W 170 × H 12 mm

Base plate

M 1961.21

side

L 320 × W 250 × H 301 mm

Base plate

M 1963.21

middle

L 320 × W 250 × H 12 mm

Tension lock

Z 961/8.00

8 mm

L 70 × W 20 × H 12 mm

Technical Informations.

Base plate M 1347, M 1408 for moveable wall

TI-M-60.0 TI-M-60.0

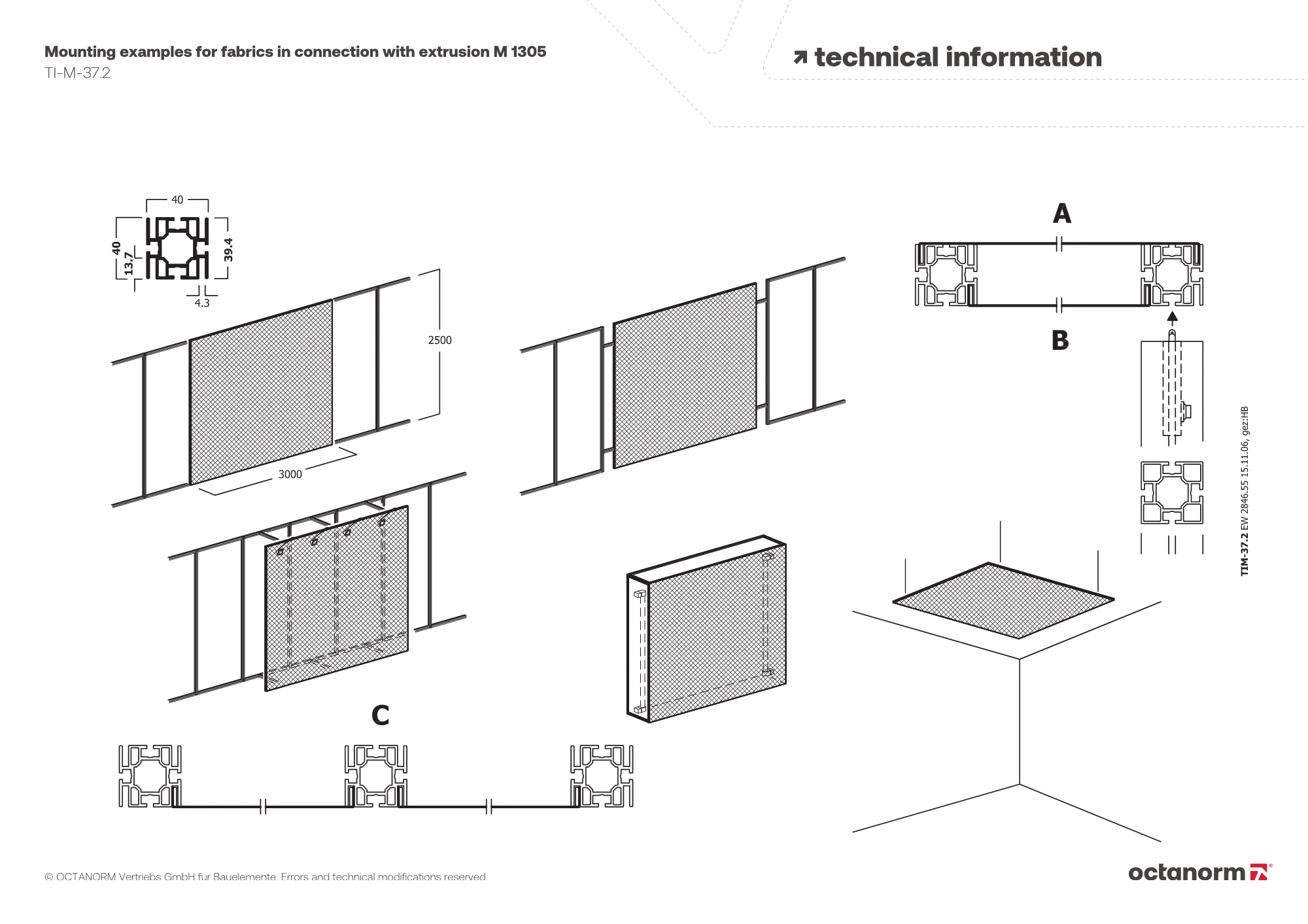

Mounting examples for fabrics in connection with extrusion M 1305

TI-M-37.2 TI-M-37.2
